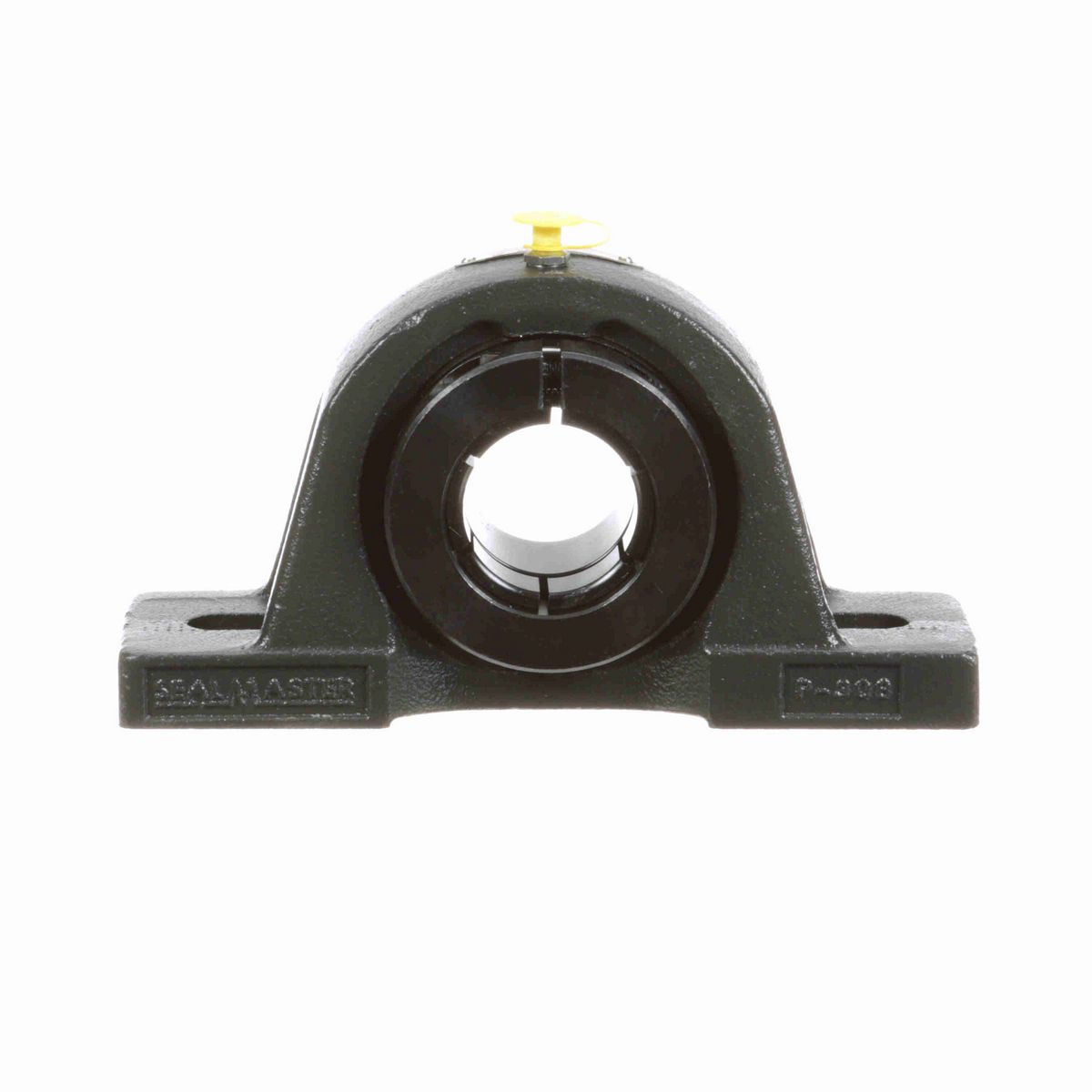

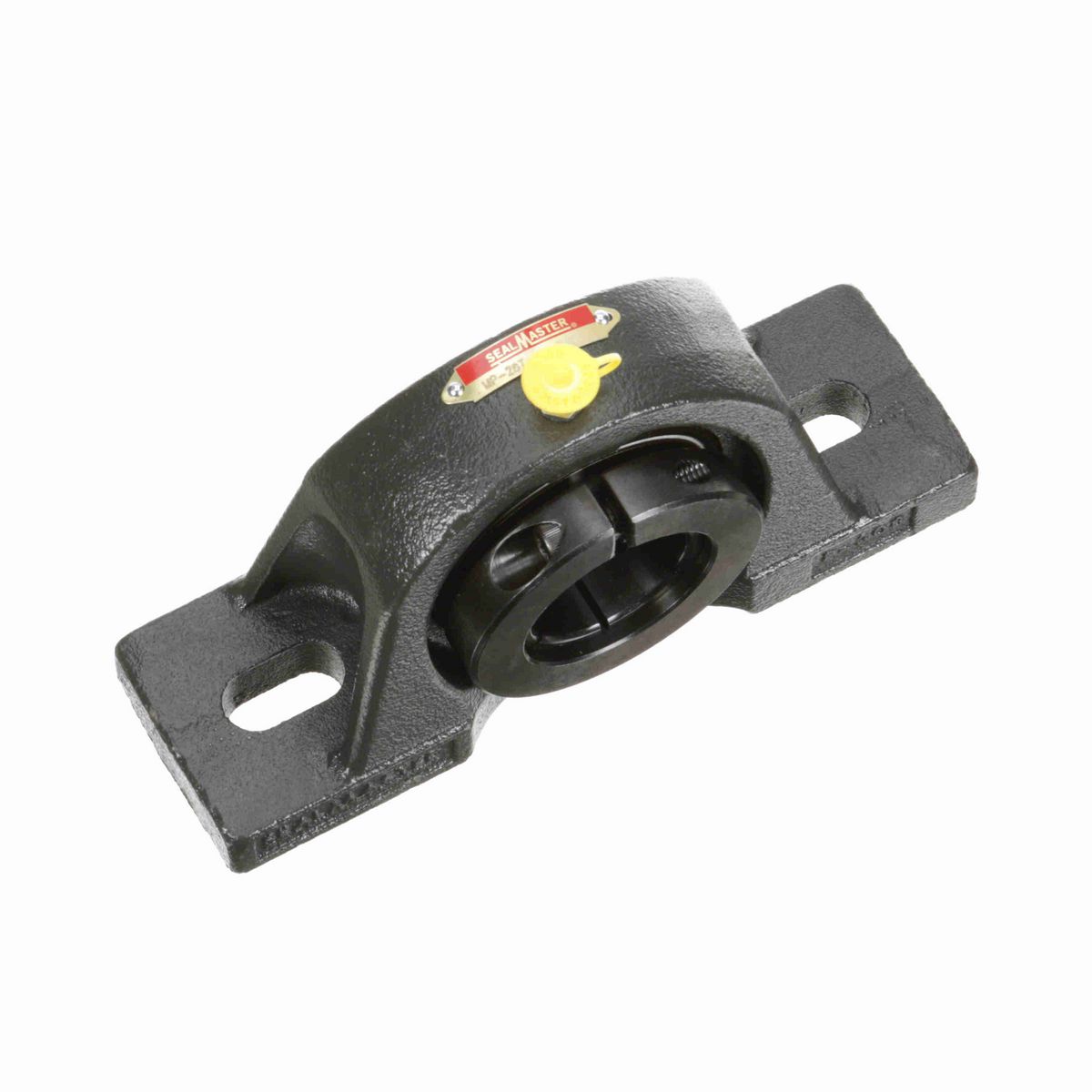

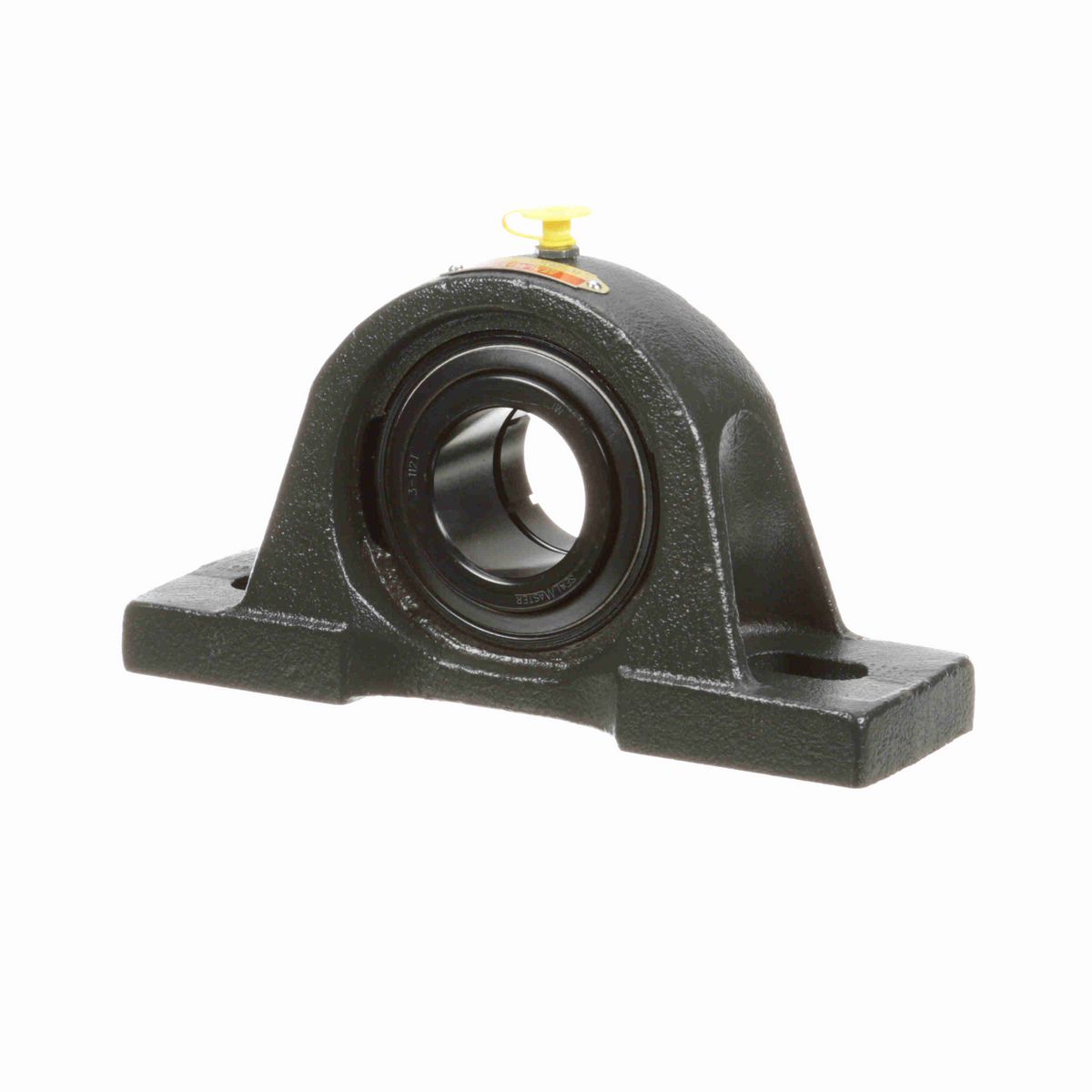

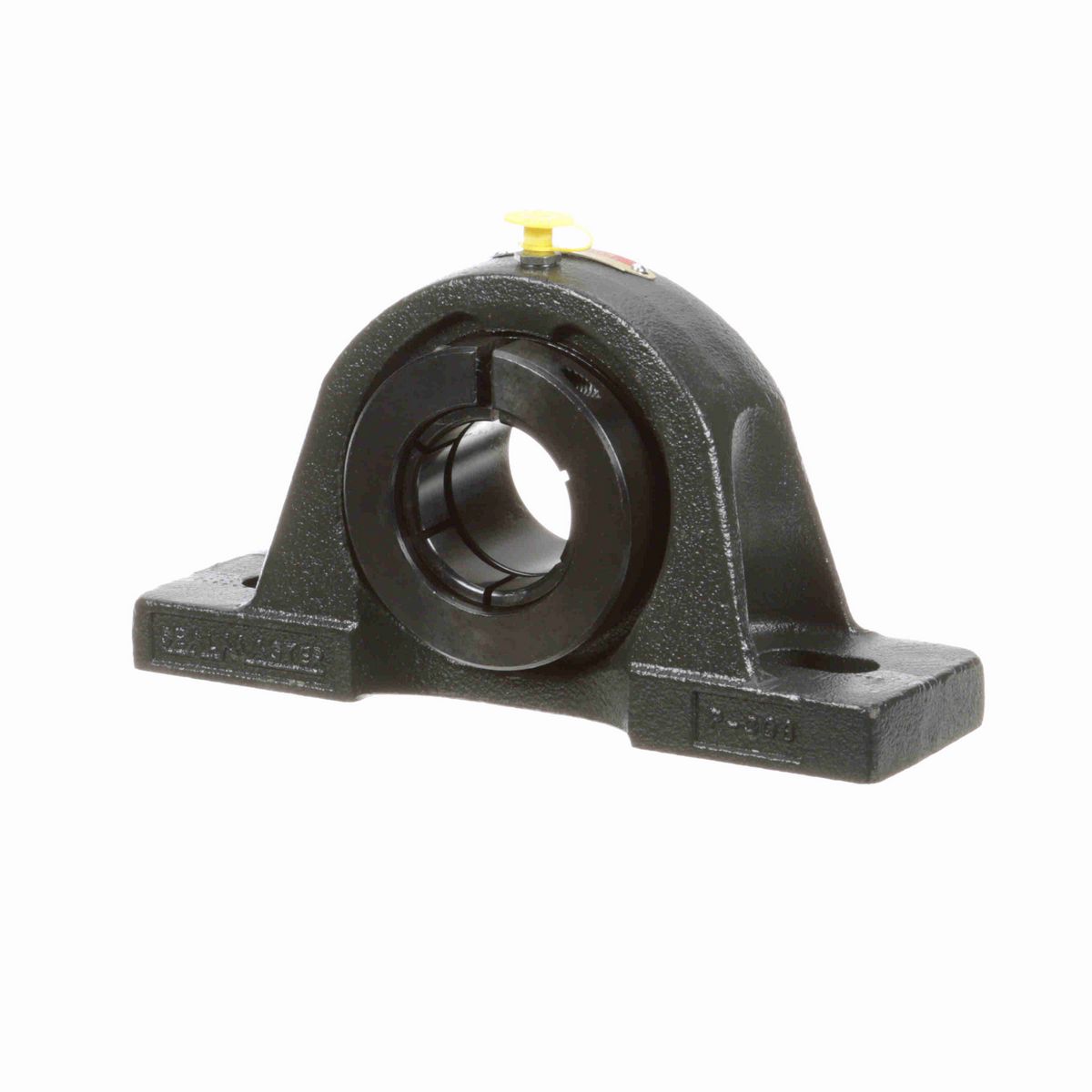

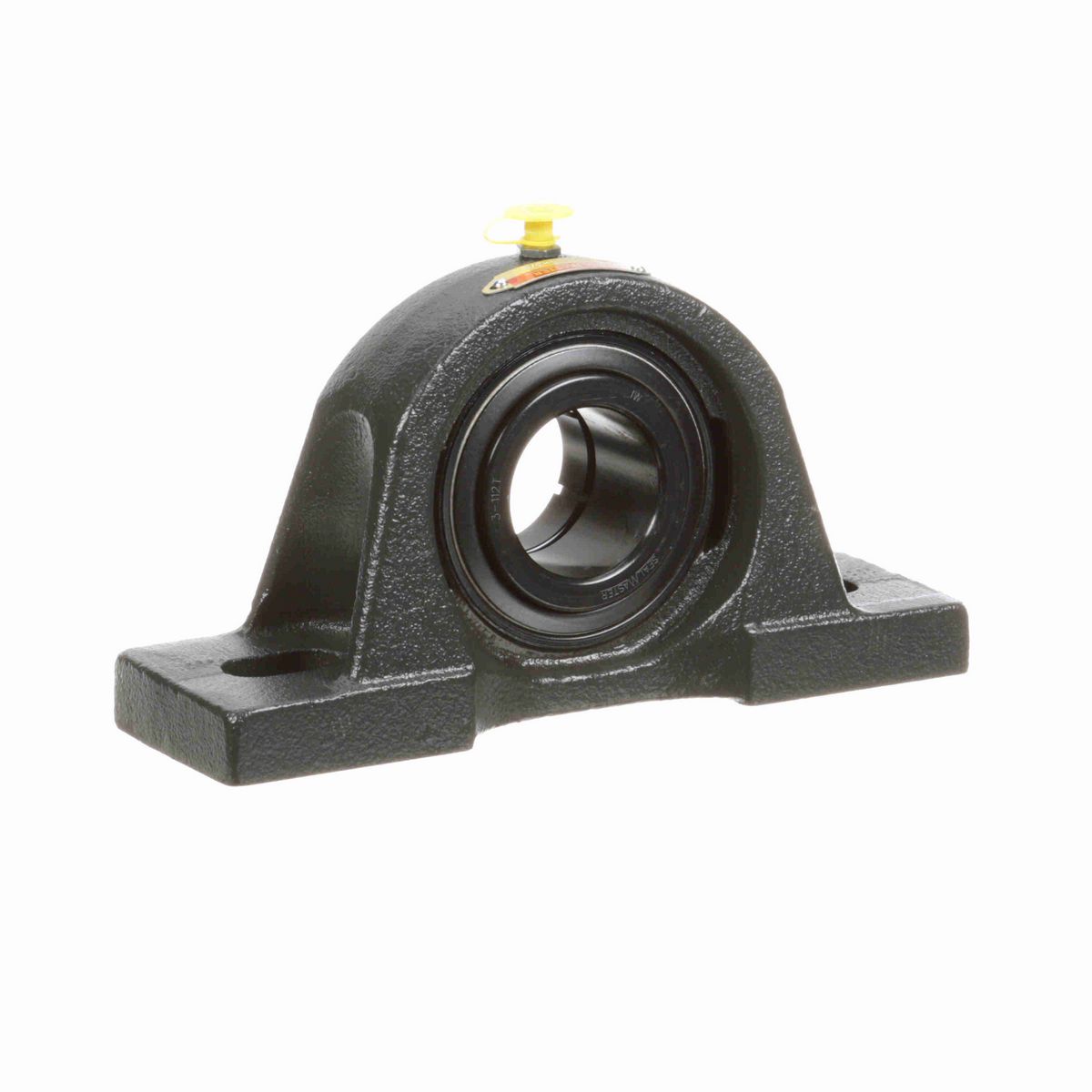

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Base Width (in)	2.63 in
Overall Height (in)	4.63 in
Overall Width (in)	2.63 in
Overall Length (in)	8.75 in
Bolt Size (in)	5/8 in
Bore Diameter (in)	1.75 in
Foot Height (in)	0.81 in
Base to Center Height (in)	2.5000 in
Length Through Bore (in)	2.09 in
Bolt Spacing Min (in)	5.44 in
Centerline to Outermost Bearing Face (in)	1.34 in
Bolt Spacing Max (in)	6.81 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Pillow Block, Two Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	3.35 in
Ability to Relubricate	Yes
Max Operating Temperature (F)	220 °F
Lubricant	Lithium Complex NLGI 2 Grease
Housing Coating	Powder Coated
Vibration Frequency Roller Spin	0.0445 cps
End Cap Available	No
Fixed vs. Expansion	Fixed
Inner Ring Outside Diameter (in)	2.469 in
Maximum Speed (RPM)	5000 rpm
Radial Clearance	Standard
Grease Fitting Thread Size	1/8 NPT
Housing Material	Cast Iron
Cage Type	Land Riding Retainer
Size Code	2-115
Insert	3-112T
Vibration Frequency Inner Ring Defect	0.0984 cps
Bearing Insert Finish	Black Oxide
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Fundamental Train	0.0068 cps
Dynamic Load Rating (lb)	7,889 lb
Vibration Frequency Outer Ring Defect	0.0683 cps
Bearing Insert Material	52100 Bearing Steel
Static Load Rating (lb)	5,216 lb
Base Length (in)	9.50 in
Shaft Locking Type	Concentric
Bearing Type	Medium Duty

General Specifications

UPC	662461031872
Weight	9.75 LB
Packaged Length	5.94 IN
Packaged Width	8.88 IN
Packaged Height	2.63 IN
HTC	8483.20.8040
Country of Origin	United States of America
