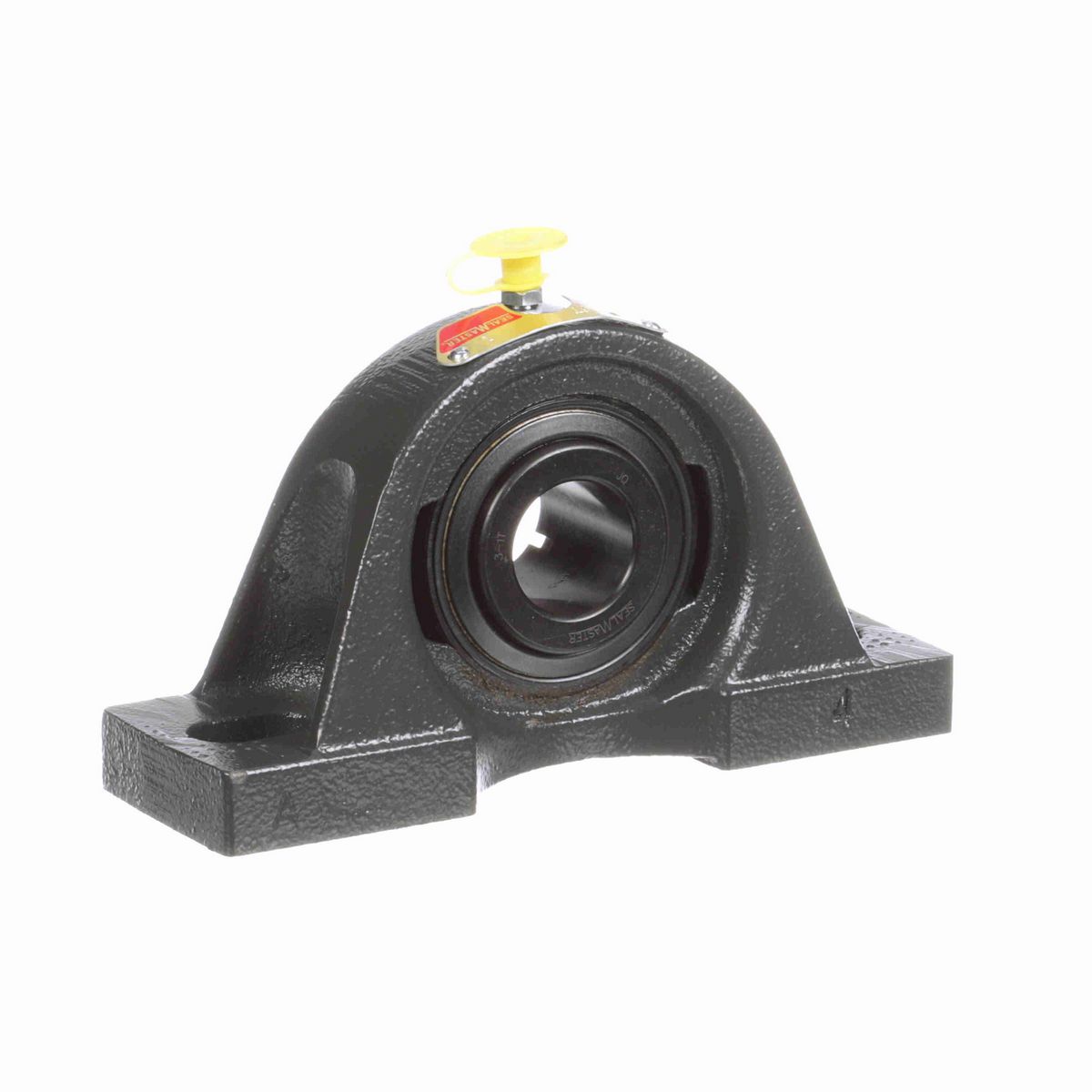

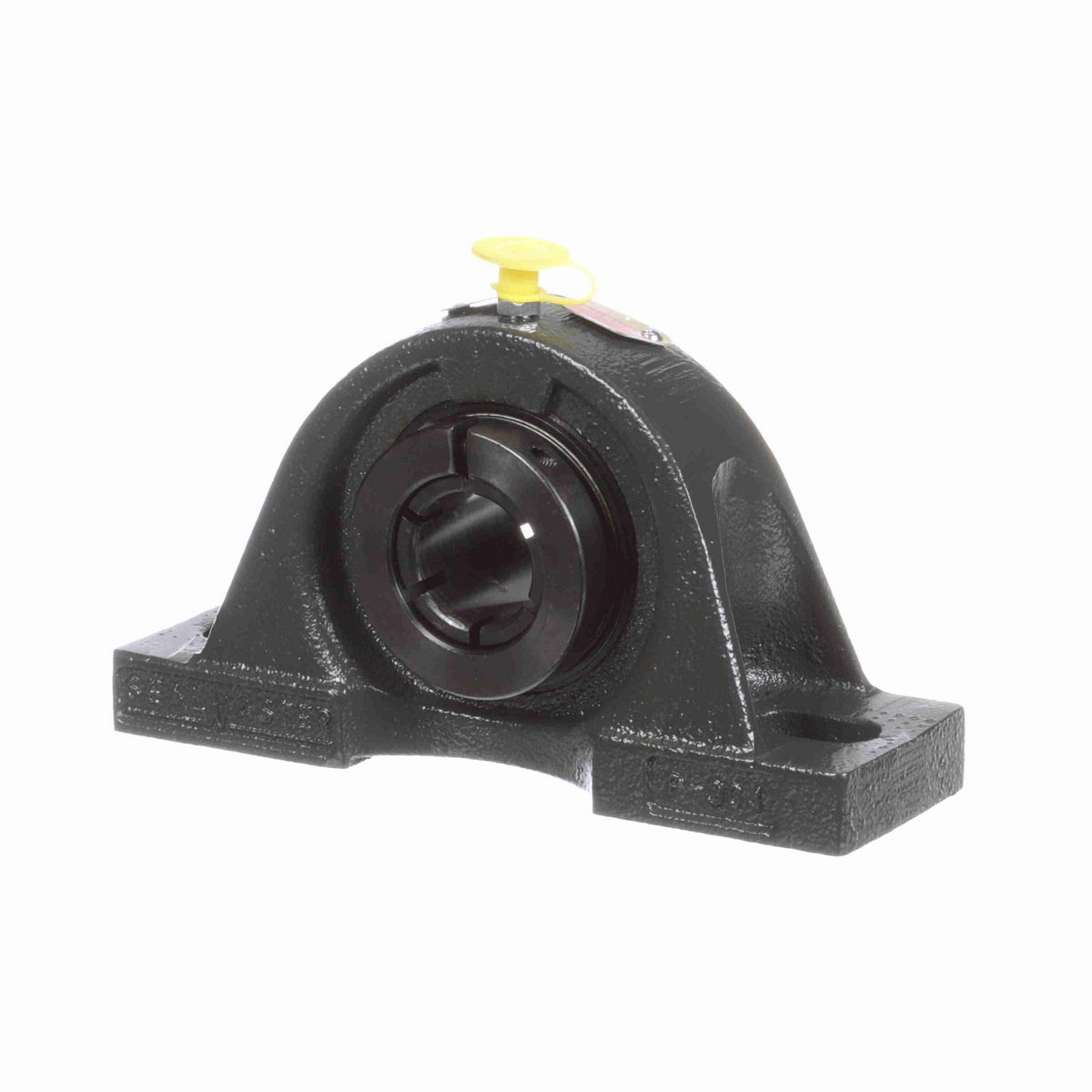

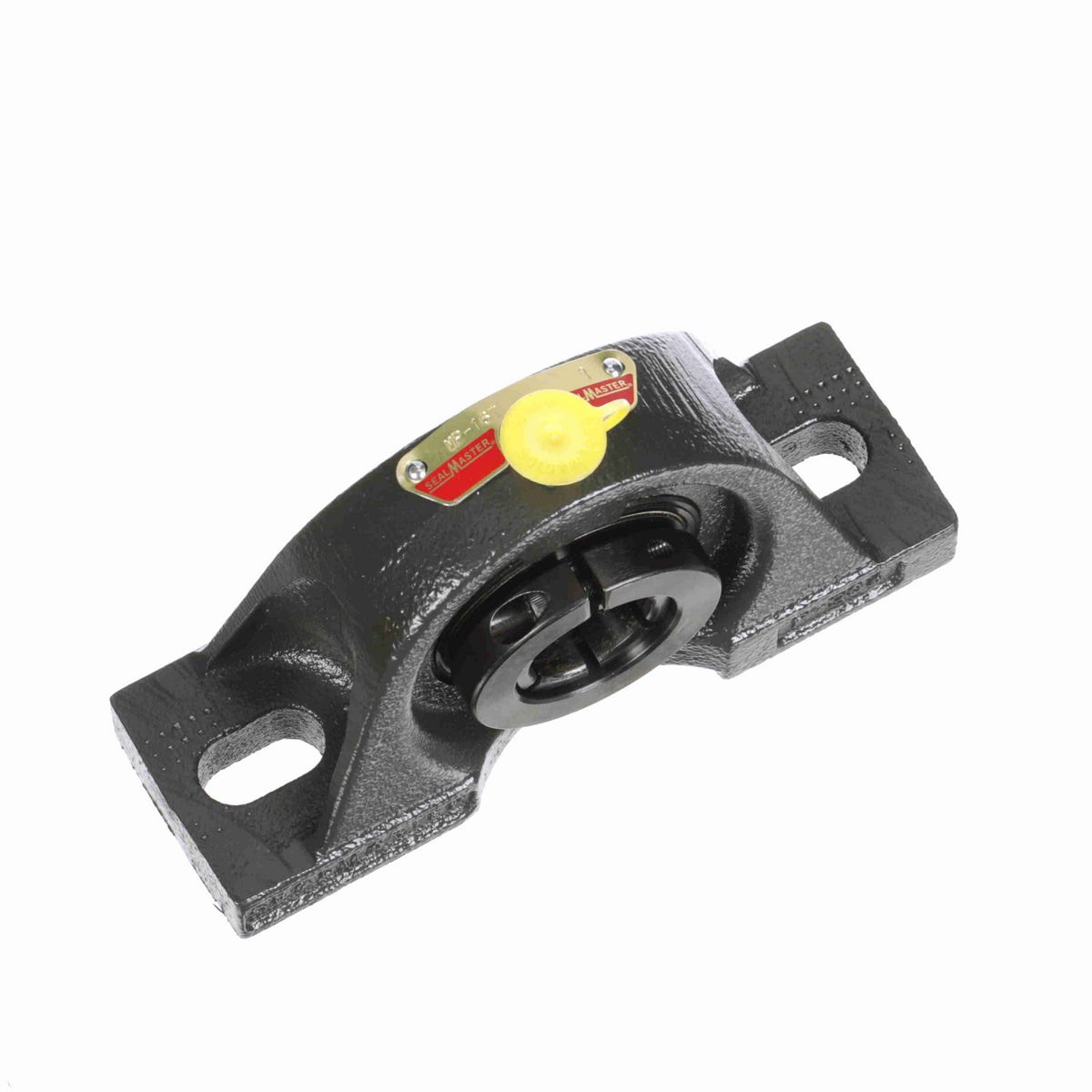

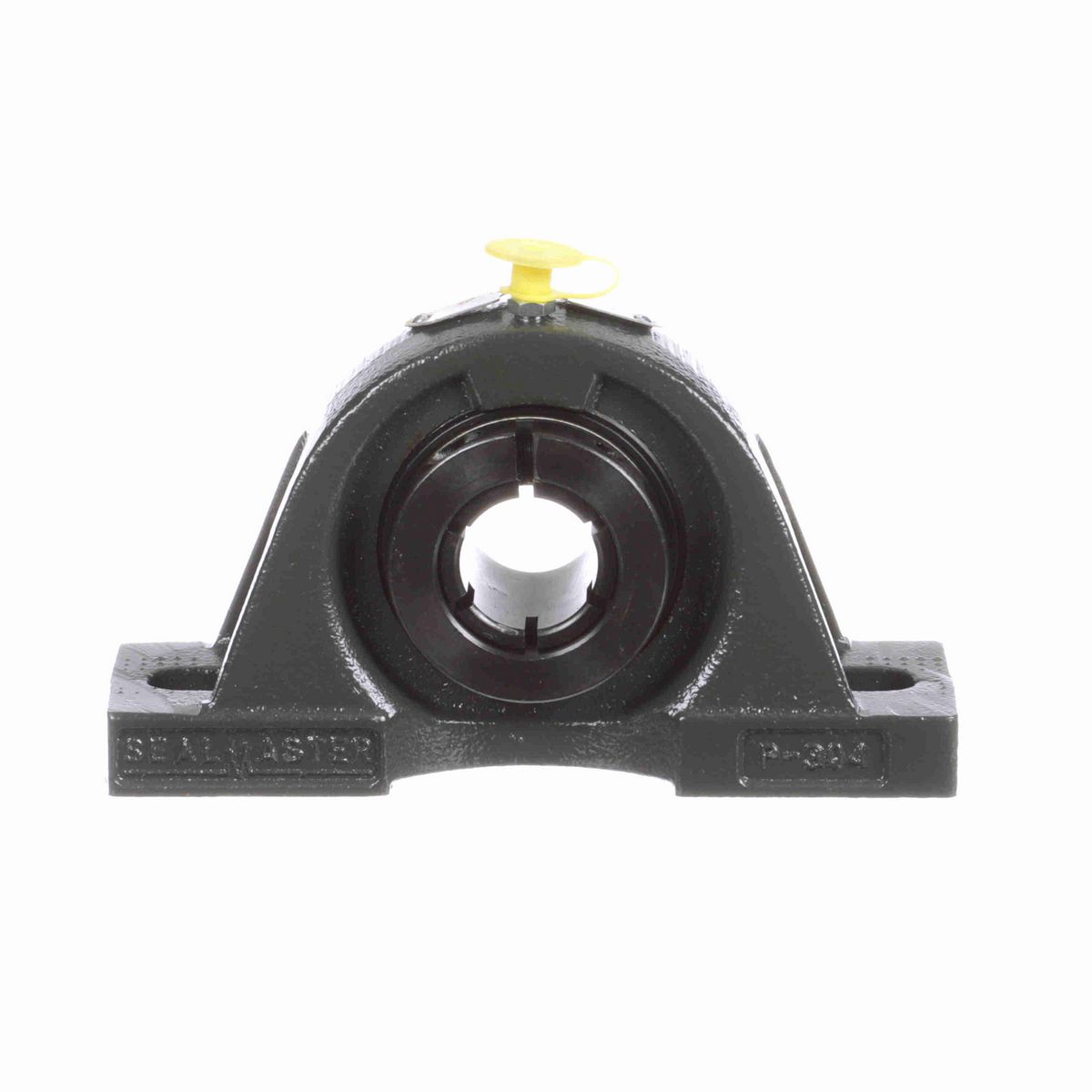

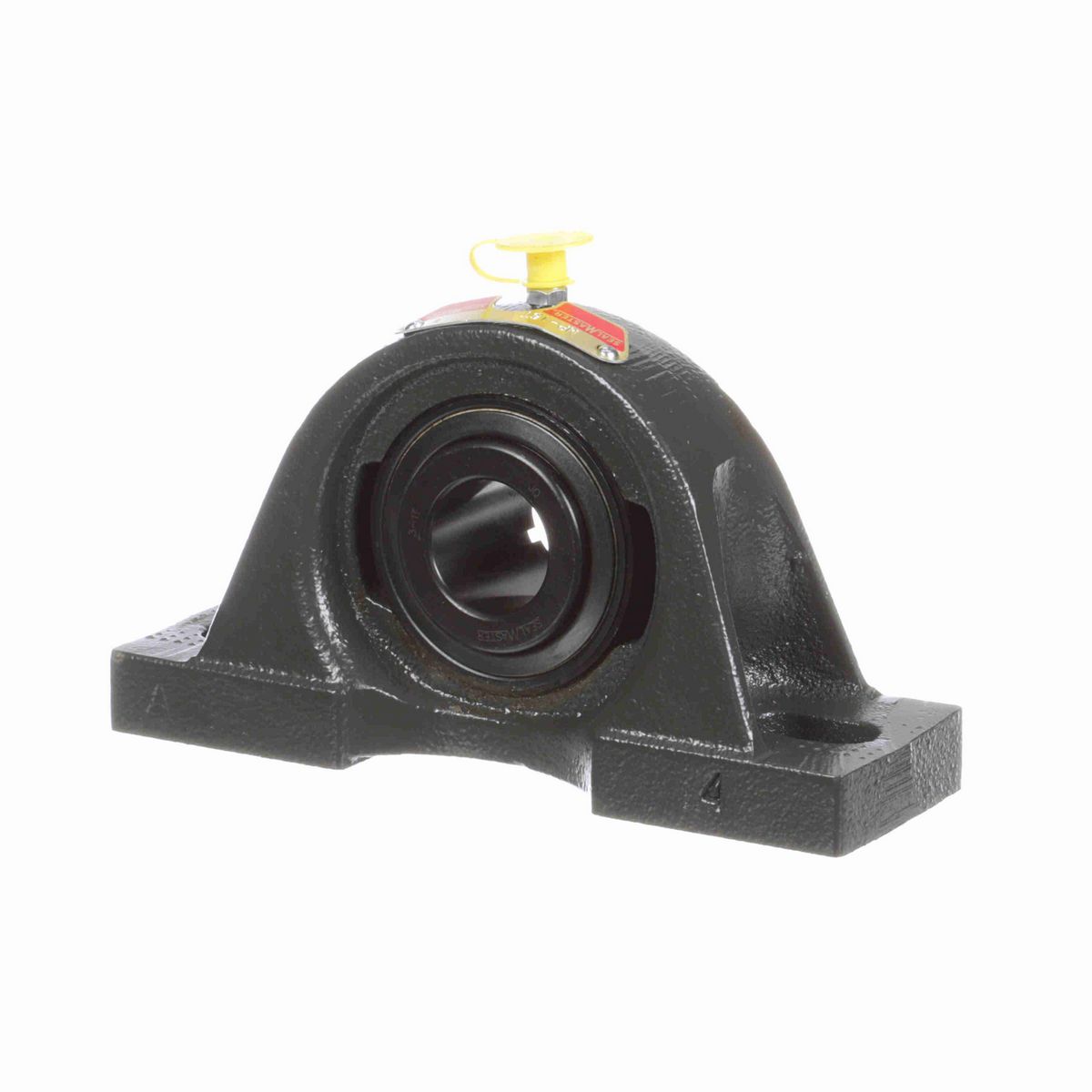

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Base Width (in)	2 in
Overall Length (in)	6.25 in
Overall Height (in)	3.44 in
Overall Width (in)	2 in
Bolt Size (in)	1/2 in
Bore Diameter (in)	1 in
Foot Height (in)	0.63 in
Base to Center Height (in)	1.75 in
Length Through Bore (in)	1.56 in
Bolt Spacing Max (in)	5.19 in
Centerline to Outermost Bearing Face (in)	0.98 in
Bolt Spacing Min (in)	4.19 in
Bolt Spacing (in)	4.69 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Bore Shape	Straight
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	2.23 in
Cage Type	Land Riding Retainer
Housing Material	Cast Iron
Base Length (in)	6.25 in
Radial Clearance	Standard
Vibration Frequency Roller Spin	0.0385 cps
Inner Ring Outside Diameter (in)	1.594 in
Dynamic Load Rating (lb)	4,381 lb
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Outer Ring Defect	0.0595 cps
Max Operating Temperature (F)	220 °F
Bearing Insert Finish	Black Oxide
Maximum Speed (RPM)	7600 rpm
Lubricant	Lithium Complex NLGI 2 Grease
Grease Fitting Thread Size	1/4-28
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Type	Medium Duty
Vibration Frequency Fundamental Train	0.0066 cps
Size Code	2-13
Fixed vs. Expansion	Fixed
Housing Coating	Powder Coated
Static Load Rating (lb)	2,567 lb
Shaft Locking Type	Concentric
End Cap Available	No
Insert	3-1T
Vibration Frequency Inner Ring Defect	0.0905 cps

General Specifications

UPC	662461031810
Weight	3.92 LB
Packaged Length	4.38 IN
Packaged Width	2.06 IN
Packaged Height	6.81 IN
HTC	8483.20.8040
Country of Origin	United States of America
