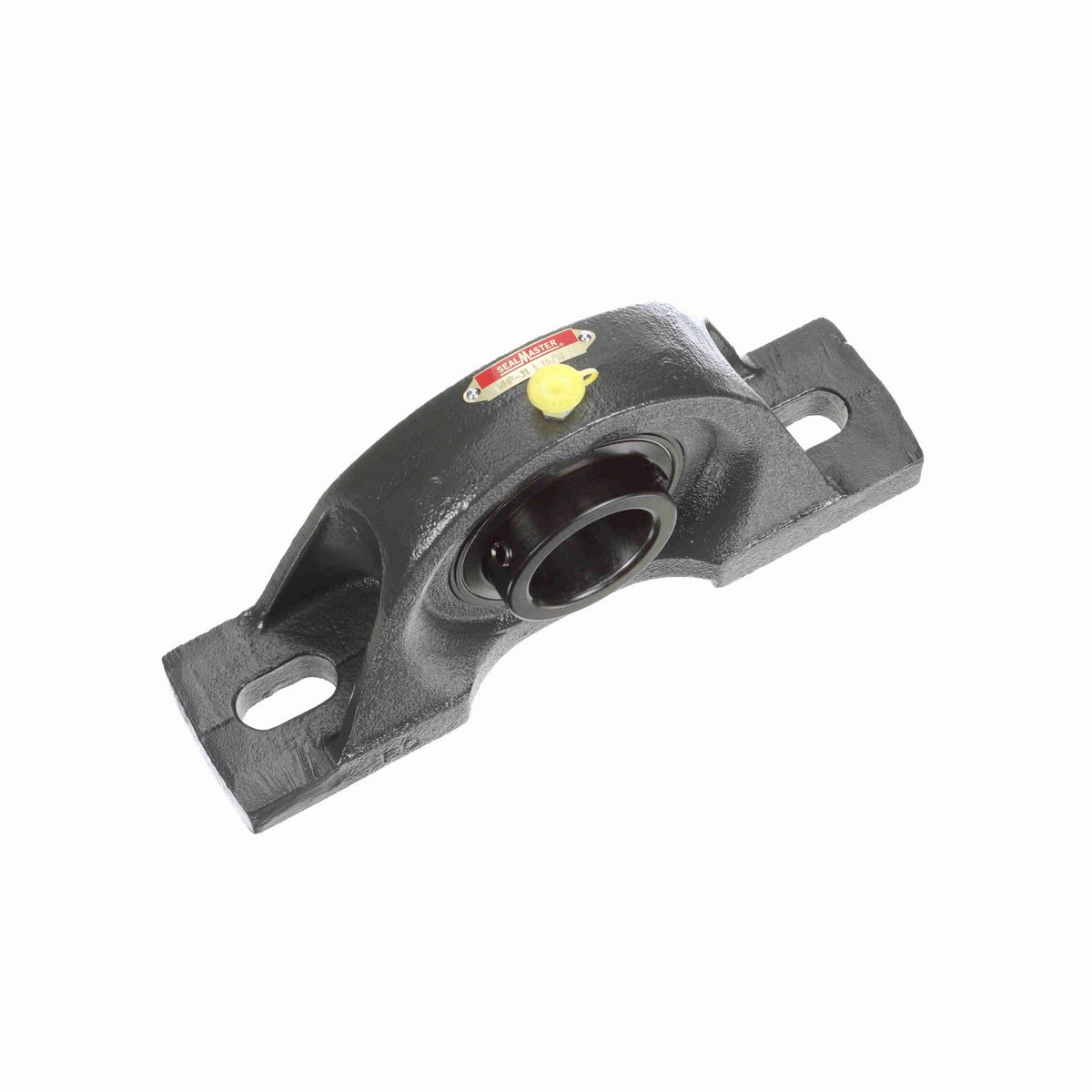

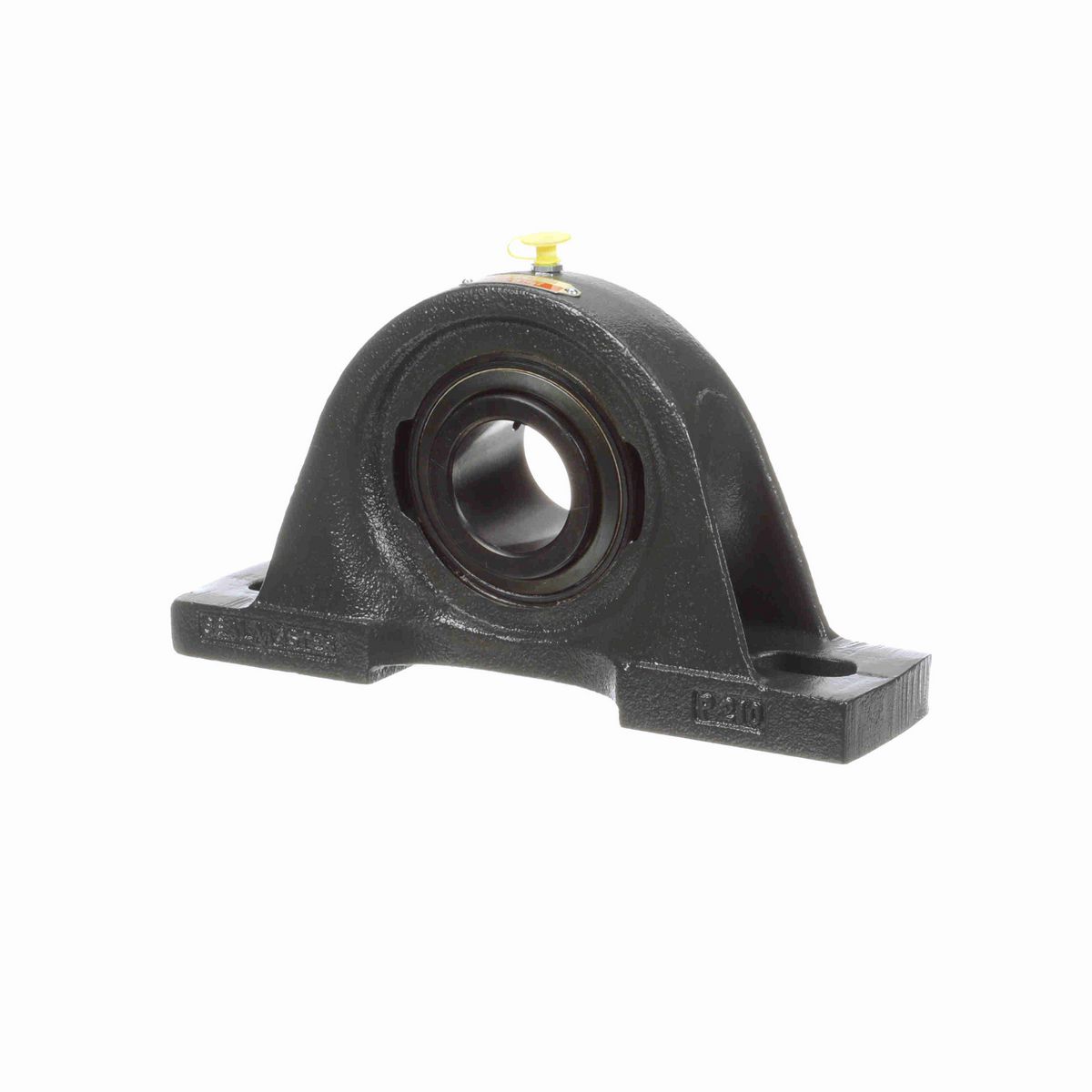

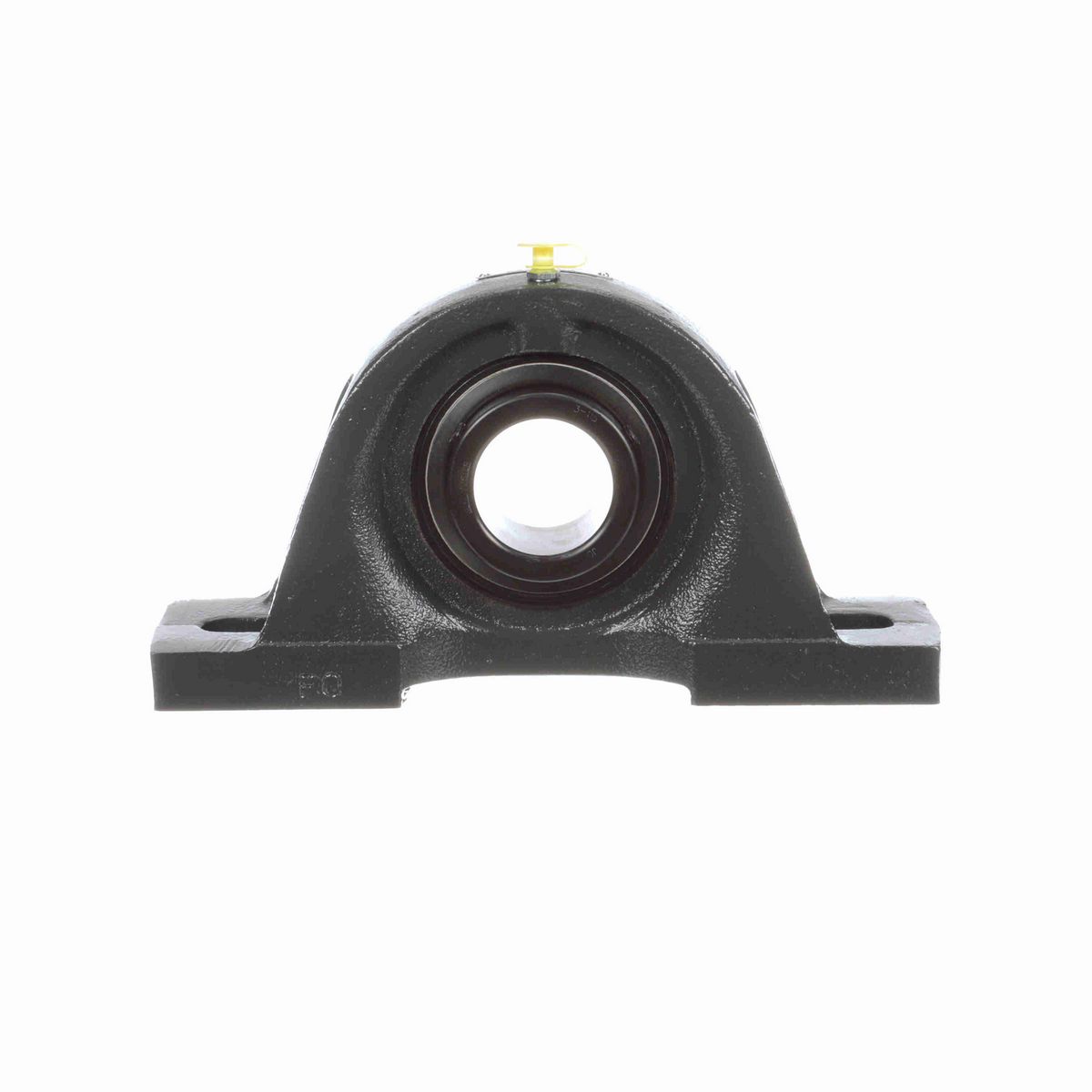

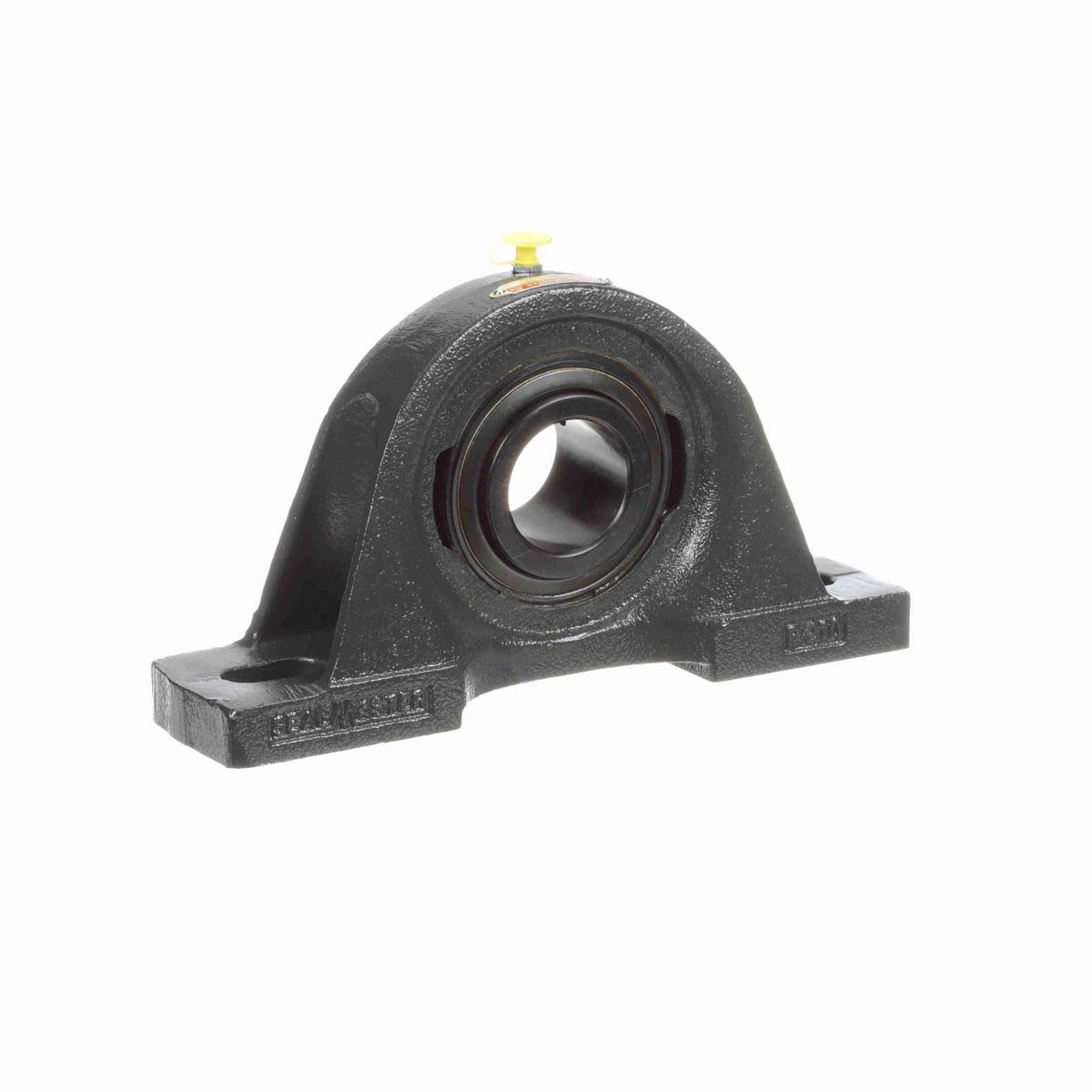

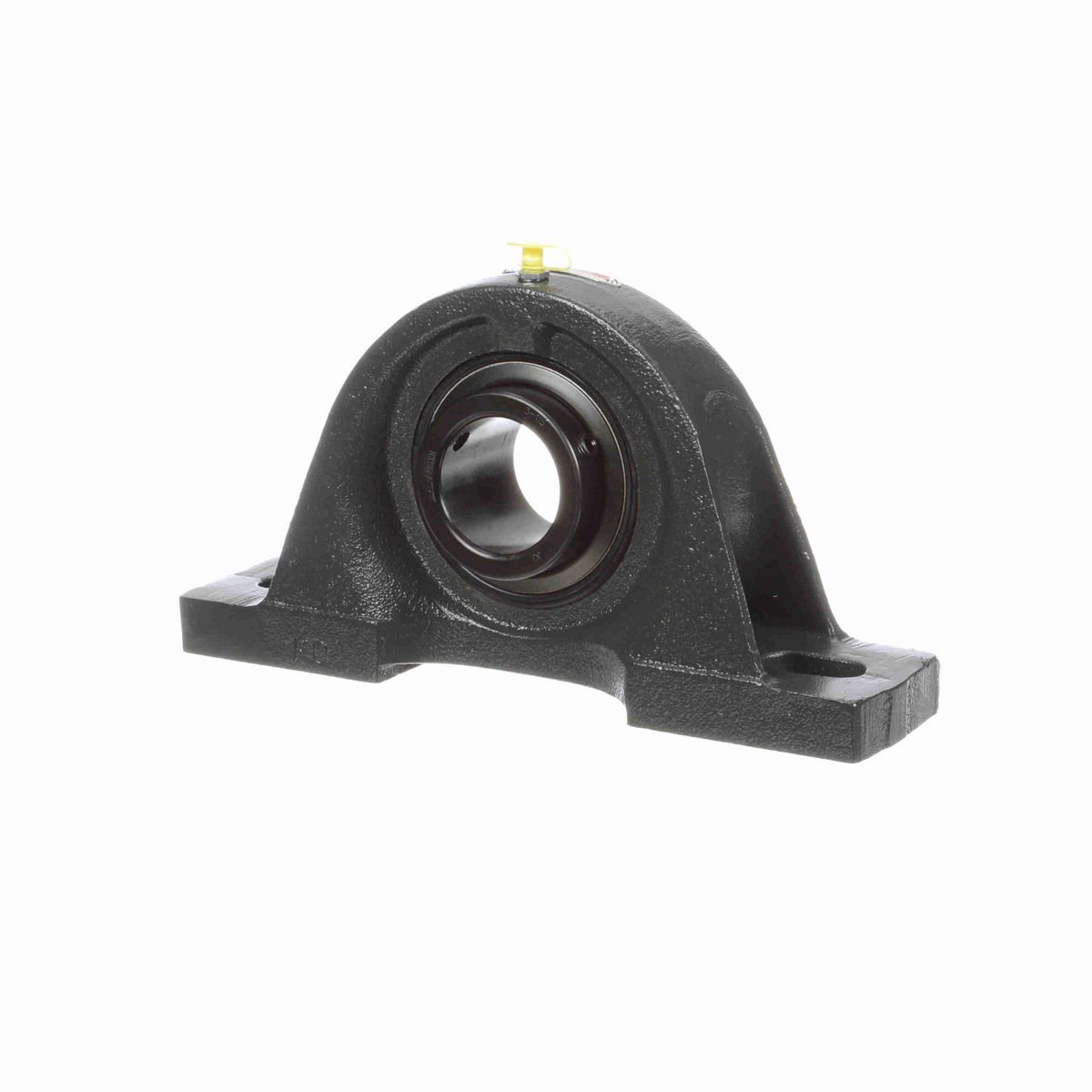

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Height (in)	5.94 in
Overall Length (in)	9.75 in
Base Width (in)	2.75 in
Overall Width (in)	2.75 in
Bolt Size (in)	5/8 in
Bore Diameter (in)	1.9375 in
Foot Height (in)	0.88 in
Base to Center Height (in)	3.125 in
Length Through Bore (in)	2.1875 in
Bolt Spacing Min (in)	7.63 in
Centerline to Outermost Bearing Face (in)	1.313 in
Bolt Spacing Max (in)	9.38 in

Technical Specifications

Housing Base	Solid
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Two Bolt
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Dynamic Load Rating (lb)	9,752 lb
Housing Coating	Powder Coated
Base Length (in)	9.75 in
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Insert Finish	Black Oxide
Radial Clearance	Standard
Vibration Frequency Inner Ring Defect	0.0987 cps
Grease Fitting Thread Size	1/8 NPT
Vibration Frequency Outer Ring Defect	0.068 cps
Insert	3-115
Housing Material	Cast Iron
Shaft Locking Type	Set Screw
Max Operating Temperature (F)	220 °F
End Cap Available	No
Cage Type	Land Riding Retainer
Vibration Frequency Roller Spin	0.0437 cps
Vibration Frequency Fundamental Train	0.0068 cps
Maximum Speed (RPM)	3250 rpm
Size Code	2-23
Fixed vs. Expansion	Fixed
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	2.719 in
Bearing Type	Medium Duty
Static Load Rating (lb)	6,601 lb
Bearing Insert Material	52100 Bearing Steel

General Specifications

UPC	662461008058
Weight	14.10 LB
Packaged Length	11.44 IN
Packaged Width	7.50 IN
Packaged Height	3.25 IN
HTC	8483.20.8040
Country of Origin	United States of America
