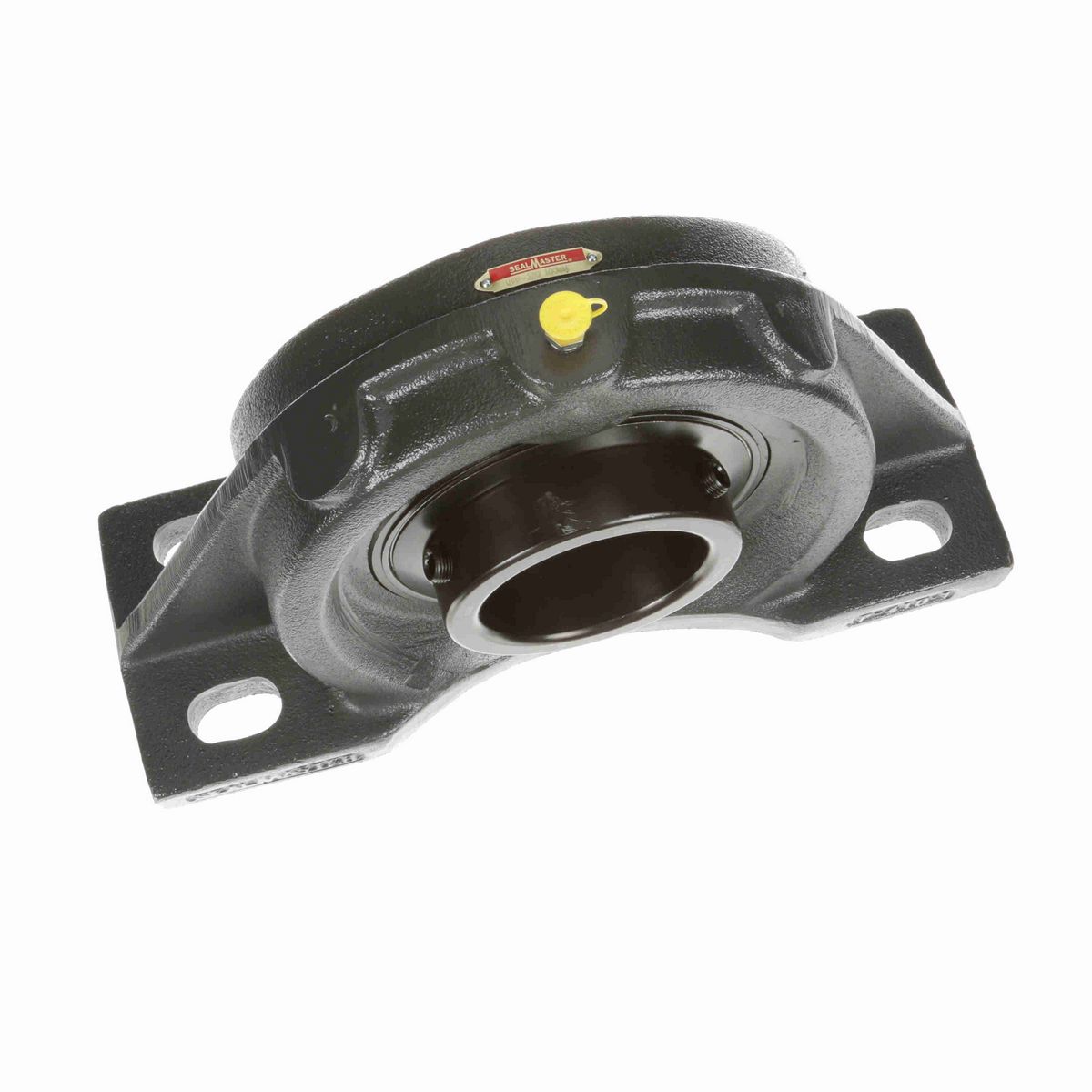

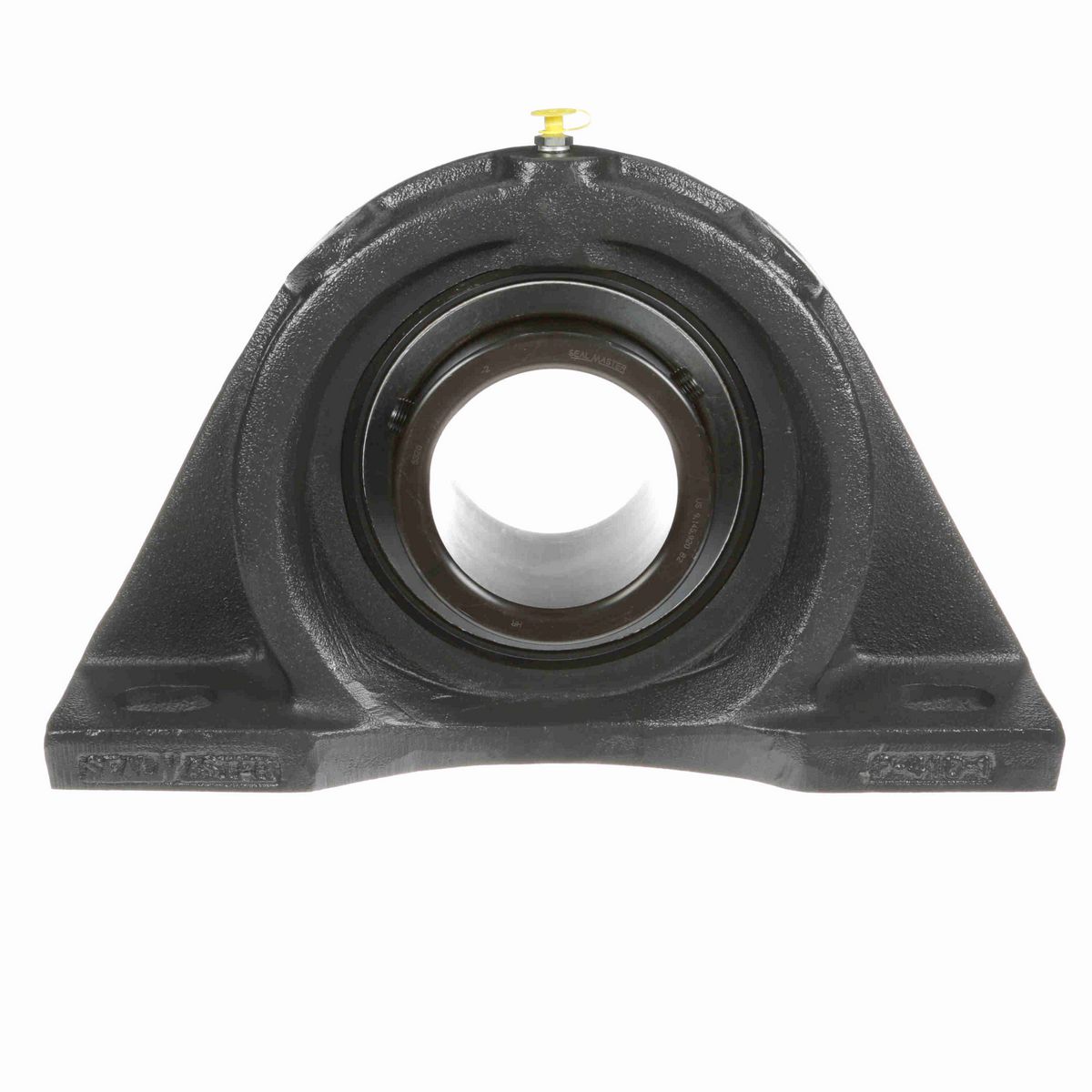

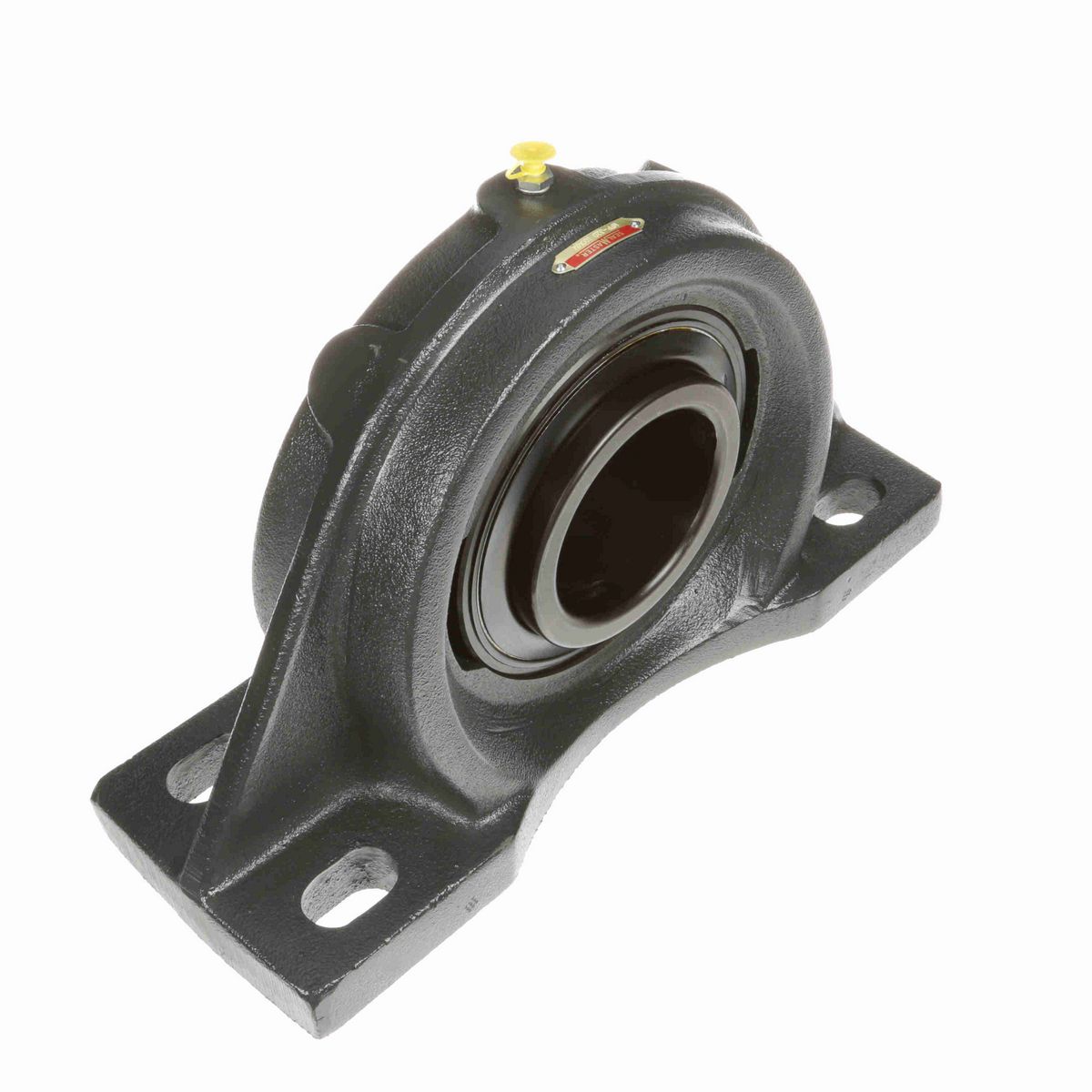

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	6.00 in
Base Width (in)	6.00 in
Overall Height (in)	10.25 in
Overall Length (in)	17 in
Bolt Size (in)	7/8 in
Bore Diameter (mm)	100 mm
Base to Center Height (in)	5.0000 in
Foot Height (in)	1.25 in
Length Through Bore (in)	4.625 in
Bolt Spacing Max (in)	14.06 in
Bolt Spacing Min (in)	12.44 in
Centerline to Outermost Bearing Face (in)	2.688 in

Technical Specifications

Rolling Element	Ball Bearing
Housing Base	Solid
Housing Construction	One Piece
Bore Shape	Straight
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	Brass
Seal Type	Felt Labyrinth Seal
Housing Type	Pillow Block, Four Bolt
Housing Style	Pillow Block
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	1100-1440 in/lbs
Ability to Relubricate	Yes
Grease Fitting Thread Size	1/4 NPT
Housing Material	Cast Iron
Insert	5320
Dynamic Load Rating (lb)	29,905 lb
Vibration Frequency Roller Spin	0.044 cps
Maximum Speed (RPM)	1700 rpm
End Cap Available	No
Misalignment Capability	±2.0° Misalignment - Static Only
Base Length (in)	17.00 in
Size Code	2-43
Fixed vs. Expansion	Fixed
Cage Type	Land Riding Retainer
Vibration Frequency Inner Ring Defect	0.0986 cps
Bearing Insert Finish	Black Oxide
Static Load Rating (lb)	23,553 lb
Max Operating Temperature (F)	220 °F
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	Standard
Housing Coating	Powder Coated
Bearing Type	Medium Duty
Inner Ring Outside Diameter (in)	5.172 in
Vibration Frequency Outer Ring Defect	0.0681 cps
Shaft Locking Type	Set Screw
Bolt Spacing Width Direction (in)	3.50 in
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Fundamental Train	0.0068 cps

General Specifications

UPC	662461053935
Weight	83.50 LB
Packaged Length	12.75 IN
Packaged Width	17.75 IN
Packaged Height	7.00 IN
HTC	8483.20.8040
Country of Origin	United States of America
