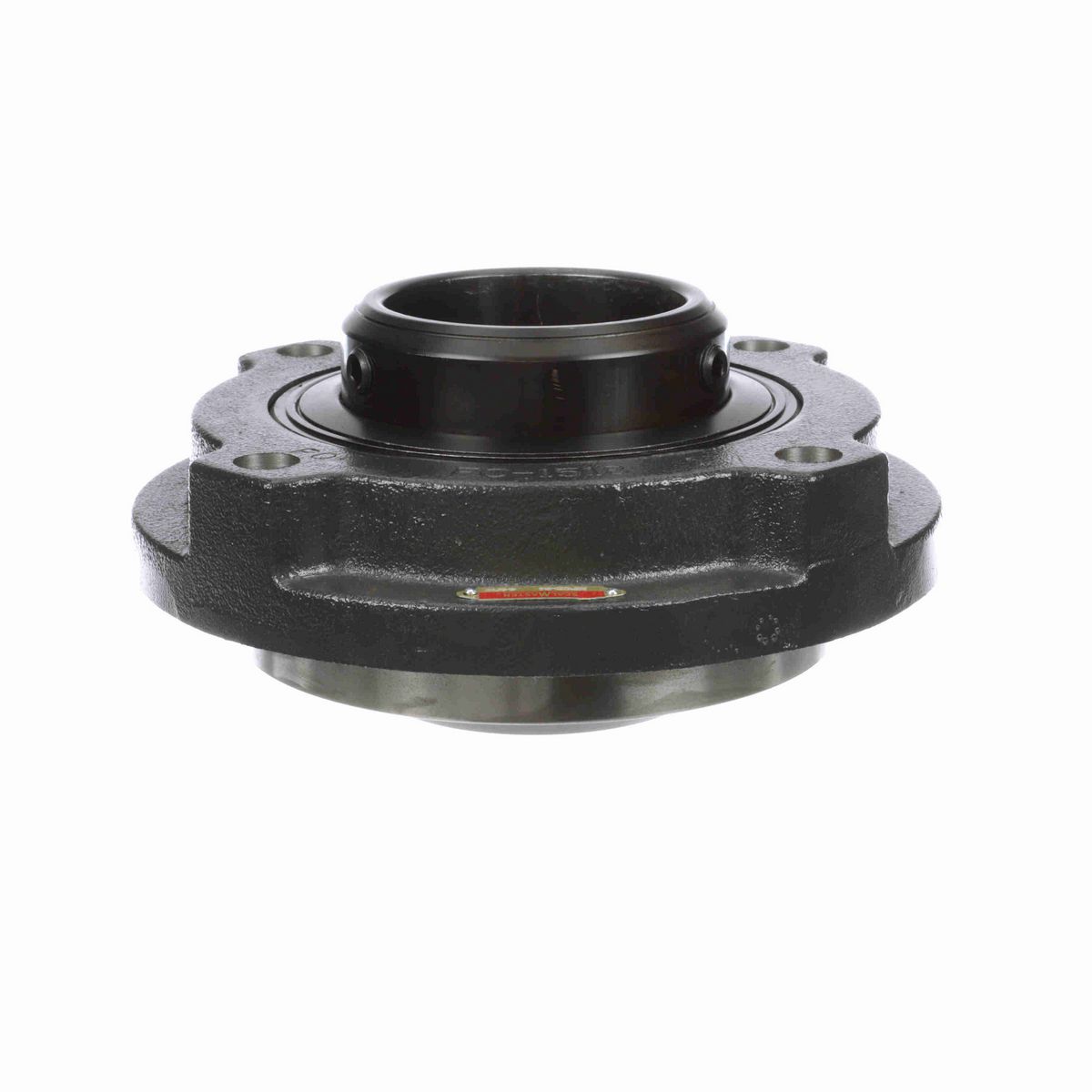

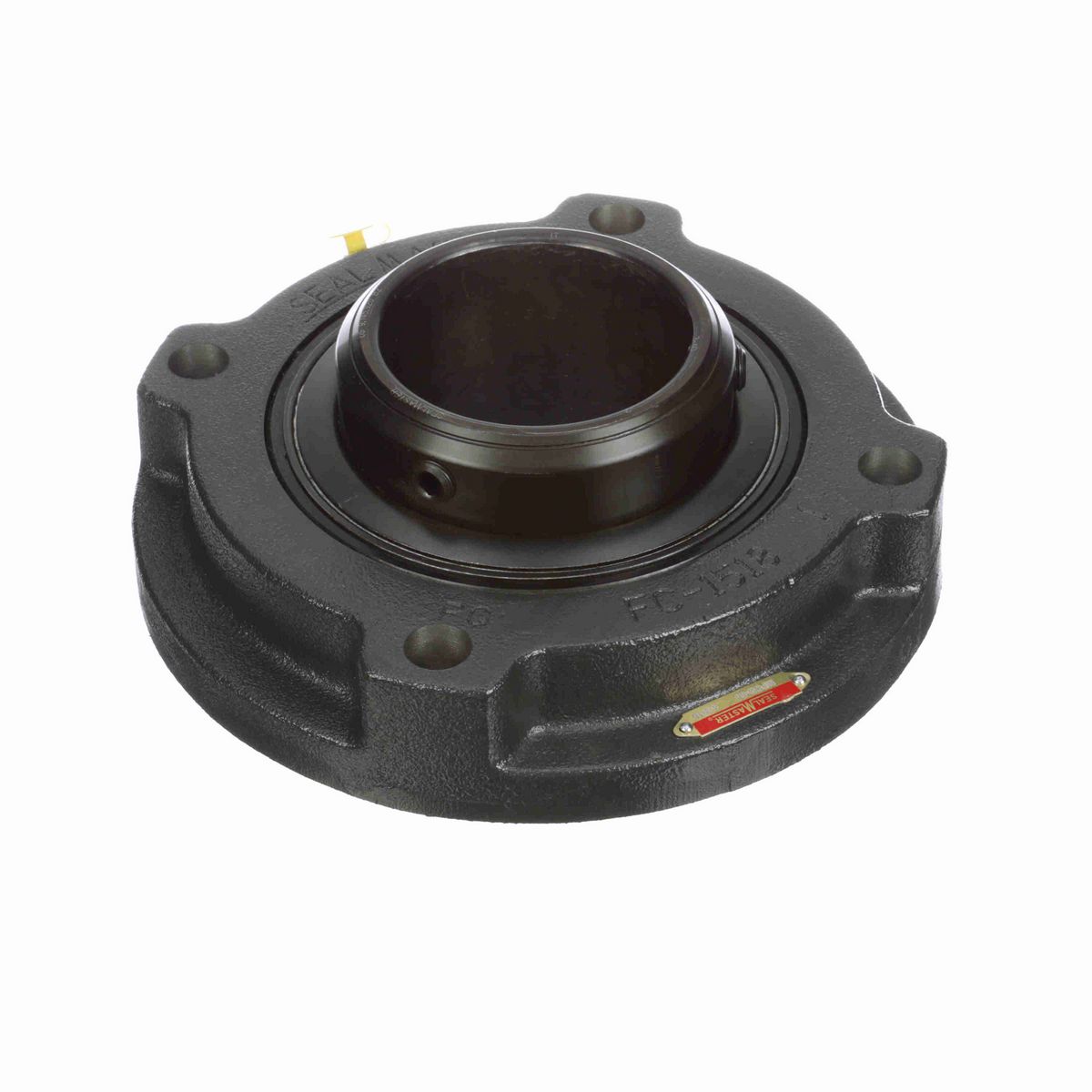

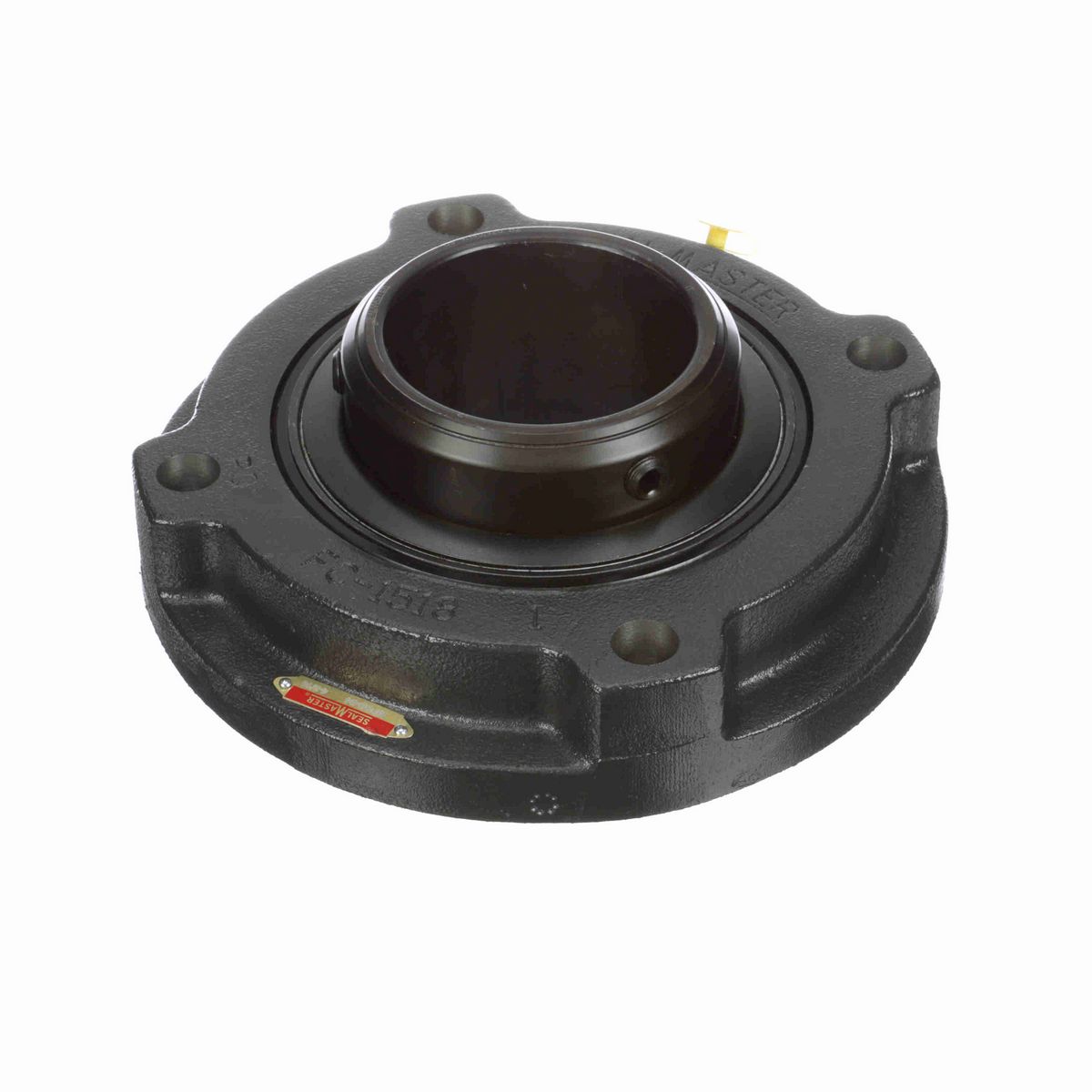

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	10.88 in
Bolt Size (in)	3/4 in
Overall Length (in)	10.88 in
Overall Height (in)	5.38 in
Bore Diameter (in)	4 in
Pilot Diameter (in)	8.123 in
Foot Height (in)	0.88 in
Length Through Bore (in)	5.375 in
Housing Outside Diameter (in)	10.88 in
Bolt Circle (in)	9.375 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	Brass
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Ability to Relubricate	Yes
Pilot Depth (in)	1.09 in
Inner Race Heat Treat Method	Zone-Hardened
Size Code	2-43
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	Standard
Insert	3-4
End Cap Available	No
Max Operating Temperature (F)	220 °F
Housing Material	Cast Iron
Maximum Speed (RPM)	2400 rpm
Shaft Locking Type	Double Set Screw
Inner Ring Outside Diameter (in)	5.172 in
Dynamic Load Rating (lb)	29,905 lb
Bearing Type	Medium Duty
Cage Type	Land Riding Retainer
Static Load Rating (lb)	23,553 lb
Grease Fitting Thread Size	1/4 NPT
Fixed vs. Expansion	Fixed
Housing Coating	Powder Coated
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Insert Finish	Black Oxide

General Specifications

UPC	662461017128
Weight	44.08 LB
Packaged Length	11.00 IN
Packaged Width	11.00 IN
Packaged Height	6.63 IN
HTC	8483.20.4040
Country of Origin	United States of America
