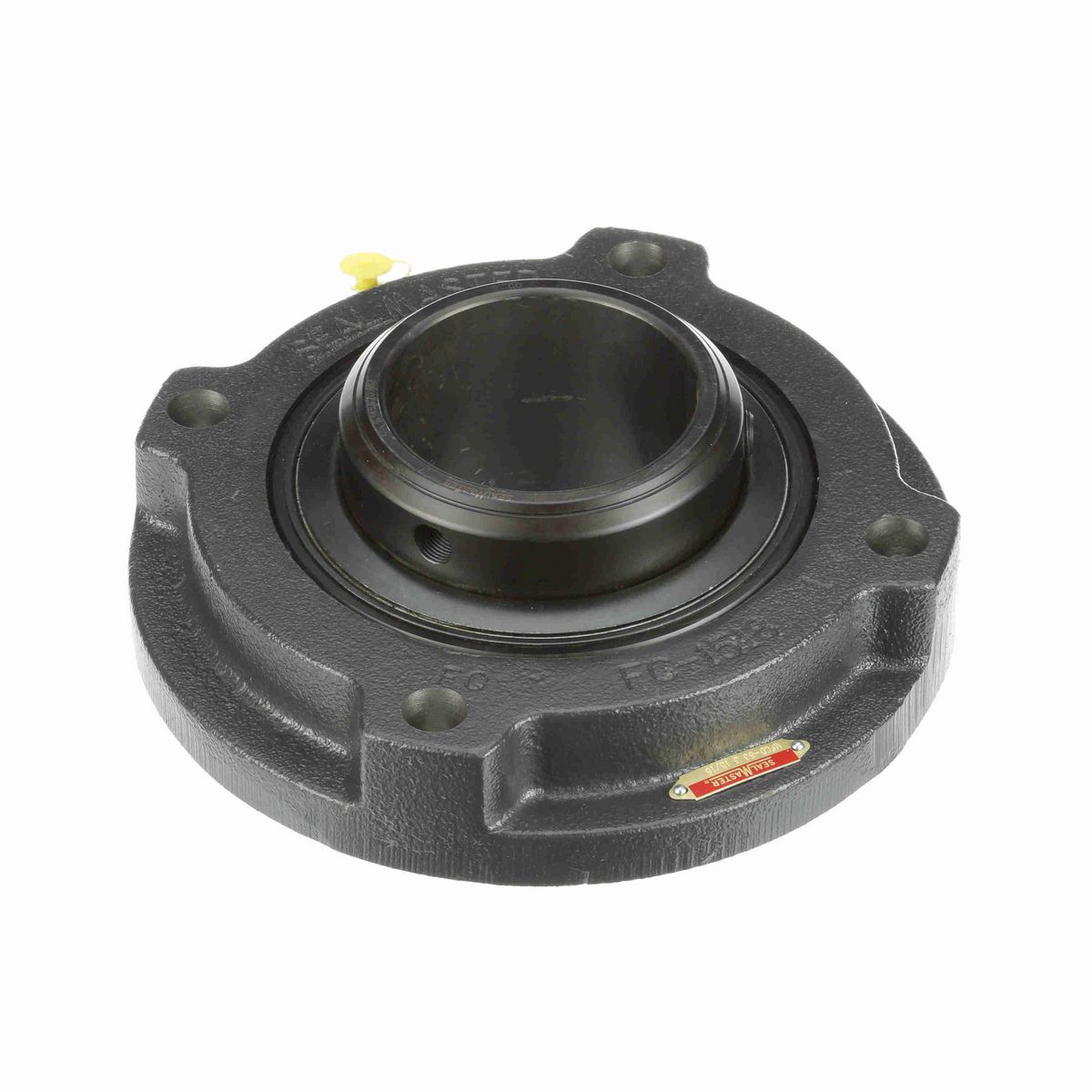

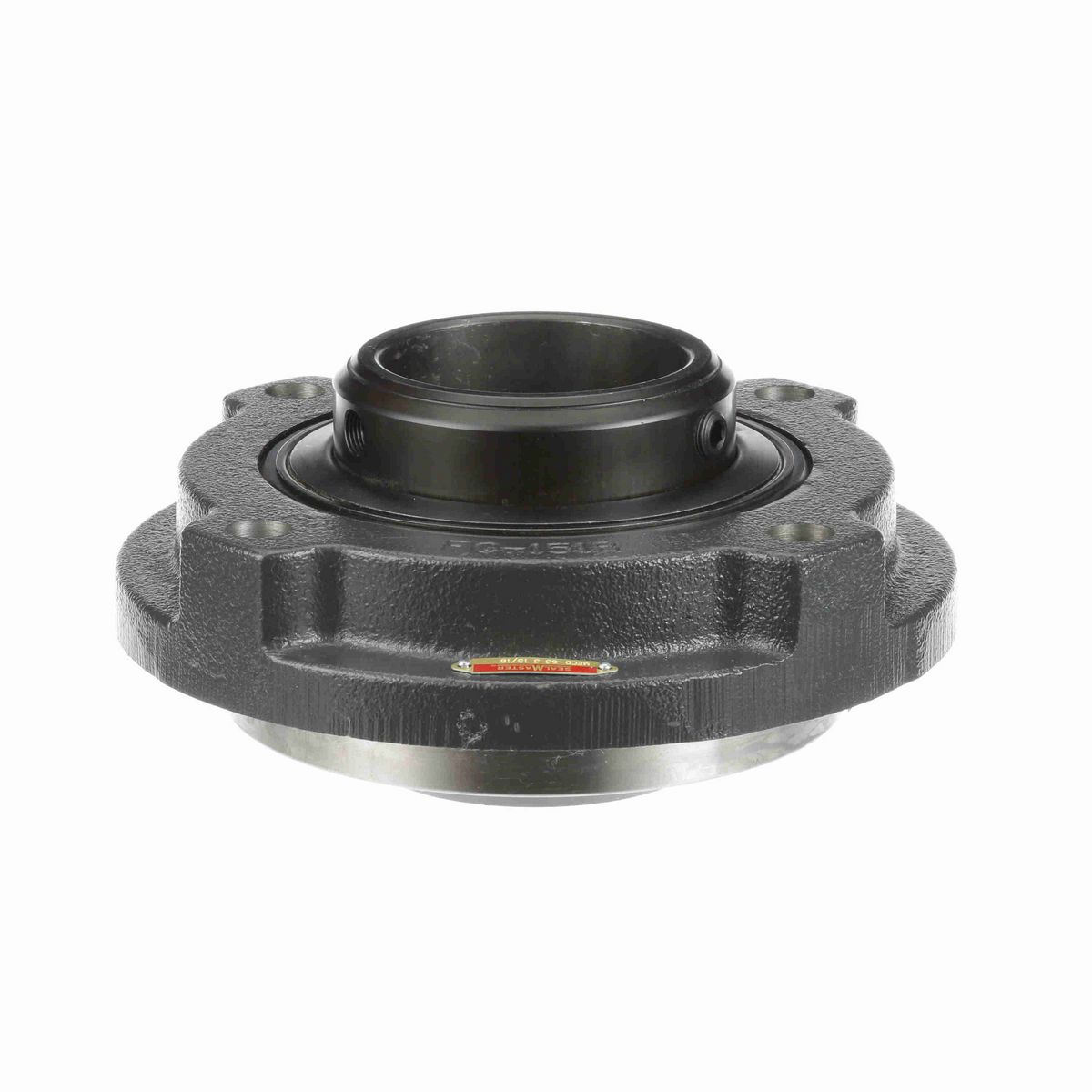

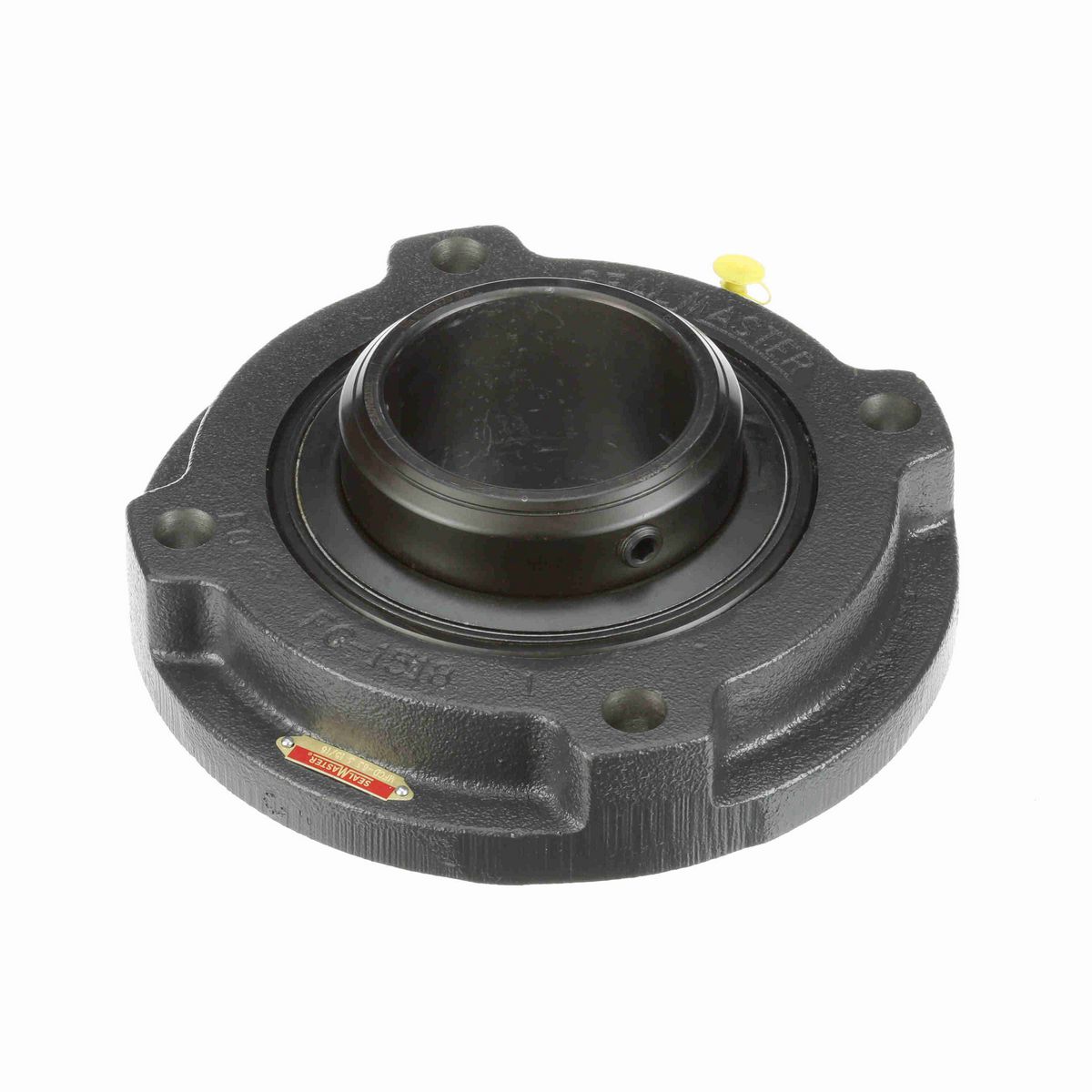

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	10.88 in
Bolt Size (in)	3/4 in
Overall Height (in)	5.38 in
Overall Length (in)	10.88 in
Bore Diameter (in)	3.9375 in
Foot Height (in)	0.88 in
Pilot Diameter (in)	8.123 in
Length Through Bore (in)	5.375 in
Housing Outside Diameter (in)	10.88 in
Bolt Circle (in)	9.375 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	Brass
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Pilot Depth (in)	1.09 in
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Fixed vs. Expansion	Fixed
Grease Fitting Thread Size	1/4 NPT
Maximum Speed (RPM)	2400 rpm
Bearing Insert Finish	Black Oxide
Max Operating Temperature (F)	220 °F
Dynamic Load Rating (lb)	29,905 lb
Static Load Rating (lb)	23,553 lb
Shaft Locking Type	Double Set Screw
Housing Coating	Powder Coated
Inner Ring Outside Diameter (in)	5.172 in
Size Code	2-43
Insert	3-315
Cage Type	Land Riding Retainer
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	Standard
Housing Material	Cast Iron
End Cap Available	No
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Type	Medium Duty
Lubricant	Lithium Complex NLGI 2 Grease

General Specifications

UPC	662461017111
Weight	46.05 LB
Packaged Length	11.00 IN
Packaged Width	11.00 IN
Packaged Height	6.63 IN
HTC	8483.20.4040
Country of Origin	United States of America
