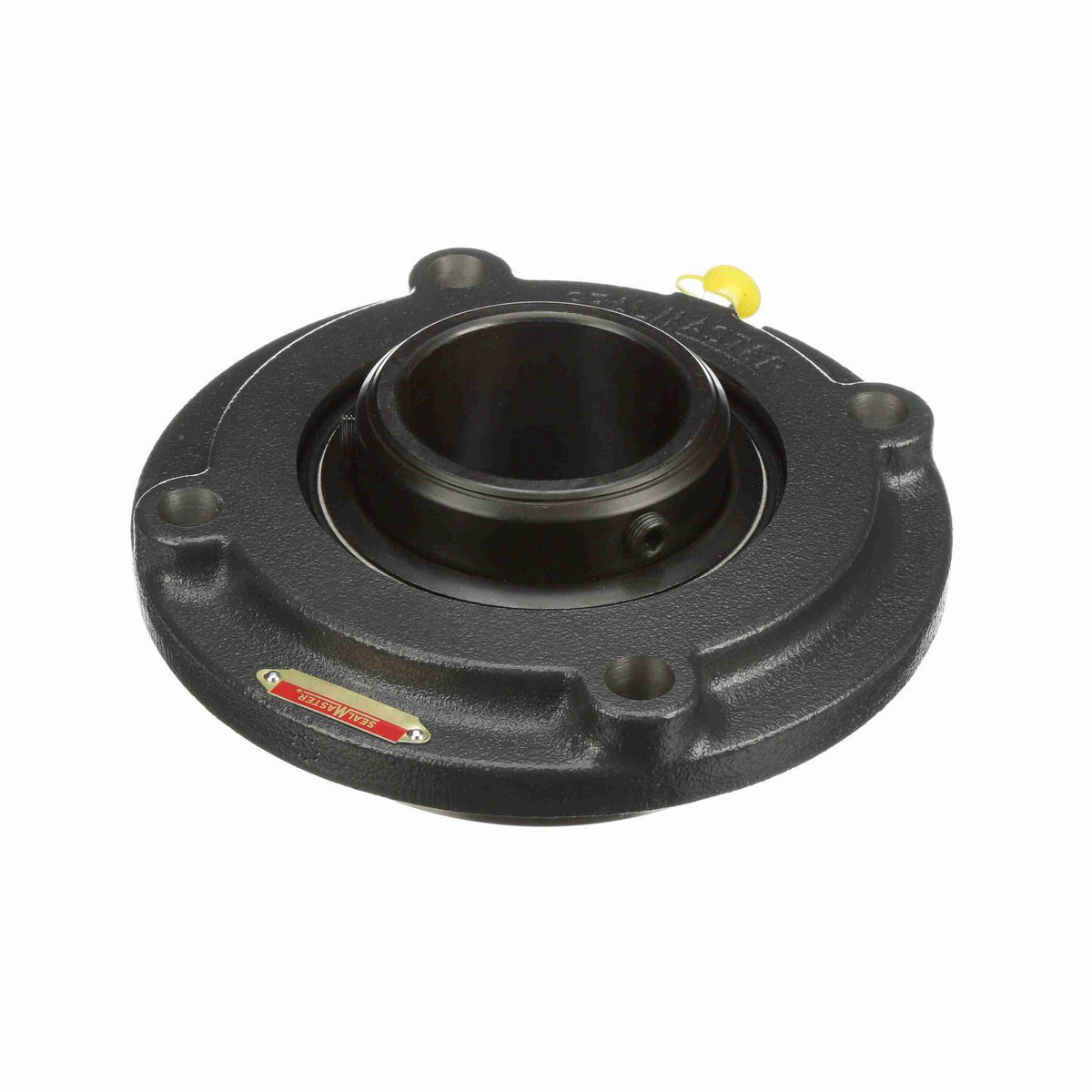

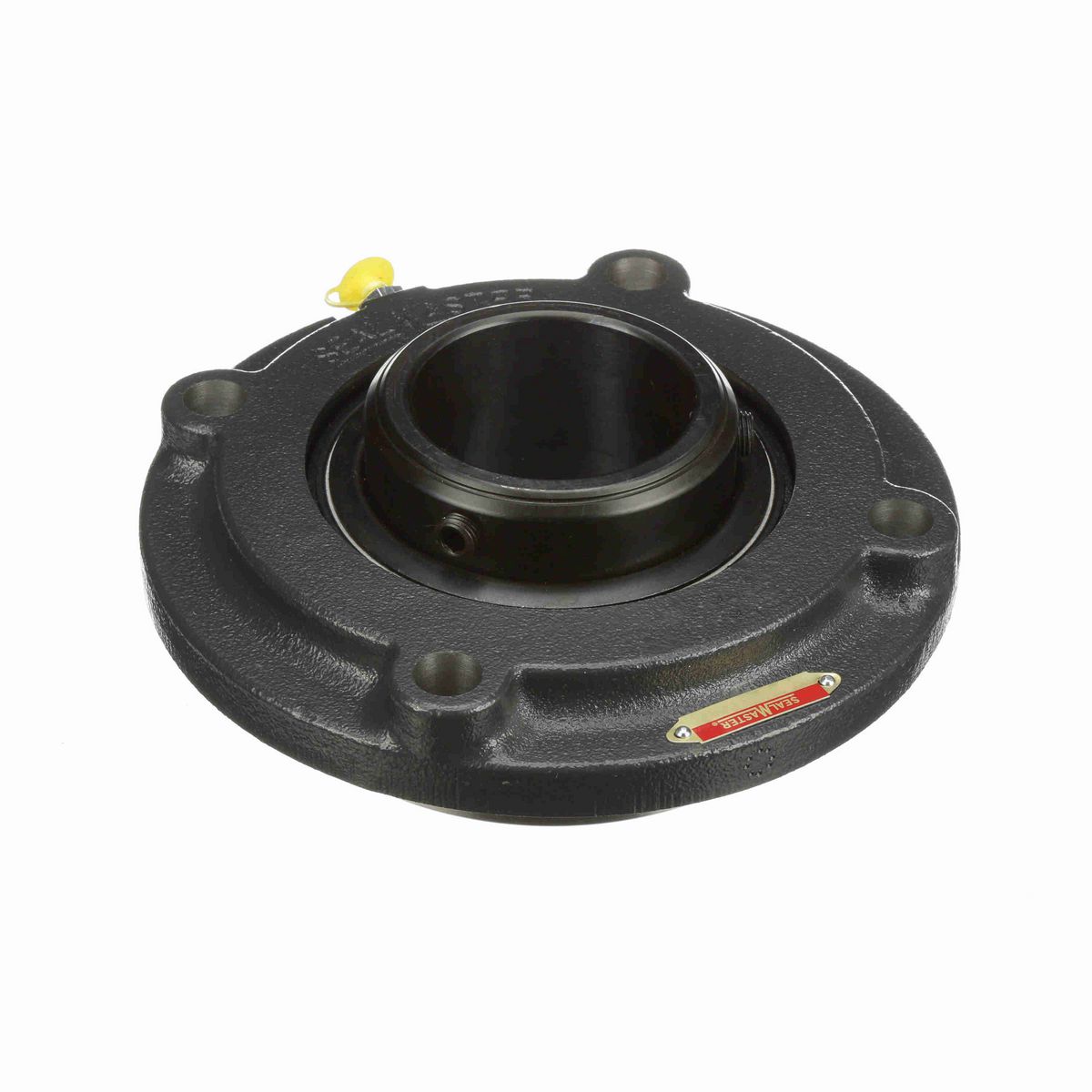

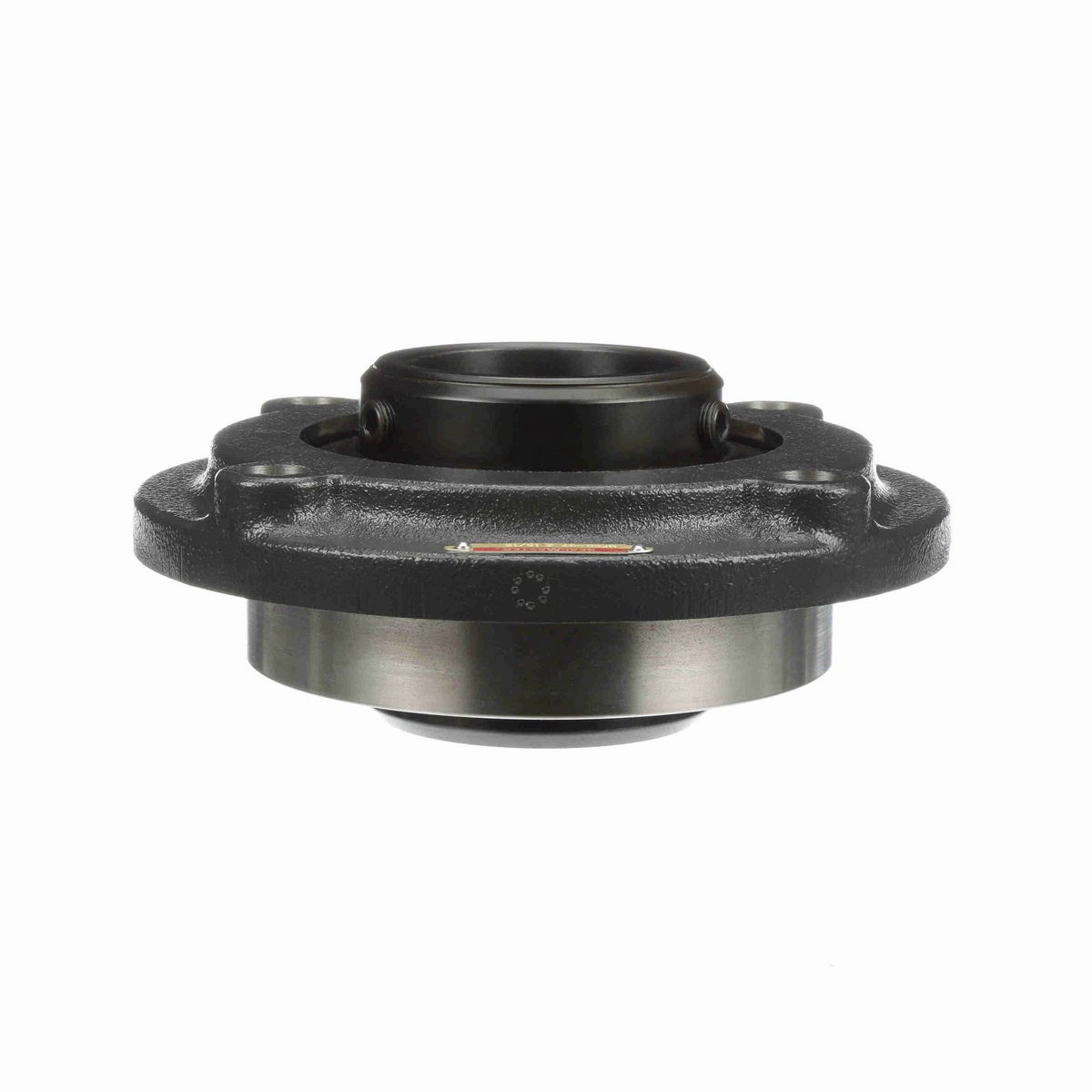

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	3/4 in
Overall Width (in)	10.25 in
Overall Length (in)	10.25 in
Overall Height (in)	4.44 in
Bore Diameter (in)	3.4375 in
Pilot Diameter (in)	7.375 in
Foot Height (in)	0.75 in
Length Through Bore (in)	4.438 in
Housing Outside Diameter (in)	10.25 in
Bolt Circle (in)	8.625 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	Brass
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Pilot Depth (in)	1.09 in
Ability to Relubricate	Yes
Size Code	2-38
Maximum Speed (RPM)	2800 rpm
Grease Fitting Thread Size	1/4 NPT
Max Operating Temperature (F)	220 °F
Lubricant	Lithium Complex NLGI 2 Grease
Dynamic Load Rating (lb)	21,566 lb
Shaft Locking Type	Double Set Screw
Bearing Type	Medium Duty
Radial Clearance	Standard
Fixed vs. Expansion	Fixed
Misalignment Capability	±2.0° Misalignment - Static Only
Insert	3-37
Cage Type	Land Riding Retainer
Static Load Rating (lb)	16,301 lb
End Cap Available	No
Housing Coating	Powder Coated
Bearing Insert Finish	Black Oxide
Inner Ring Outside Diameter (in)	4.391 in
Bearing Insert Material	52100 Bearing Steel
Housing Material	Cast Iron

General Specifications

UPC	662461017098
Weight	32.90 LB
Packaged Length	11.00 IN
Packaged Width	11.19 IN
Packaged Height	4.88 IN
HTC	8483.20.4040
Country of Origin	United States of America
