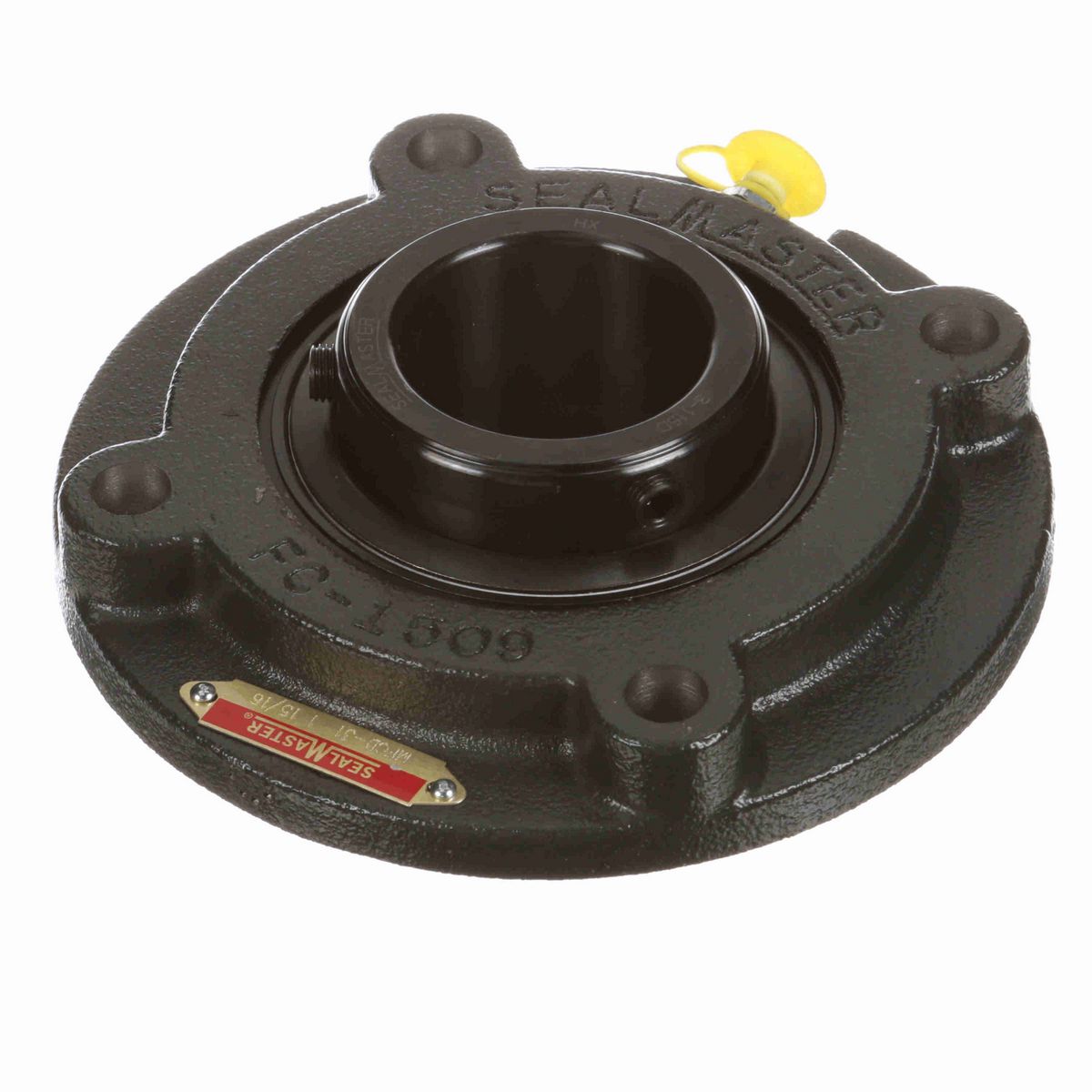

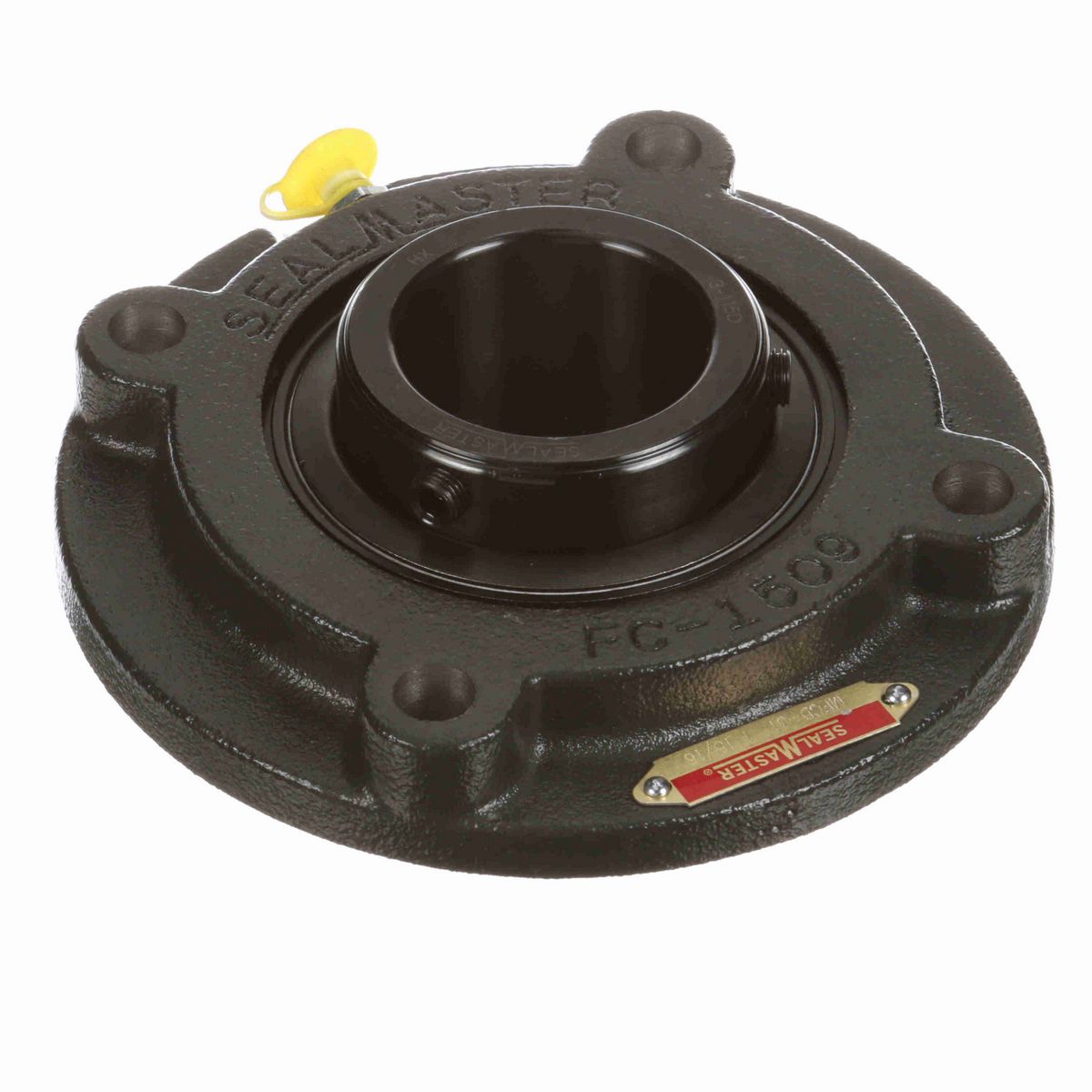

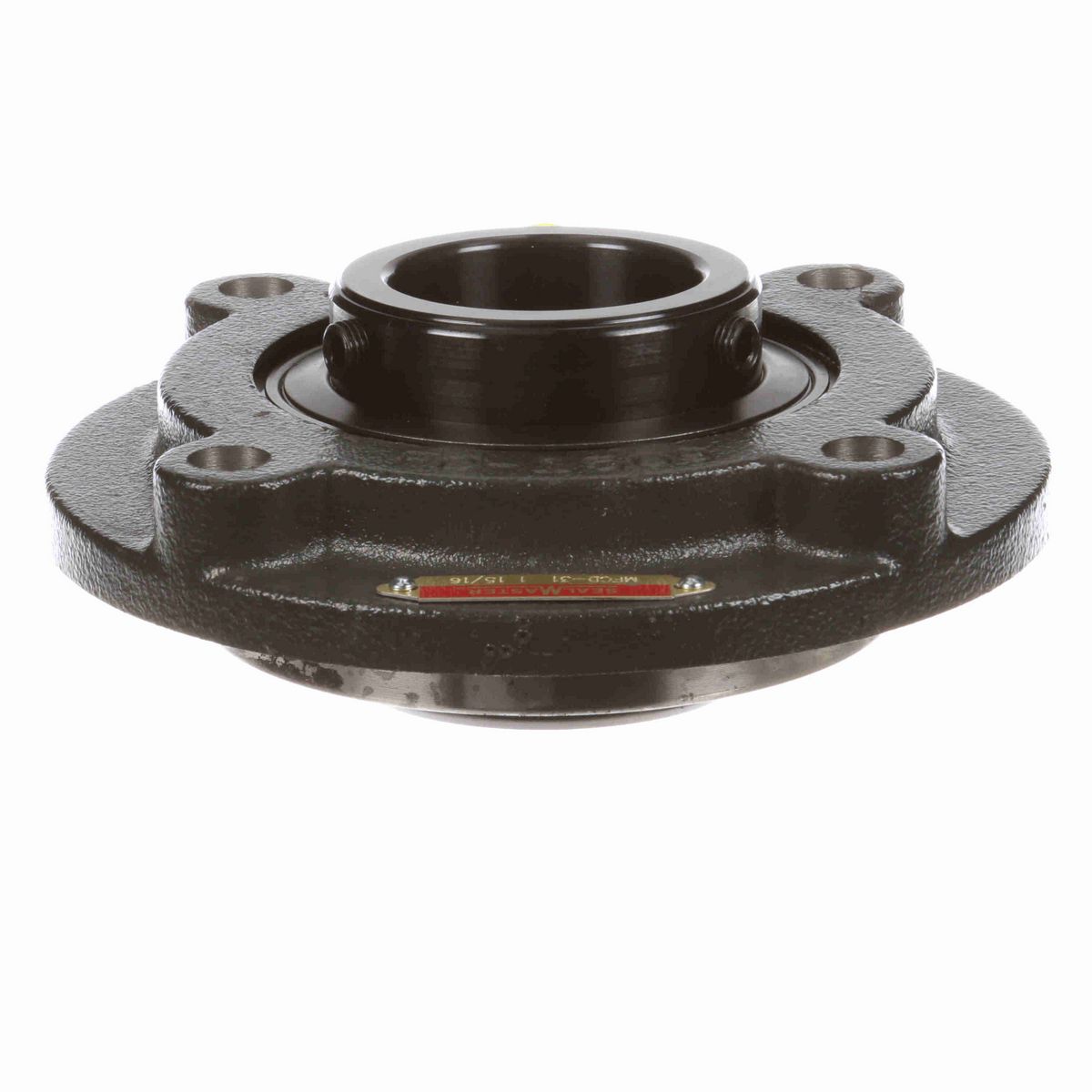

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	6.38 in
Bolt Size (in)	7/16 in
Overall Height (in)	2.72 in
Overall Length (in)	6.38 in
Bore Diameter (in)	1.9375 in
Foot Height (in)	0.44 in
Pilot Diameter (in)	4.500 in
Length Through Bore (in)	2.719 in
Housing Outside Diameter (in)	6.38 in
Bolt Circle (in)	5.375 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Pilot Depth (in)	.625 in
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Static Load Rating (lb)	6,601 lb
Bearing Insert Material	52100 Bearing Steel
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Type	Medium Duty
Shaft Locking Type	Double Set Screw
Size Code	2-23
Inner Ring Outside Diameter (in)	2.719 in
Max Operating Temperature (F)	220 °F
Lubricant	Lithium Complex NLGI 2 Grease
Cage Type	Land Riding Retainer
Radial Clearance	Standard
Bearing Insert Finish	Black Oxide
Fixed vs. Expansion	Fixed
Maximum Speed (RPM)	4500 rpm
Dynamic Load Rating (lb)	9,752 lb
Grease Fitting Thread Size	1/8 NPT
Housing Coating	Powder Coated
End Cap Available	No
Insert	3-115
Housing Material	Cast Iron

General Specifications

UPC	662461017005
Weight	7.60 LB
Packaged Length	6.88 IN
Packaged Width	6.88 IN
Packaged Height	2.63 IN
HTC	8483.20.4040
Country of Origin	United States of America
