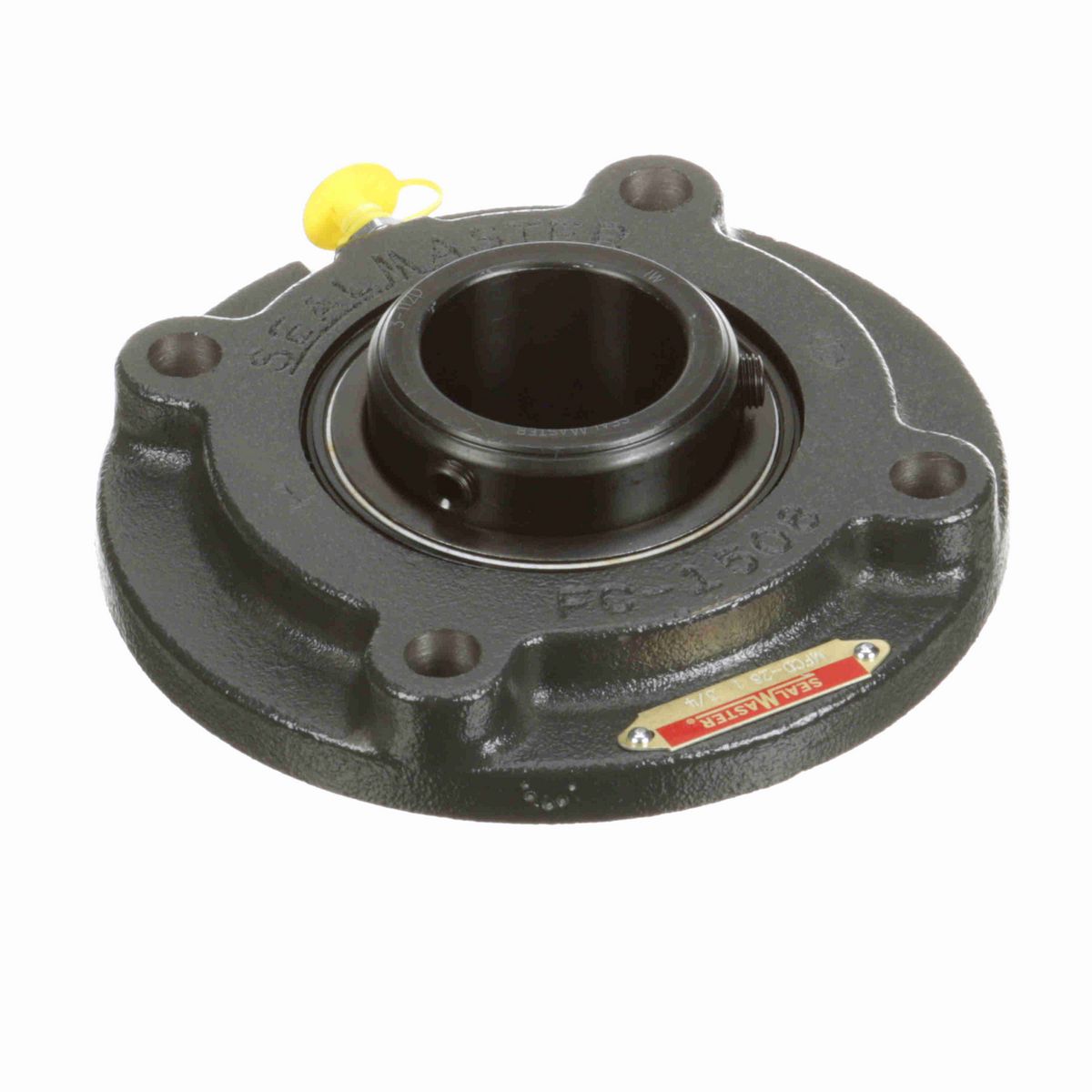

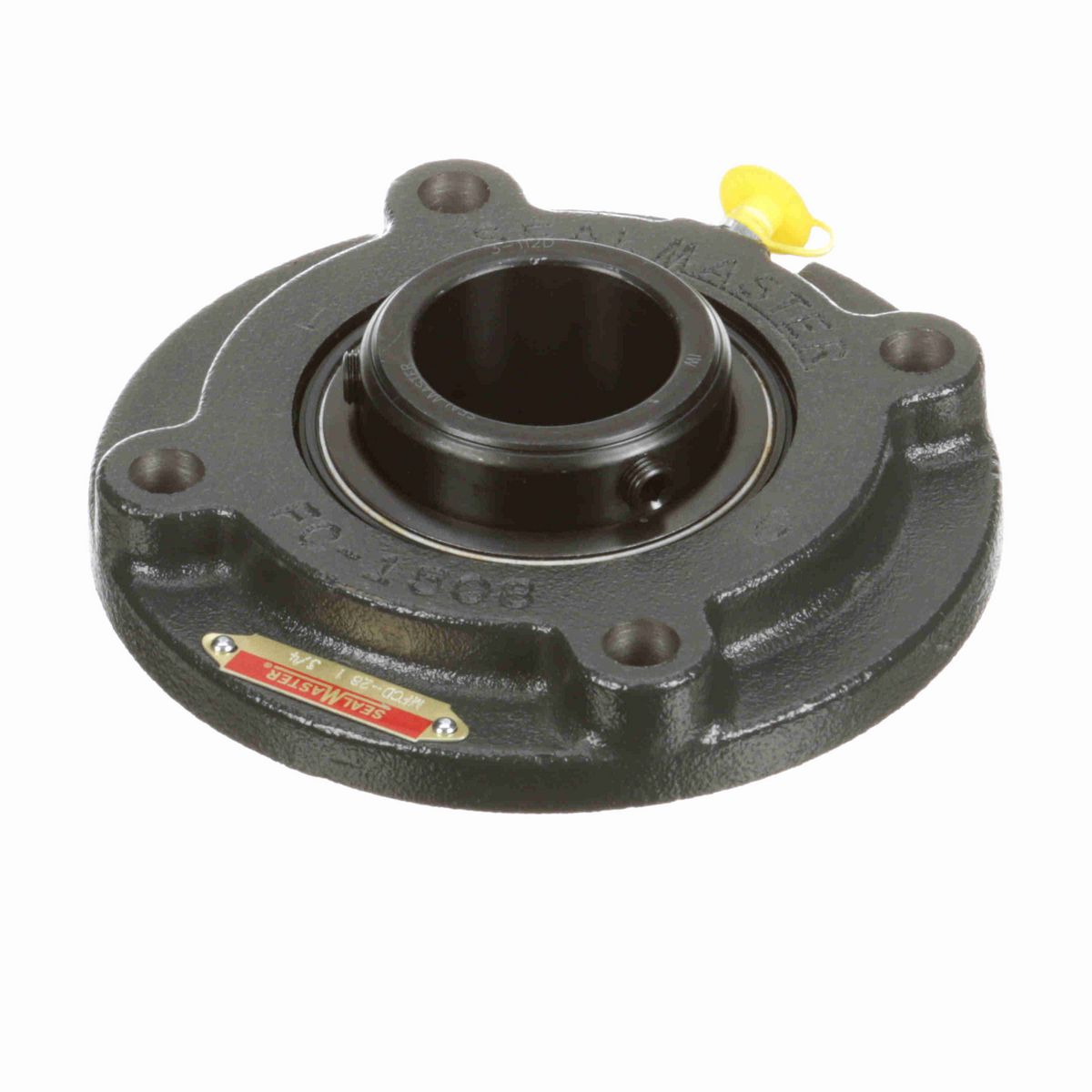

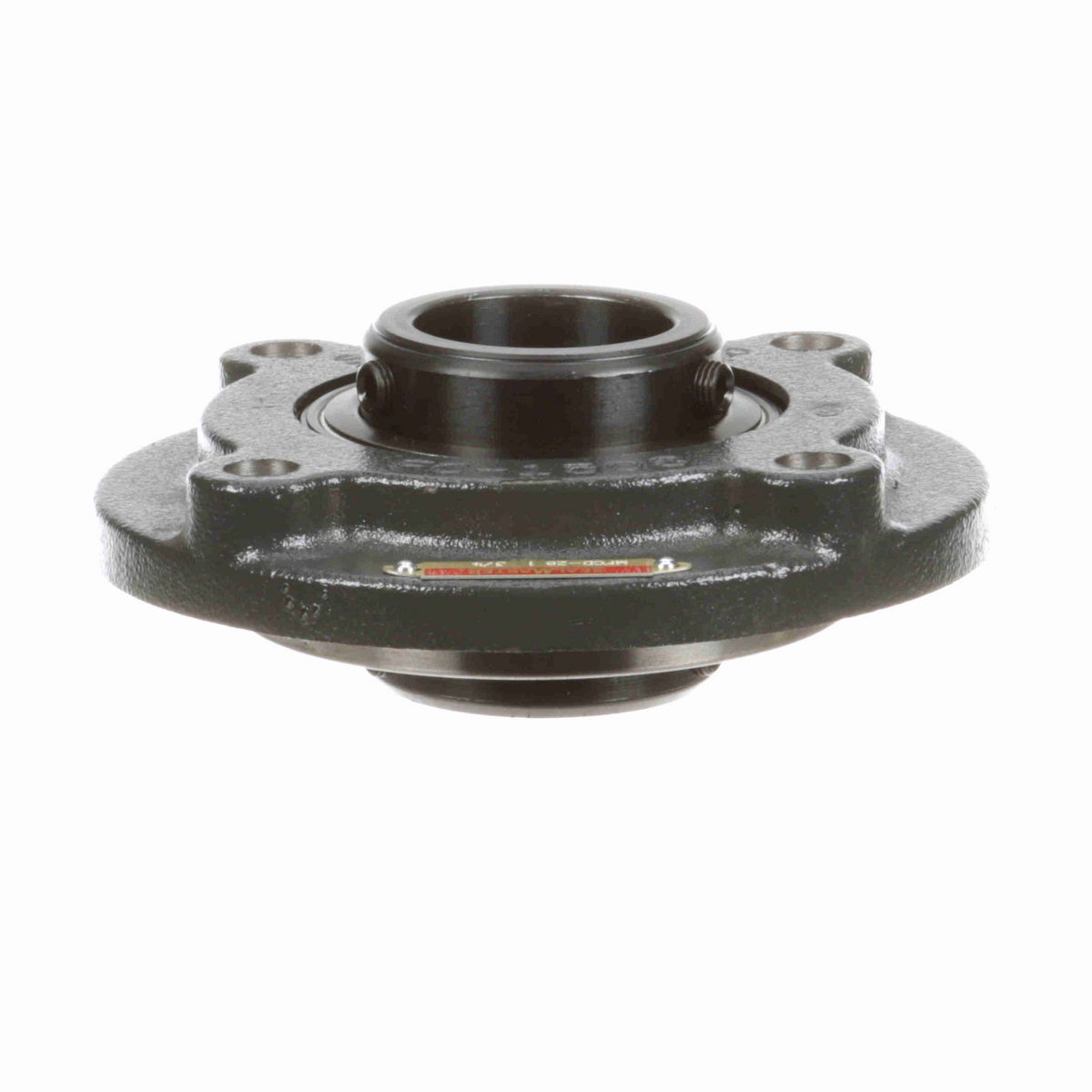

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking on both sides of ball path with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	6.13 in
Bolt Size (in)	7/16 in
Overall Height (in)	2.63 in
Overall Length (in)	6.13 in
Bore Diameter (in)	1.75 in
Pilot Diameter (in)	4.25 in
Foot Height (in)	0.44 in
Length Through Bore (in)	2.625 in
Housing Outside Diameter (in)	6.13 in
Bolt Circle (in)	5.125 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	Piloted
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Piloted
Housing Style	Flange Block
Ability to Relubricate	Yes
Pilot Depth (in)	0.44 in
Inner Race Heat Treat Method	Zone-Hardened
Max Operating Temperature (F)	220 °F
Shaft Locking Type	Double Set Screw
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Inner Ring Defect	0.0984 cps
Housing Material	Cast Iron
End Cap Available	No
Bearing Type	Medium Duty
Dynamic Load Rating (lb)	7,889 lb
Cage Type	Land Riding Retainer
Misalignment Capability	±2.0° Misalignment - Static Only
Size Code	2-115
Vibration Frequency Outer Ring Defect	0.0683 cps
Bearing Insert Finish	Black Oxide
Vibration Frequency Fundamental Train	0.0068 cps
Inner Ring Outside Diameter (in)	2.469 in
Lubricant	Lithium Complex NLGI 2 Grease
Insert	3-112
Static Load Rating (lb)	5,216 lb
Vibration Frequency Roller Spin	0.0445 cps
Grease Fitting Thread Size	1/8 NPT
Radial Clearance	Standard
Maximum Speed (RPM)	5000 rpm
Housing Coating	Powder Coated
Fixed vs. Expansion	Fixed

General Specifications

UPC	662461016992
Weight	6.70 LB
Packaged Length	6.88 IN
Packaged Width	6.88 IN
Packaged Height	2.63 IN
HTC	8483.20.4040
Country of Origin	United States of America
