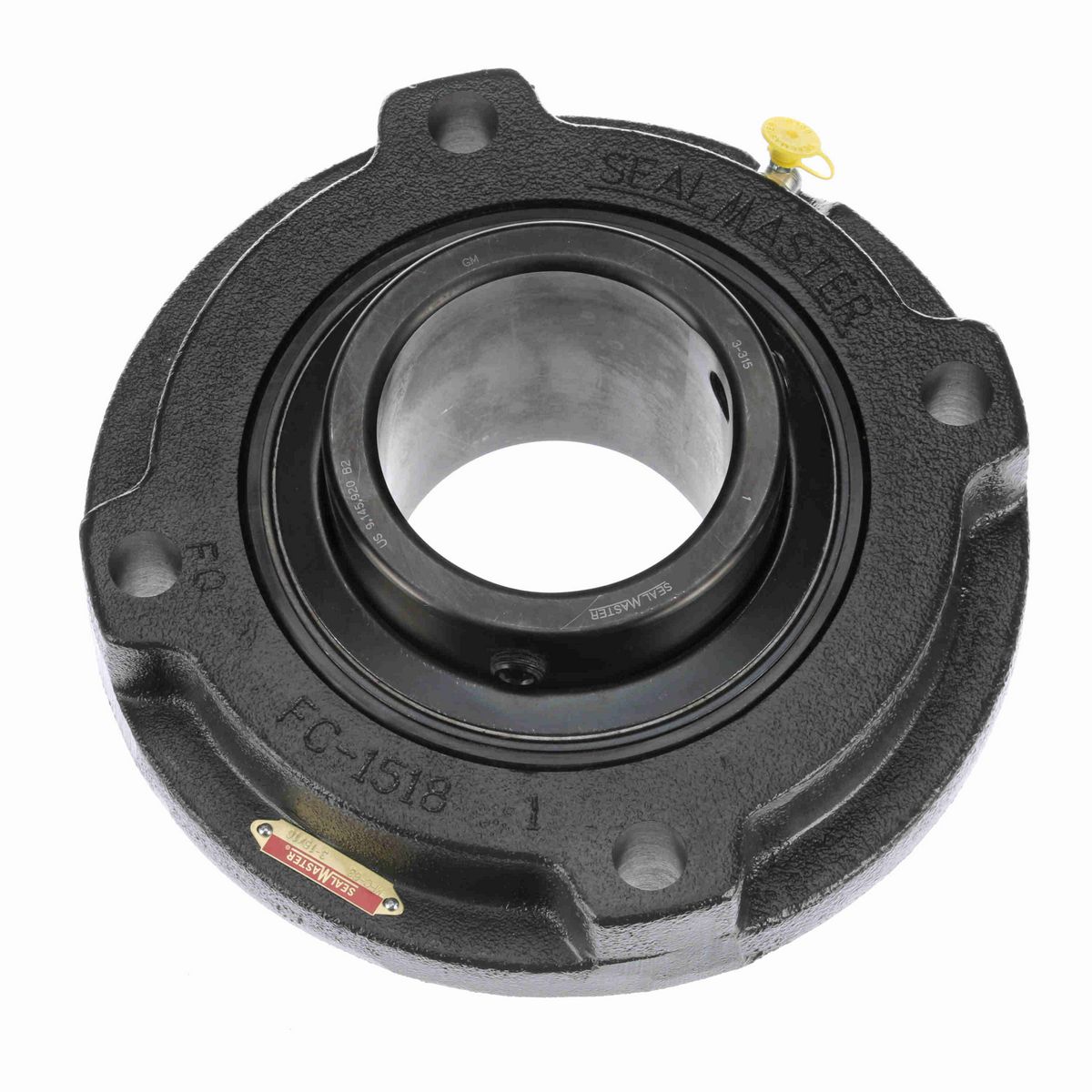

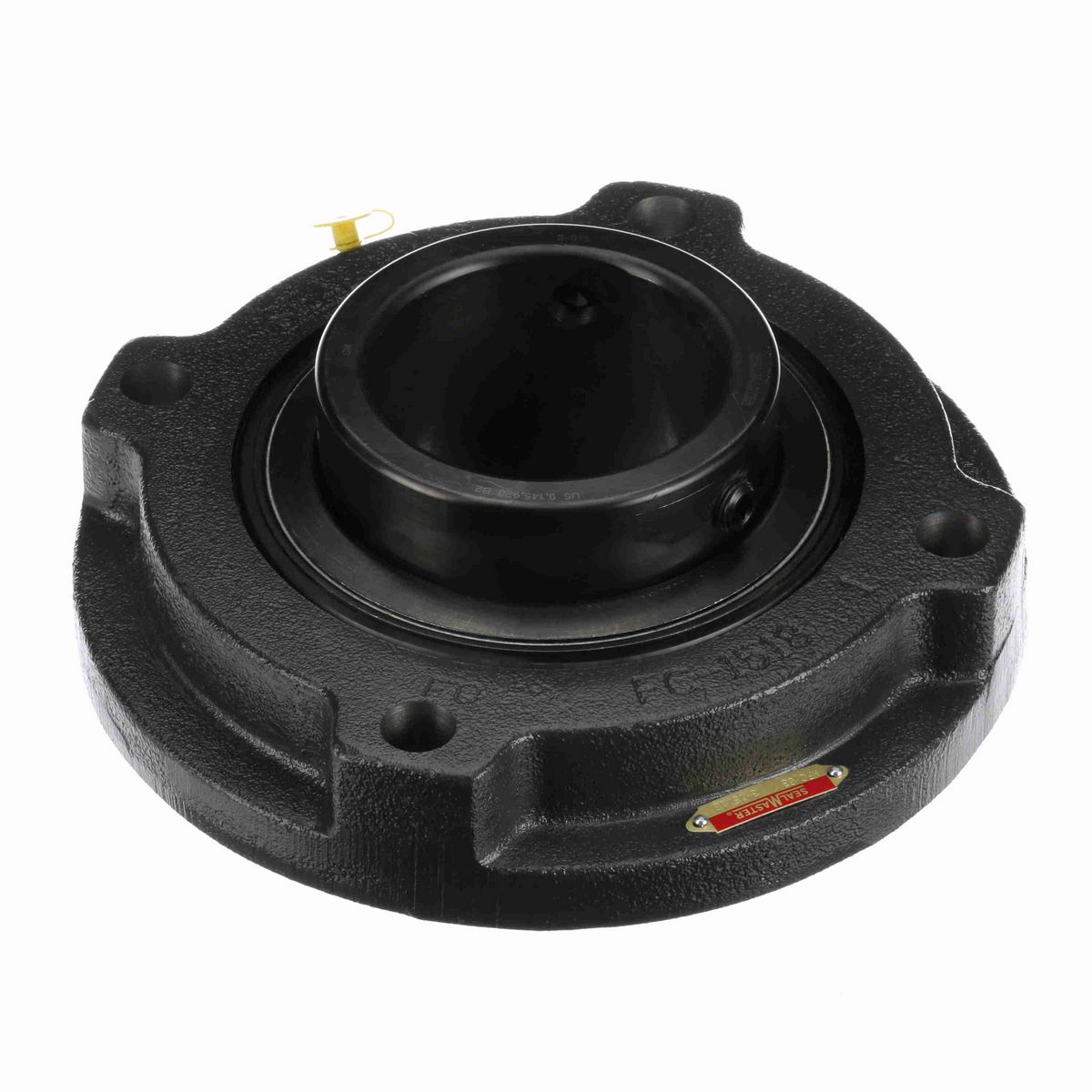

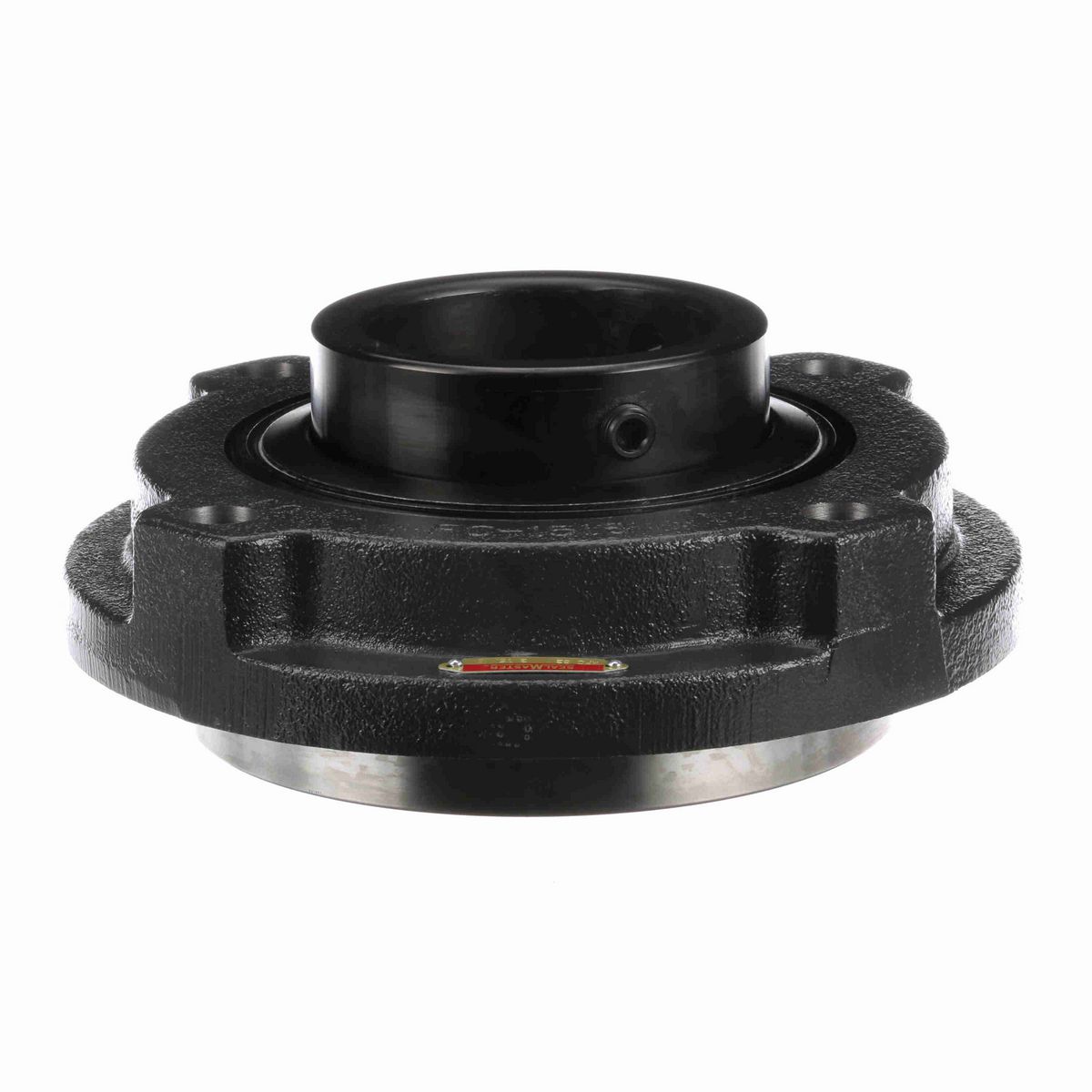

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	3/4 in
Overall Width (in)	10.88 in
Overall Height (in)	4.63 in
Overall Length (in)	10.88 in
Bore Diameter (in)	3.9375 in
Pilot Diameter (in)	8.123 in
Foot Height (in)	0.88 in
Length Through Bore (in)	4.625 in
Housing Outside Diameter (in)	10.88 in
Bolt Circle (in)	9.375 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	Piloted
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	Brass
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Ability to Relubricate	Yes
Pilot Depth (in)	1.09 in
Inner Race Heat Treat Method	Zone-Hardened
Radial Clearance	Standard
Lubricant	Lithium Complex NLGI 2 Grease
Static Load Rating (lb)	23,553 lb
Bearing Insert Material	52100 Bearing Steel
Grease Fitting Thread Size	1/4 NPT
Insert	3-315
Inner Ring Outside Diameter (in)	5.172 in
Housing Material	Cast Iron
Max Operating Temperature (F)	220 °F
Maximum Speed (RPM)	1700 rpm
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Type	Medium Duty
Housing Coating	Powder Coated
Bearing Insert Finish	Black Oxide
Dynamic Load Rating (lb)	29,905 lb
Fixed vs. Expansion	Fixed
End Cap Available	No
Cage Type	Land Riding Retainer
Size Code	2-43
Shaft Locking Type	Set Screw

General Specifications

UPC	662461013526
Weight	43.33 LB
Packaged Length	11.00 IN
Packaged Width	11.00 IN
Packaged Height	6.63 IN
HTC	8483.20.4040
Country of Origin	United States of America
