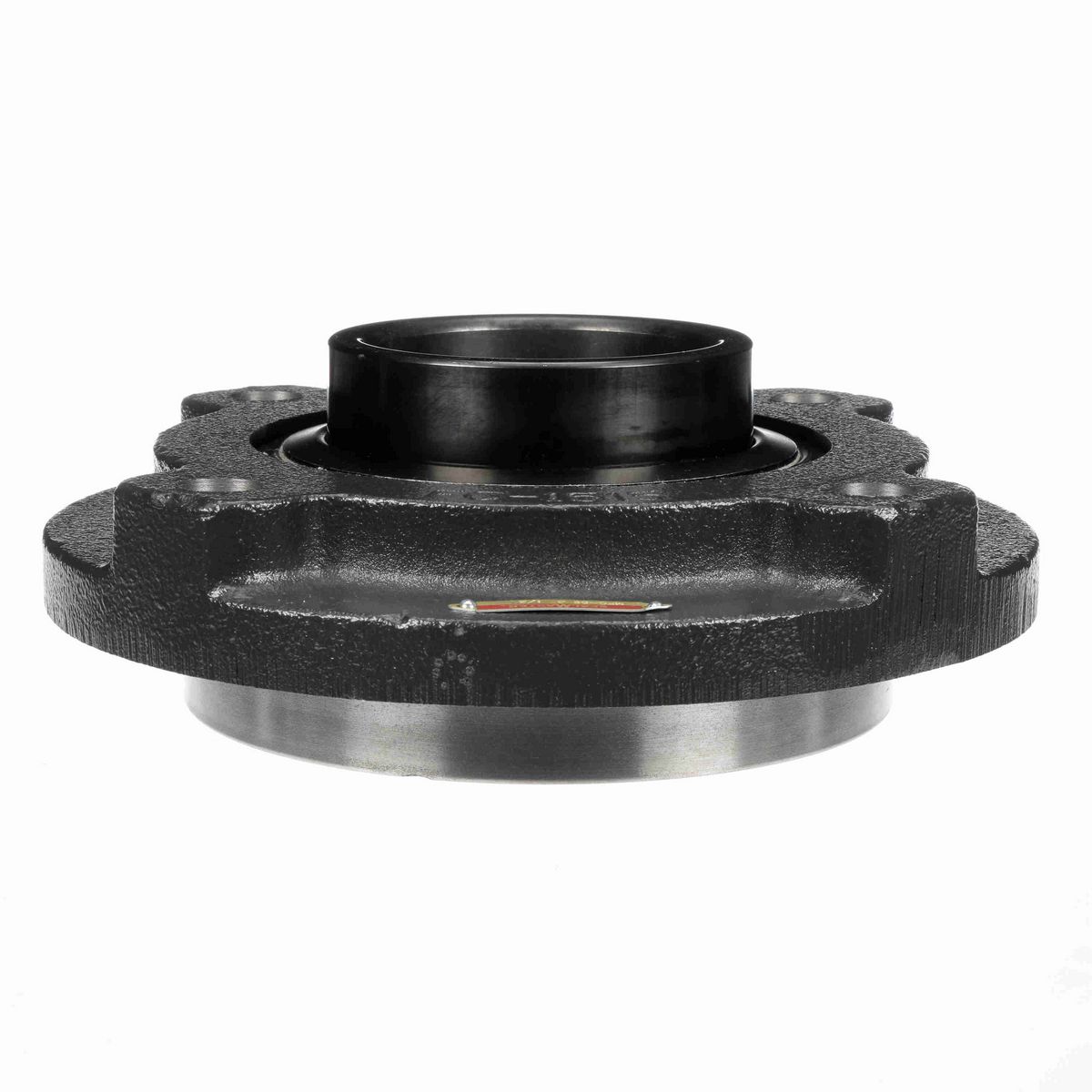

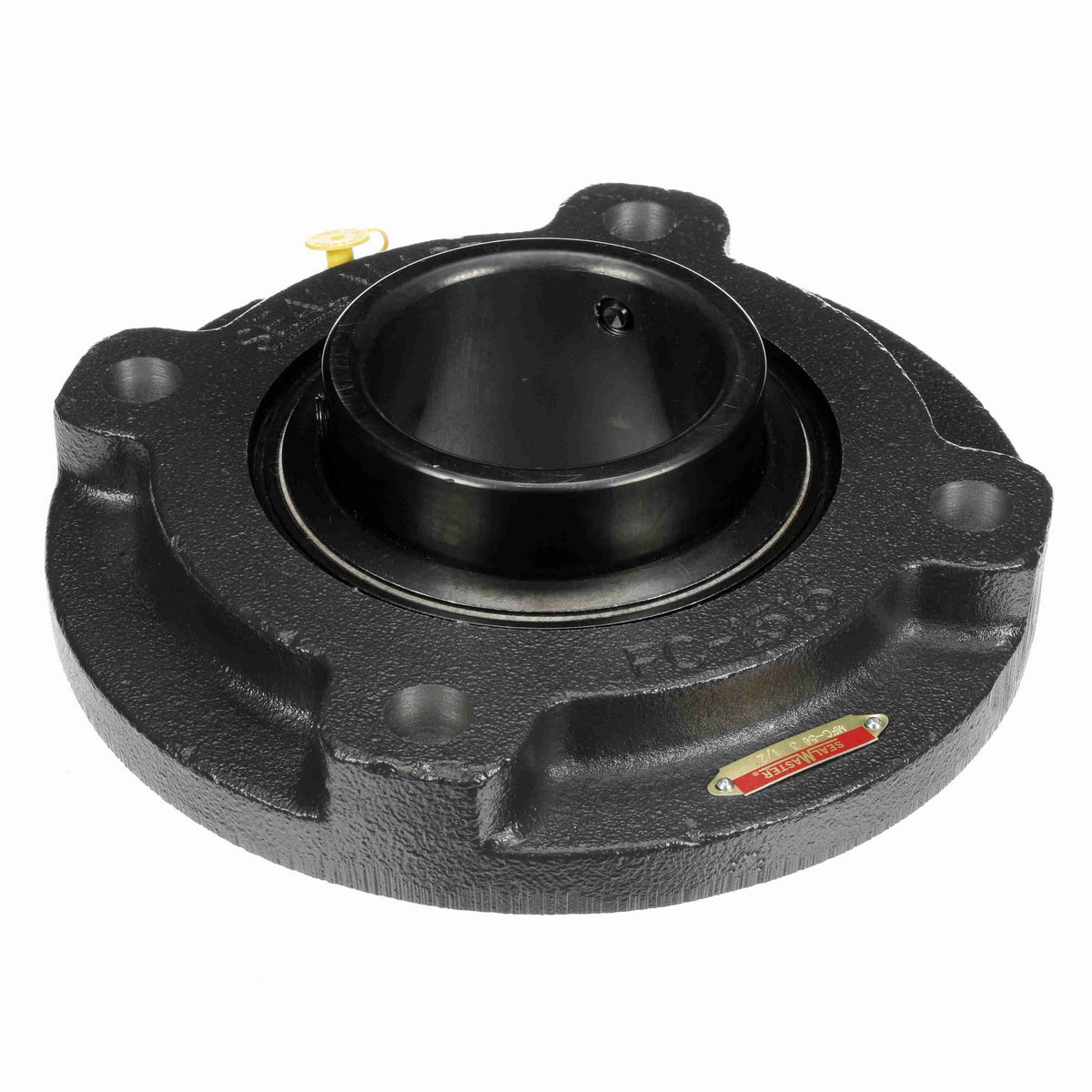

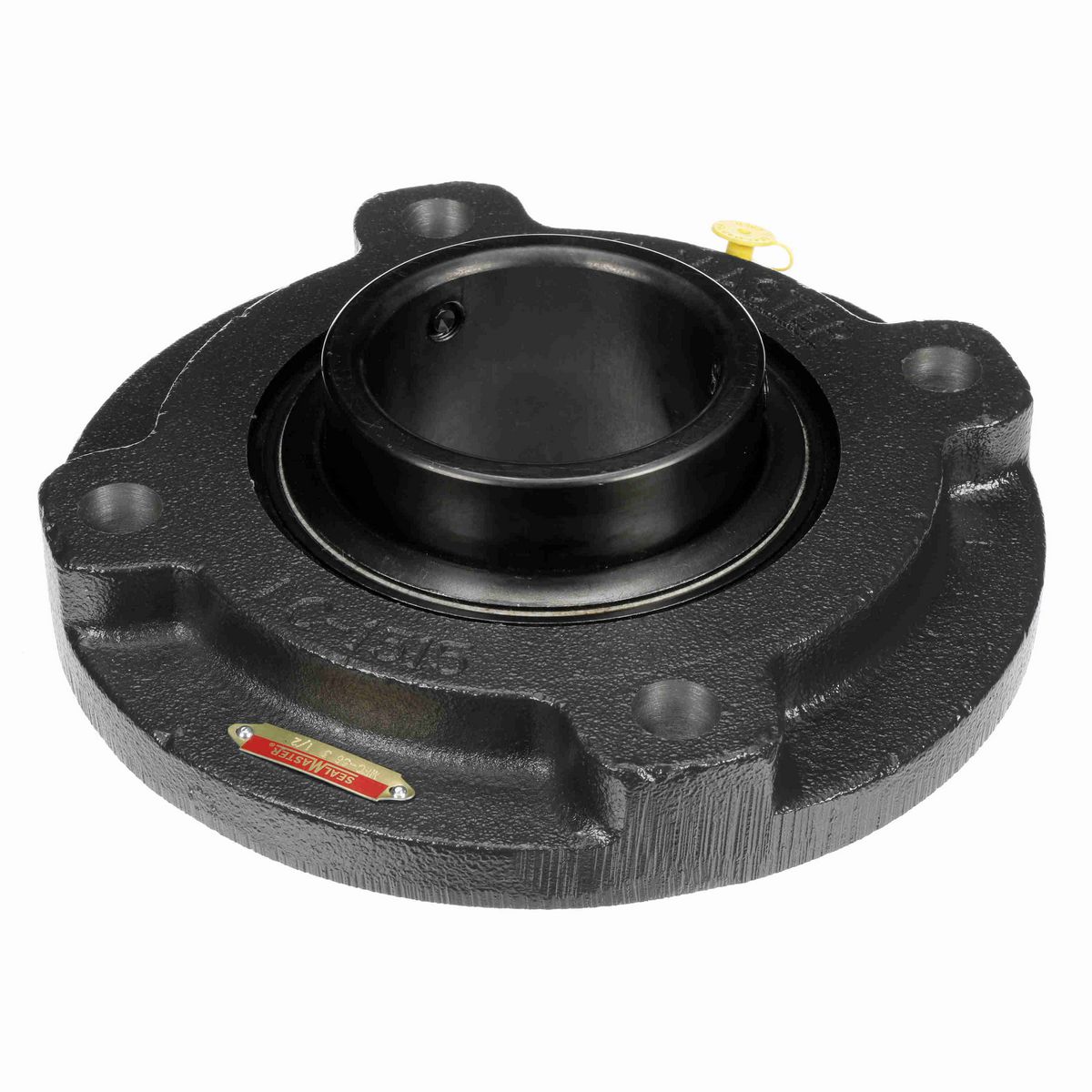

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	10.25 in
Bolt Size (in)	3/4 in
Overall Length (in)	10.25 in
Overall Height (in)	3.78 in
Bore Diameter (in)	3.5 in
Pilot Diameter (in)	7.375 in
Foot Height (in)	0.75 in
Length Through Bore (in)	3.781 in
Housing Outside Diameter (in)	10.25 in
Bolt Circle (in)	8.625 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	Piloted
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	Brass
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Pilot Depth (in)	1.09 in
Radial Clearance	Standard
Grease Fitting Thread Size	1/4 NPT
Maximum Speed (RPM)	2000 rpm
Insert	2-38
Dynamic Load Rating (lb)	21,566 lb
Size Code	2-38
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Finish	Black Oxide
Cage Type	Land Riding Retainer
Inner Ring Outside Diameter (in)	4.391 in
Housing Material	Cast Iron
Bearing Insert Material	52100 Bearing Steel
Shaft Locking Type	Set Screw
End Cap Available	No
Static Load Rating (lb)	16,301 lb
Lubricant	Lithium Complex NLGI 2 Grease
Housing Coating	Powder Coated
Bearing Type	Medium Duty
Max Operating Temperature (F)	220 °F
Fixed vs. Expansion	Fixed

General Specifications

UPC	662461013519
Weight	30.64 LB
Packaged Length	10.44 IN
Packaged Width	10.63 IN
Packaged Height	3.94 IN
HTC	8483.20.4040
Country of Origin	United States of America
