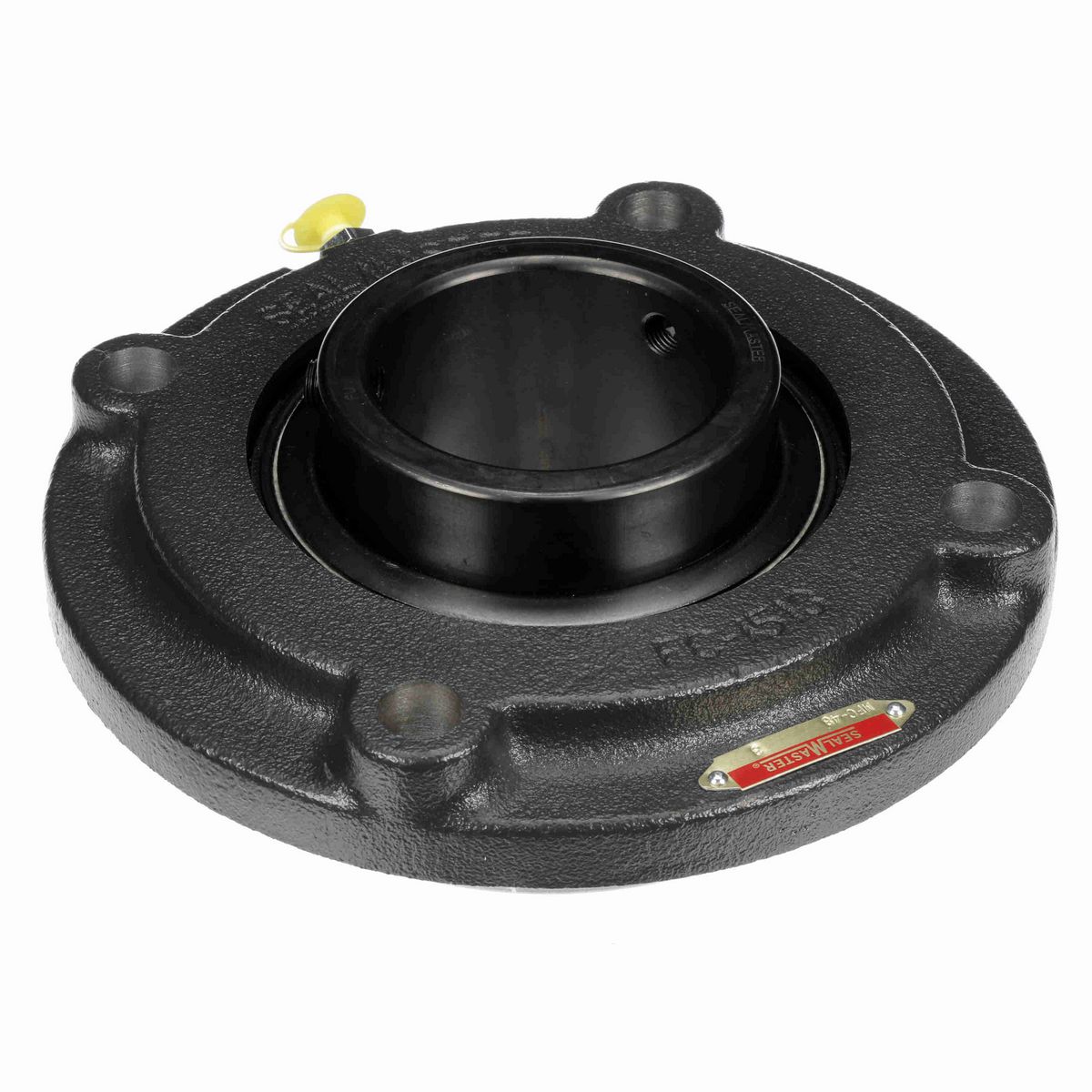

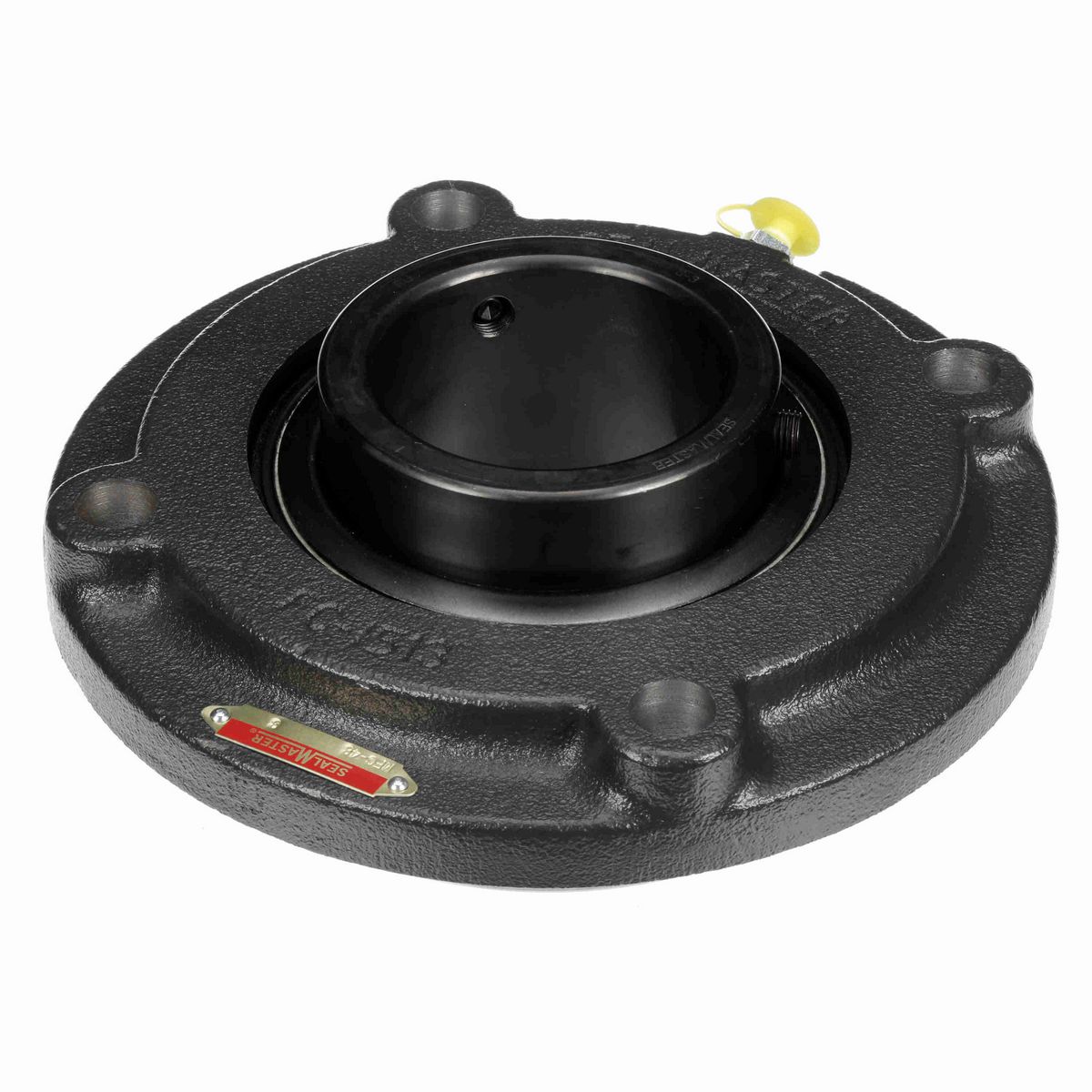

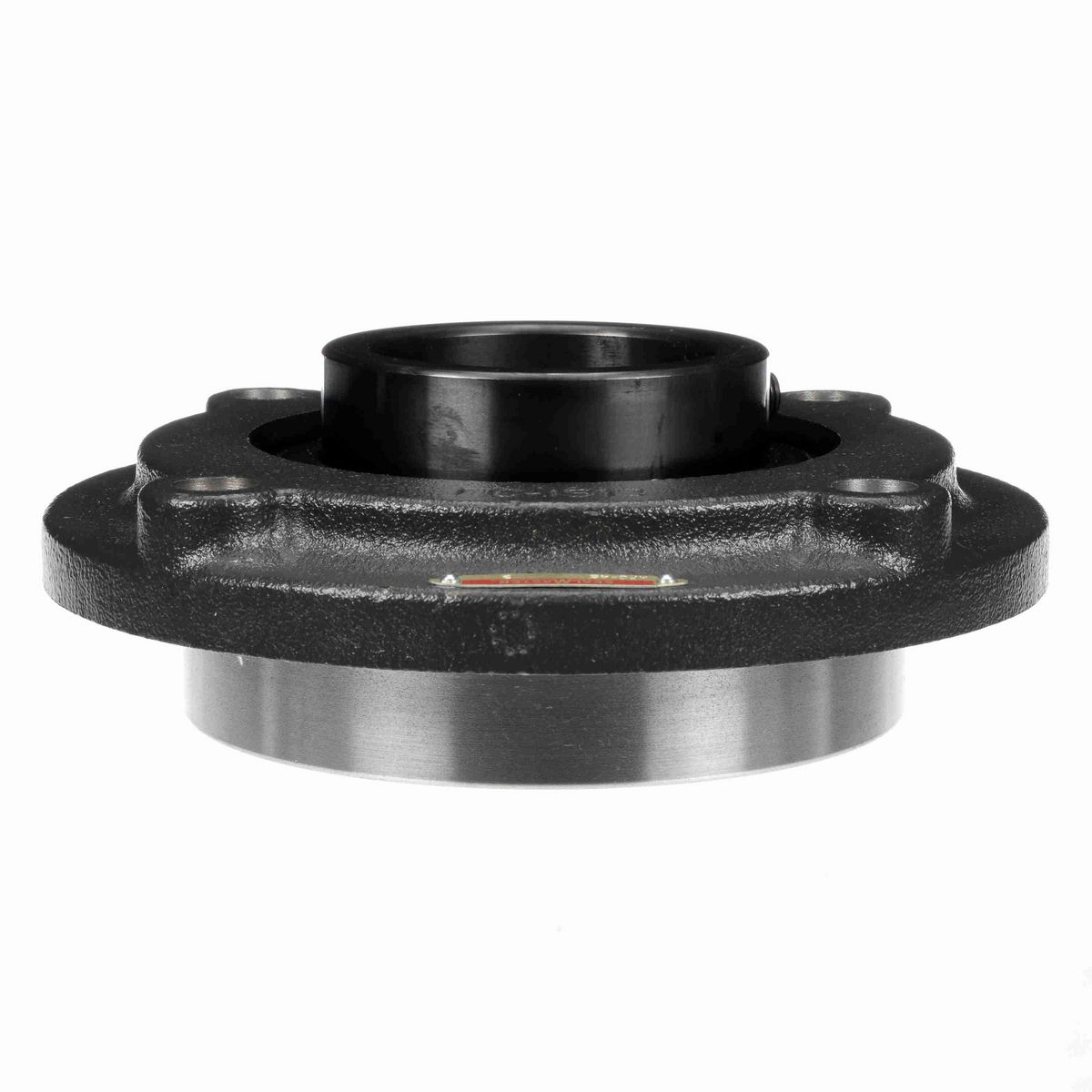

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	8.75 in
Bolt Size (in)	5/8 in
Overall Height (in)	3.25 in
Overall Length (in)	8.75 in
Bore Diameter (in)	3 in
Foot Height (in)	0.63 in
Pilot Diameter (in)	6.375 in
Length Through Bore (in)	3.248 in
Housing Outside Diameter (in)	8.75 in
Bolt Circle (in)	7.5 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	Brass
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Pilot Depth (in)	1.22 in
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Dynamic Load Rating (lb)	17,412 lb
Size Code	2-33
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Coating	Powder Coated
Inner Ring Outside Diameter (in)	3.922 in
Max Operating Temperature (F)	220 °F
Bearing Insert Material	52100 Bearing Steel
Static Load Rating (lb)	13,174 lb
End Cap Available	No
Bearing Type	Medium Duty
Radial Clearance	Standard
Maximum Speed (RPM)	2101 rpm
Grease Fitting Thread Size	1/4 NPT
Insert	3-3
Shaft Locking Type	Set Screw
Housing Material	Cast Iron
Cage Type	Land Riding Retainer
Lubricant	Lithium Complex NLGI 2 Grease
Fixed vs. Expansion	Fixed
Bearing Insert Finish	Black Oxide

General Specifications

UPC	662461013489
Weight	19.47 LB
Packaged Length	9.06 IN
Packaged Width	8.88 IN
Packaged Height	3.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
