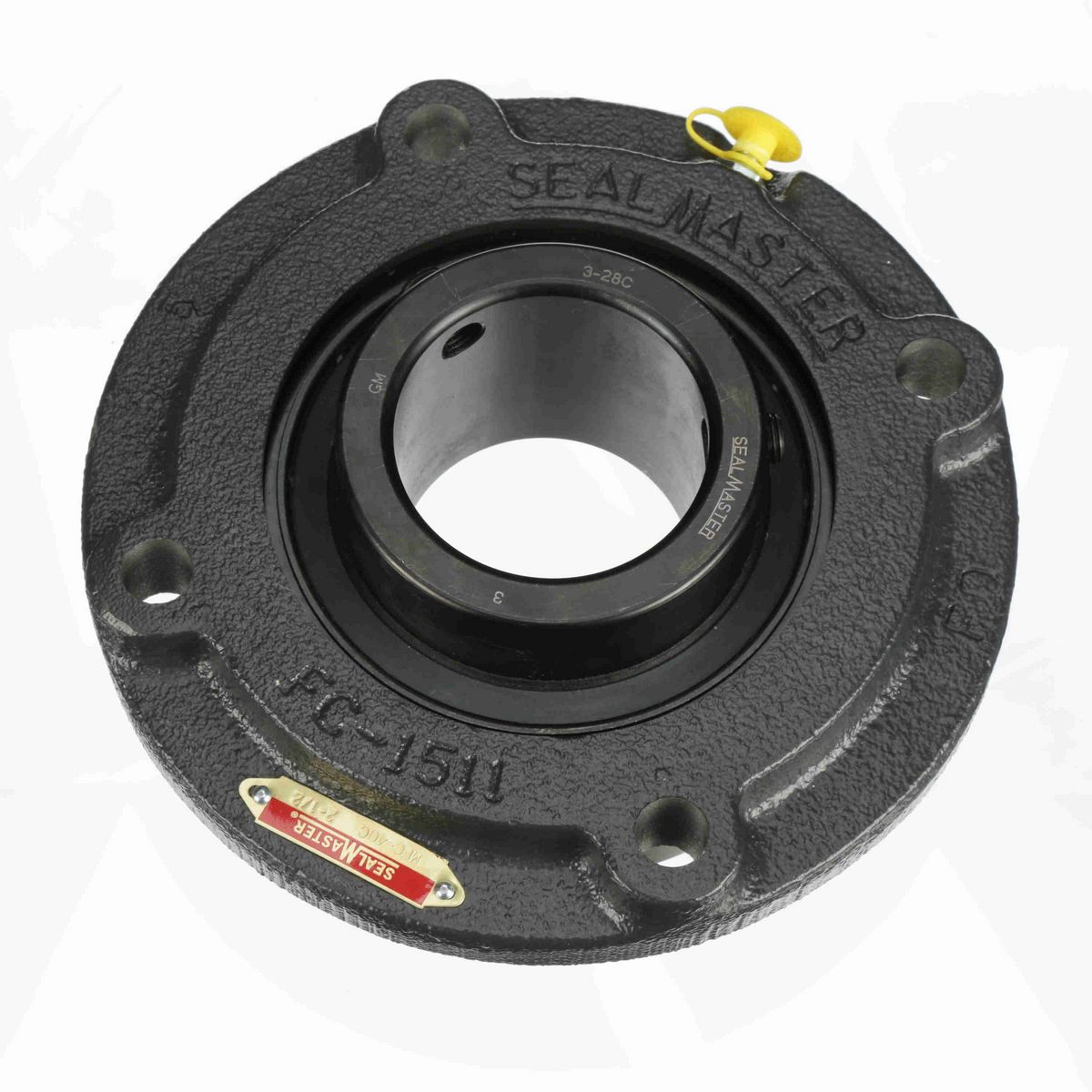

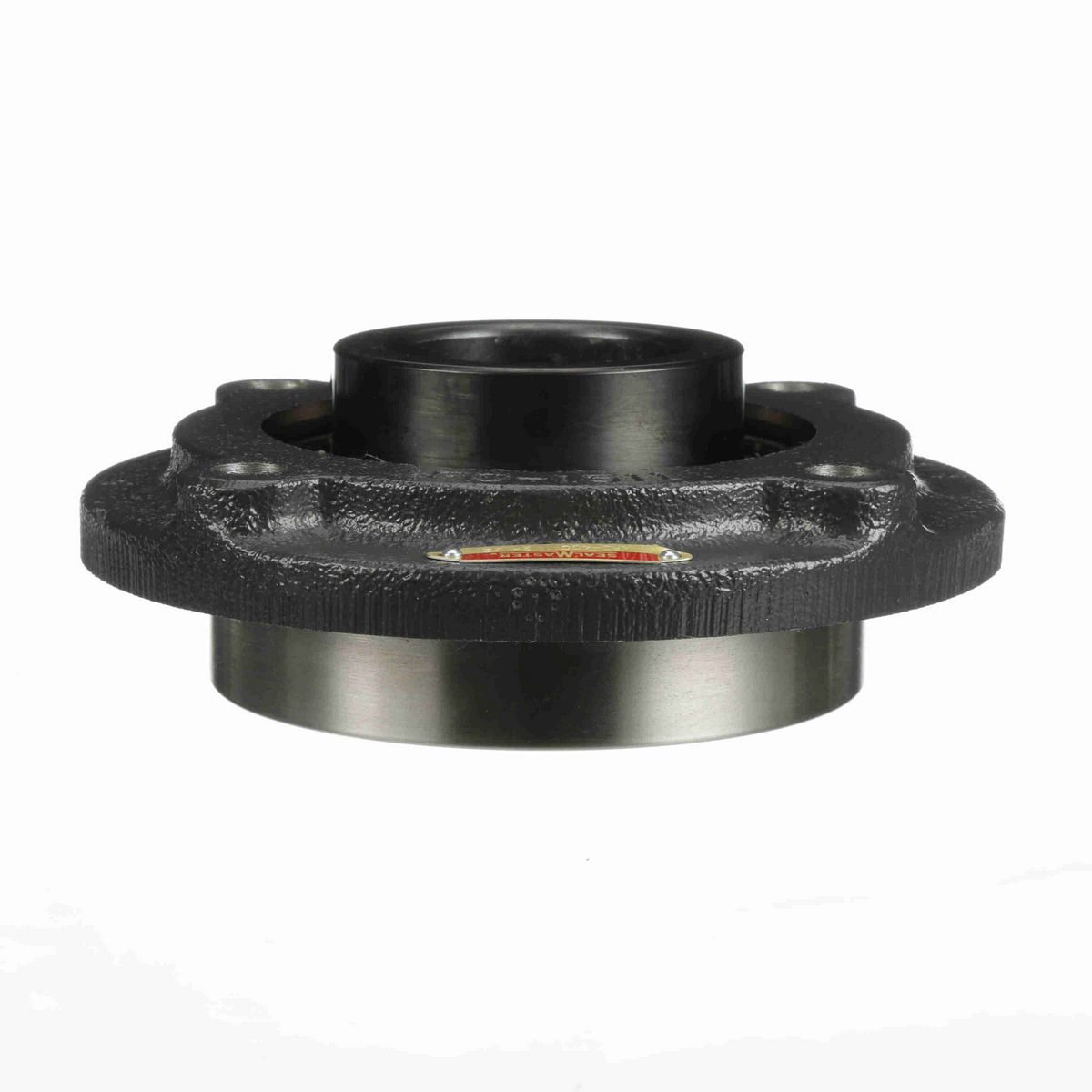

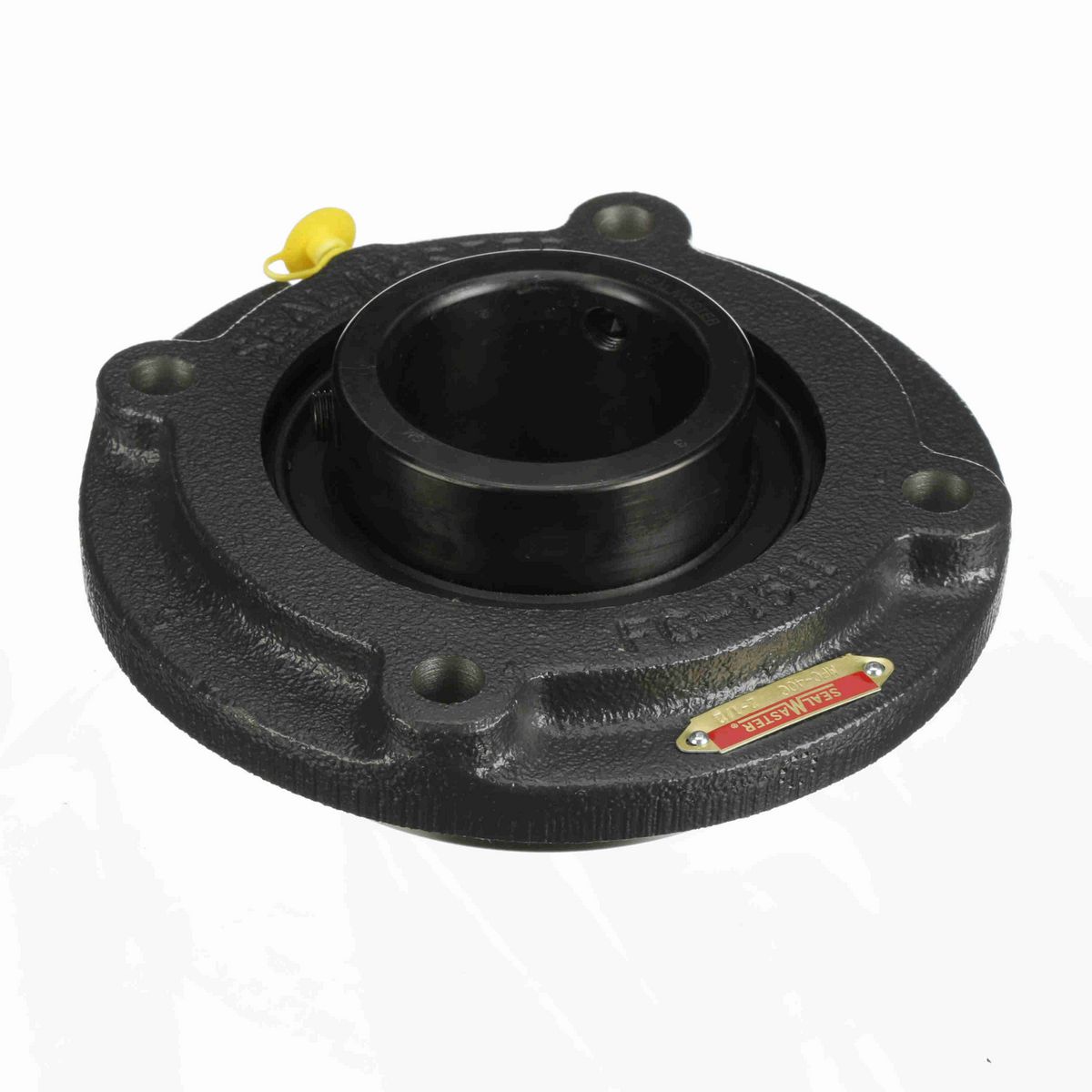

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	1/2 in
Overall Width (in)	7.63 in
Overall Length (in)	7.63 in
Overall Height (in)	2.84 in
Bore Diameter (in)	2.5 in
Pilot Diameter (in)	5.500 in
Foot Height (in)	0.56 in
Length Through Bore (in)	2.748 in
Housing Outside Diameter (in)	7.63 in
Bolt Circle (in)	6.5 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	Brass
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Piloted
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Pilot Depth (in)	1.094 in
Bearing Type	Medium Duty
End Cap Available	No
Housing Coating	Powder Coated
Fixed vs. Expansion	Fixed
Shaft Locking Type	Set Screw
Insert	3-28C
Housing Material	Cast Iron
Inner Ring Outside Diameter (in)	3.438 in
Lubricant	Lithium Complex NLGI 2 Grease
Size Code	2-211
Misalignment Capability	±2.0° Misalignment - Static Only
Grease Fitting Thread Size	1/8 NPT
Maximum Speed (RPM)	2225 rpm
Bearing Insert Finish	Black Oxide
Max Operating Temperature (F)	220 °F
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	Standard
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	13,971 lb
Static Load Rating (lb)	10,063 lb

General Specifications

UPC	662461026366
Weight	13.03 LB
Packaged Length	8.13 IN
Packaged Width	7.94 IN
Packaged Height	3.50 IN
HTC	8483.20.4040
Country of Origin	United States of America
