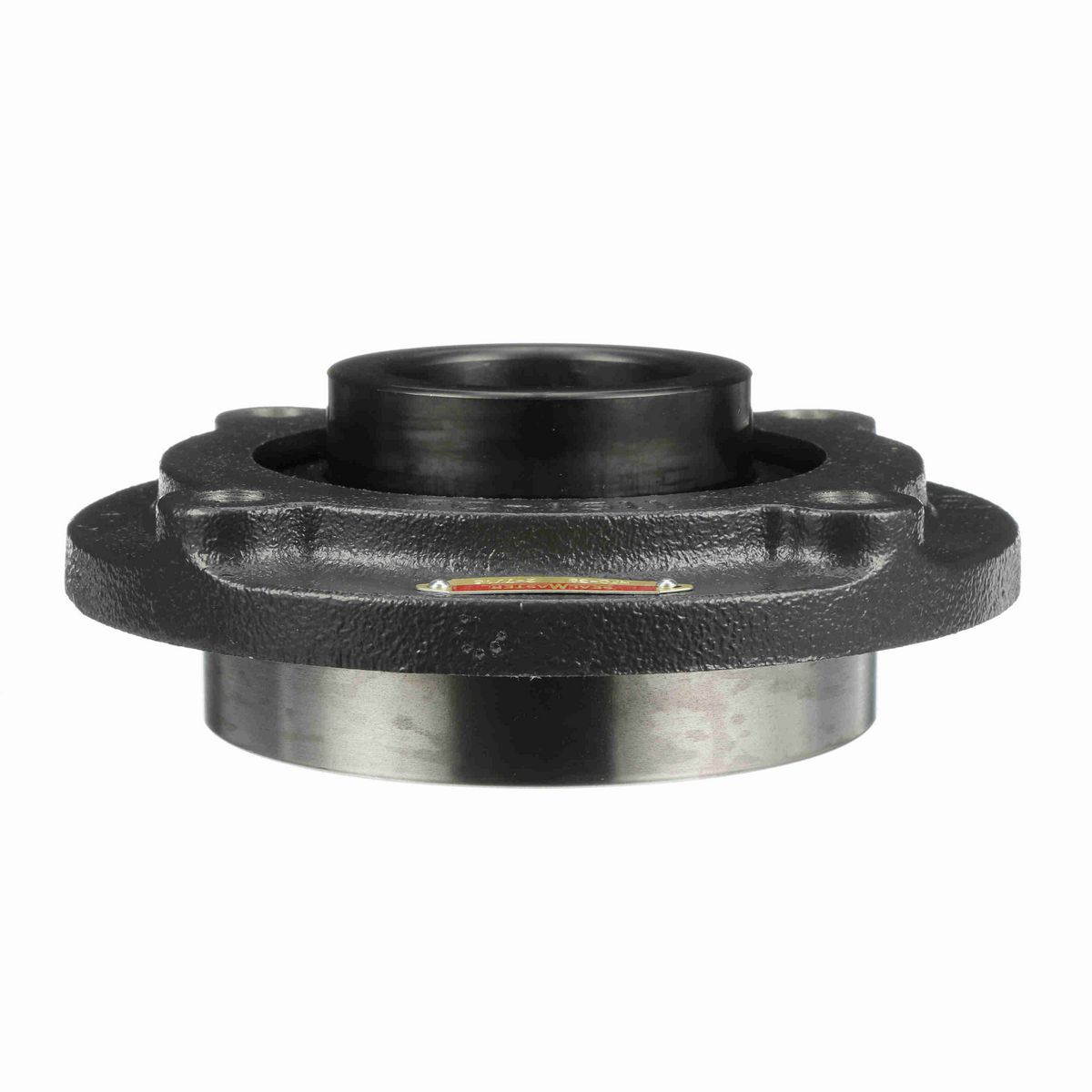

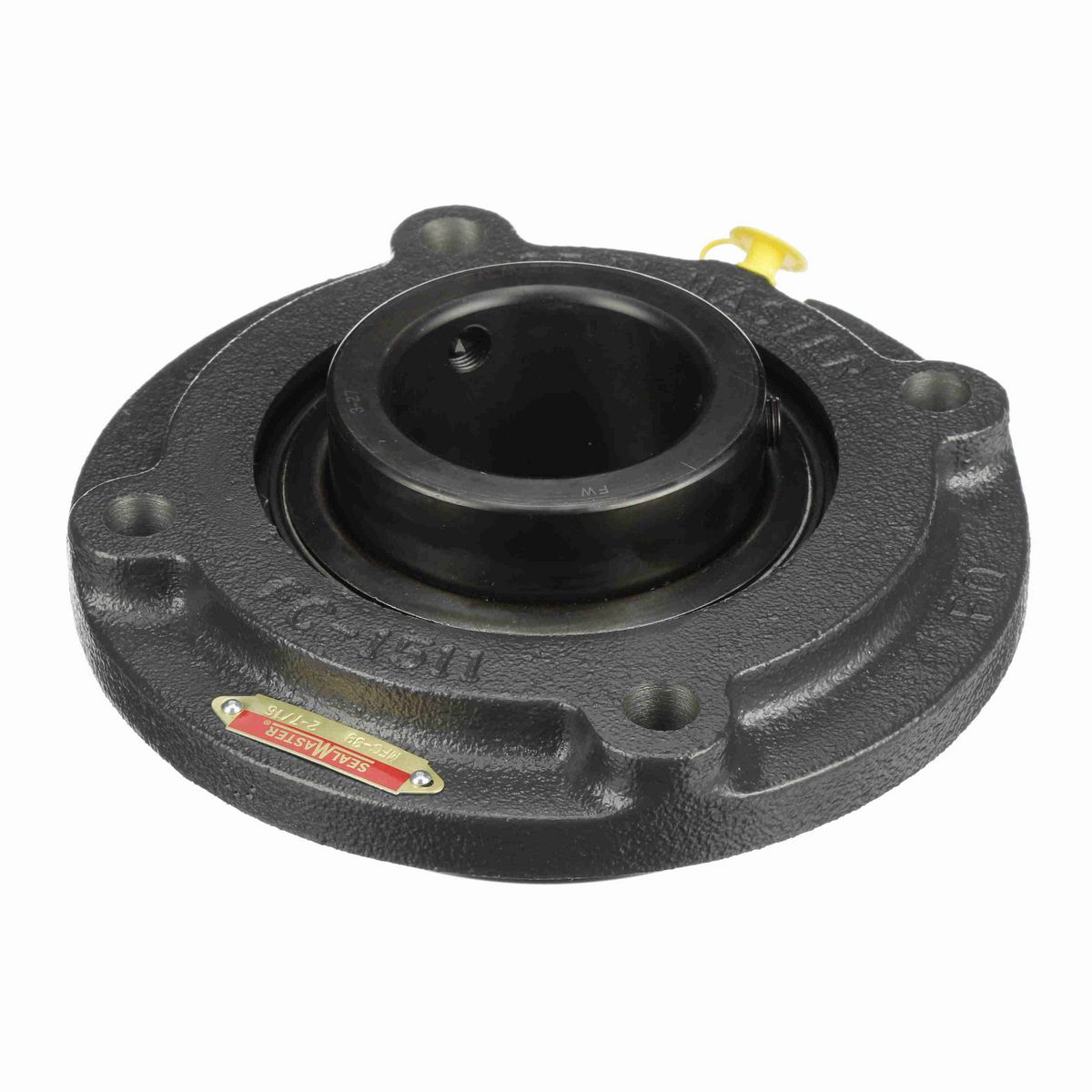

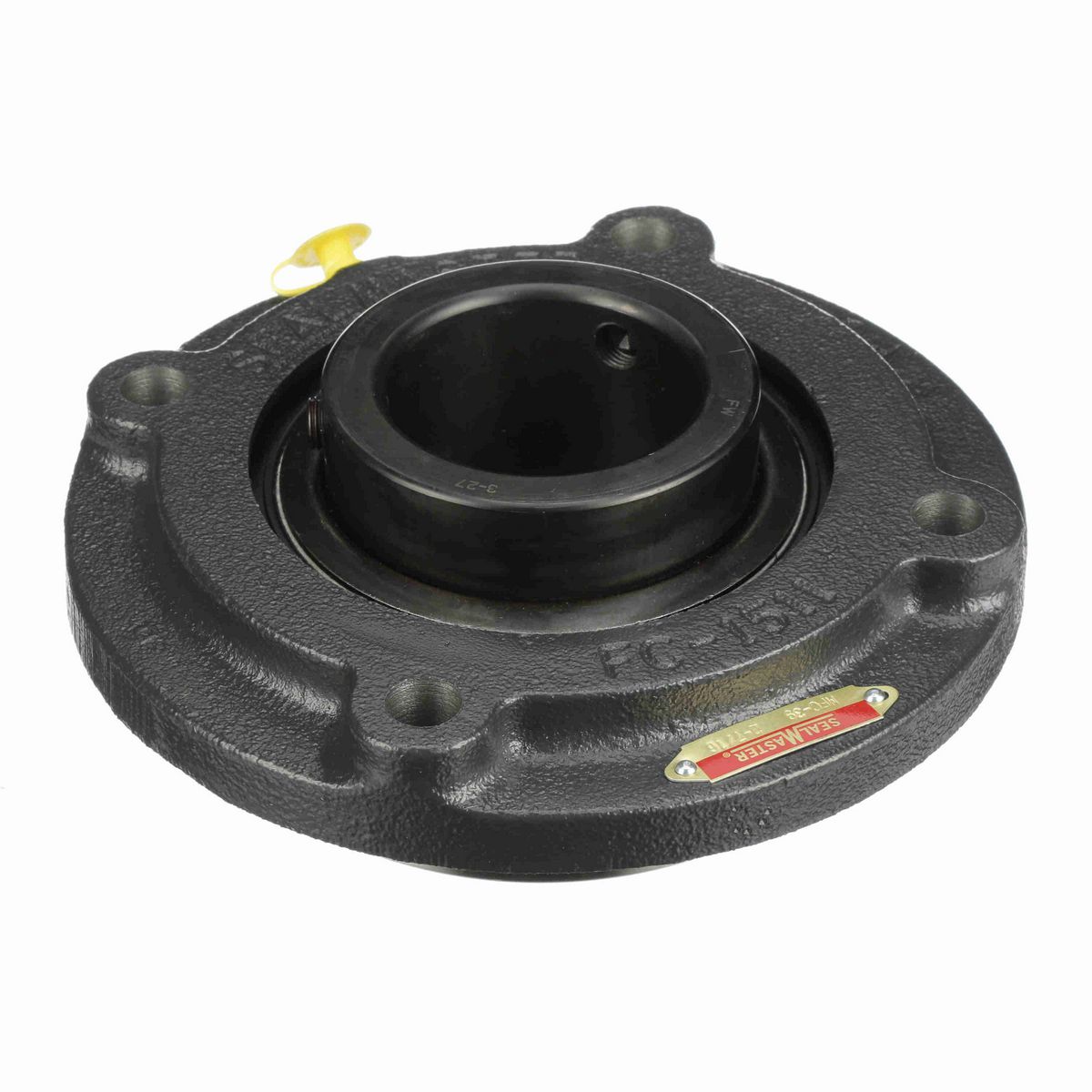

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	7.63 in
Bolt Size (in)	1/2 in
Overall Height (in)	2.84 in
Overall Length (in)	7.63 in
Bore Diameter (in)	2.4375 in
Pilot Diameter (in)	5.500 in
Foot Height (in)	0.56 in
Length Through Bore (in)	2.748 in
Housing Outside Diameter (in)	7.63 in
Bolt Circle (in)	6.5 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	Brass
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Pilot Depth (in)	1.094 in
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Housing Material	Cast Iron
Size Code	2-211
Bearing Insert Material	52100 Bearing Steel
Cage Type	Land Riding Retainer
End Cap Available	No
Grease Fitting Thread Size	1/8 NPT
Insert	3-27
Fixed vs. Expansion	Fixed
Bearing Insert Finish	Black Oxide
Radial Clearance	Standard
Bearing Type	Medium Duty
Housing Coating	Powder Coated
Inner Ring Outside Diameter (in)	3.438 in
Misalignment Capability	±2.0° Misalignment - Static Only
Dynamic Load Rating (lb)	13,971 lb
Max Operating Temperature (F)	220 °F
Lubricant	Lithium Complex NLGI 2 Grease
Static Load Rating (lb)	10,063 lb
Maximum Speed (RPM)	2500 rpm
Shaft Locking Type	Set Screw

General Specifications

UPC	662461013441
Weight	13.16 LB
Packaged Length	8.13 IN
Packaged Width	7.94 IN
Packaged Height	3.50 IN
HTC	8483.20.4040
Country of Origin	United States of America
