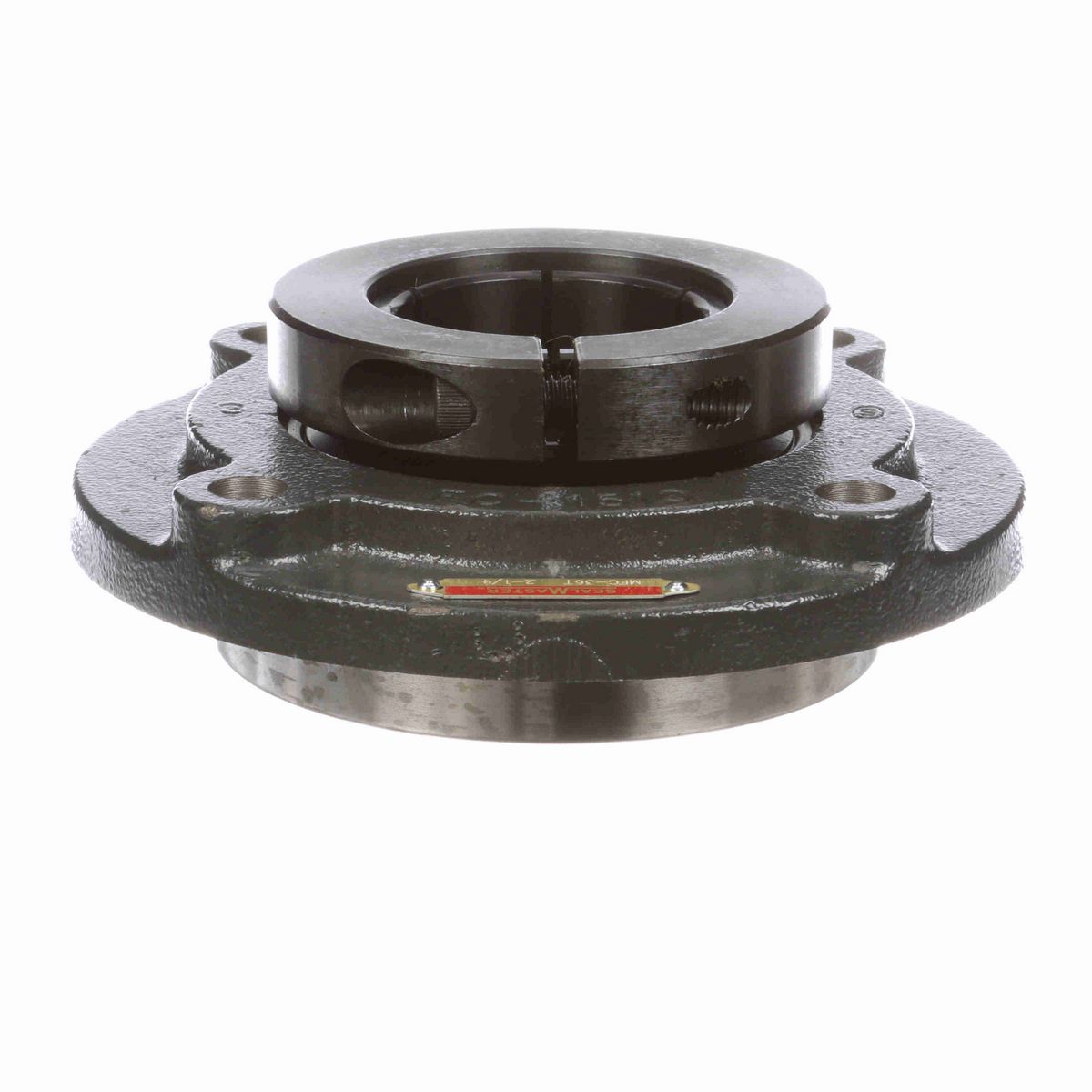

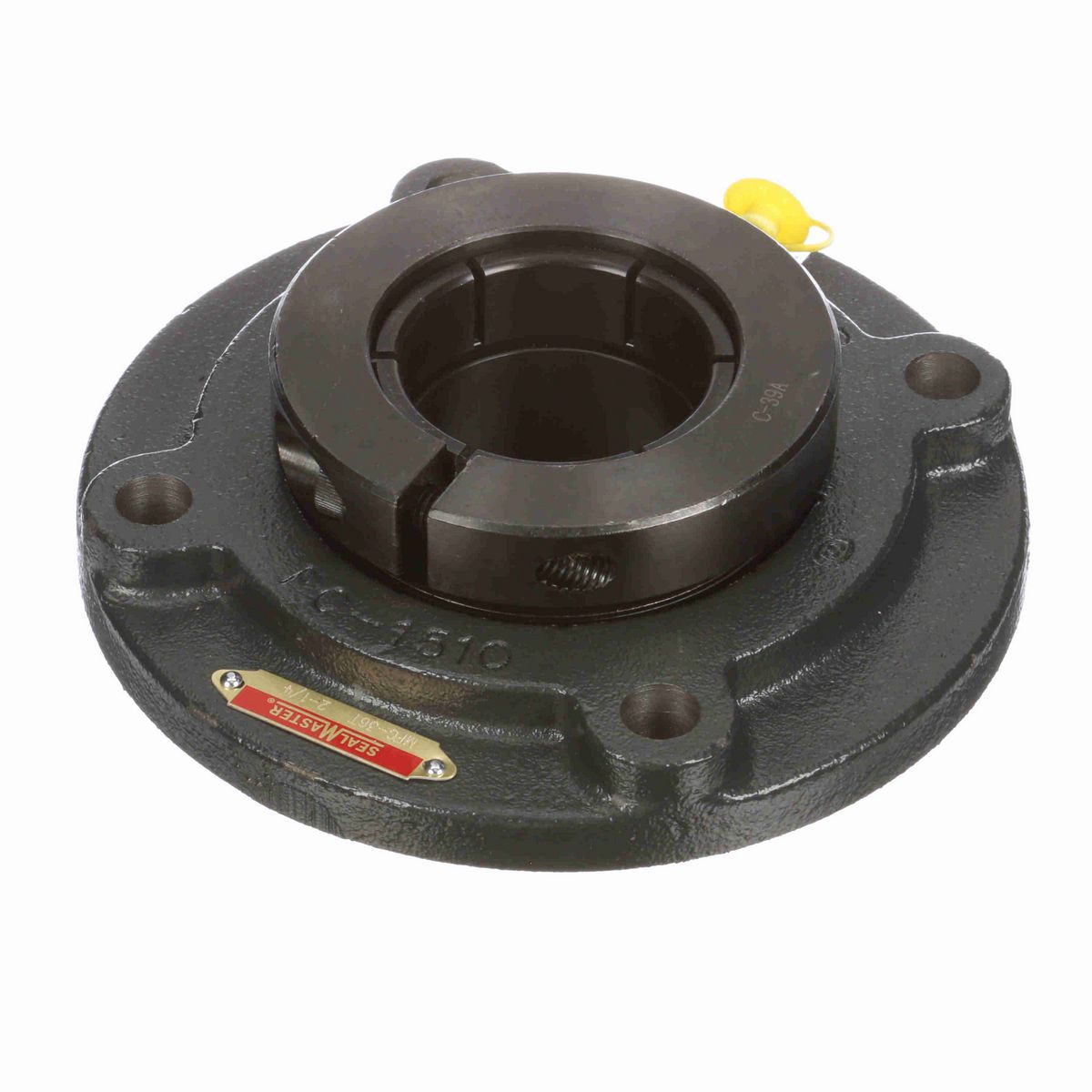

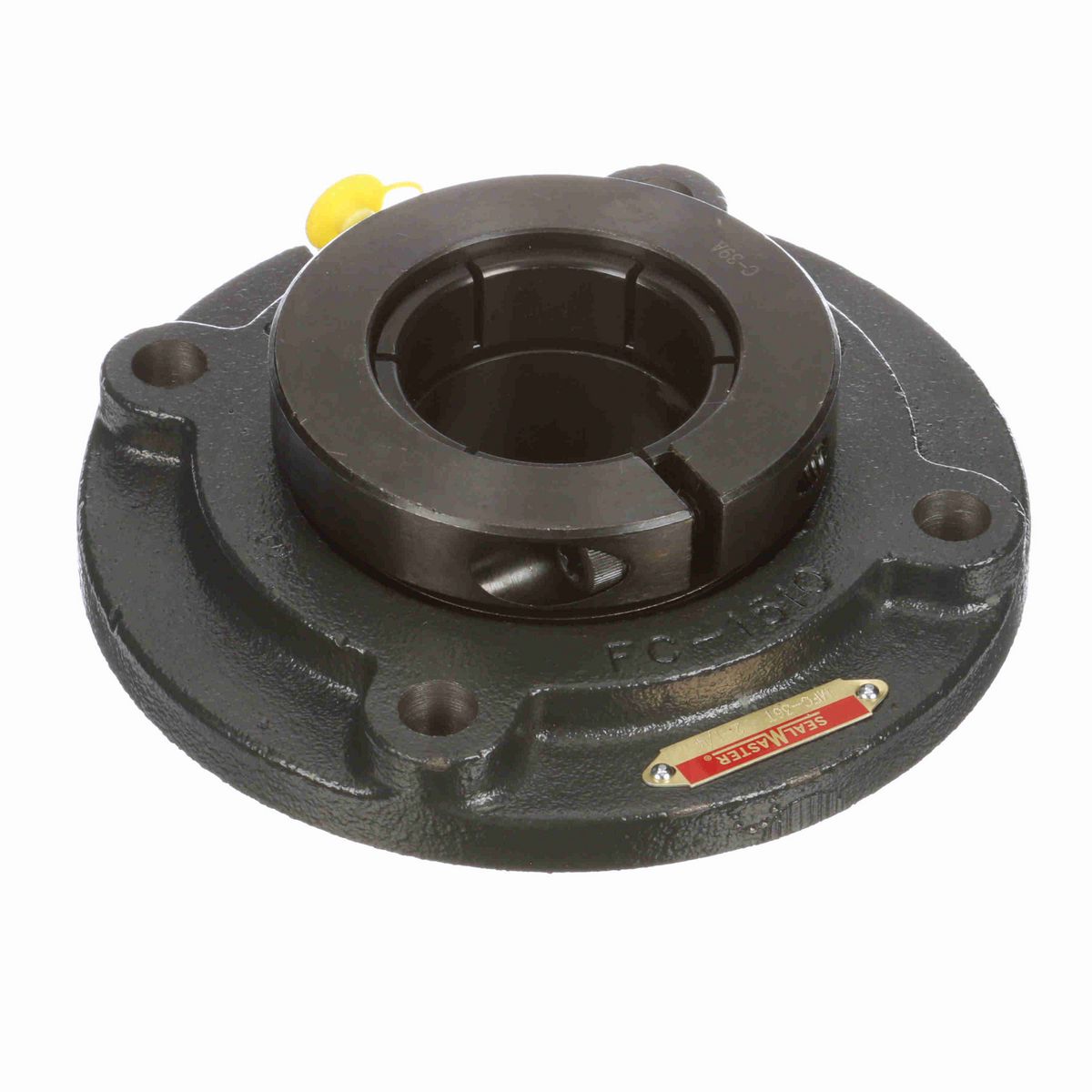

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	7.13 in
Bolt Size (in)	1/2 in
Overall Height (in)	2.63 in
Overall Length (in)	7.13 in
Bore Diameter (in)	2.25 in
Pilot Diameter (in)	5.000 in
Foot Height (in)	0.50 in
Length Through Bore (in)	2.625 in
Housing Outside Diameter (in)	7.125 in
Bolt Circle (in)	6 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	Piloted
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Pilot Depth (in)	0.844 in
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	4.06 in
Lubricant	Lithium Complex NLGI 2 Grease
End Cap Available	No
Bearing Type	Medium Duty
Cage Type	Land Riding Retainer
Misalignment Capability	±2.0° Misalignment - Static Only
Maximum Speed (RPM)	4100 rpm
Insert	2-24T
Grease Fitting Thread Size	1/8 NPT
Bearing Insert Finish	Black Oxide
Max Operating Temperature (F)	220 °F
Housing Material	Cast Iron
Fixed vs. Expansion	Fixed
Shaft Locking Type	Concentric
Size Code	2-27
Radial Clearance	Standard
Static Load Rating (lb)	8,150 lb
Dynamic Load Rating (lb)	11,789 lb
Inner Ring Outside Diameter (in)	2.984 in
Housing Coating	Powder Coated
Bearing Insert Material	52100 Bearing Steel

General Specifications

UPC	662461031803
Weight	10.54 LB
Packaged Length	7.50 IN
Packaged Width	7.38 IN
Packaged Height	2.63 IN
HTC	8483.20.4040
Country of Origin	United States of America
