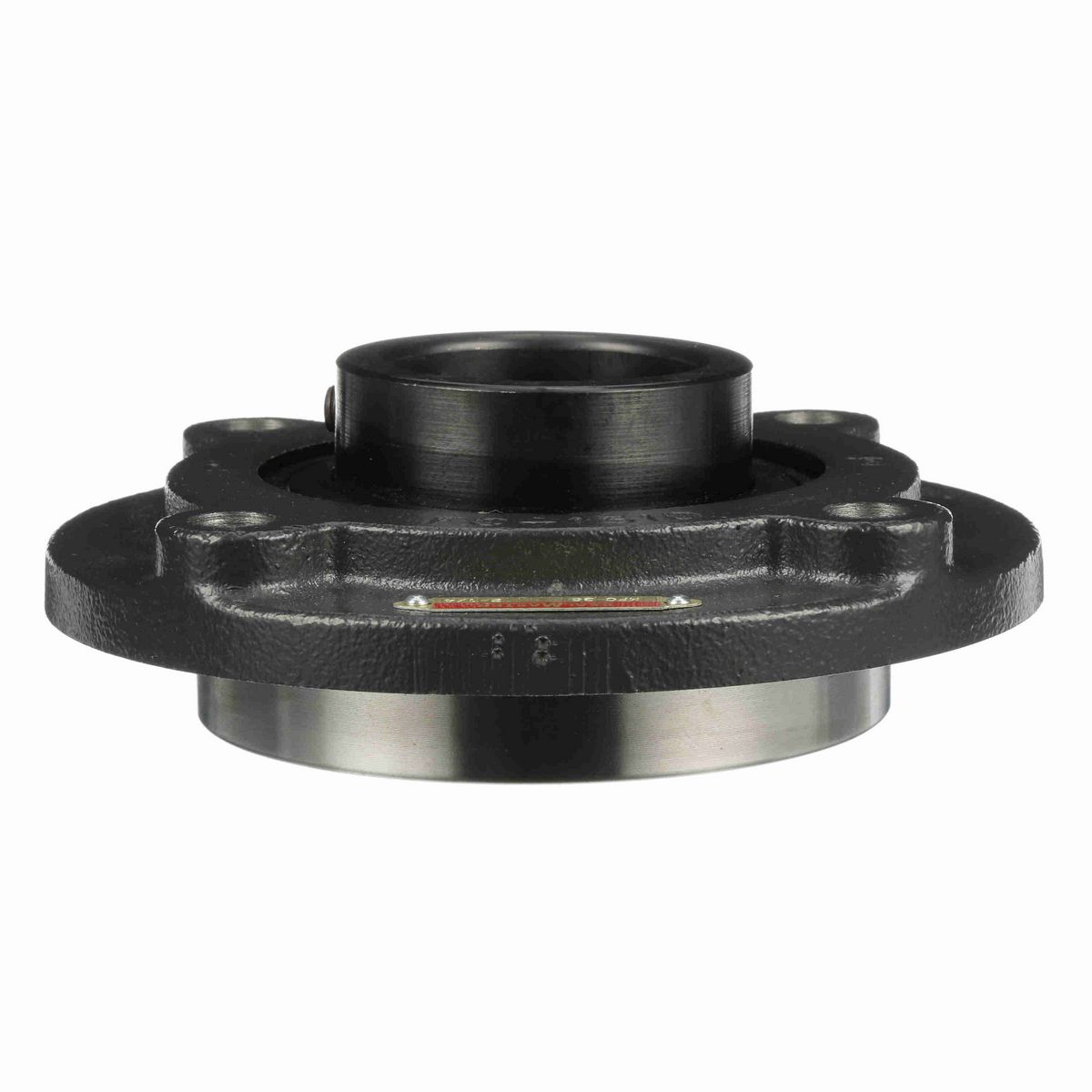

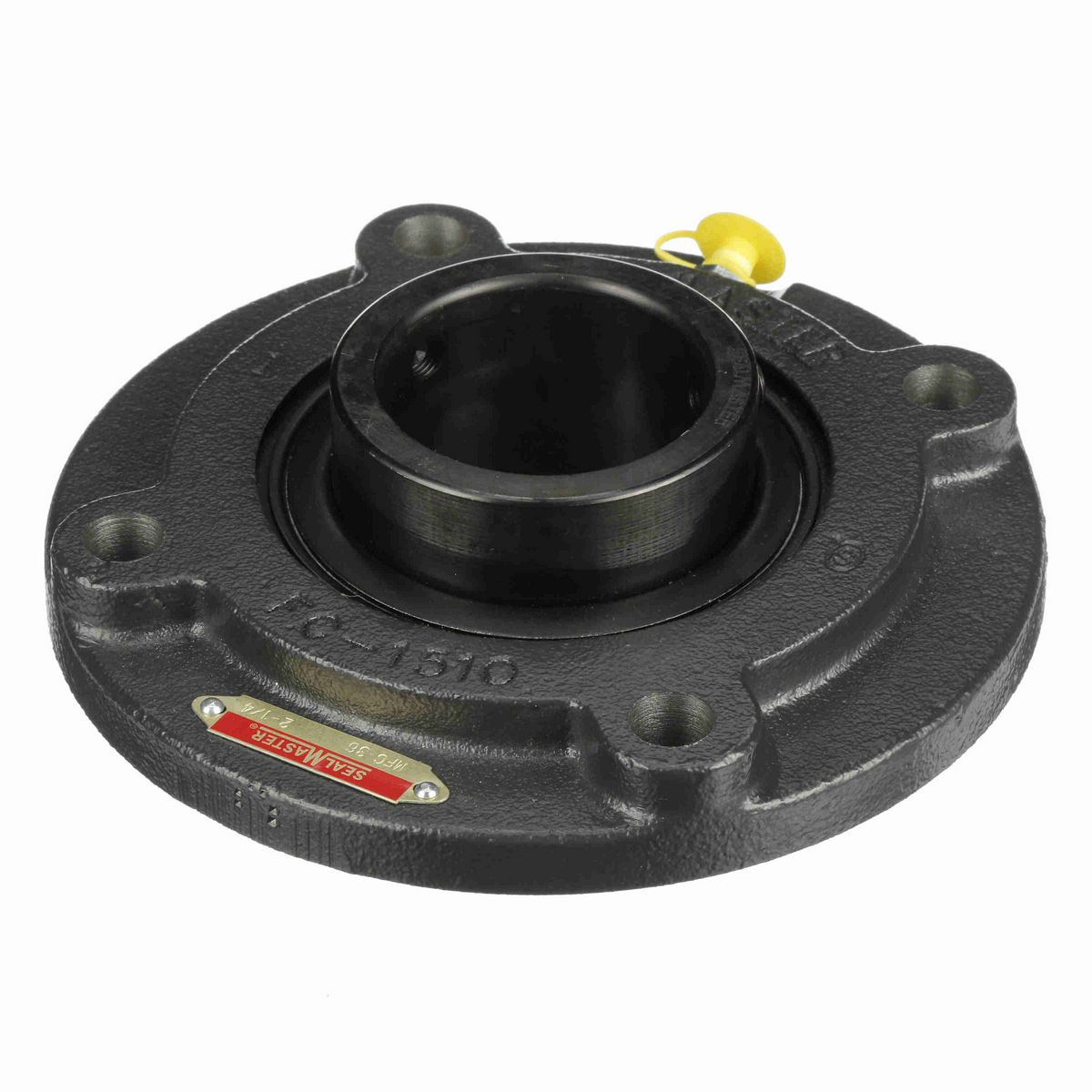

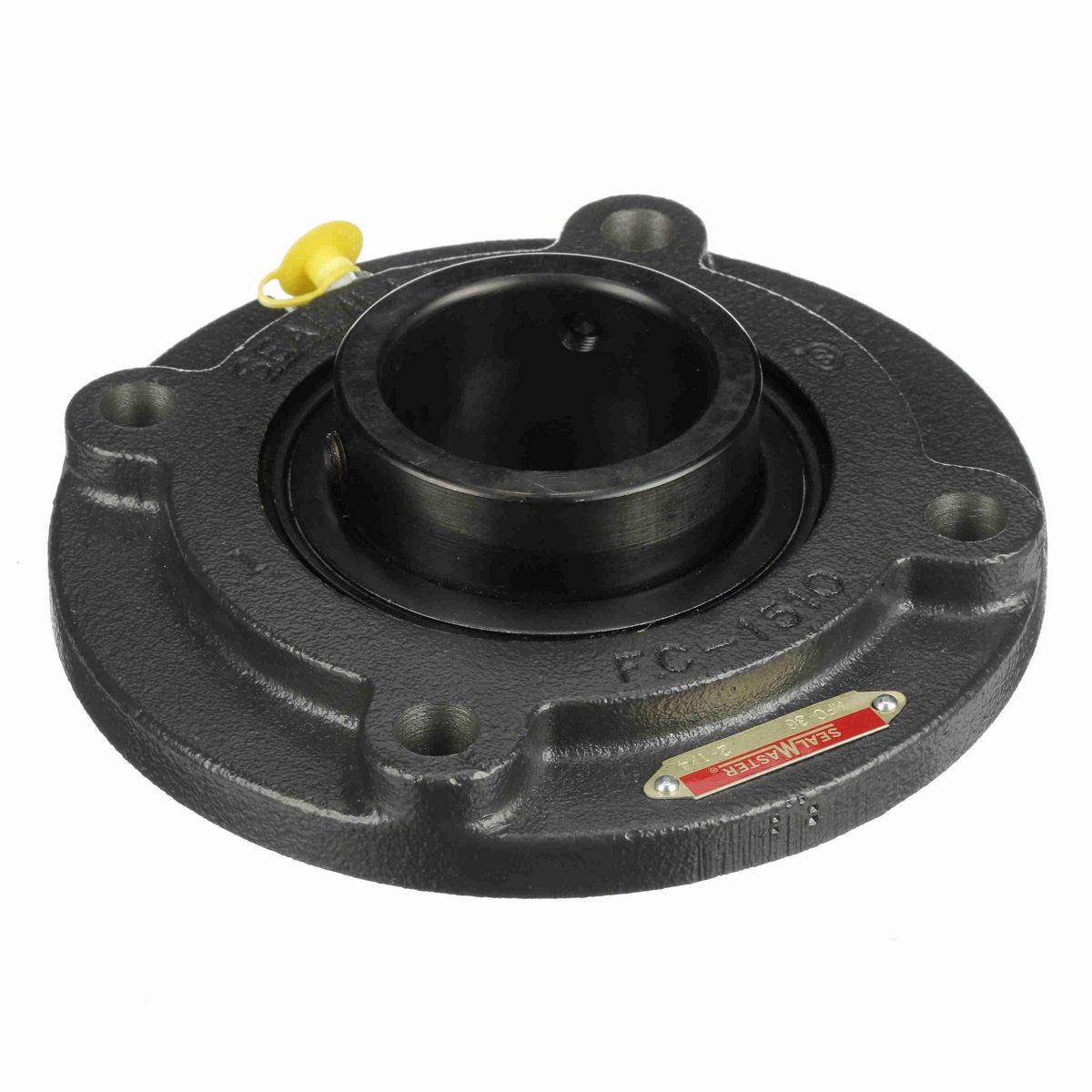

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	1/2 in
Overall Width (in)	7.13 in
Overall Height (in)	2.56 in
Overall Length (in)	7.13 in
Bore Diameter (in)	2.25 in
Pilot Diameter (in)	5.000 in
Foot Height (in)	0.50 in
Length Through Bore (in)	2.563 in
Housing Outside Diameter (in)	7.125 in
Bolt Circle (in)	6 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Pilot Depth (in)	0.844 in
Insert	2-24
End Cap Available	No
Cage Type	Land Riding Retainer
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Type	Medium Duty
Bearing Insert Finish	Black Oxide
Maximum Speed (RPM)	3000 rpm
Size Code	2-27
Grease Fitting Thread Size	1/8 NPT
Static Load Rating (lb)	8,150 lb
Fixed vs. Expansion	Fixed
Misalignment Capability	±2.0° Misalignment - Static Only
Radial Clearance	Standard
Shaft Locking Type	Set Screw
Inner Ring Outside Diameter (in)	2.984 in
Housing Material	Cast Iron
Dynamic Load Rating (lb)	11,789 lb
Max Operating Temperature (F)	220 °F
Bearing Insert Material	52100 Bearing Steel
Housing Coating	Powder Coated

General Specifications

UPC	662461013434
Weight	9.45 LB
Packaged Length	7.38 IN
Packaged Width	7.50 IN
Packaged Height	2.63 IN
HTC	8483.20.4040
Country of Origin	United States of America
