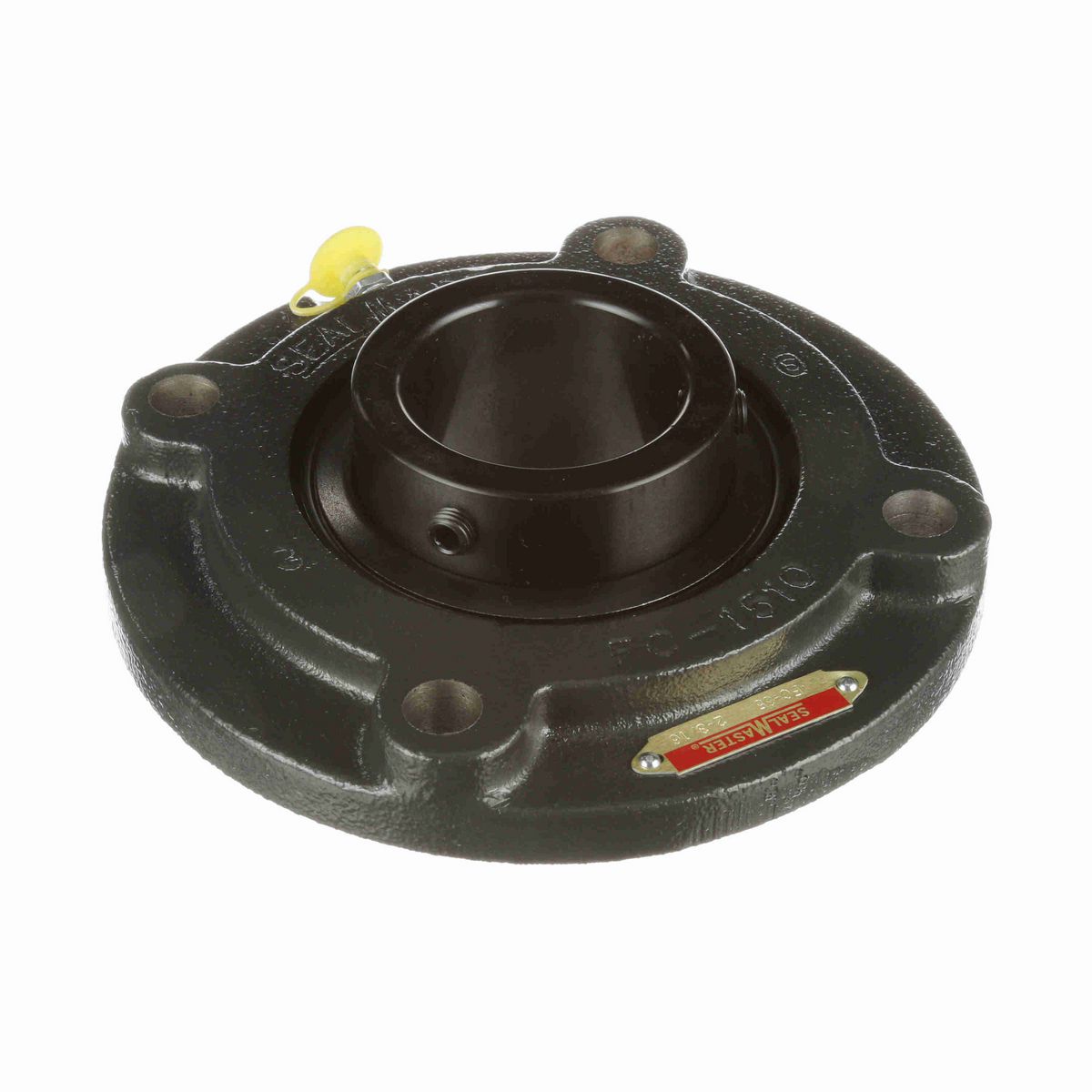

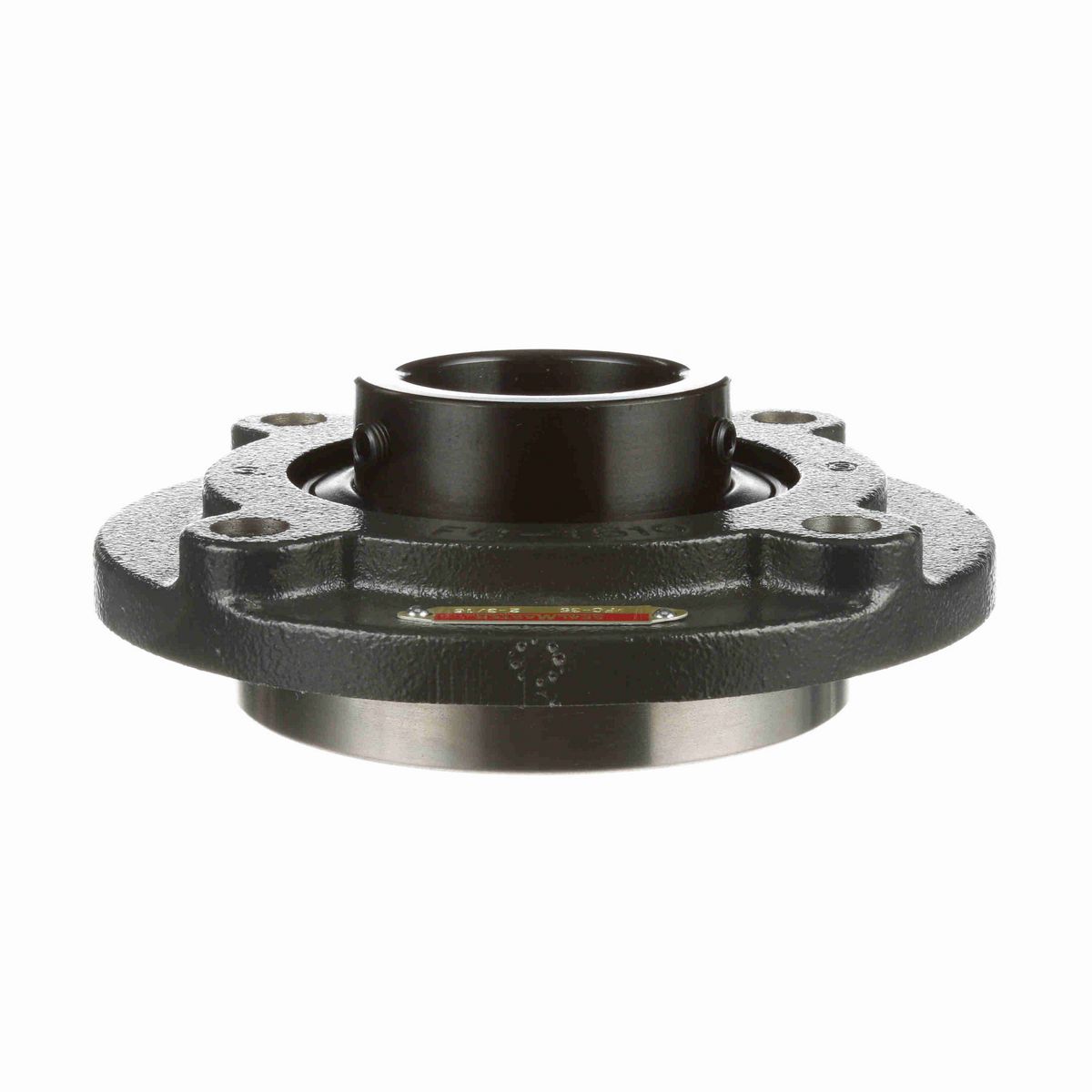

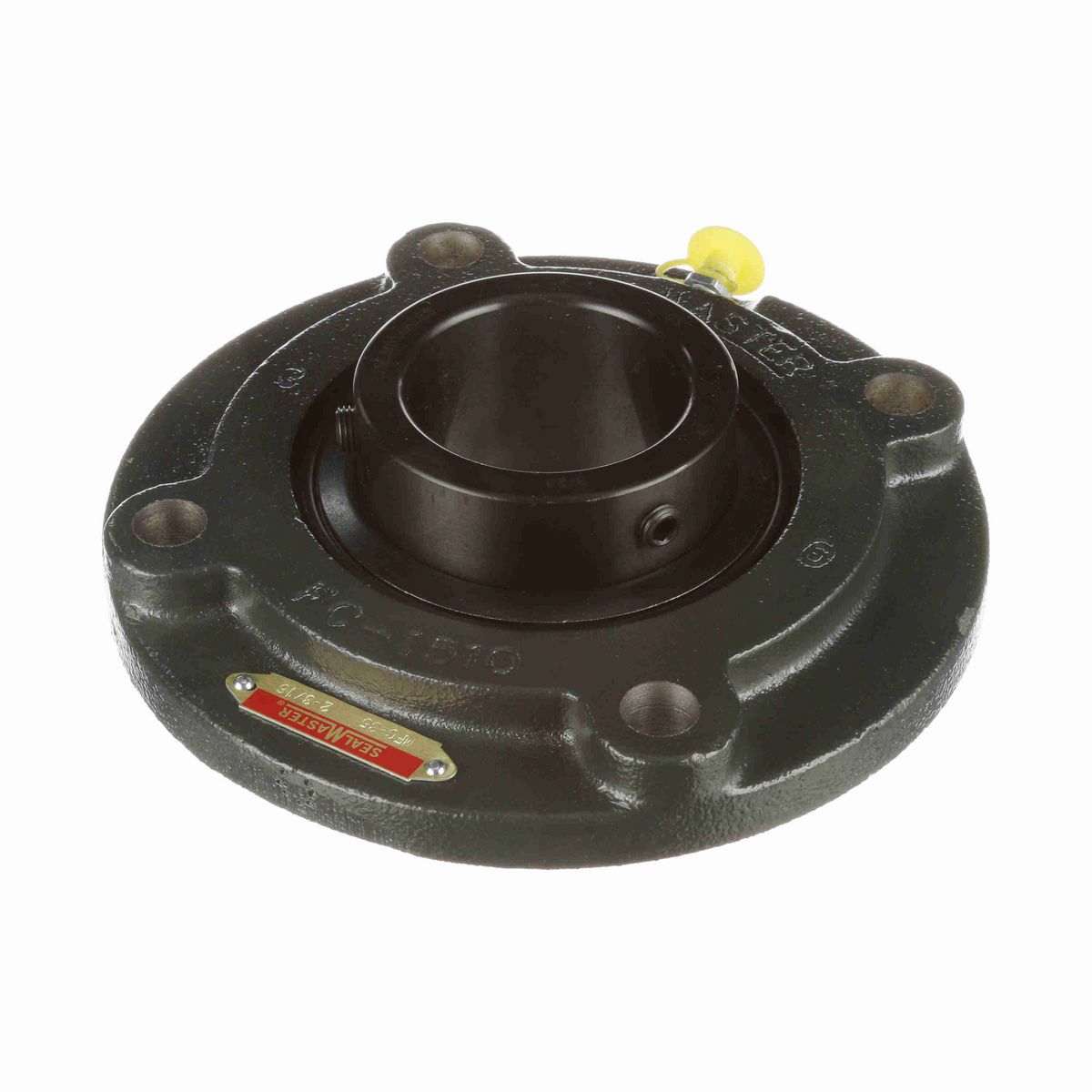

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	7.13 in
Bolt Size (in)	1/2 in
Overall Height (in)	2.56 in
Overall Length (in)	7.13 in
Bore Diameter (in)	2.1875 in
Foot Height (in)	0.50 in
Pilot Diameter (in)	5.000 in
Length Through Bore (in)	2.563 in
Housing Outside Diameter (in)	7.125 in
Bolt Circle (in)	6 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Piloted
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Pilot Depth (in)	0.844 in
Ability to Relubricate	Yes
Bearing Type	Medium Duty
Dynamic Load Rating (lb)	11,789 lb
Misalignment Capability	±2.0° Misalignment - Static Only
Static Load Rating (lb)	8,150 lb
Max Operating Temperature (F)	220 °F
Housing Material	Cast Iron
End Cap Available	No
Bearing Insert Finish	Black Oxide
Fixed vs. Expansion	Fixed
Maximum Speed (RPM)	3000 rpm
Housing Coating	Powder Coated
Shaft Locking Type	Set Screw
Insert	3-23
Size Code	2-27
Grease Fitting Thread Size	1/8 NPT
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	Standard
Inner Ring Outside Diameter (in)	2.984 in
Lubricant	Lithium Complex NLGI 2 Grease
Cage Type	Land Riding Retainer

General Specifications

UPC	662461013427
Weight	9.73 LB
Packaged Length	7.50 IN
Packaged Width	7.38 IN
Packaged Height	2.63 IN
HTC	8483.20.4040
Country of Origin	United States of America
