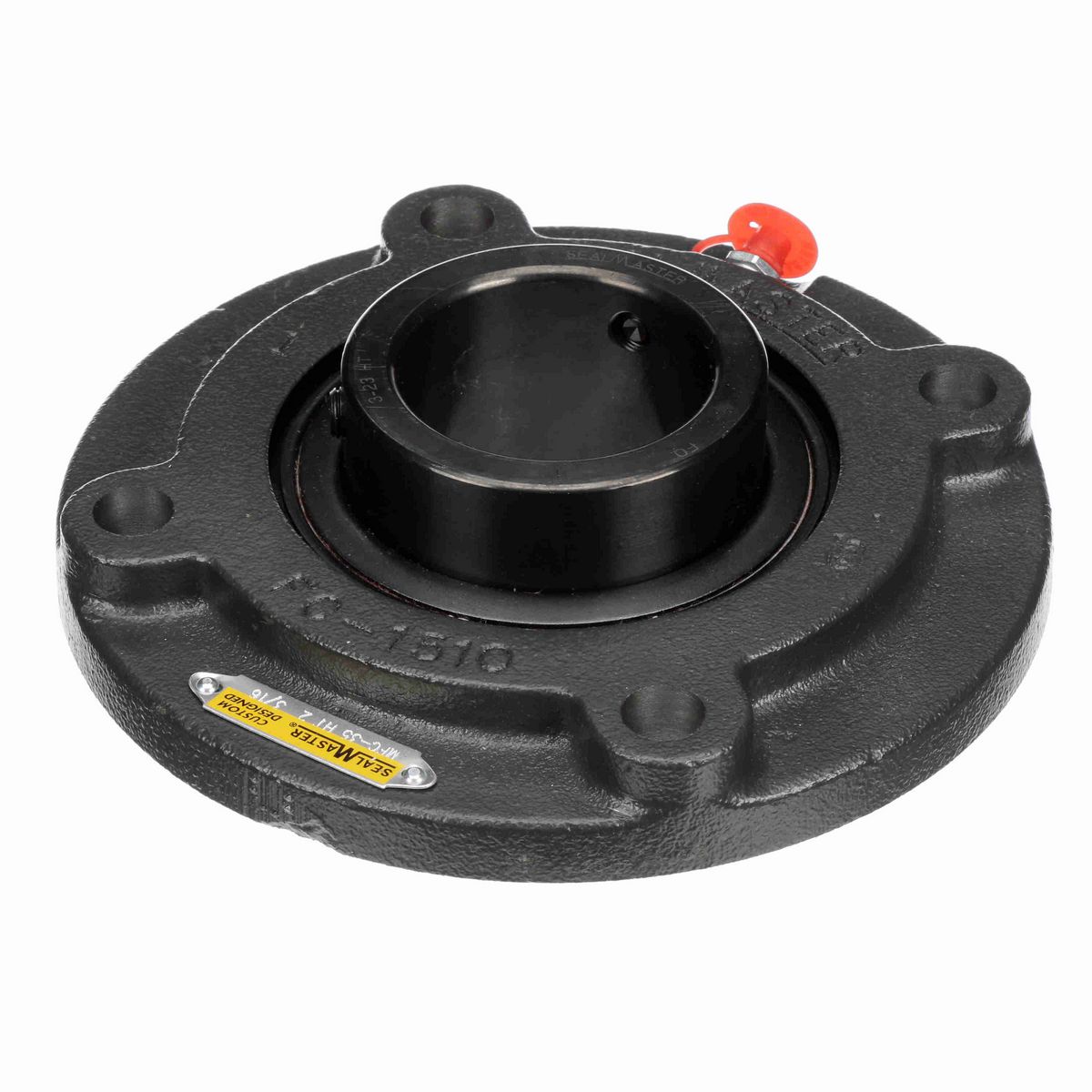

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew with diamond faceted setscrews
• High temperature felt labyrinth seal and flinger for dry and dusty environment
• Increased internal clearance and high temperature grease
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	1/2 in
Overall Width (in)	7.13 in
Overall Height (in)	2.56 in
Overall Length (in)	7.13 in
Bore Diameter (in)	2.1875 in
Pilot Diameter (in)	5.000 in
Foot Height (in)	0.50 in
Length Through Bore (in)	2.563 in
Housing Outside Diameter (in)	7.125 in
Bolt Circle (in)	6 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Options	High Temperature
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	High Temp Labyrinth
Housing Type	Flange, Piloted
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Pilot Depth (in)	0.844 in
Ability to Relubricate	Yes
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Finish	Black Oxide
Insert	3-23 HT
Dynamic Load Rating (lb)	11,789 lb
Static Load Rating (lb)	8,150 lb
Cage Type	Land Riding Retainer
Lubricant	Lithium Complex Grease With Synthetic Oil
Fixed vs. Expansion	Fixed
Inner Ring Outside Diameter (in)	2.984 in
Bearing Type	Medium Duty
Bearing Insert Material	52100 Bearing Steel
Shaft Locking Type	Set Screw
End Cap Available	No
Grease Fitting Thread Size	1/8 NPT
Housing Coating	Powder Coated
Maximum Speed (RPM)	1250 rpm
Max Operating Temperature (F)	400 °F
Radial Clearance	Increased
Housing Material	Cast Iron
Size Code	2-27

General Specifications

UPC	662461313817
Weight	10.50 LB
Packaged Length	7.50 IN
Packaged Width	7.38 IN
Packaged Height	2.63 IN
HTC	8483.20.4040
Country of Origin	United States of America
