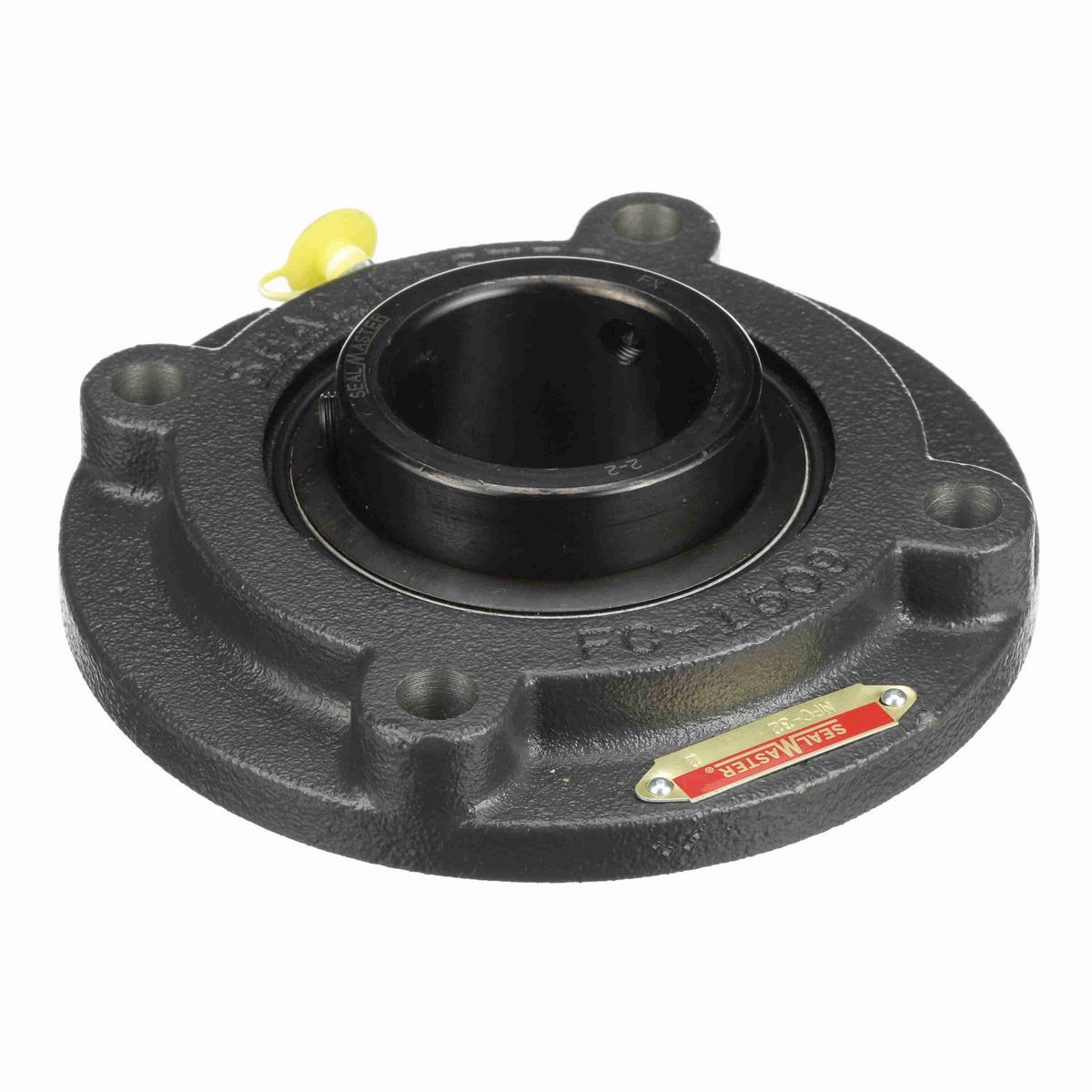

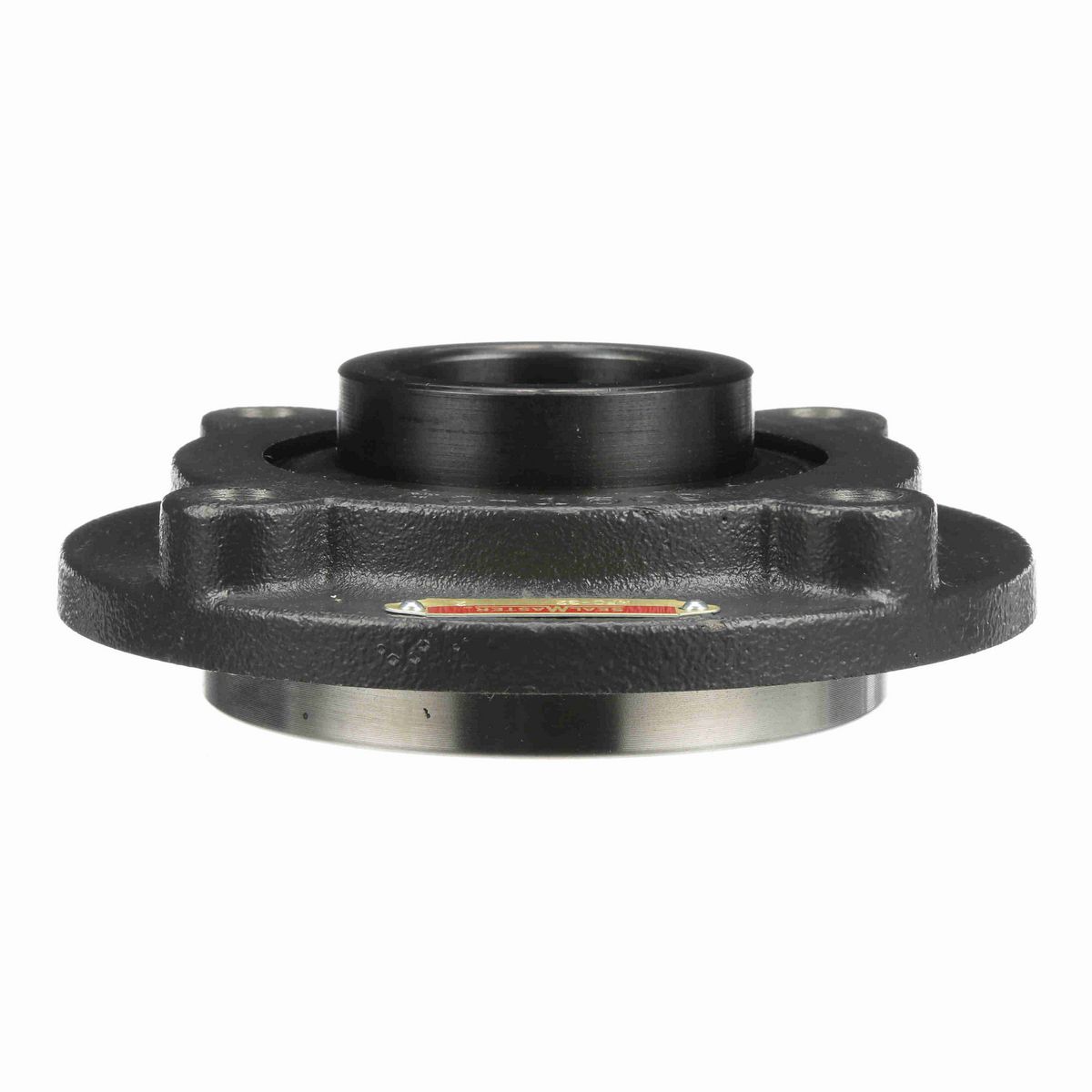

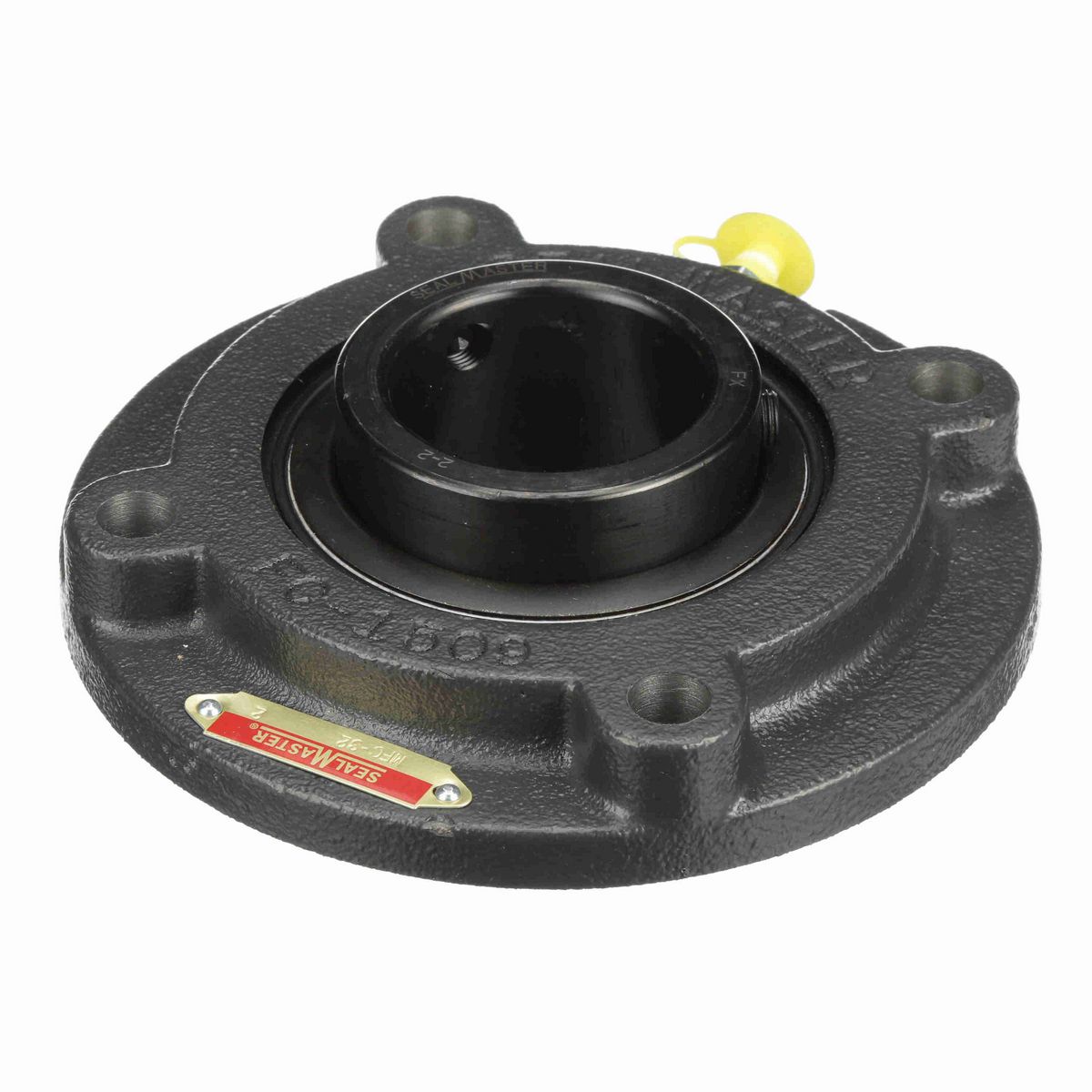

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	6.38 in
Bolt Size (in)	7/16 in
Overall Length (in)	6.38 in
Overall Height (in)	2.19 in
Bore Diameter (in)	2 in
Pilot Diameter (in)	4.500 in
Foot Height (in)	0.44 in
Length Through Bore (in)	2.188 in
Housing Outside Diameter (in)	6.38 in
Bolt Circle (in)	5.375 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	Piloted
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Pilot Depth (in)	.625 in
Cage Type	Land Riding Retainer
Insert	2-2
Size Code	2-23
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Type	Medium Duty
Fixed vs. Expansion	Fixed
Radial Clearance	Standard
Max Operating Temperature (F)	220 °F
Housing Coating	Powder Coated
Lubricant	Lithium Complex NLGI 2 Grease
Grease Fitting Thread Size	1/8 NPT
Inner Ring Outside Diameter (in)	2.719 in
Bearing Insert Finish	Black Oxide
Maximum Speed (RPM)	3250 rpm
Shaft Locking Type	Set Screw
End Cap Available	No
Housing Material	Cast Iron
Bearing Insert Material	52100 Bearing Steel
Dynamic Load Rating (lb)	9,752 lb
Static Load Rating (lb)	6,601 lb

General Specifications

UPC	662461013410
Weight	7.09 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
