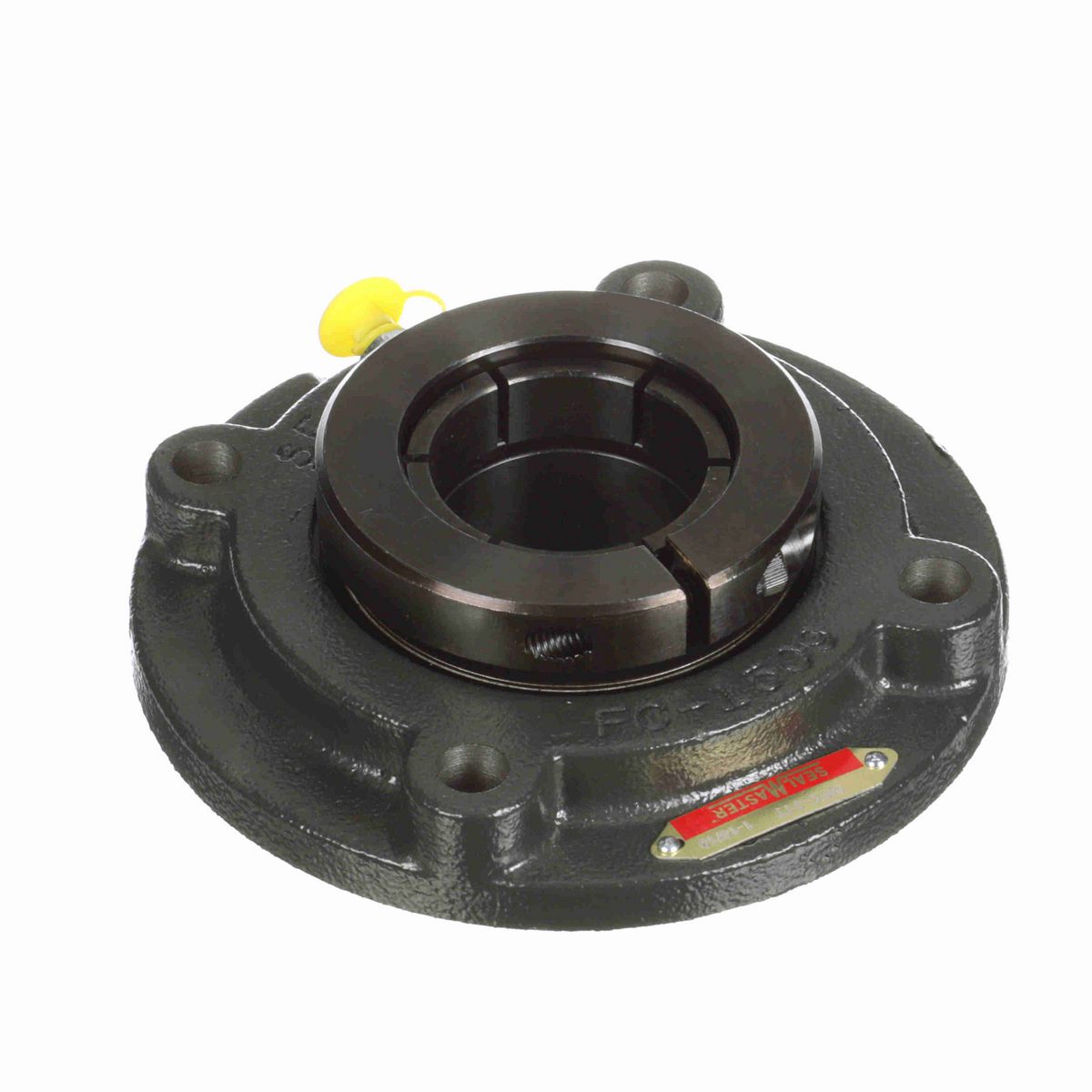

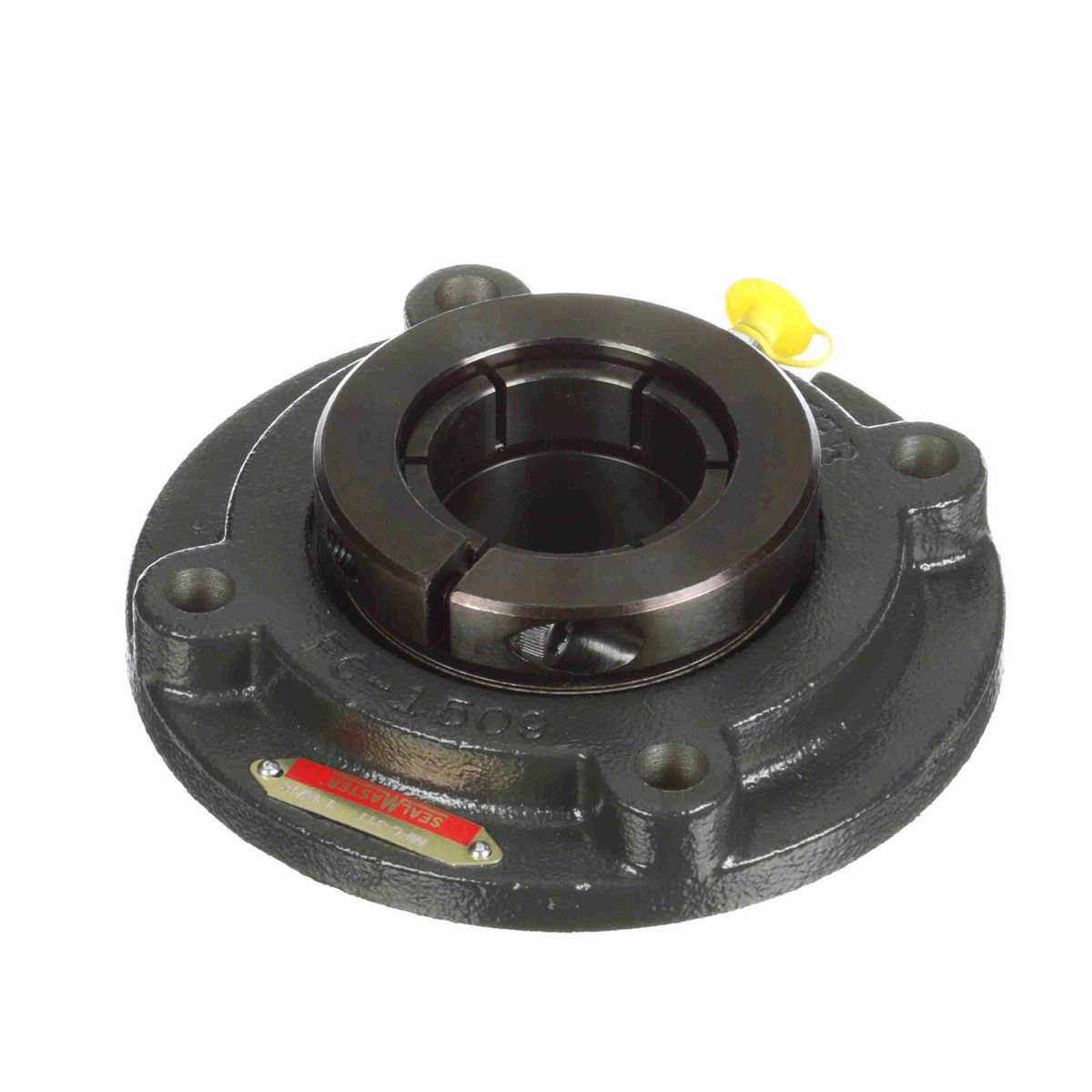

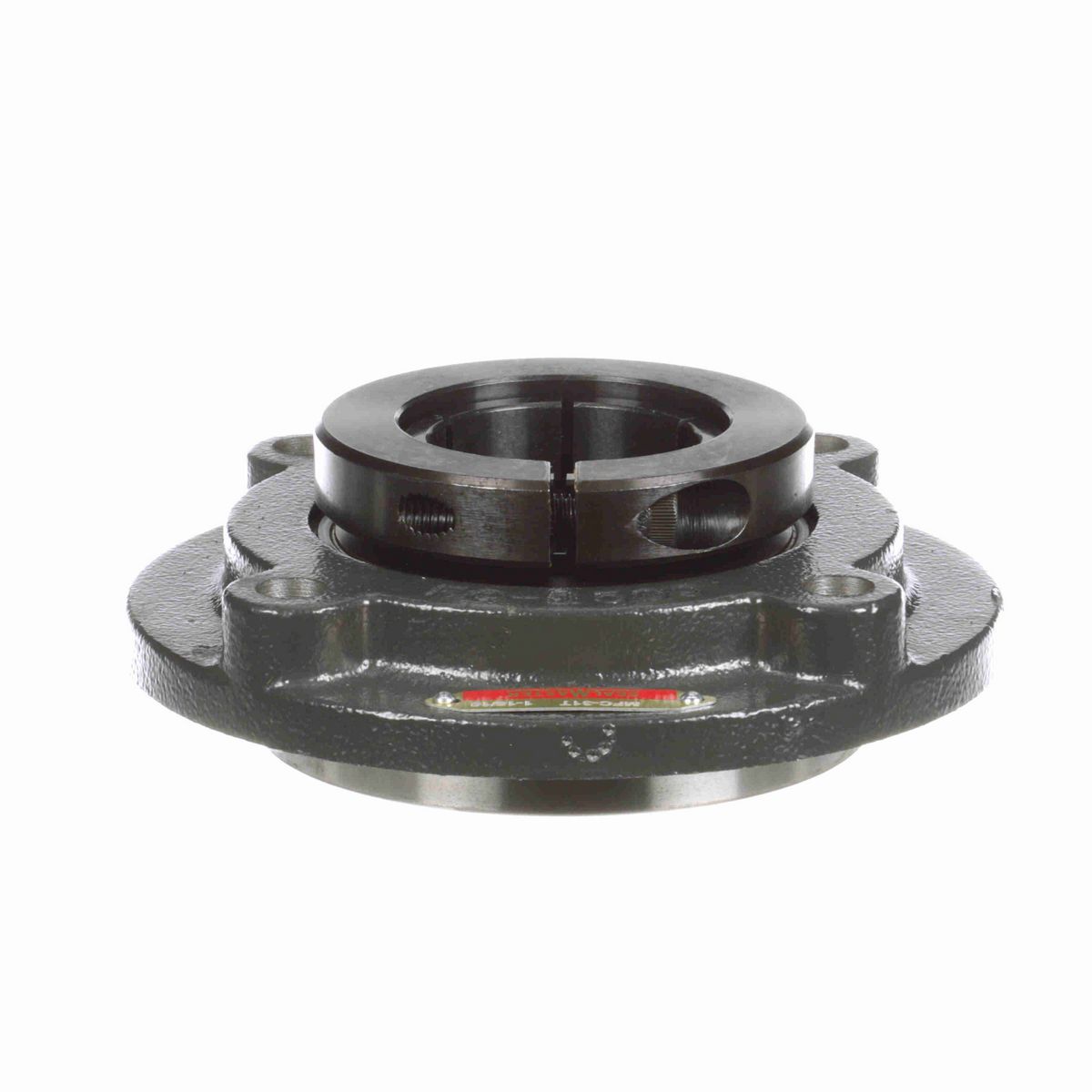

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	7/16 in
Overall Width (in)	6.38 in
Overall Height (in)	2.33 in
Overall Length (in)	6.38 in
Bore Diameter (in)	1.9375 in
Foot Height (in)	0.44 in
Pilot Diameter (in)	4.500 in
Length Through Bore (in)	2.33 in
Housing Outside Diameter (in)	6.38 in
Bolt Circle (in)	5.375 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	3.5 in
Pilot Depth (in)	.625 in
Inner Ring Outside Diameter (in)	2.719 in
Shaft Locking Type	Concentric
End Cap Available	No
Housing Coating	Powder Coated
Size Code	2-23
Cage Type	Land Riding Retainer
Misalignment Capability	±2.0° Misalignment - Static Only
Static Load Rating (lb)	6,601 lb
Bearing Insert Material	52100 Bearing Steel
Grease Fitting Thread Size	1/8 NPT
Insert	3-115T
Dynamic Load Rating (lb)	9,752 lb
Radial Clearance	Standard
Maximum Speed (RPM)	4500 rpm
Bearing Insert Finish	Black Oxide
Fixed vs. Expansion	Fixed
Max Operating Temperature (F)	220 °F
Lubricant	Lithium Complex NLGI 2 Grease
Housing Material	Cast Iron
Bearing Type	Medium Duty

General Specifications

UPC	662461031773
Weight	7.77 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
