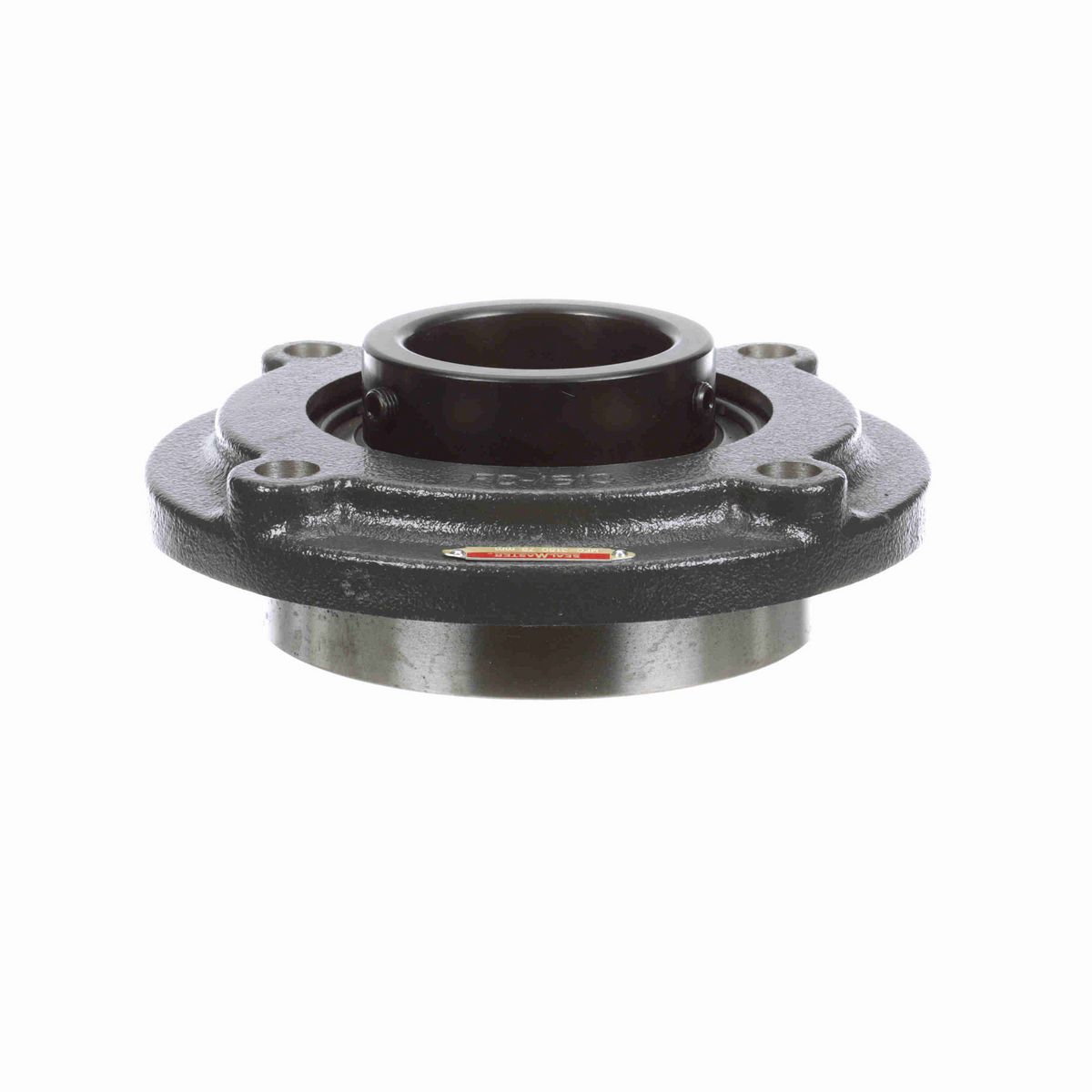

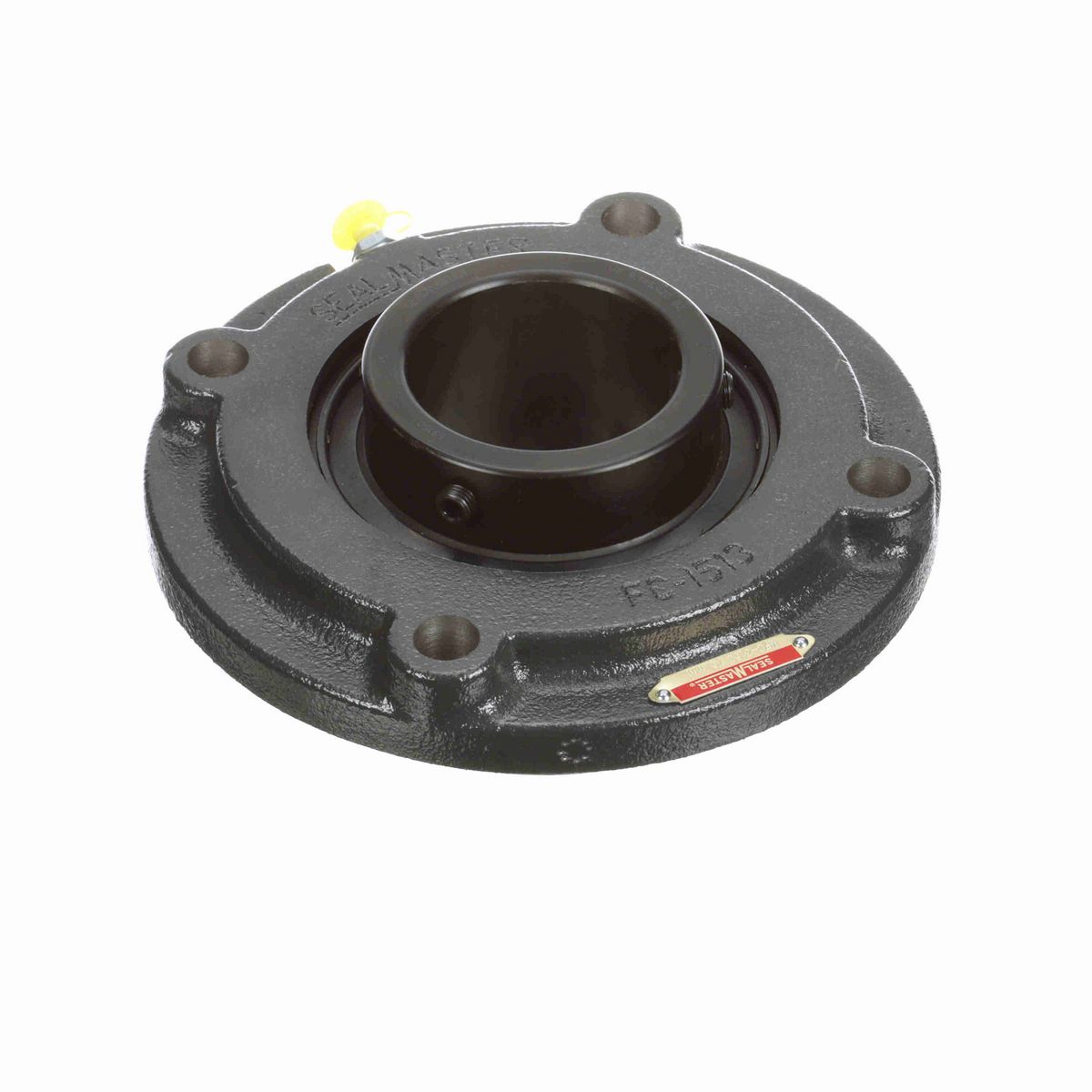

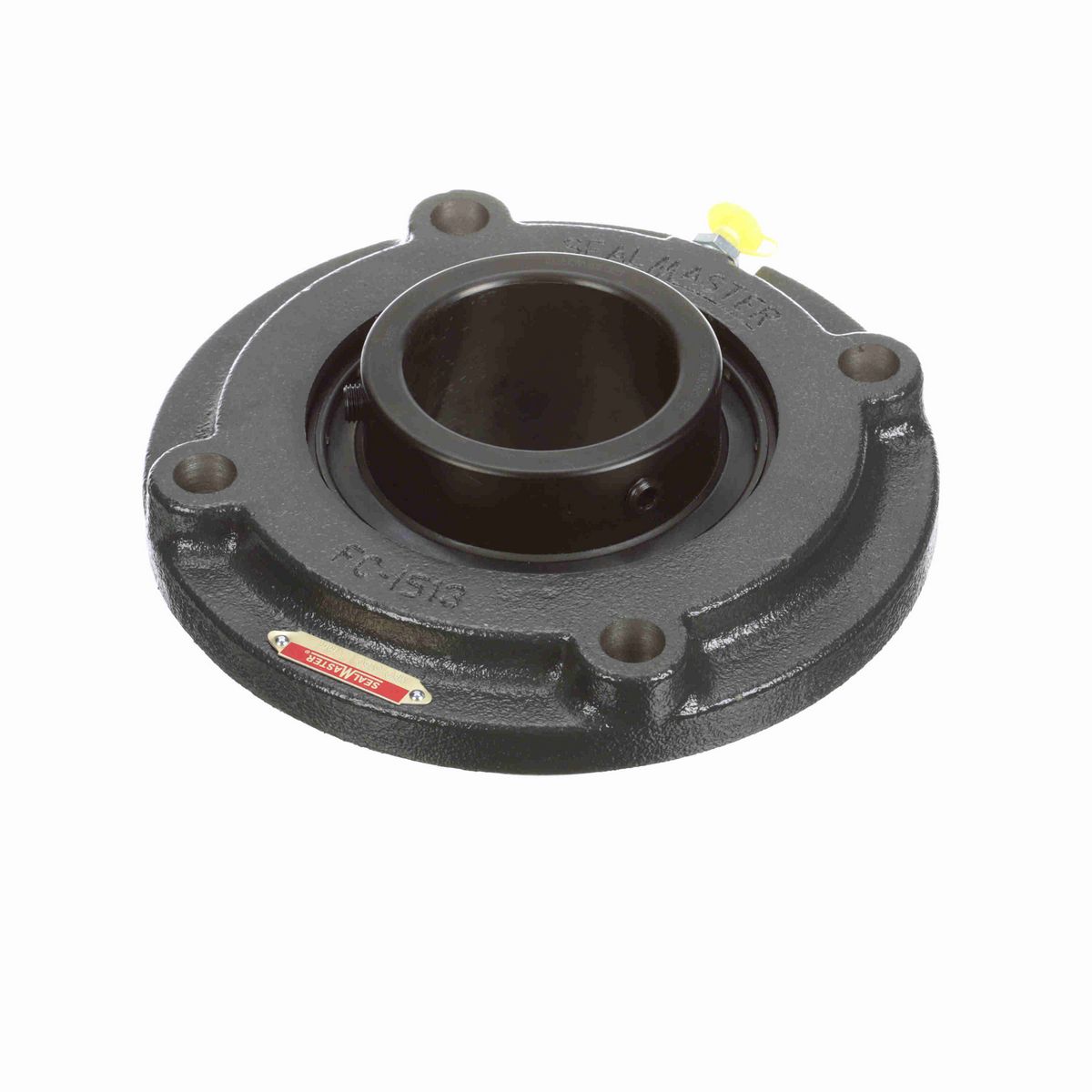

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	5/8 in
Overall Width (in)	8.75 in
Overall Height (in)	3.25 in
Bolt Size (mm)	M16 mm
Overall Length (in)	8.75 in
Bore Diameter (mm)	75 mm
Foot Height (in)	0.63 in
Pilot Diameter (in)	6.375 in
Length Through Bore (in)	3.248 in
Bolt Circle (in)	7.5 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	Brass
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Piloted
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Pilot Depth (in)	1.22 in
Housing Material	Cast Iron
Lubricant	Lithium Complex NLGI 2 Grease
Shaft Locking Type	Set Screw
Dynamic Load Rating (lb)	17,412 lb
Radial Clearance	Standard
Bearing Insert Material	52100 Bearing Steel
Maximum Speed (RPM)	1950 rpm
Static Load Rating (lb)	13,174 lb
Bearing Insert Finish	Black Oxide
End Cap Available	No
Max Operating Temperature (F)	220 °F
Fixed vs. Expansion	Fixed
Bearing Type	Medium Duty
Grease Fitting Thread Size	1/4 NPT
Misalignment Capability	±2.0° Misalignment - Static Only
Cage Type	Land Riding Retainer
Size Code	2-33
Housing Coating	Powder Coated
Insert	5315C
Inner Ring Outside Diameter (in)	3.922 in

General Specifications

UPC	662461056288
Weight	20.00 LB
Packaged Length	9.06 IN
Packaged Width	8.88 IN
Packaged Height	3.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
