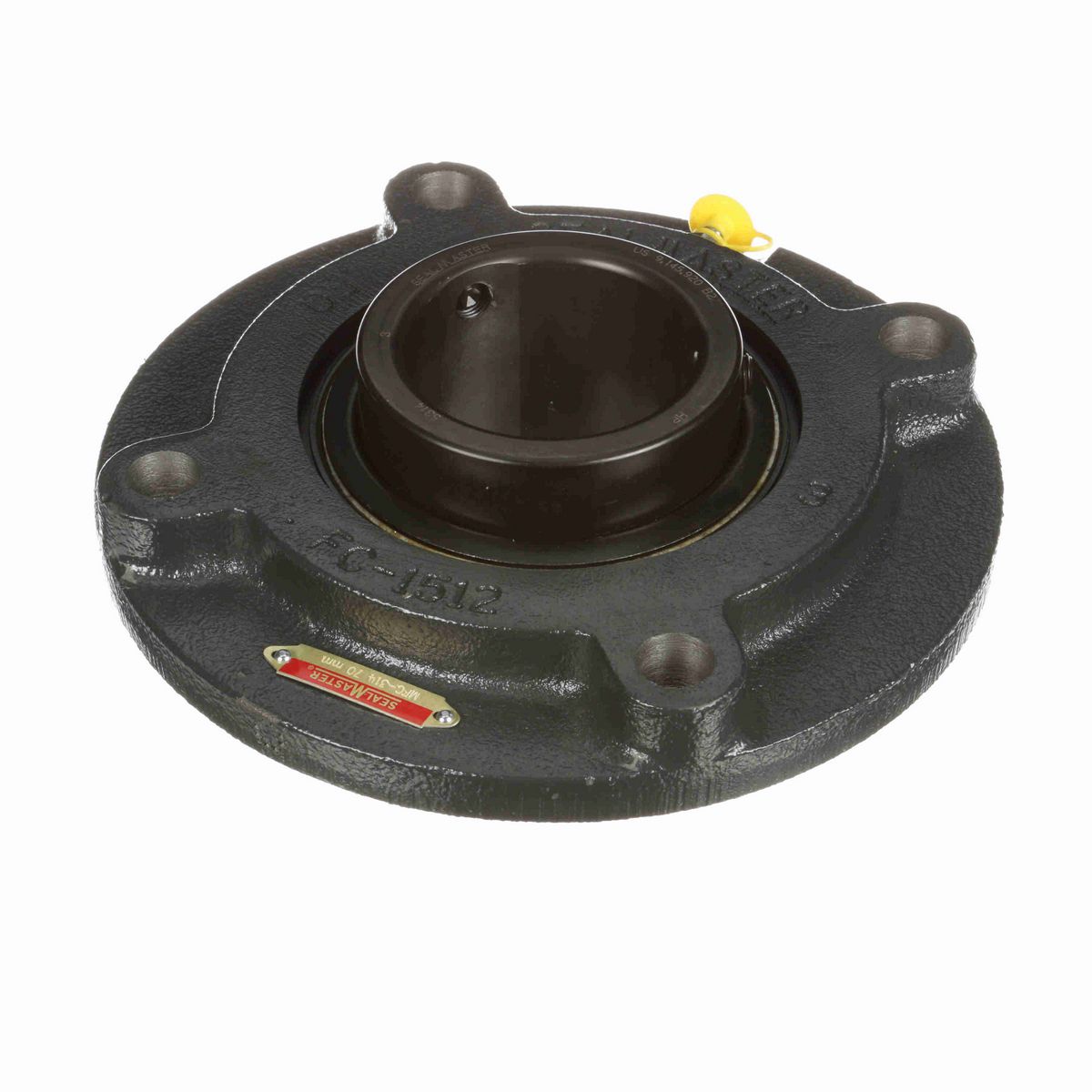

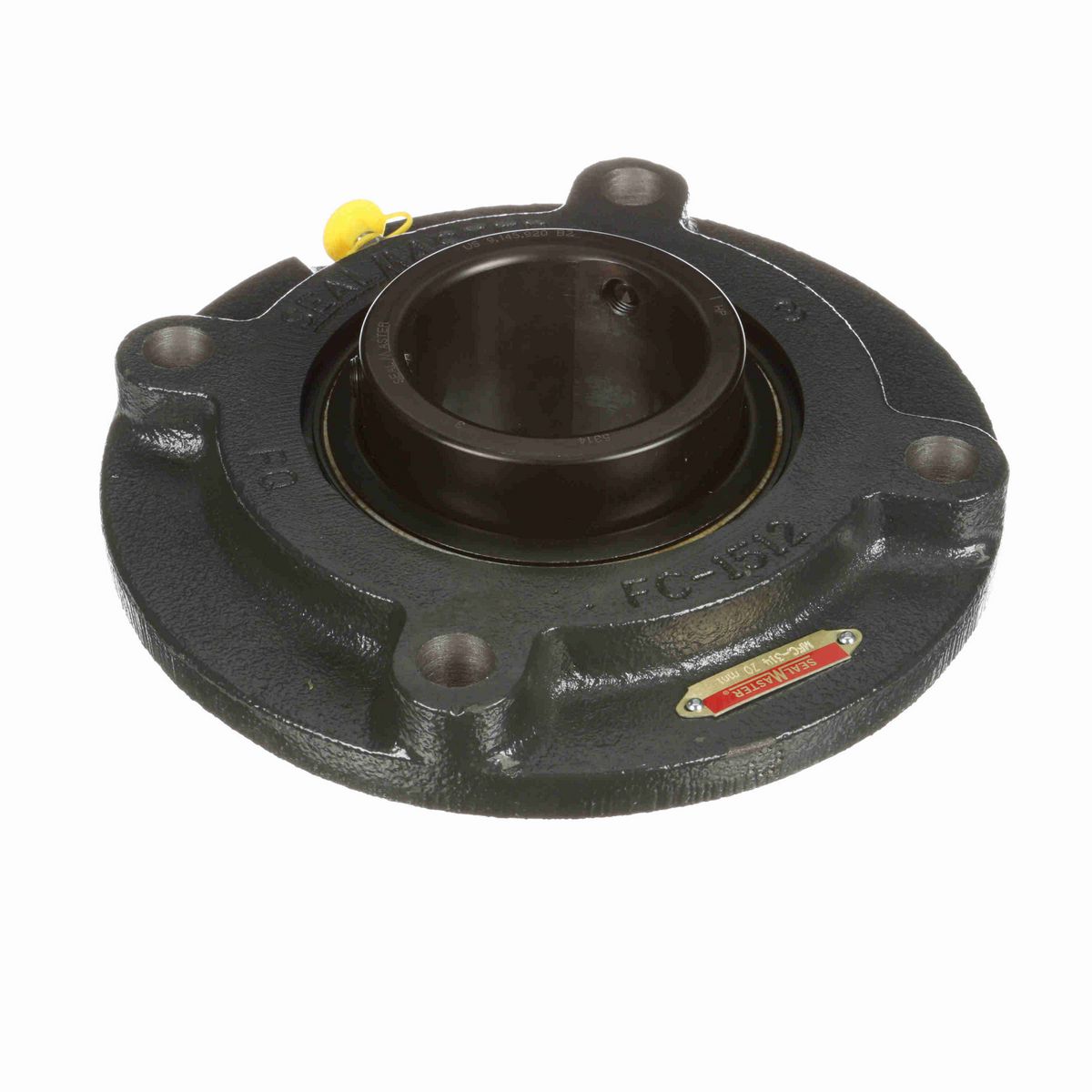

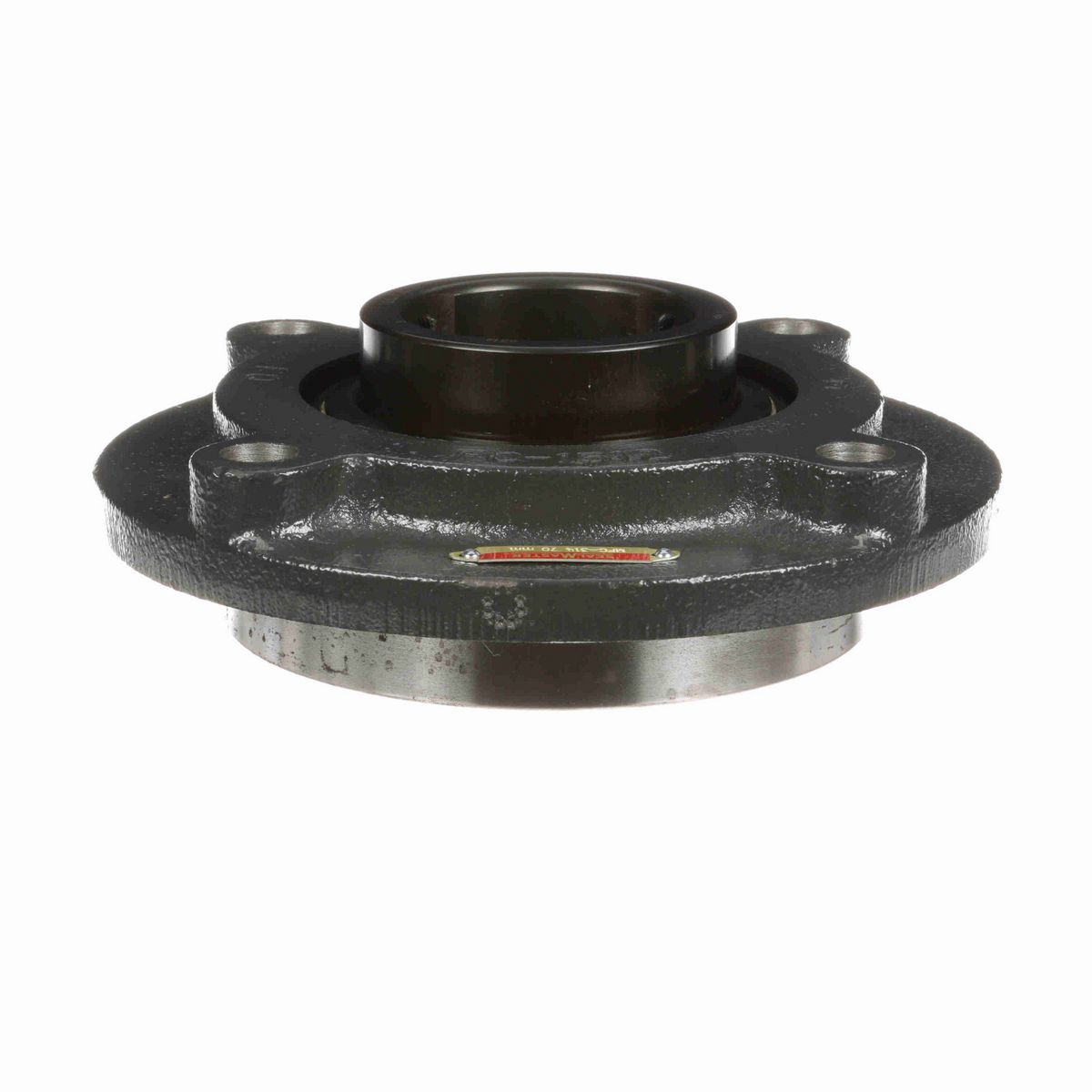

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	5/8 in
Overall Width (in)	8.75 in
Bolt Size (mm)	M16 mm
Overall Length (in)	8.75 in
Overall Height (in)	3.06 in
Bore Diameter (mm)	70 mm
Pilot Diameter (in)	6.375 in
Foot Height (in)	0.56 in
Length Through Bore (in)	3.06 in
Housing Outside Diameter (in)	8.75 in
Bolt Circle (in)	7.5 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	Piloted
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	Brass
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Pilot Depth (in)	1.03 in
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Maximum Speed (RPM)	2450 rpm
Bearing Insert Material	52100 Bearing Steel
Dynamic Load Rating (lb)	14,839 lb
Cage Type	Land Riding Retainer
Lubricant	Lithium Complex NLGI 2 Grease
Radial Clearance	Standard
Static Load Rating (lb)	11,224 lb
Fixed vs. Expansion	Fixed
Insert	5314
End Cap Available	No
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Type	Medium Duty
Shaft Locking Type	Set Screw
Size Code	2-215
Housing Coating	Powder Coated
Bearing Insert Finish	Black Oxide
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (F)	220 °F
Housing Material	Cast Iron
Inner Ring Outside Diameter (in)	3.641 in

General Specifications

UPC	662461053836
Weight	18.20 LB
Packaged Length	9.06 IN
Packaged Width	8.88 IN
Packaged Height	3.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
