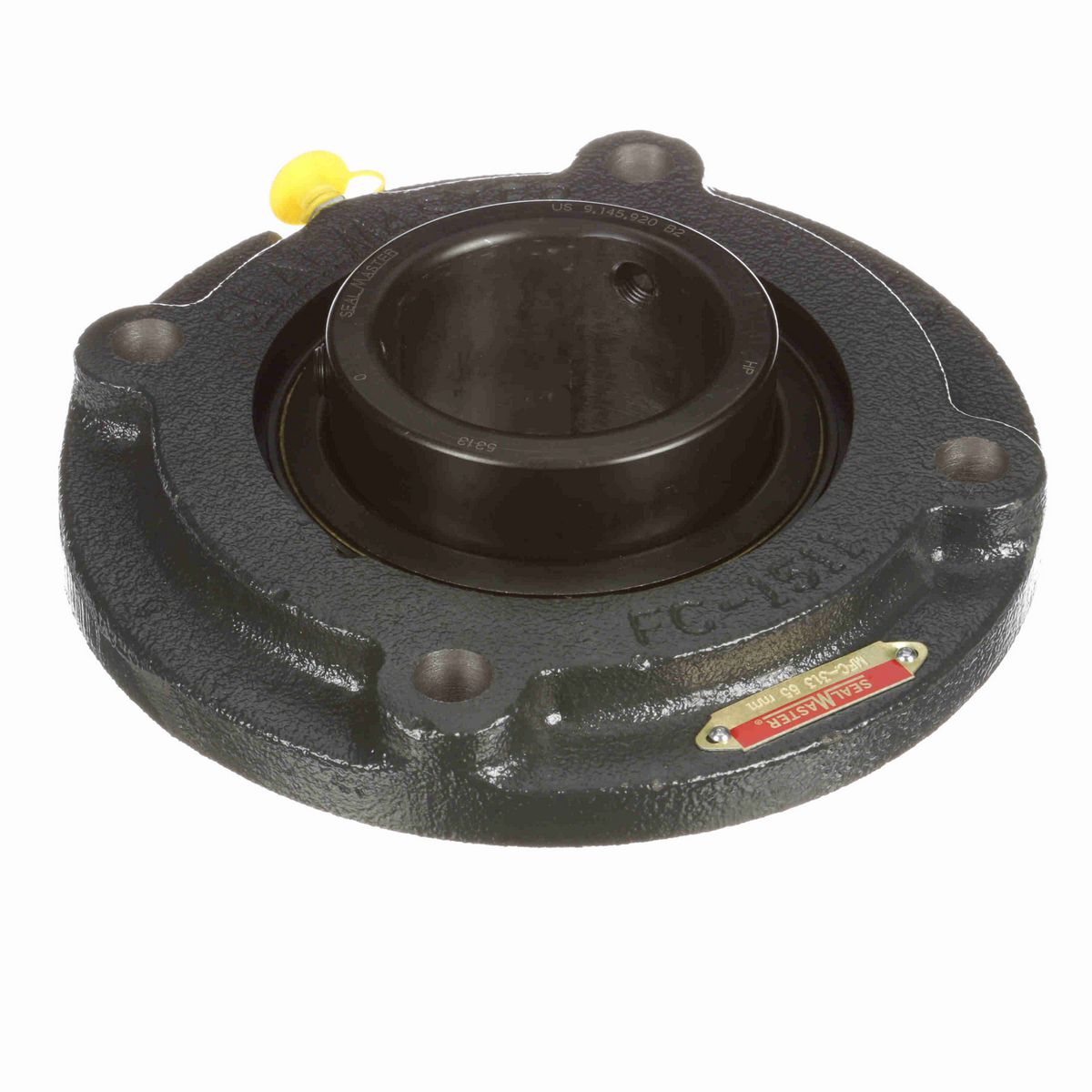

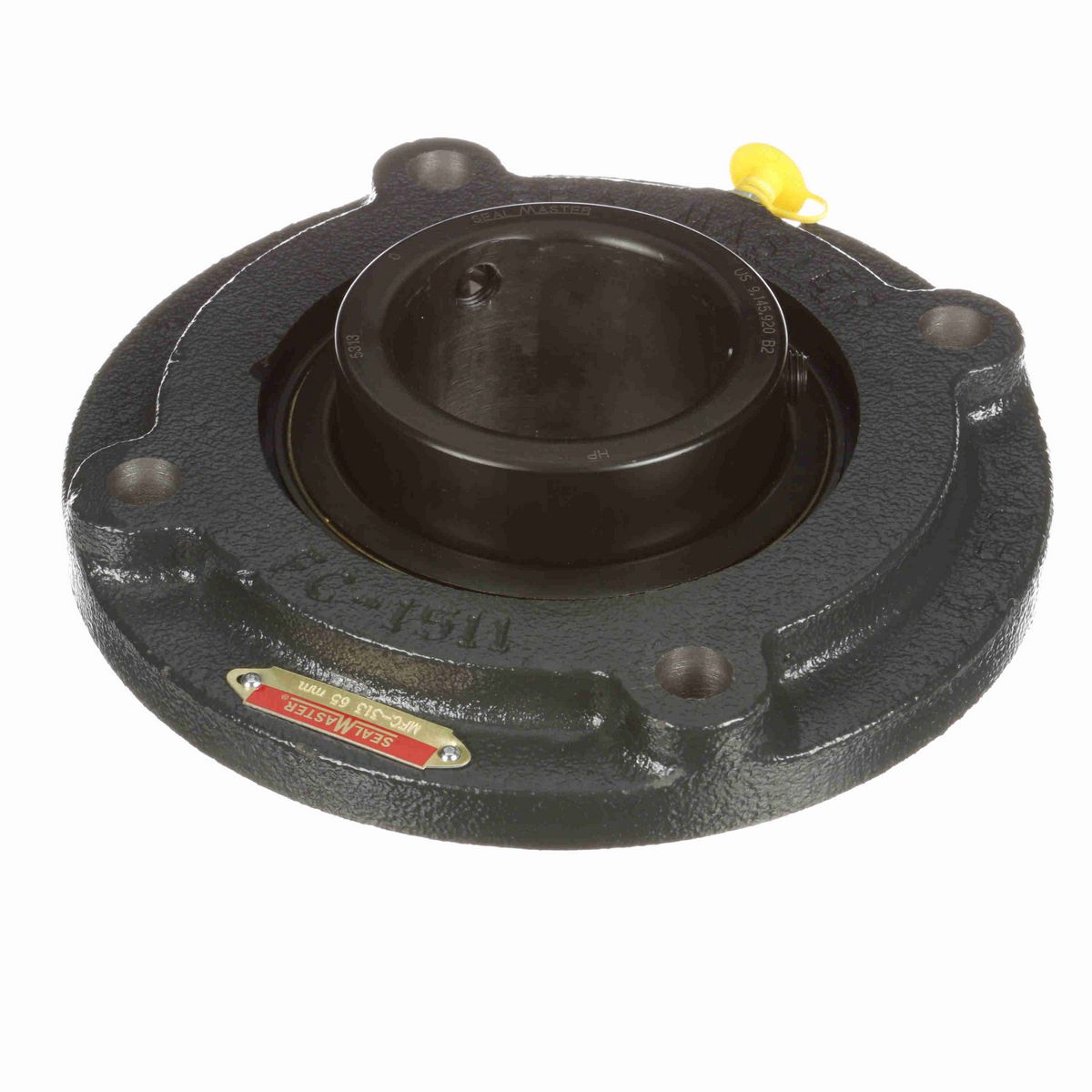

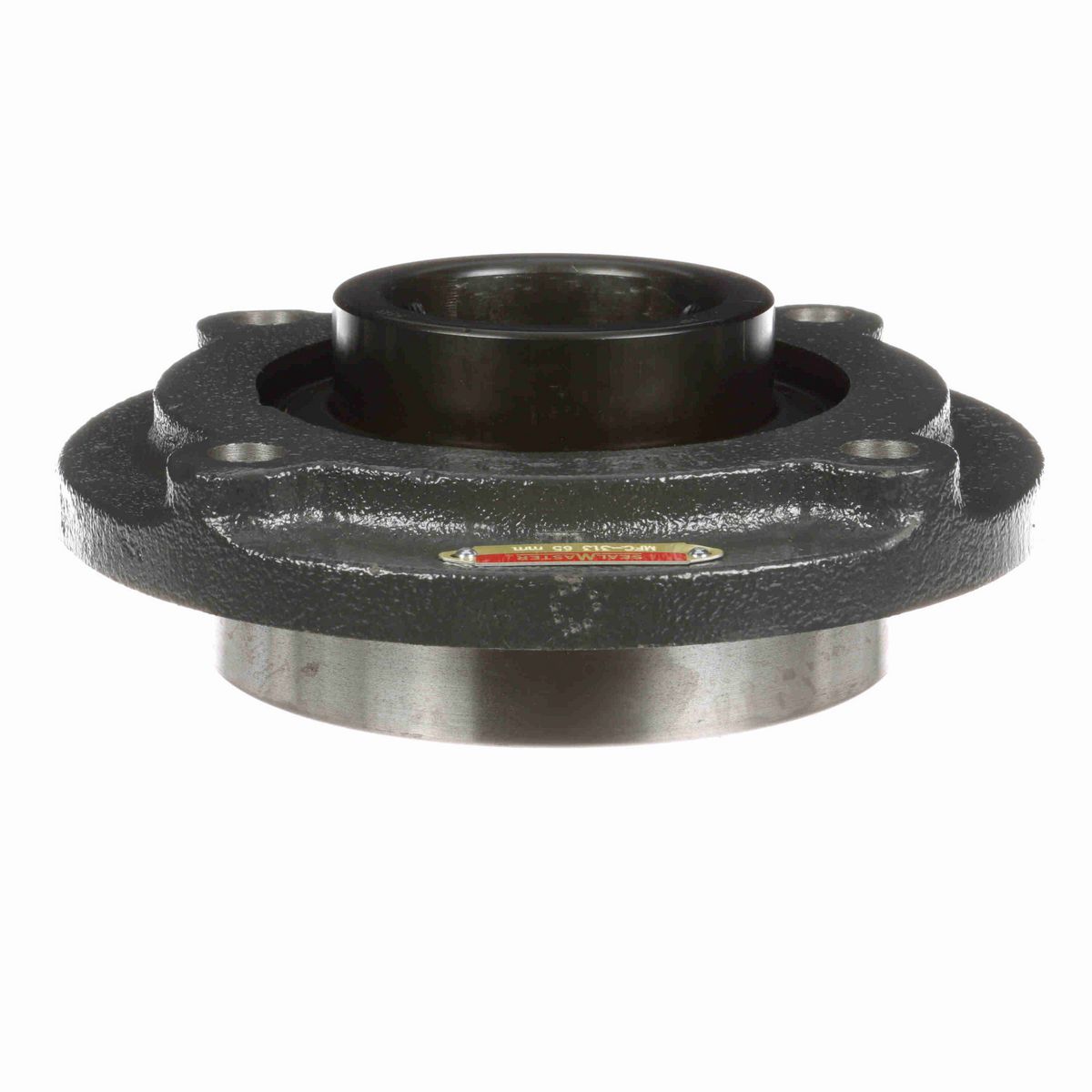

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	7.63 in
Bolt Size (in)	1/2 in
Bolt Size (mm)	M12 mm
Overall Height (in)	2.84 in
Overall Length (in)	7.63 in
Bore Diameter (mm)	65 mm
Pilot Diameter (in)	5.500 in
Foot Height (in)	0.56 in
Length Through Bore (in)	2.748 in
Housing Outside Diameter (in)	7.63 in
Bolt Circle (in)	6.5 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	Brass
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Pilot Depth (in)	1.094 in
Cage Type	Land Riding Retainer
Housing Coating	Powder Coated
Static Load Rating (lb)	10,063 lb
Housing Material	Cast Iron
Fixed vs. Expansion	Fixed
Grease Fitting Thread Size	1/8 NPT
Dynamic Load Rating (lb)	13,971 lb
End Cap Available	No
Radial Clearance	Standard
Misalignment Capability	±2.0° Misalignment - Static Only
Max Operating Temperature (F)	220 °F
Bearing Insert Finish	Black Oxide
Bearing Insert Material	52100 Bearing Steel
Inner Ring Outside Diameter (in)	3.438 in
Insert	5313
Maximum Speed (RPM)	2500 rpm
Shaft Locking Type	Set Screw
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Type	Medium Duty
Size Code	2-211

General Specifications

UPC	662461053829
Weight	12.76 LB
Packaged Length	7.94 IN
Packaged Width	8.13 IN
Packaged Height	3.50 IN
HTC	8483.20.4040
Country of Origin	United States of America
