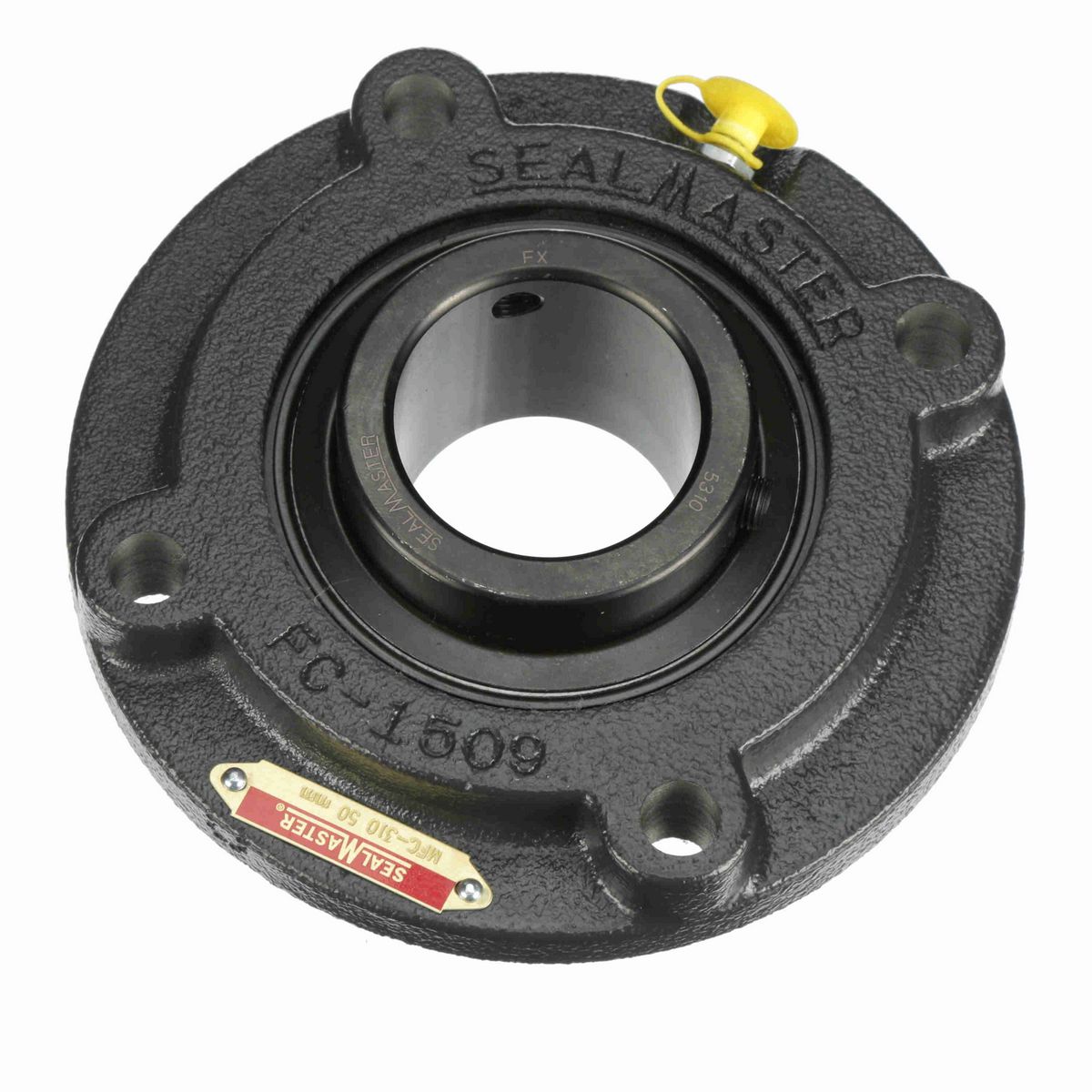

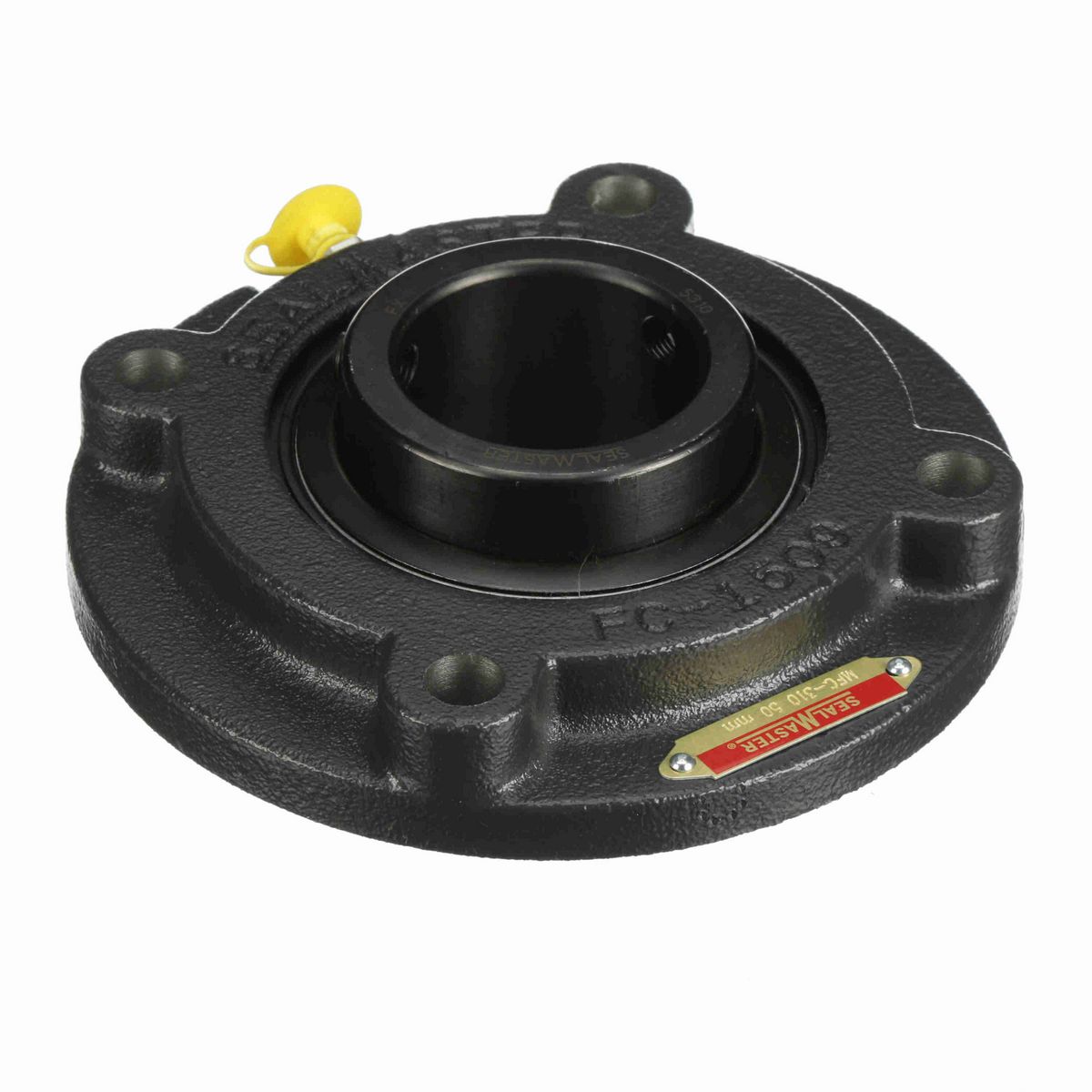

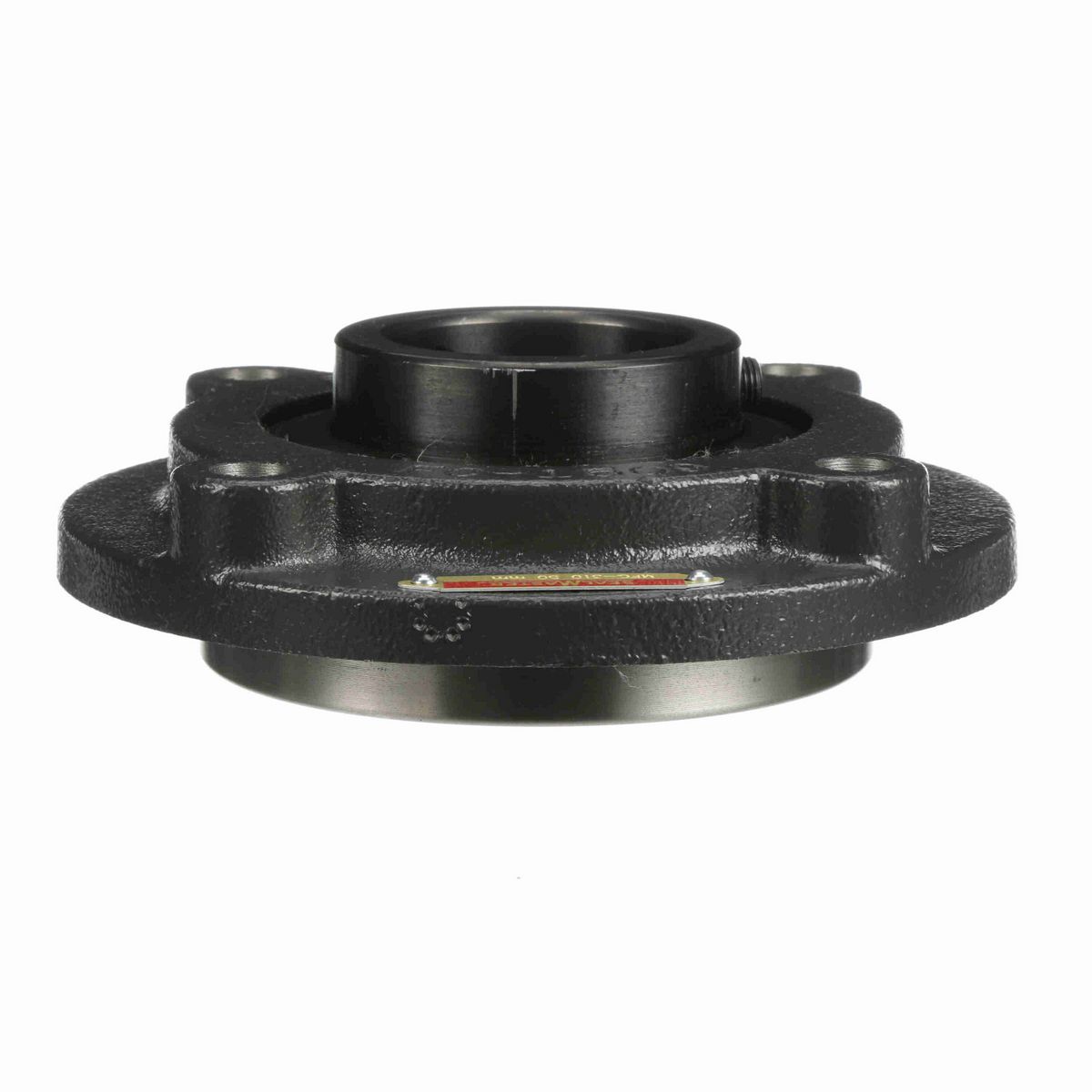

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	7/16 in
Overall Width (in)	6.38 in
Overall Height (in)	2.19 in
Bolt Size (mm)	M14 mm
Overall Length (in)	6.38 in
Bore Diameter (mm)	50 mm
Pilot Diameter (in)	4.500 in
Foot Height (in)	0.44 in
Length Through Bore (in)	2.188 in
Housing Outside Diameter (in)	6.38 in
Bolt Circle (in)	5.375 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	Piloted
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Pilot Depth (in)	.625 in
Ability to Relubricate	Yes
Housing Coating	Powder Coated
Max Operating Temperature (F)	220 °F
Grease Fitting Thread Size	1/8 NPT
Bearing Insert Material	52100 Bearing Steel
Dynamic Load Rating (lb)	9,752 lb
Shaft Locking Type	Set Screw
Misalignment Capability	±2.0° Misalignment - Static Only
Static Load Rating (lb)	6,601 lb
Insert	5310
End Cap Available	No
Inner Ring Outside Diameter (in)	2.719 in
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Type	Medium Duty
Size Code	2-23
Housing Material	Cast Iron
Maximum Speed (RPM)	3250 rpm
Radial Clearance	Standard
Fixed vs. Expansion	Fixed
Bearing Insert Finish	Black Oxide
Cage Type	Land Riding Retainer

General Specifications

UPC	662461053805
Weight	7.08 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
