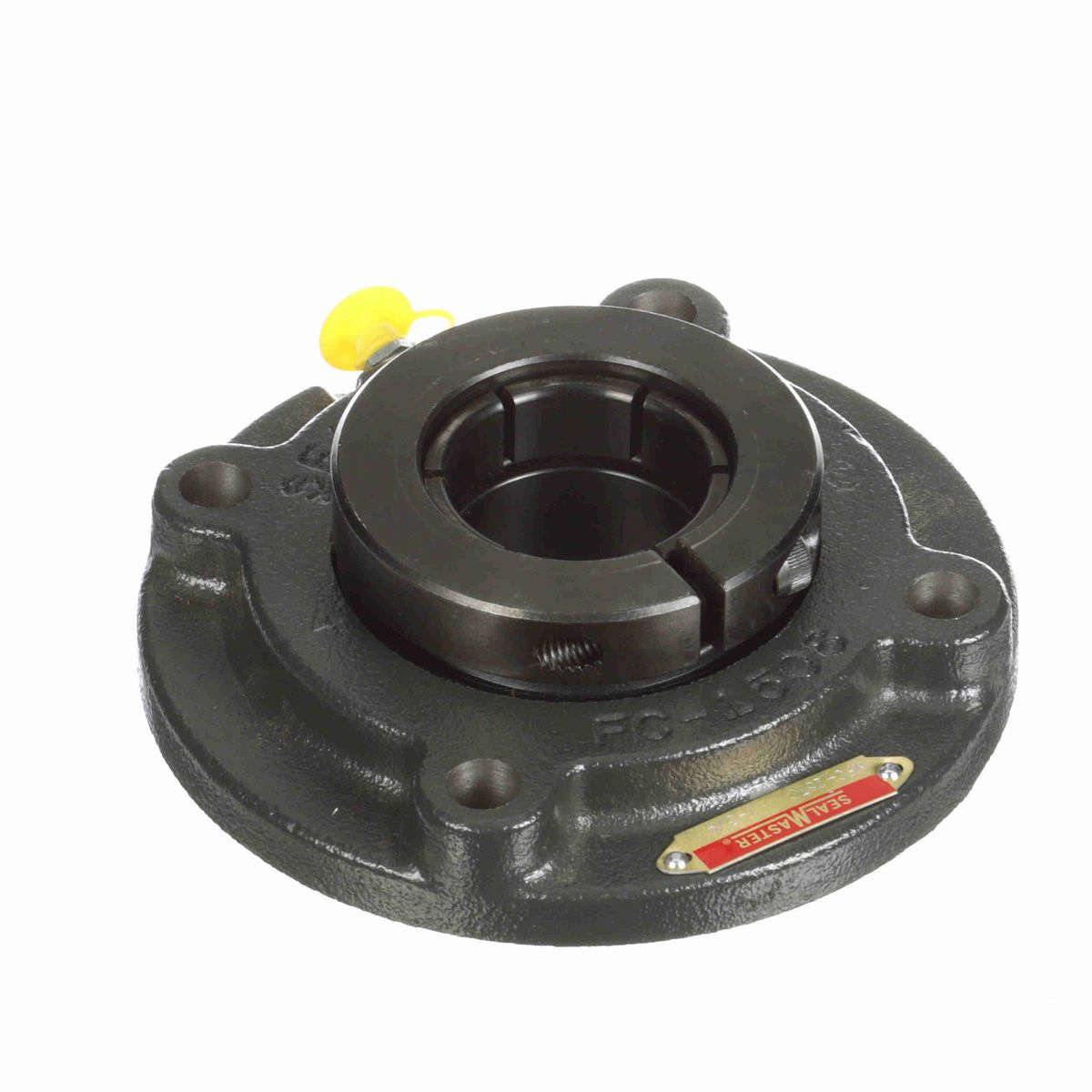

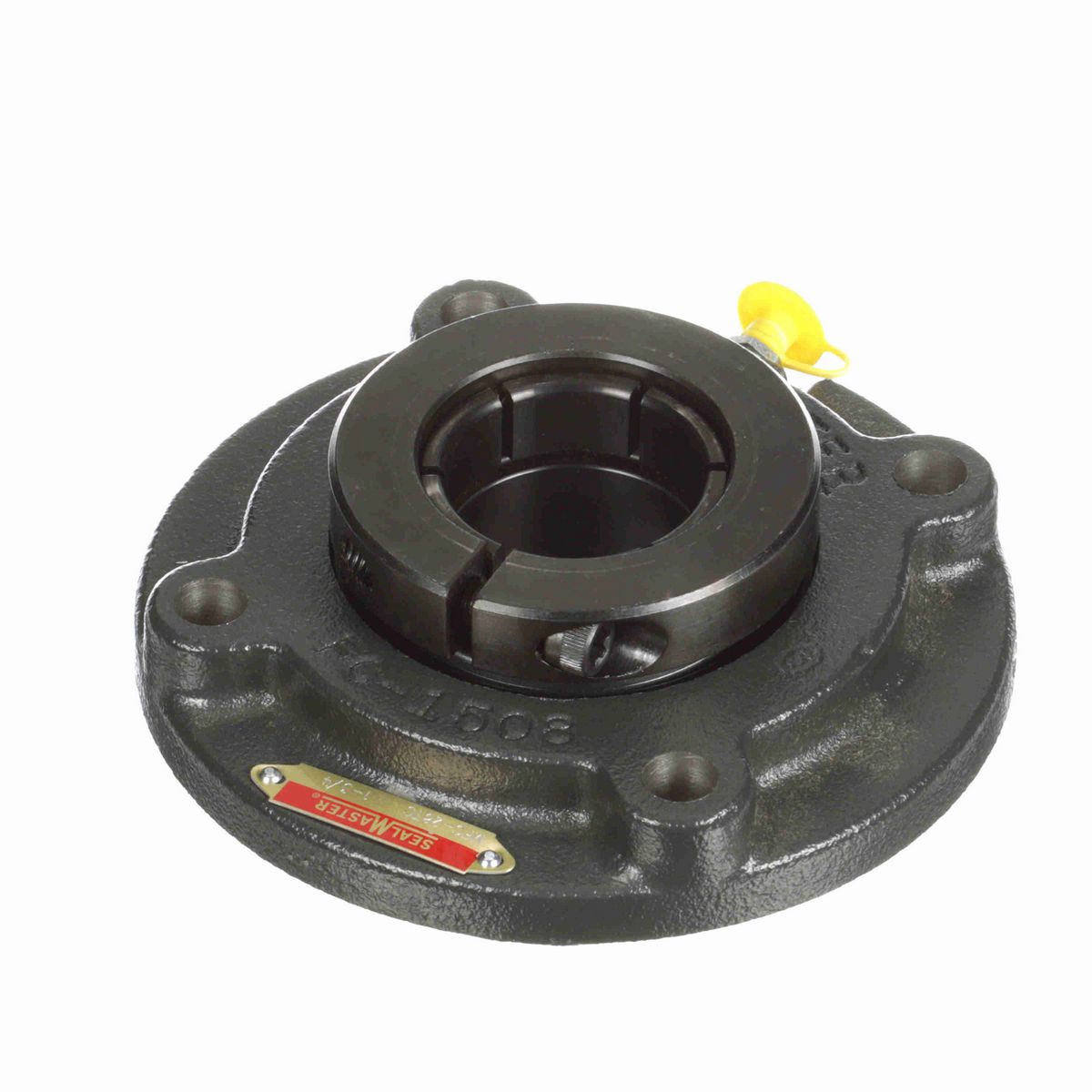

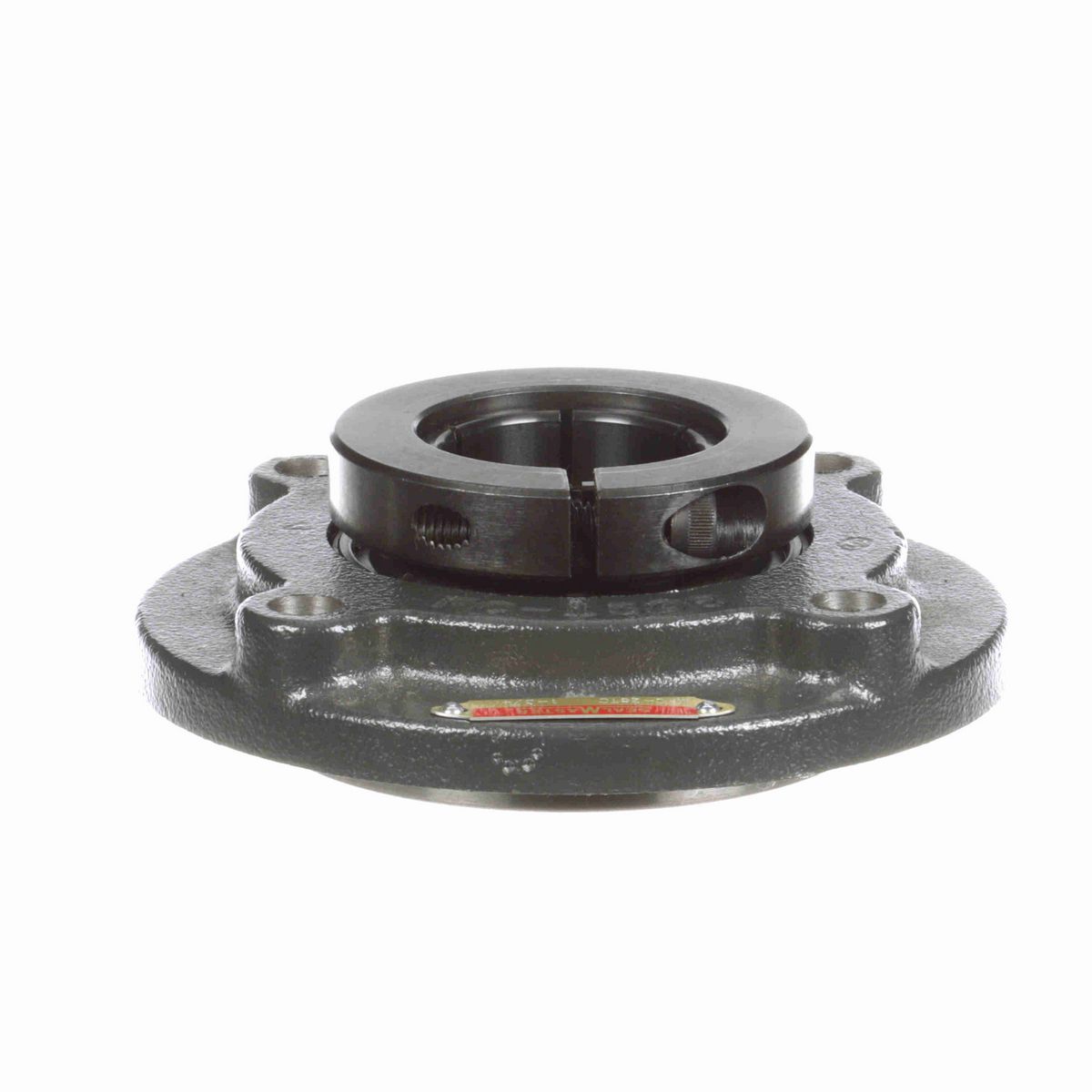

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	6.13 in
Bolt Size (in)	7/16 in
Overall Length (in)	6.13 in
Overall Height (in)	2.17 in
Bore Diameter (in)	1.75 in
Foot Height (in)	0.44 in
Pilot Diameter (in)	4.25 in
Length Through Bore (in)	2.17 in
Housing Outside Diameter (in)	6.13 in
Bolt Circle (in)	5.125 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Piloted
Seal Type	Single Lip Contact Seal
Housing Style	Flange Block
Locking Collar Outside Diameter (in)	3.35 in
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Pilot Depth (in)	0.44 in
Inner Ring Outside Diameter (in)	2.469 in
Dynamic Load Rating (lb)	7,889 lb
Fixed vs. Expansion	Fixed
Vibration Frequency Roller Spin	0.0445 cps
Max Operating Temperature (F)	220 °F
Size Code	2-115
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Fundamental Train	0.0068 cps
Bearing Type	Medium Duty
Vibration Frequency Inner Ring Defect	0.0984 cps
Lubricant	Lithium Complex NLGI 2 Grease
Static Load Rating (lb)	5,216 lb
Insert	3-112TC
Cage Type	Land Riding Retainer
Misalignment Capability	±2.0° Misalignment - Static Only
Bearing Insert Finish	Black Oxide
Vibration Frequency Outer Ring Defect	0.0683 cps
Shaft Locking Type	Concentric
Housing Coating	Powder Coated
Grease Fitting Thread Size	1/8 NPT
Housing Material	Cast Iron
Radial Clearance	Standard
End Cap Available	No
Maximum Speed (RPM)	3550 rpm

General Specifications

UPC	662461034736
Weight	6.84 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
