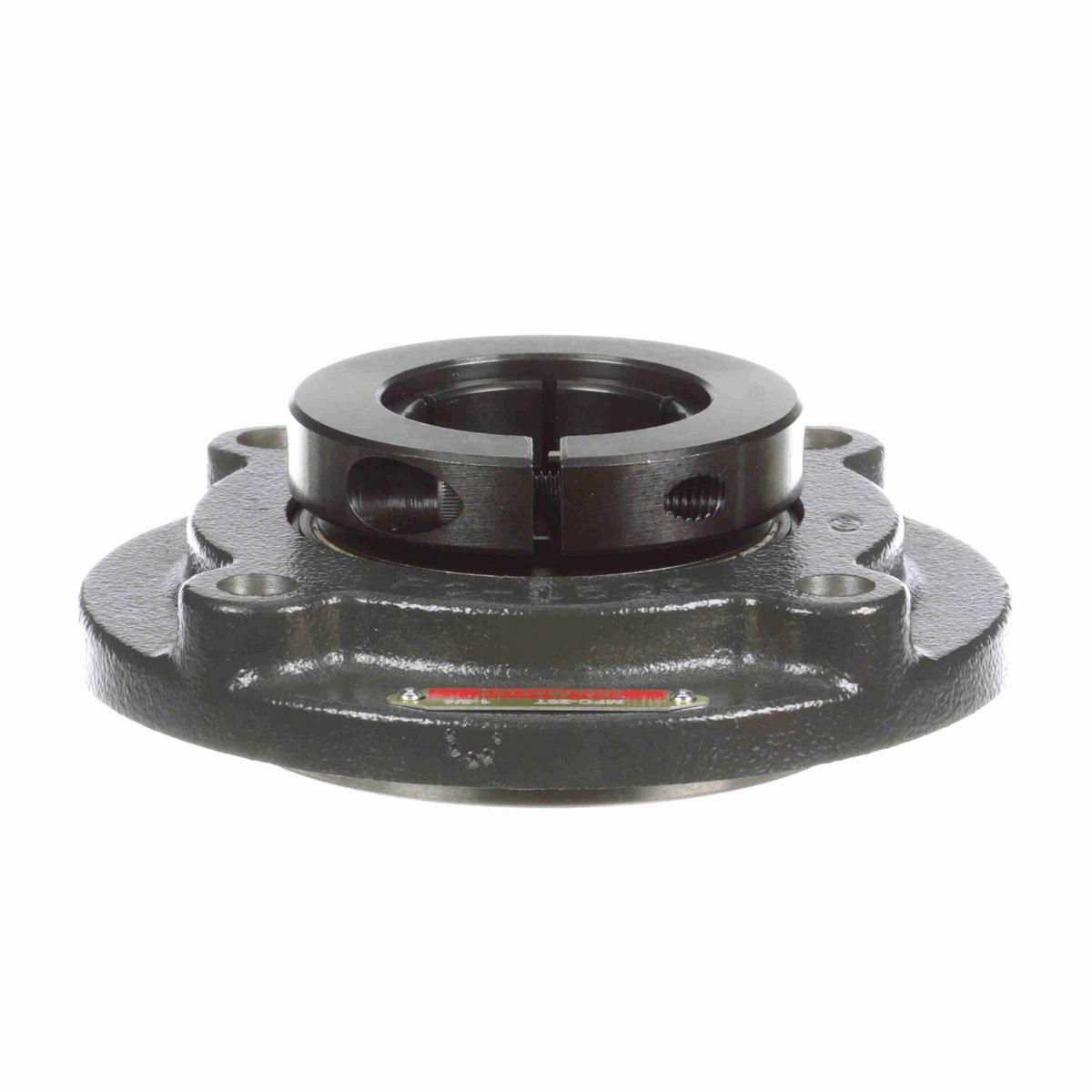

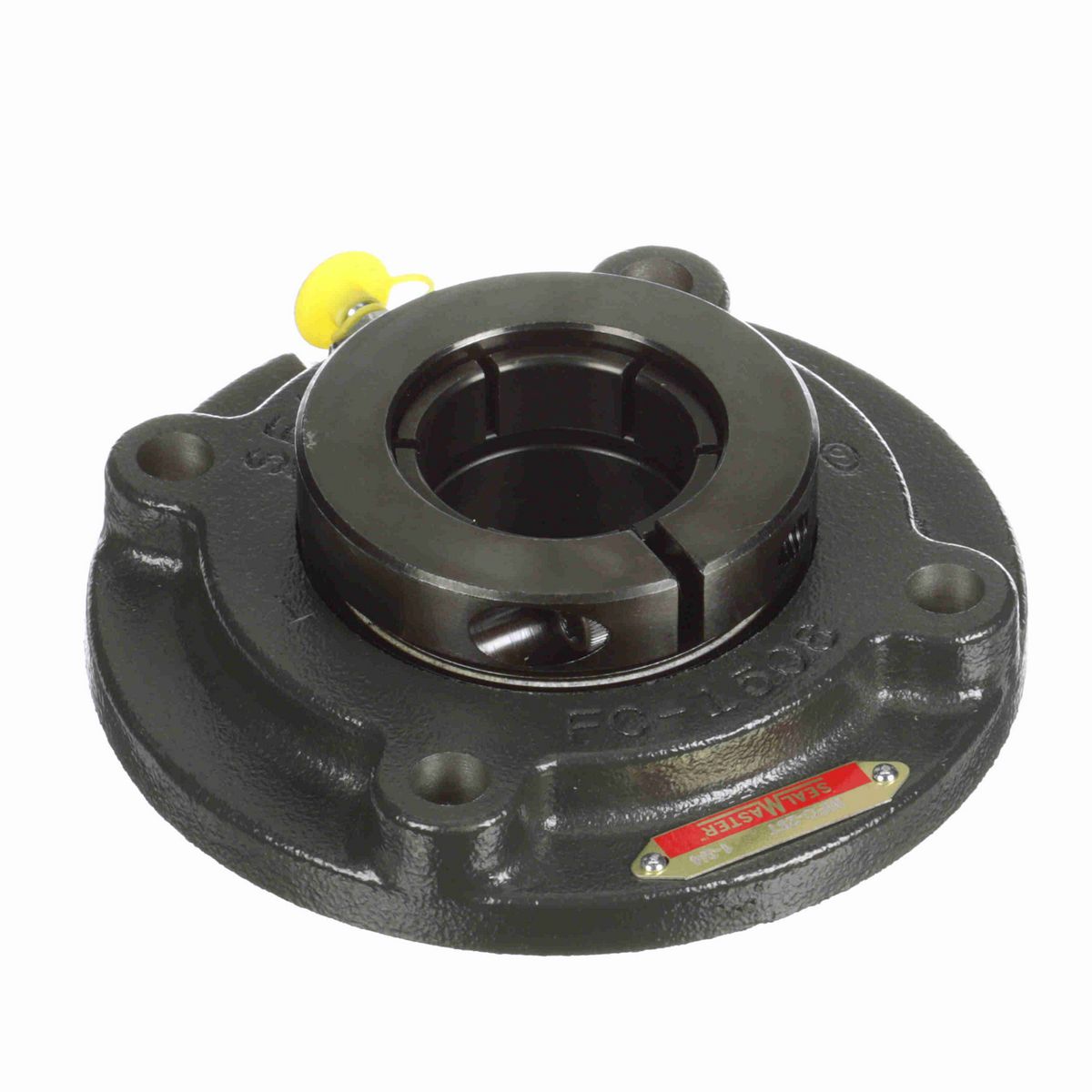

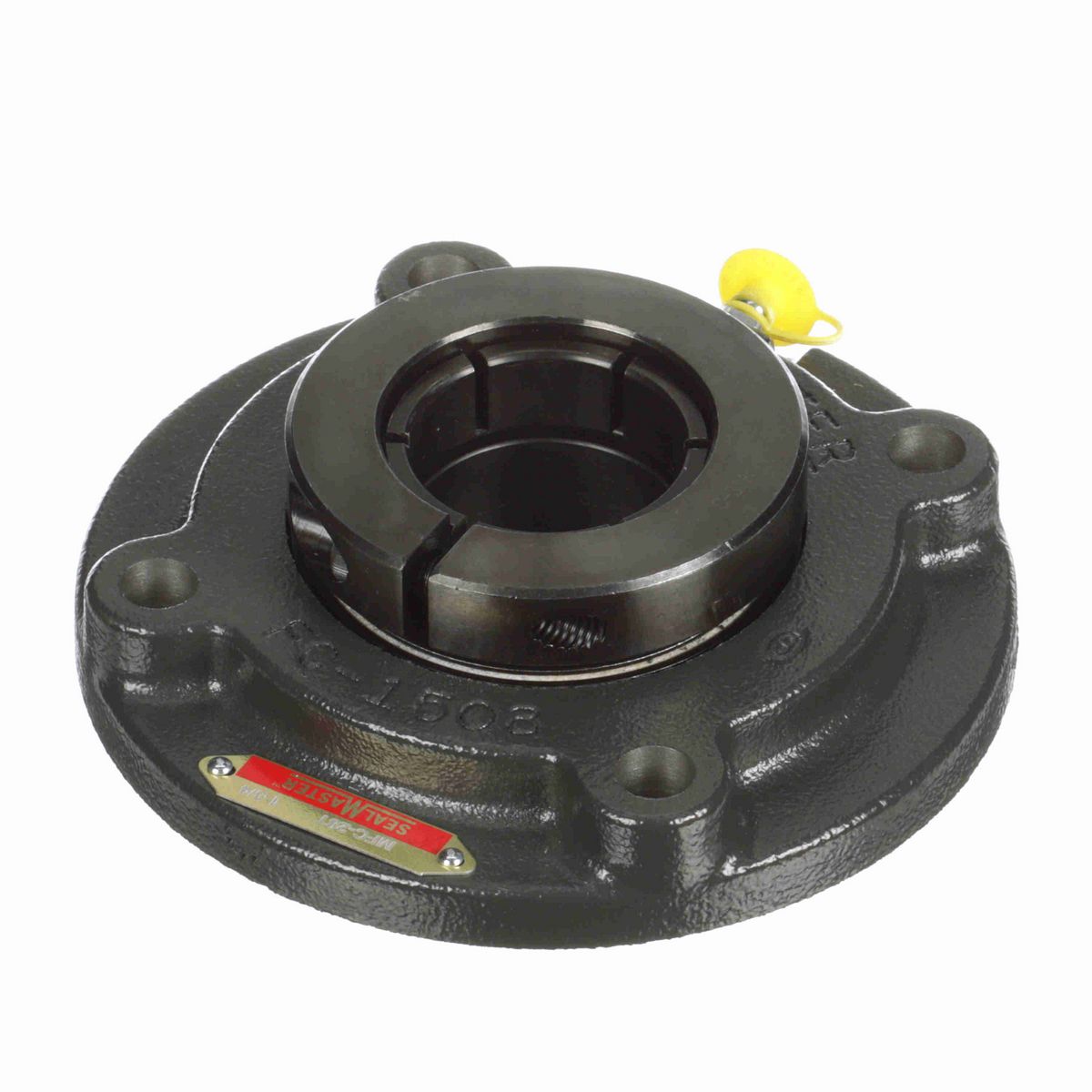

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	7/16 in
Overall Width (in)	6.13 in
Overall Length (in)	6.13 in
Overall Height (in)	2.17 in
Bore Diameter (in)	1.75 in
Foot Height (in)	0.44 in
Pilot Diameter (in)	4.25 in
Length Through Bore (in)	2.17 in
Housing Outside Diameter (in)	6.13 in
Bolt Circle (in)	5.125 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Pilot Depth (in)	0.44 in
Locking Collar Outside Diameter (in)	3.35 in
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Dynamic Load Rating (lb)	7,889 lb
Shaft Locking Type	Concentric
Cage Type	Land Riding Retainer
Static Load Rating (lb)	5,216 lb
End Cap Available	No
Bearing Insert Material	52100 Bearing Steel
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Outer Ring Defect	0.0683 cps
Radial Clearance	Standard
Bearing Insert Finish	Black Oxide
Fixed vs. Expansion	Fixed
Housing Coating	Powder Coated
Vibration Frequency Roller Spin	0.0445 cps
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Fundamental Train	0.0068 cps
Grease Fitting Thread Size	1/8 NPT
Max Operating Temperature (F)	220 °F
Bearing Type	Medium Duty
Maximum Speed (RPM)	5000 rpm
Inner Ring Outside Diameter (in)	2.469 in
Insert	3-112T
Vibration Frequency Inner Ring Defect	0.0984 cps
Size Code	2-115
Housing Material	Cast Iron

General Specifications

UPC	662461031766
Weight	6.88 LB
Packaged Length	6.50 IN
Packaged Width	6.75 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
