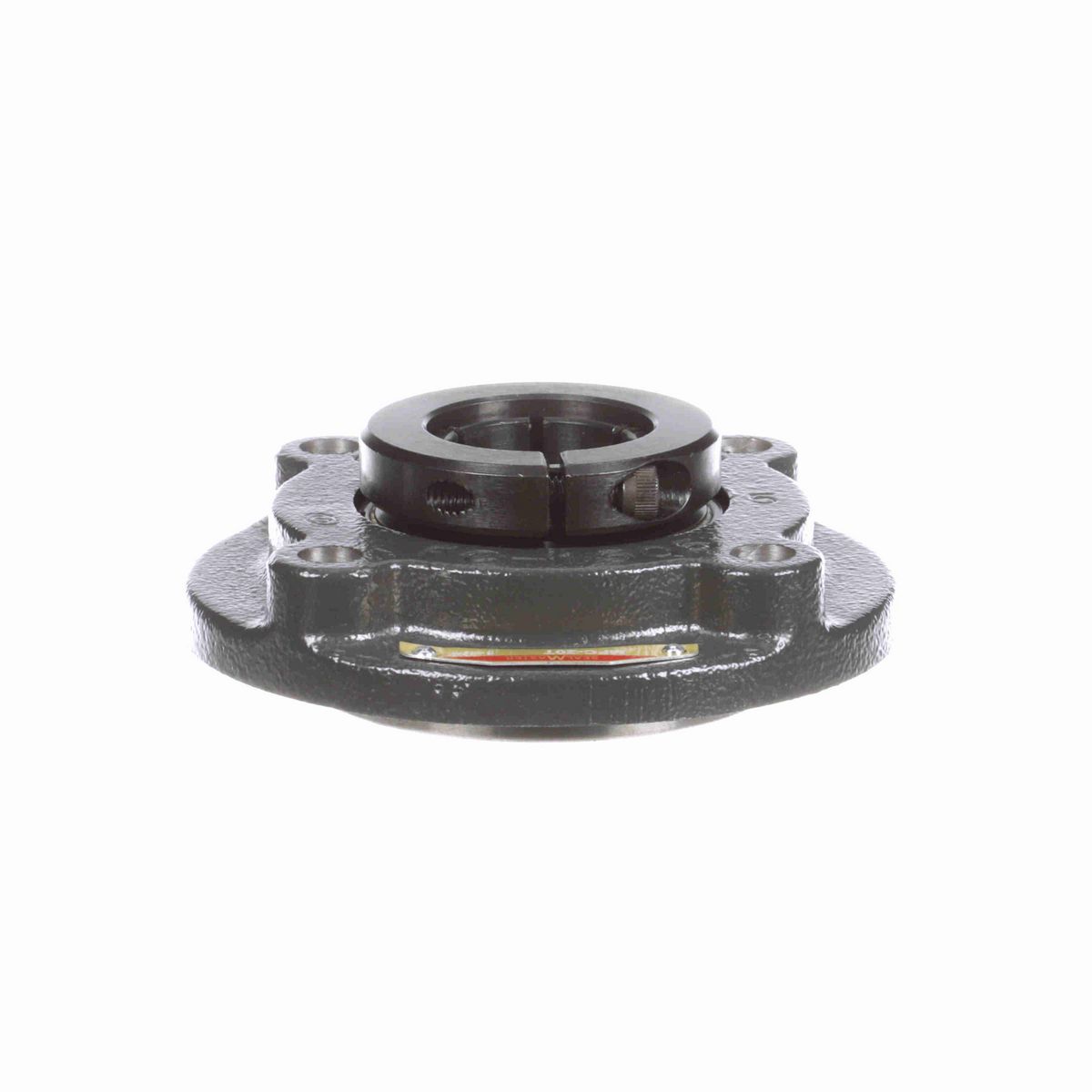

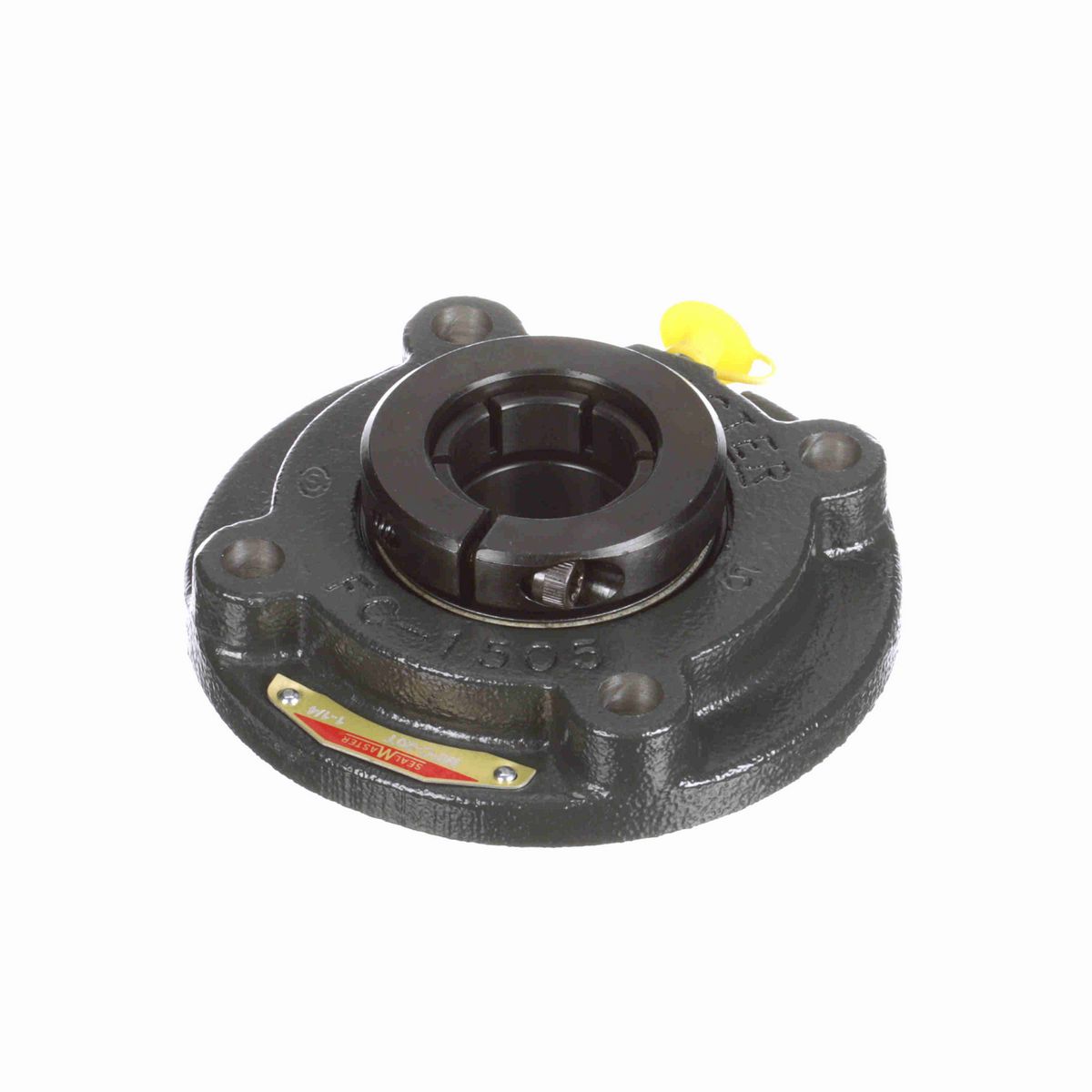

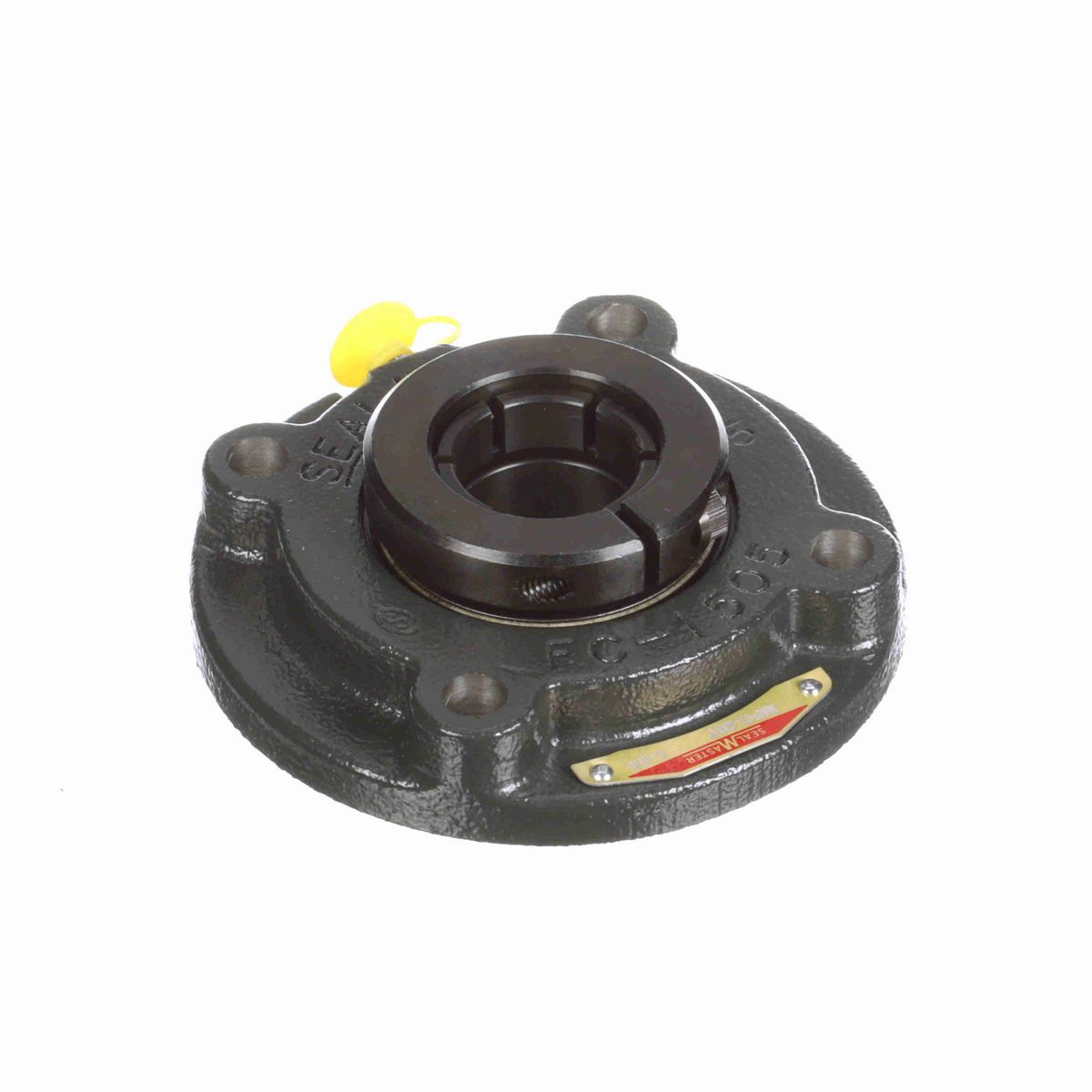

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	5 in
Bolt Size (in)	3/8 in
Overall Height (in)	1.82 in
Overall Length (in)	5 in
Bore Diameter (in)	1.25 in
Pilot Diameter (in)	3.375 in
Foot Height (in)	0.38 in
Length Through Bore (in)	1.82 in
Housing Outside Diameter (in)	5 in
Bolt Circle (in)	4.125 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Piloted
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Pilot Depth (in)	0.38 in
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	2.5 in
Ability to Relubricate	Yes
Radial Clearance	Standard
Vibration Frequency Outer Ring Defect	0.0595 cps
Housing Coating	Powder Coated
Inner Ring Outside Diameter (in)	1.859 in
Static Load Rating (lb)	3,493 lb
Cage Type	Land Riding Retainer
Misalignment Capability	±2.0° Misalignment - Static Only
Maximum Speed (RPM)	7600 rpm
Shaft Locking Type	Concentric
Max Operating Temperature (F)	220 °F
Grease Fitting Thread Size	1/4-28
Dynamic Load Rating (lb)	5,782 lb
Insert	2-14T
Size Code	2-17
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Inner Ring Defect	0.0905 cps
Bearing Type	Medium Duty
End Cap Available	No
Bearing Insert Material	52100 Bearing Steel
Housing Material	Cast Iron
Fixed vs. Expansion	Fixed
Vibration Frequency Roller Spin	0.0386 cps
Vibration Frequency Fundamental Train	0.0066 cps
Bearing Insert Finish	Black Oxide

General Specifications

UPC	662461031711
Weight	3.93 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8483.20.4040
Country of Origin	United States of America
