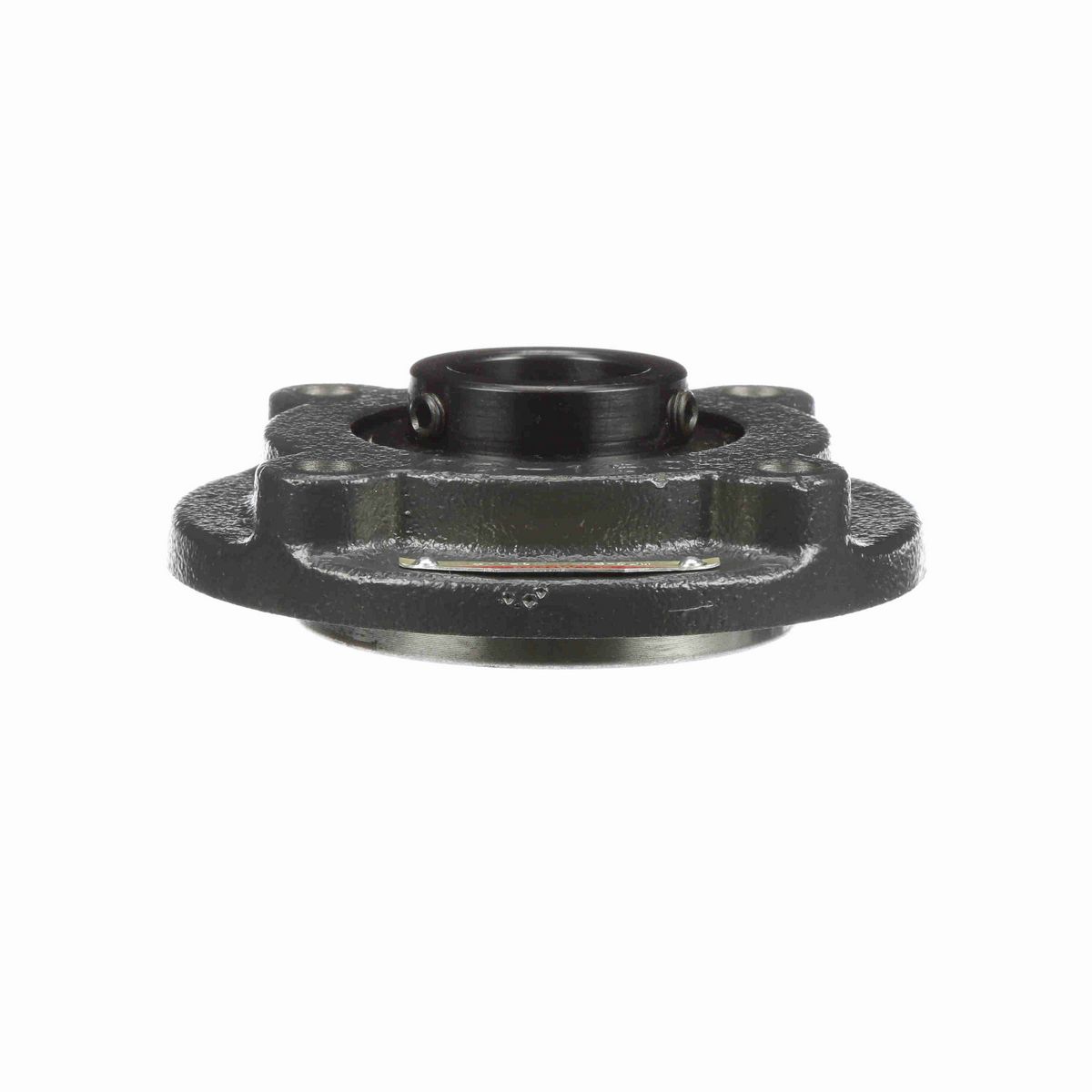

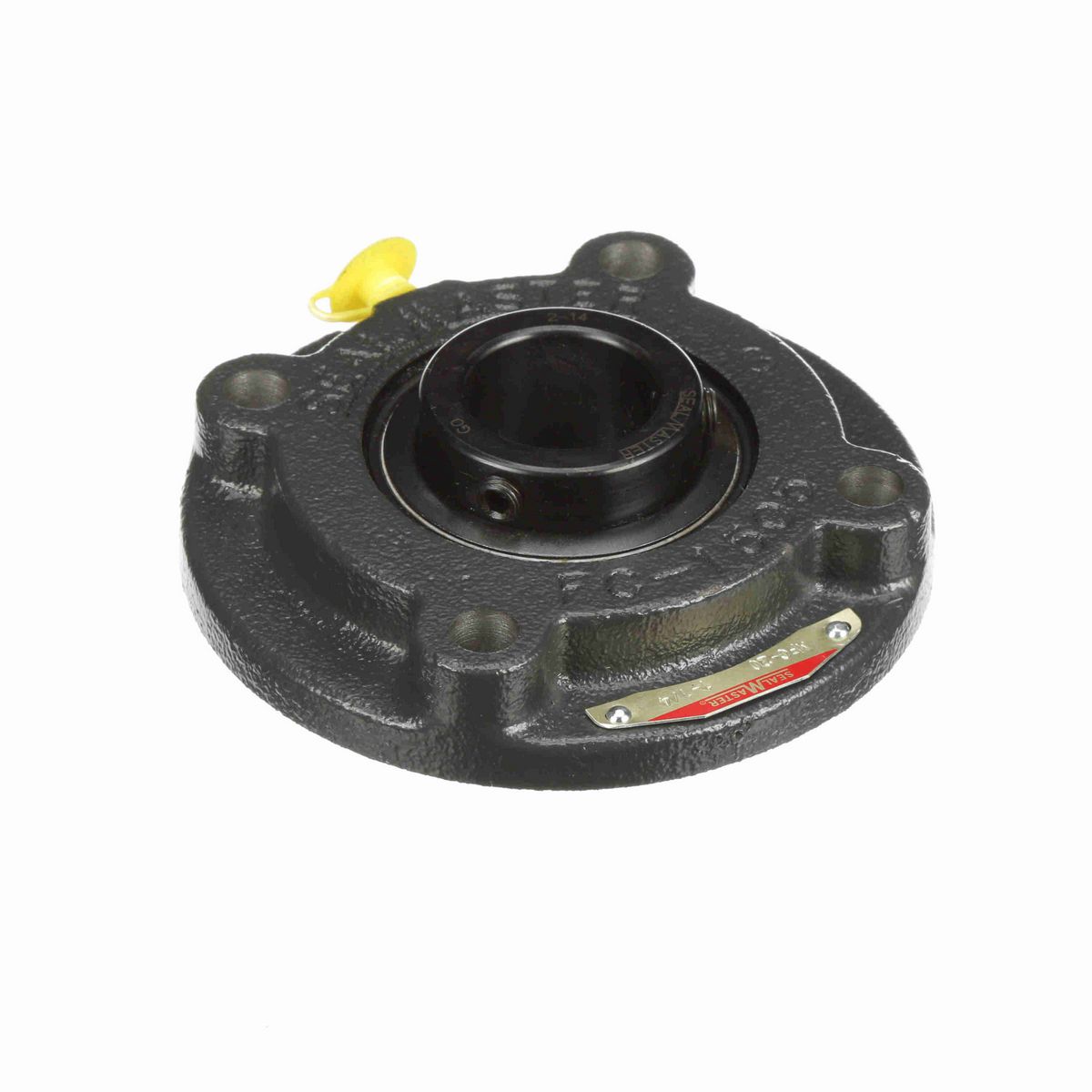

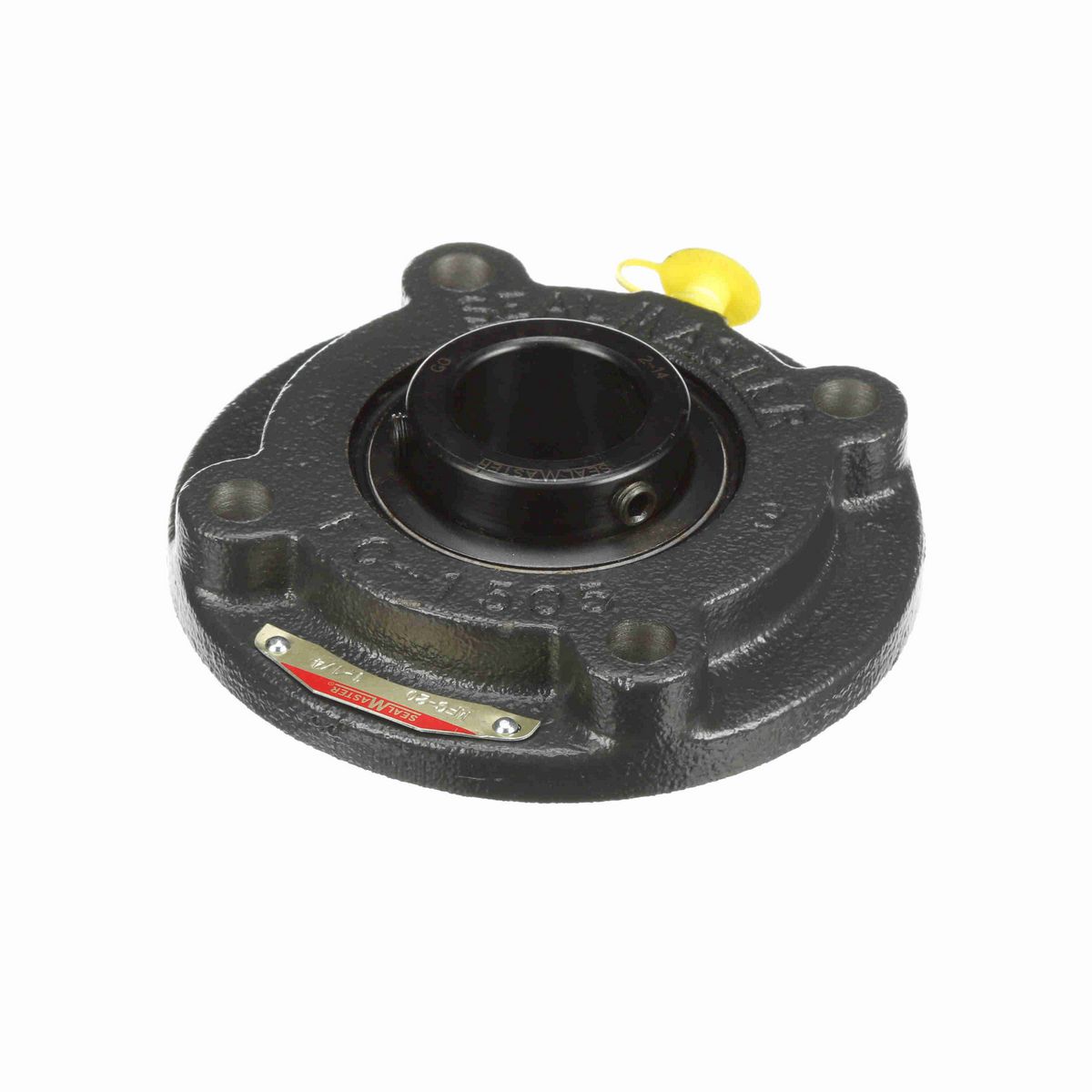

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	5 in
Bolt Size (in)	3/8 in
Overall Length (in)	5 in
Overall Height (in)	1.69 in
Bore Diameter (in)	1.25 in
Foot Height (in)	0.38 in
Pilot Diameter (in)	3.375 in
Length Through Bore (in)	1.688 in
Housing Outside Diameter (in)	5 in
Bolt Circle (in)	4.125 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Piloted
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Pilot Depth (in)	0.38 in
Bearing Insert Finish	Black Oxide
Lubricant	Lithium Complex NLGI 2 Grease
Shaft Locking Type	Set Screw
Dynamic Load Rating (lb)	5,782 lb
Vibration Frequency Roller Spin	0.0386 cps
Misalignment Capability	±2.0° Misalignment - Static Only
Cage Type	Land Riding Retainer
Max Operating Temperature (F)	220 °F
Vibration Frequency Fundamental Train	0.0066 cps
Grease Fitting Thread Size	1/4-28
Bearing Type	Medium Duty
Insert	2-14
Size Code	2-17
Vibration Frequency Outer Ring Defect	0.0595 cps
Static Load Rating (lb)	3,493 lb
Housing Coating	Powder Coated
Vibration Frequency Inner Ring Defect	0.0905 cps
Fixed vs. Expansion	Fixed
End Cap Available	No
Housing Material	Cast Iron
Inner Ring Outside Diameter (in)	1.859 in
Maximum Speed (RPM)	4650 rpm
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	Standard

General Specifications

UPC	662461013342
Weight	3.68 LB
Packaged Length	2.00 IN
Packaged Width	5.00 IN
Packaged Height	5.00 IN
HTC	8483.20.4040
Country of Origin	United States of America
