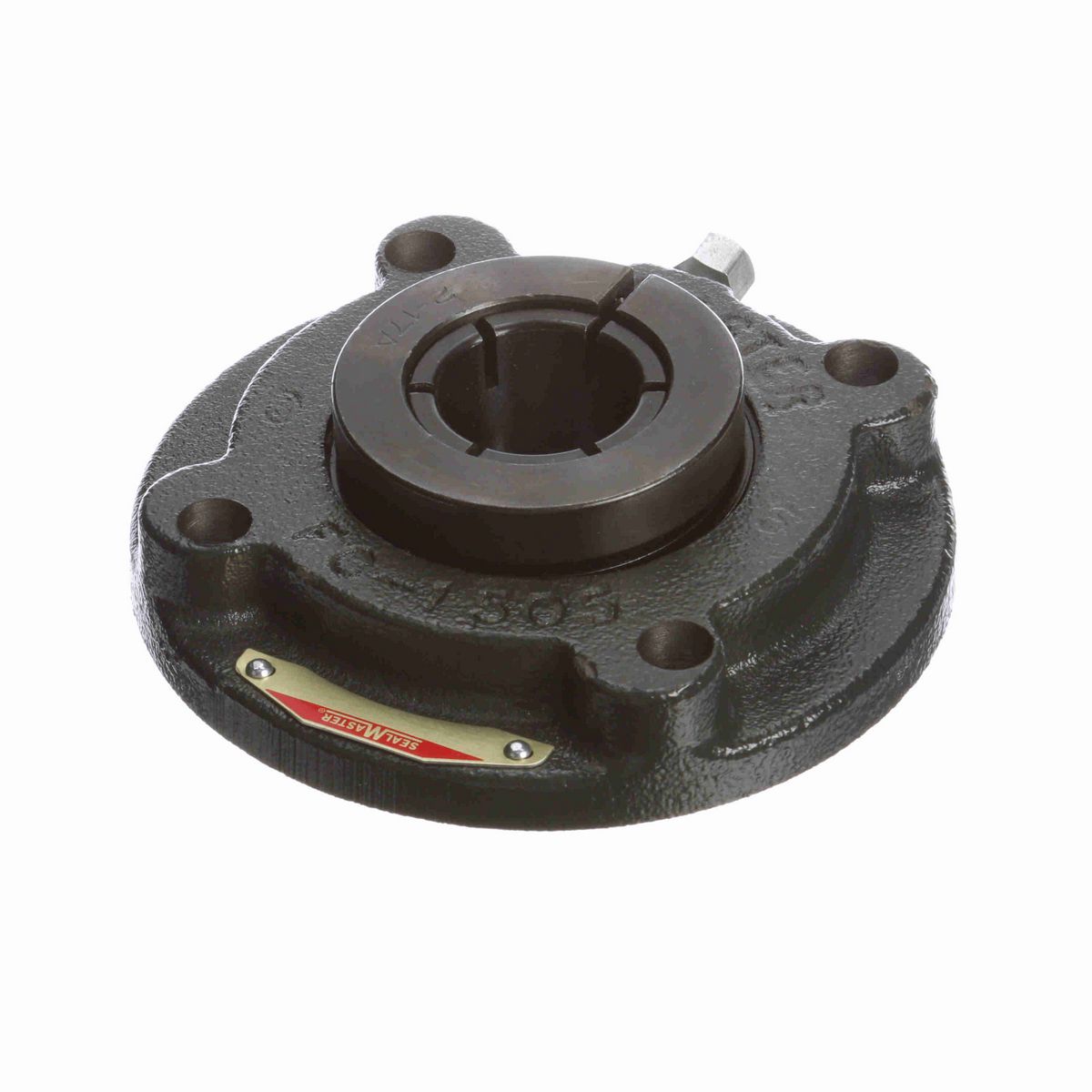

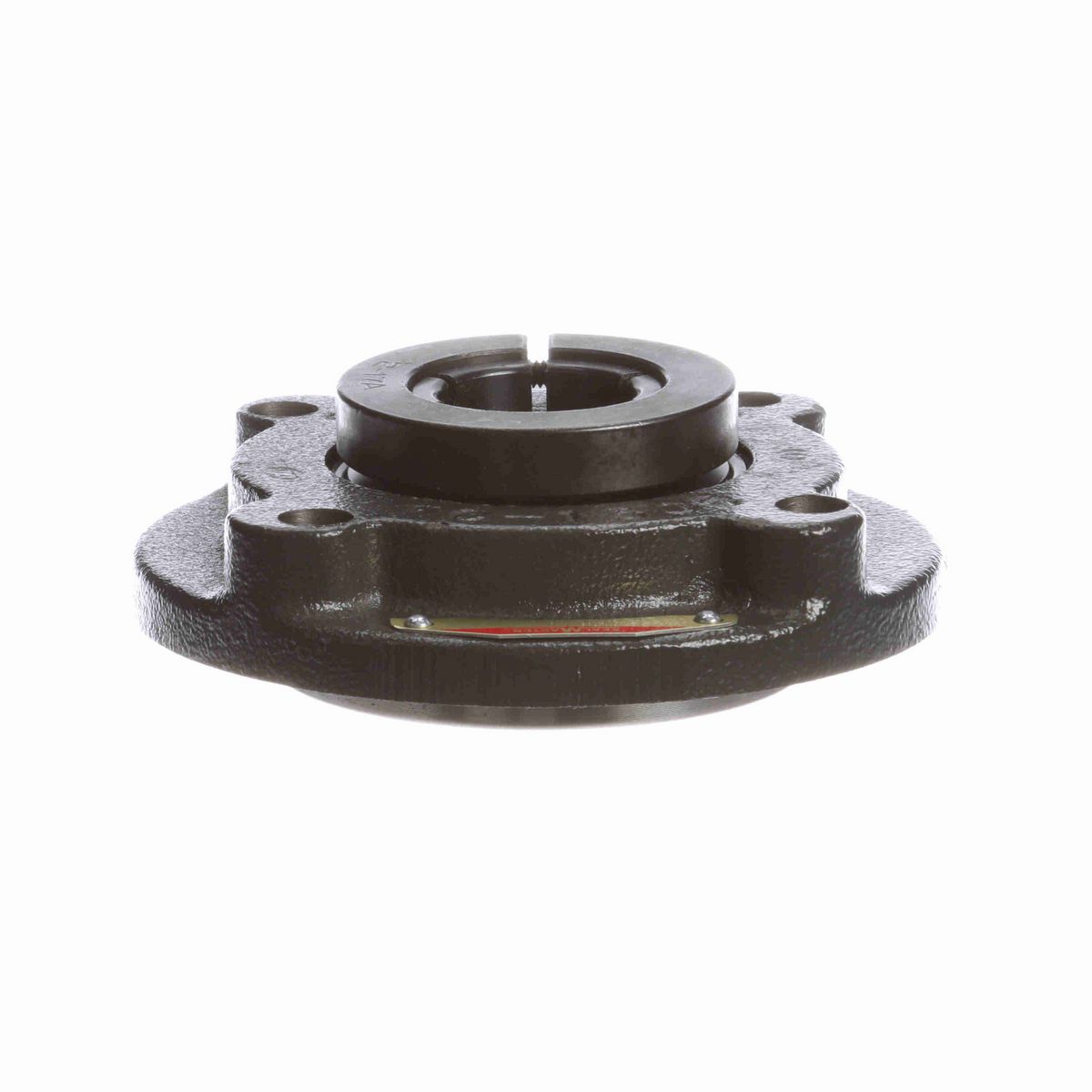

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Labyrinth seal and flinger with oil lubrication for reduced friction and adapter for relubrication
• Reduced internal clearance for less overall end play
• Looser than standard housing fit for ease of alignment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	3/8 in
Overall Width (in)	5 in
Overall Height (in)	1.82 in
Overall Length (in)	5 in
Bore Diameter (in)	1.1875 in
Pilot Diameter (in)	3.375 in
Foot Height (in)	0.38 in
Length Through Bore (in)	1.82 in
Housing Outside Diameter (in)	5 in
Bolt Circle (in)	4.125 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	Piloted
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Options	Low Drag
Misalignment Type	Static Only
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Piloted
Seal Type	Labryinth Seal
Housing Style	Flange Block
Ability to Relubricate	Yes
Pilot Depth (in)	0.38 in
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	2.5 in
Bearing Insert Finish	Black Oxide
End Cap Available	No
Vibration Frequency Roller Spin	0.0386 cps
Vibration Frequency Outer Ring Defect	0.0595 cps
Static Load Rating (lb)	3,493 lb
Fixed vs. Expansion	Fixed
Vibration Frequency Inner Ring Defect	0.0905 cps
Cage Type	Land Riding Retainer
Bearing Insert Material	52100 Bearing Steel
Vibration Frequency Fundamental Train	0.0066 cps
Housing Material	Cast Iron
Misalignment Capability	±2.0° Misalignment - Static Only
Maximum Speed (RPM)	6500 rpm
Inner Ring Outside Diameter (in)	1.859 in
Housing Coating	Powder Coated
Grease Fitting Thread Size	1/4-28
Max Operating Temperature (F)	220 °F
Shaft Locking Type	Concentric
Lubricant	Oil Coated Only - No Factory Grease Fill
Insert	3-13TX HX
Size Code	2-17
Bearing Type	Medium Duty
Radial Clearance	Standard
Dynamic Load Rating (lb)	5,782 lb

General Specifications

UPC	662461258392
Weight	4.20 LB
Packaged Length	5.00 IN
Packaged Width	2.00 IN
Packaged Height	5.00 IN
HTC	8483.20.4040
Country of Origin	United States of America
