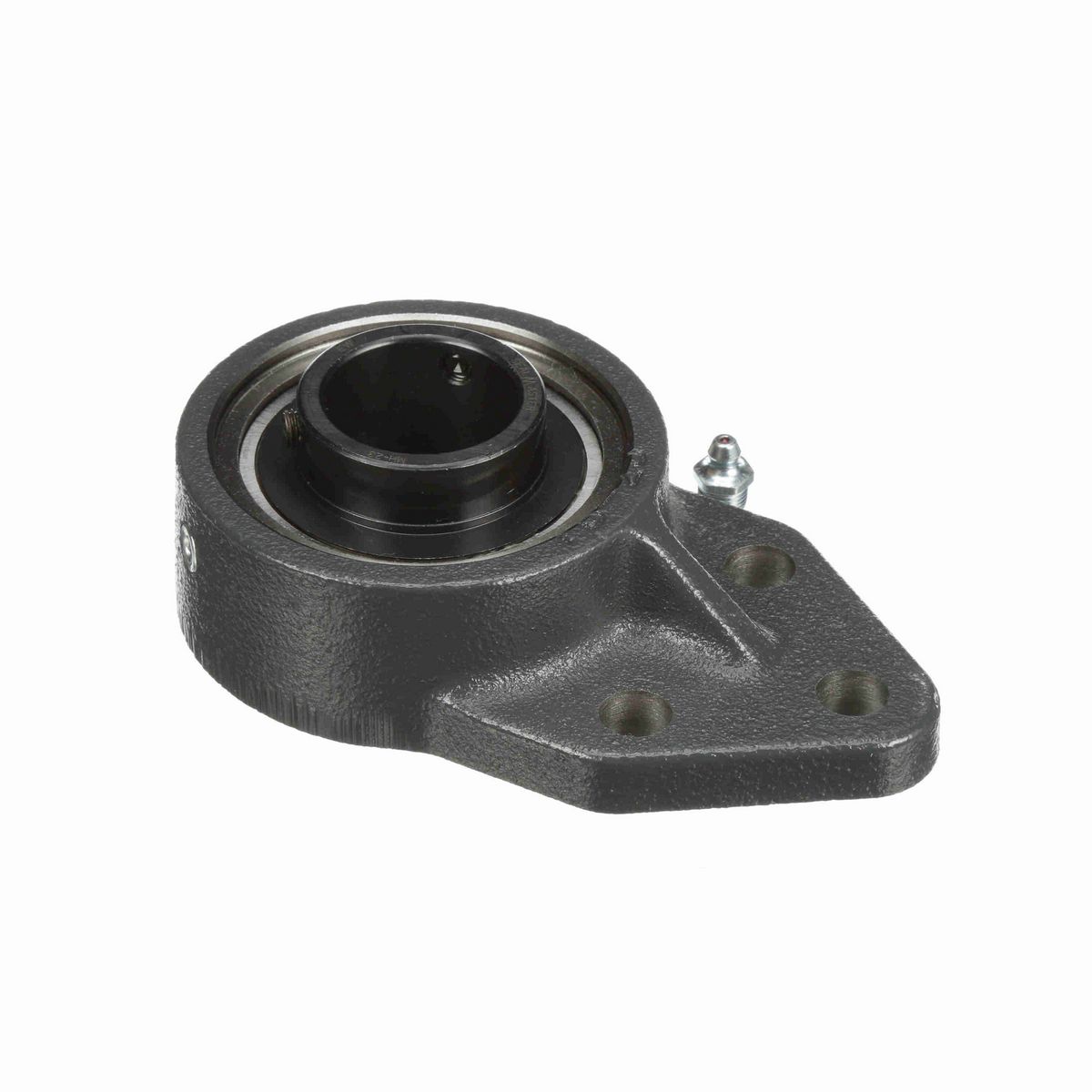

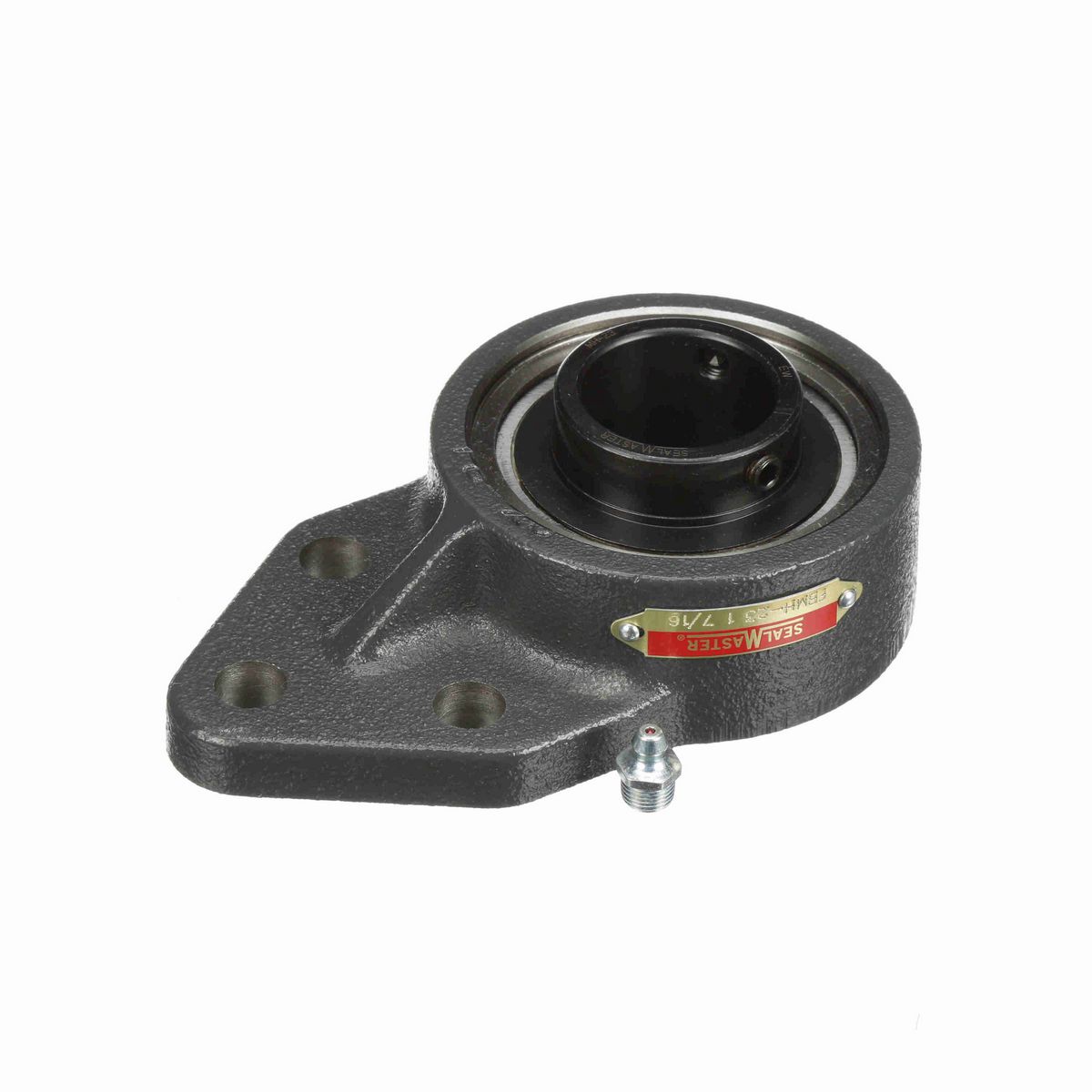

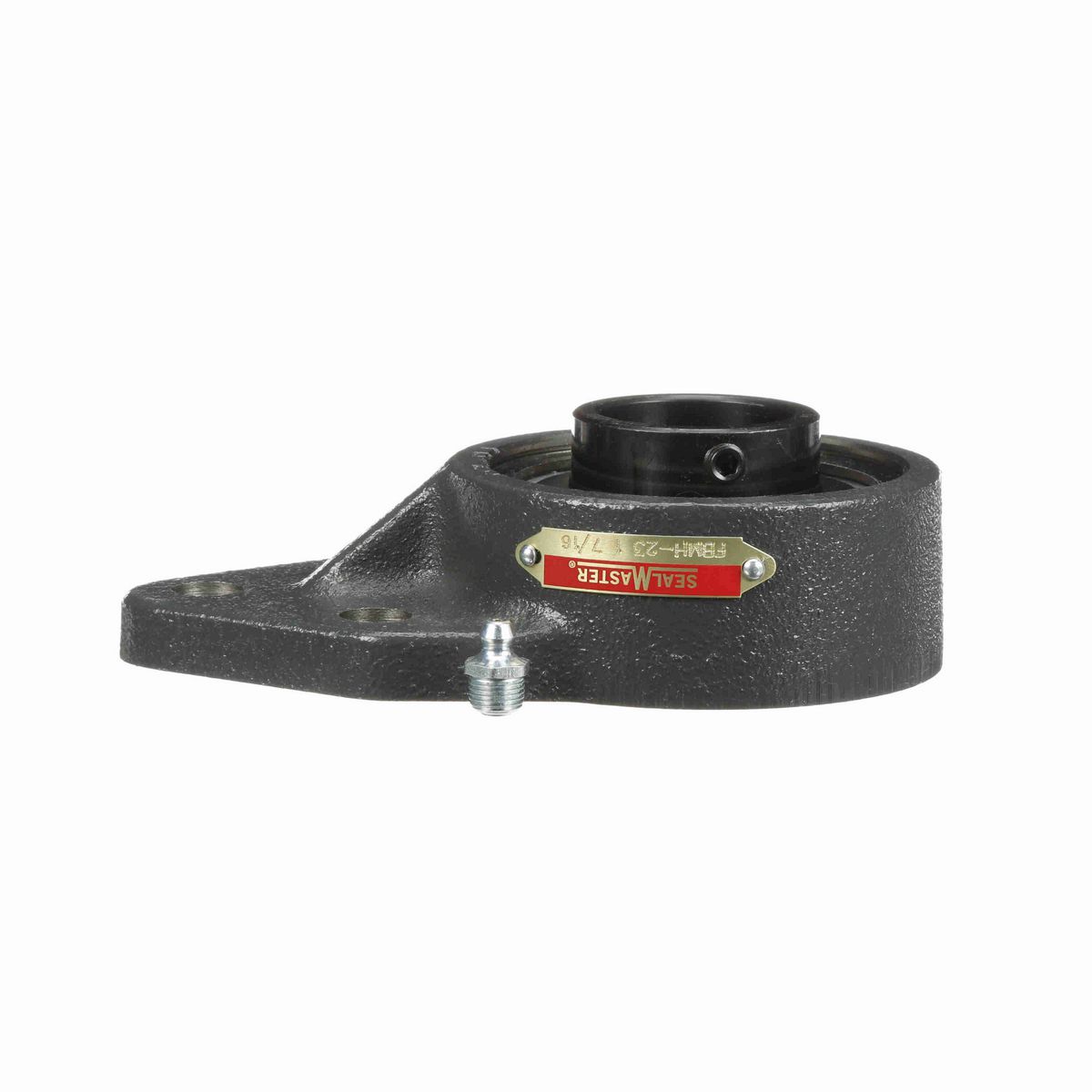

• Cast iron housed, extended inner ring bearing with ball riding nylon retainer
• Designed to accommodate optional closed or open end to allow users to better conform OSHA requirements for personal protection
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Single lip contact seal and flinger
• Supplied sealed for life with optional lubrication fitting in the box

Dimensions

Bolt Size (in)	1/2 in
Overall Width (in)	3.75 in
Overall Height (in)	1.88 in
Overall Length (in)	6.13 in
Bore Diameter (in)	1.4375 in
Overall Height to End Cap (in)	2.78 in
Foot Height (in)	0.5 in
Base to Center Height (in)	4.25 in
Length Through Bore (in)	1.685 in
Bolt Spacing (in)	2.0000 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	No Pilot
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Bracket, Three Bolt
Seal Type	Single Lip Contact Seal with Flinger
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Bearing Type	Standard Duty
Housing Material	Cast Iron
Size Code	2-17
Cage Type	Land Riding Retainer
Inner Ring Outside Diameter (in)	1.862 in
End Cap Available	No
Bolt Spacing Height Direction (in)	1.25 in
Bearing Insert Material	52100 Bearing Steel
Fixed vs. Expansion	Fixed
Housing Coating	Powder Coated
Vibration Frequency Outer Ring Defect	0.0595 cps
Maximum Speed (RPM)	4000 rpm
Max Operating Temperature (F)	220 °F
Vibration Frequency Roller Spin	0.0386 cps
Shaft Locking Type	Set Screw
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Insert Finish	Black Oxide
Static Load Rating (lb)	3,493 lb
Vibration Frequency Fundamental Train	0.0066 cps
Dynamic Load Rating (lb)	5,782 lb
Bearing Centerline to Bolt Hole Center (in)	2.375 in
Grease Fitting Thread Size	1/4-28
Radial Clearance	Standard
Misalignment Capability	±2.0° Misalignment - Static Only
Insert	MH-23
Vibration Frequency Inner Ring Defect	0.0905 cps
Housing Width (in)	3.75 in

General Specifications

UPC	662461343166
Weight	3.84 LB
Packaged Length	7.20 IN
Packaged Width	4.50 IN
Packaged Height	2.10 IN
HTC	8483.20.4040
Country of Origin	Mexico
