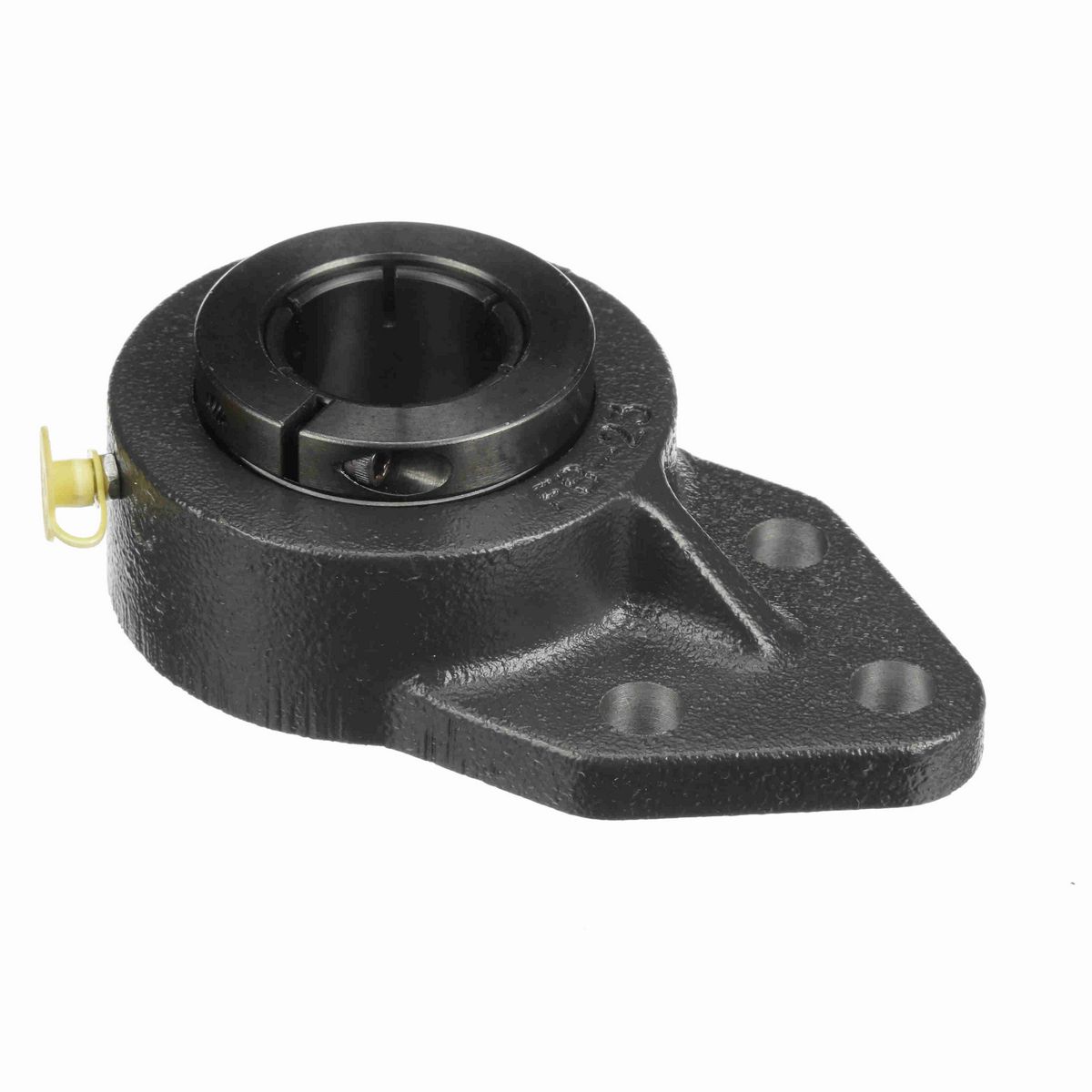

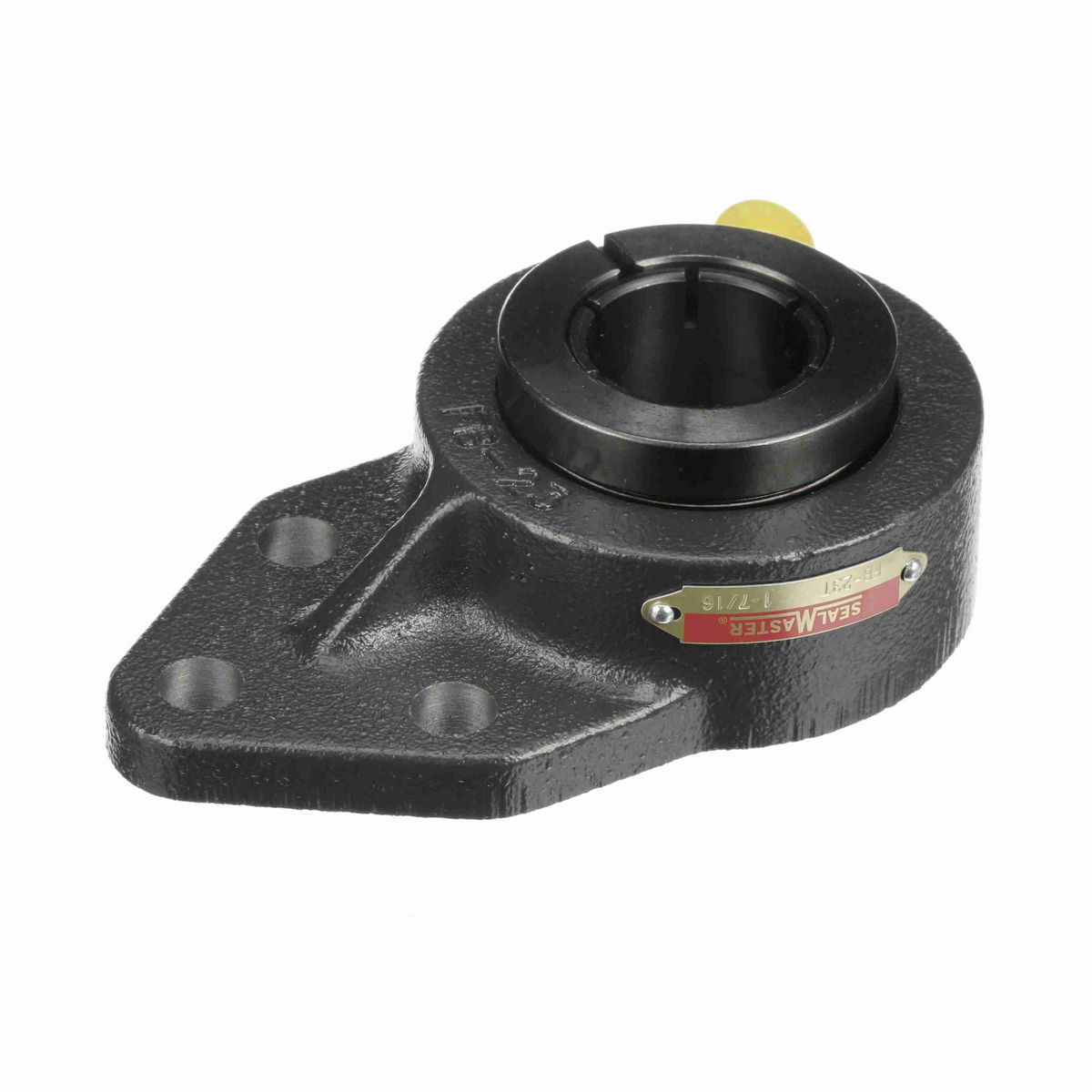

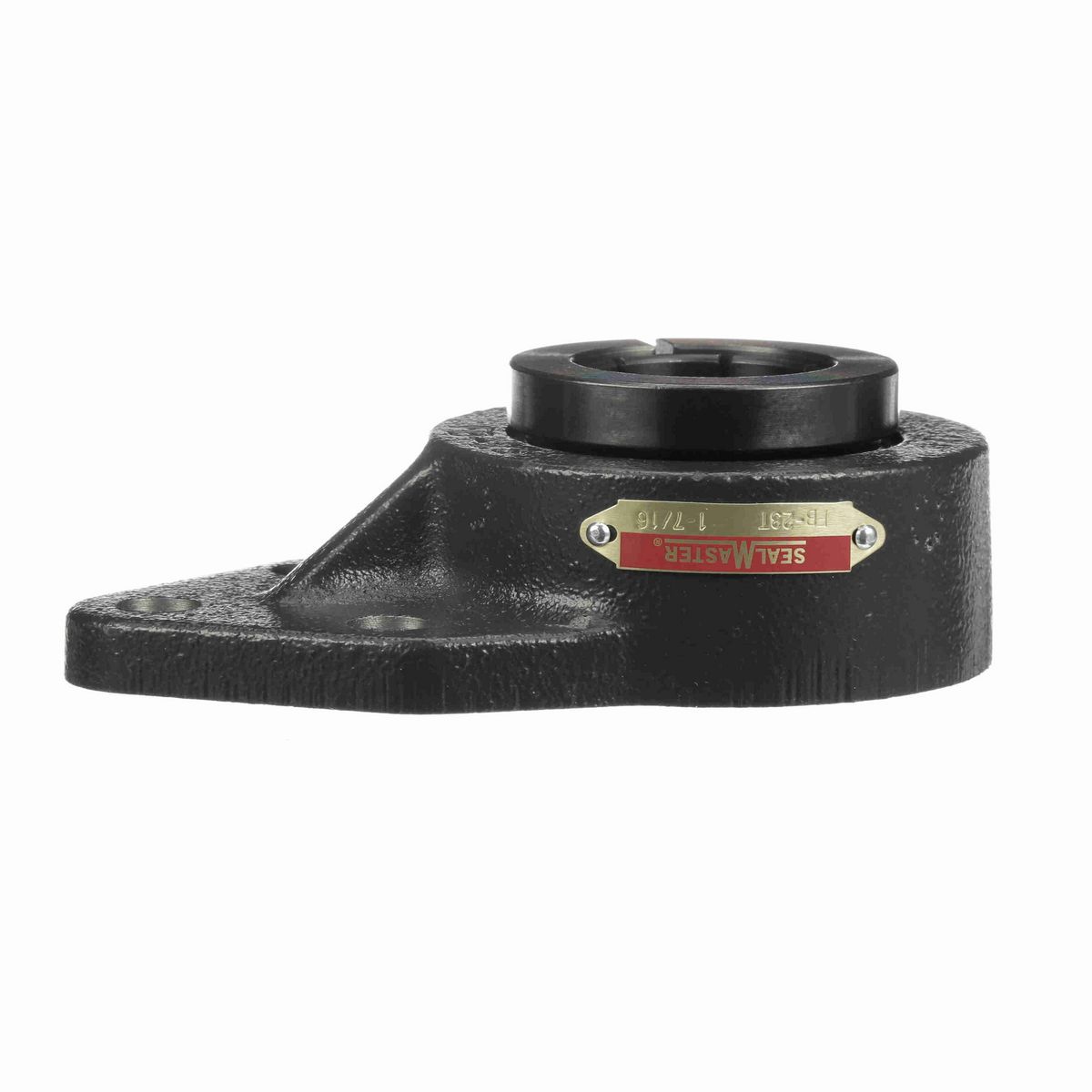

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	3.75 in
Bolt Size (in)	1/2 in
Overall Height (in)	1.94 in
Overall Length (in)	6.13 in
Bore Diameter (in)	1.4375 in
Base to Center Height (in)	4.25 in
Foot Height (in)	0.5 in
Length Through Bore (in)	1.81 in
Bolt Spacing (in)	2.0000 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	No Pilot
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Bracket, Three Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Locking Collar Outside Diameter (in)	2.50 in
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Outer Ring Defect	0.0595 cps
Inner Ring Outside Diameter (in)	1.862 in
Fixed vs. Expansion	Fixed
Bearing Insert Finish	Black Oxide
Bearing Centerline to Bolt Hole Center (in)	2.375 in
Lubricant	Lithium Complex NLGI 2 Grease
Size Code	2-17
Bearing Insert Material	52100 Bearing Steel
Cage Type	Land Riding Retainer
Radial Clearance	Standard
Bolt Spacing Height Direction (in)	1.25 in
Misalignment Capability	±2.0° Misalignment - Static Only
End Cap Available	No
Insert	2-17T
Maximum Speed (RPM)	6500 rpm
Shaft Locking Type	Concentric
Housing Material	Cast Iron
Max Operating Temperature (F)	220 °F
Housing Coating	Powder Coated
Grease Fitting Thread Size	1/4-28
Bearing Type	Standard Duty
Vibration Frequency Inner Ring Defect	0.0905 cps
Static Load Rating (lb)	3,493 lb
Vibration Frequency Fundamental Train	0.0066 cps
Dynamic Load Rating (lb)	5,782 lb
Vibration Frequency Roller Spin	0.0386 cps
Housing Width (in)	3.75 in

General Specifications

UPC	662461031643
Weight	3.89 LB
Packaged Length	4.38 IN
Packaged Width	2.06 IN
Packaged Height	6.81 IN
HTC	8483.20.4040
Country of Origin	United States of America
