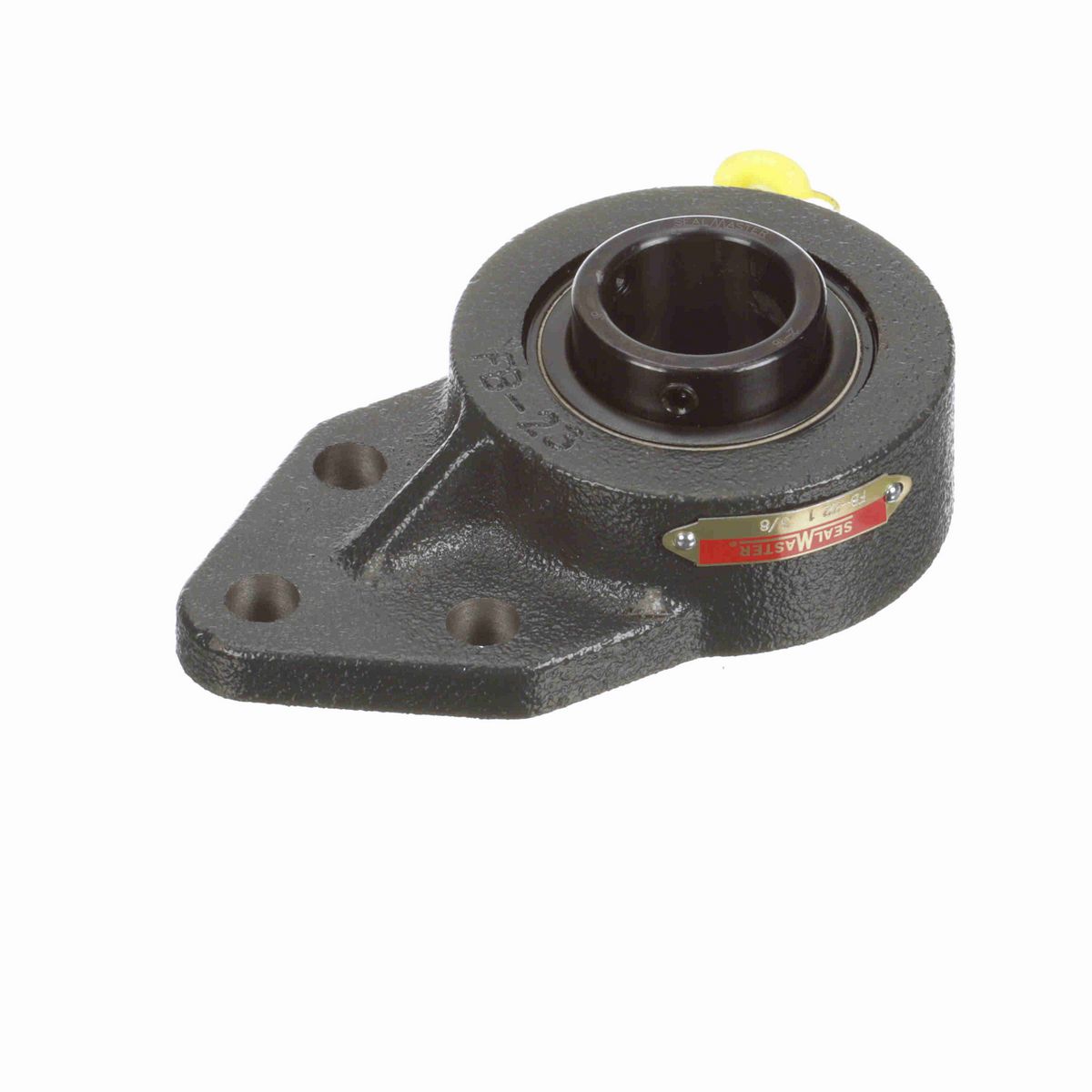

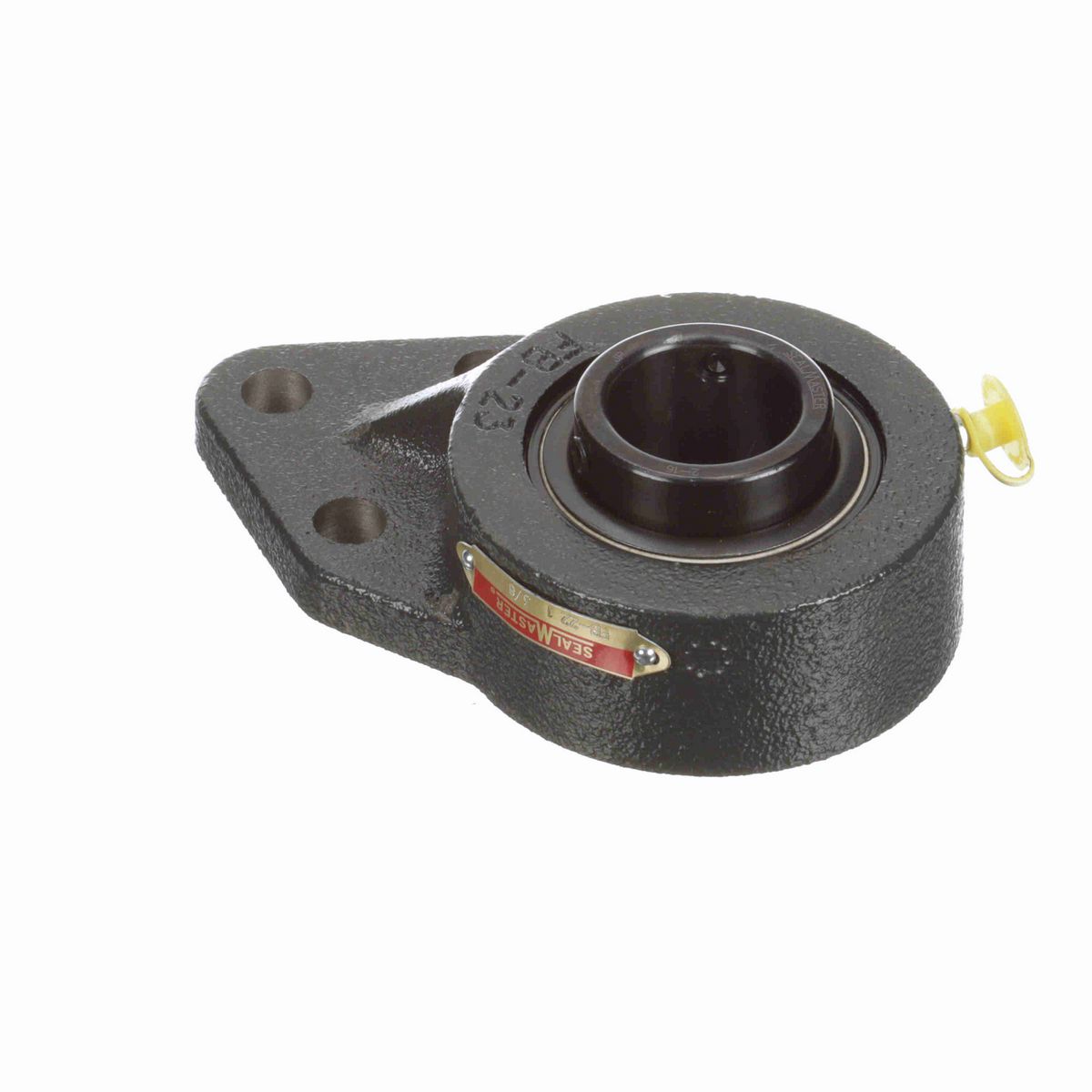

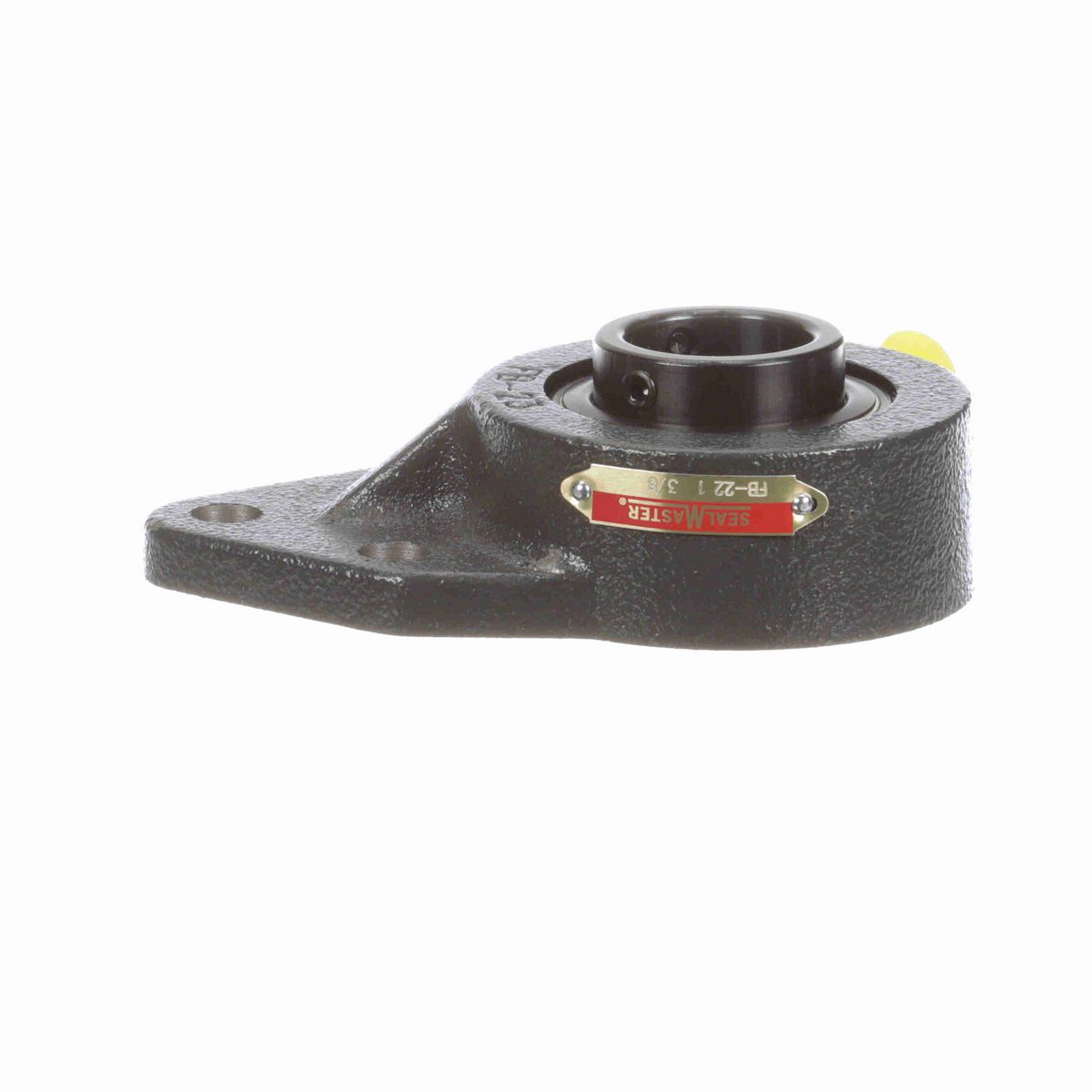

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	3.75 in
Bolt Size (in)	1/2 in
Overall Height (in)	1.88 in
Overall Length (in)	6.13 in
Bore Diameter (in)	1.375 in
Base to Center Height (in)	4.25 in
Foot Height (in)	0.5 in
Length Through Bore (in)	1.685 in
Bolt Spacing (in)	2.0000 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Housing Color	Black
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Bracket, Three Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Bolt Spacing Height Direction (in)	1.25 in
Max Operating Temperature (F)	220 °F
Grease Fitting Thread Size	1/4-28
Maximum Speed (RPM)	4650 rpm
Vibration Frequency Roller Spin	0.0386 cps
Dynamic Load Rating (lb)	5,782 lb
Cage Type	Land Riding Retainer
Bearing Insert Material	52100 Bearing Steel
Bearing Type	Standard Duty
Static Load Rating (lb)	3,493 lb
Housing Coating	Powder Coated
Vibration Frequency Inner Ring Defect	0.0905 cps
End Cap Available	No
Bearing Centerline to Bolt Hole Center (in)	2.375 in
Size Code	2-17
Fixed vs. Expansion	Fixed
Bearing Insert Finish	Black Oxide
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Outer Ring Defect	0.0595 cps
Inner Ring Outside Diameter (in)	1.862 in
Shaft Locking Type	Set Screw
Misalignment Capability	±2.0° Misalignment - Static Only
Insert	2-16
Housing Material	Cast Iron
Vibration Frequency Fundamental Train	0.0066 cps
Radial Clearance	Standard
Housing Width (in)	3.75 in

General Specifications

UPC	662461010235
Weight	3.70 LB
Packaged Length	2.06 IN
Packaged Width	4.38 IN
Packaged Height	6.81 IN
HTC	8483.20.4040
Country of Origin	United States of America
