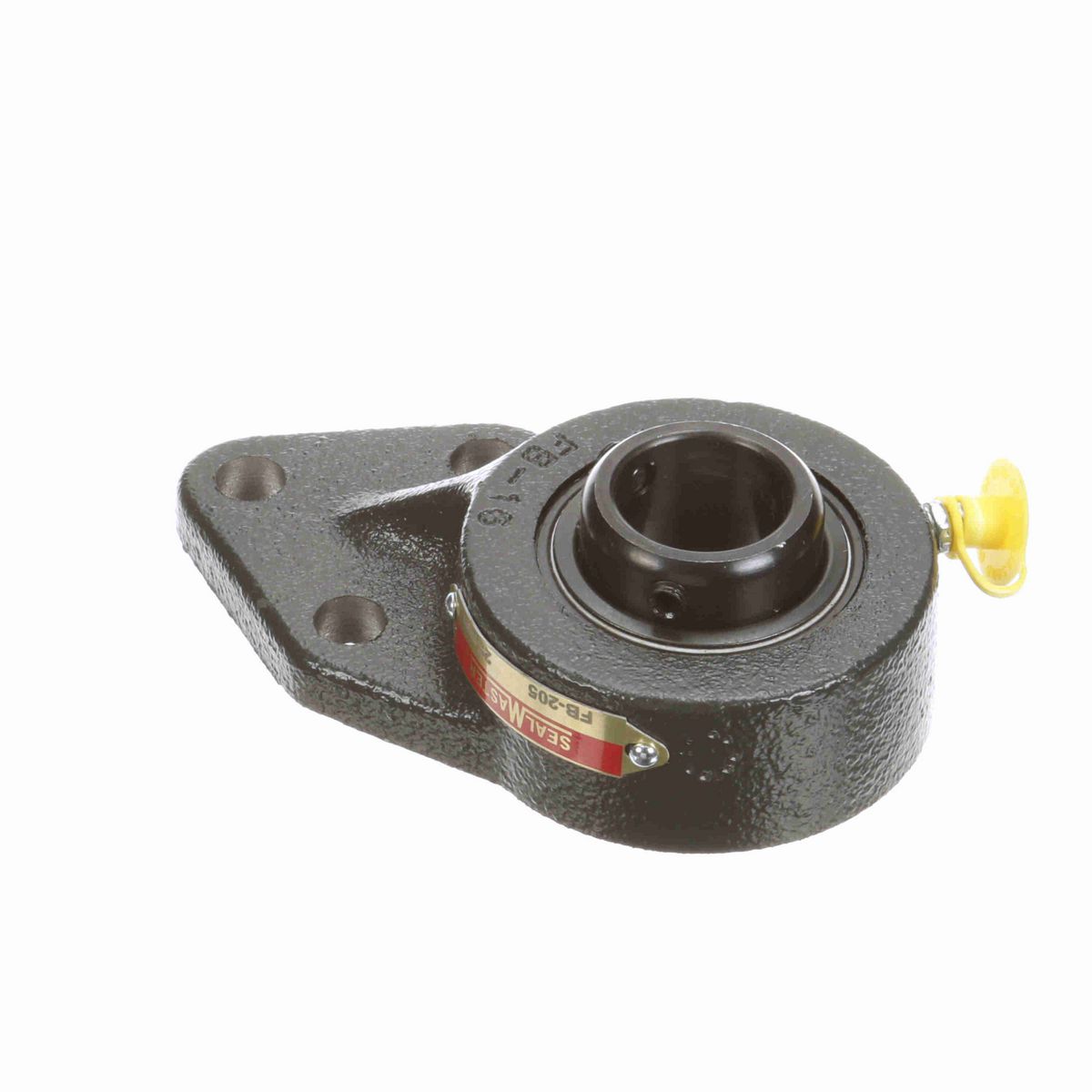

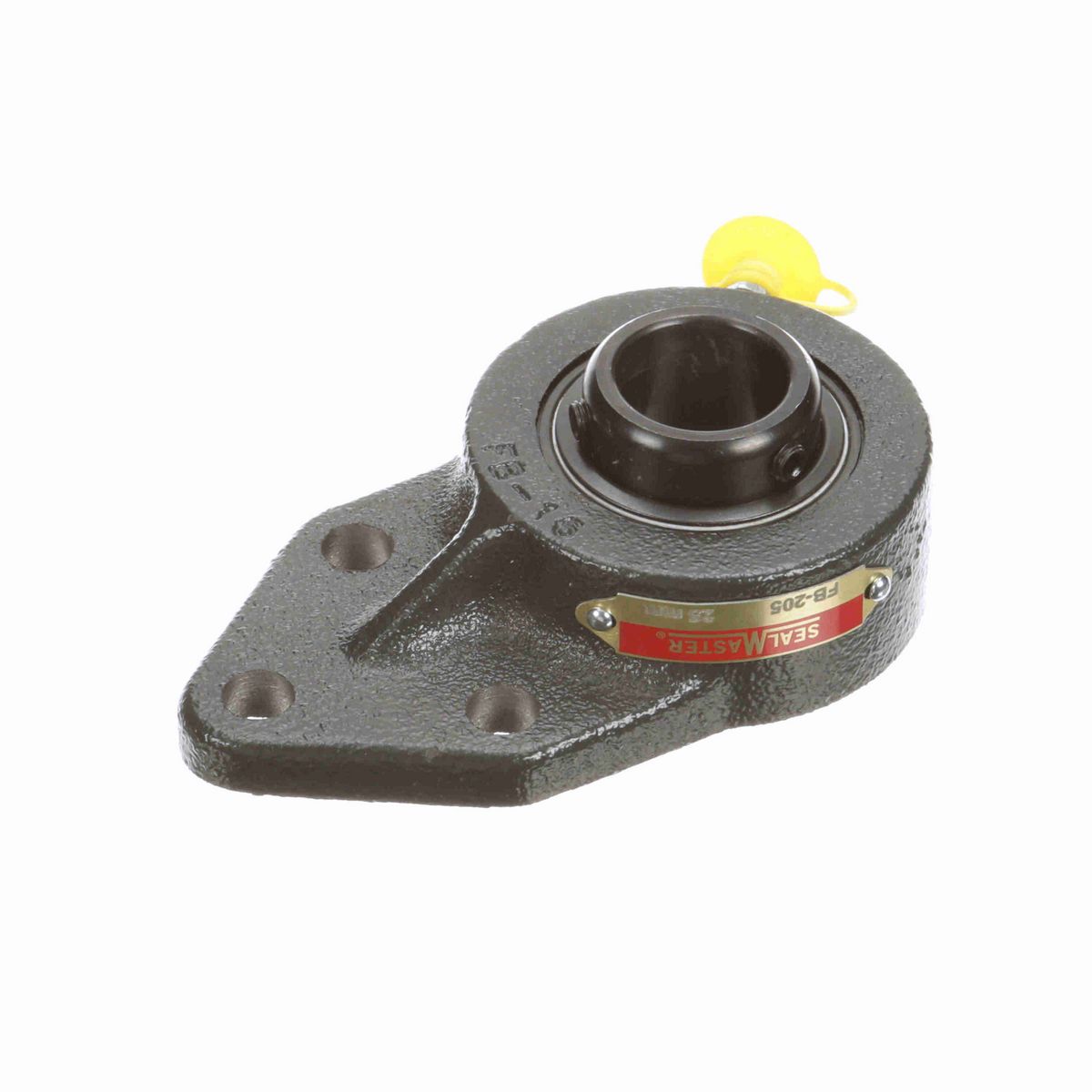

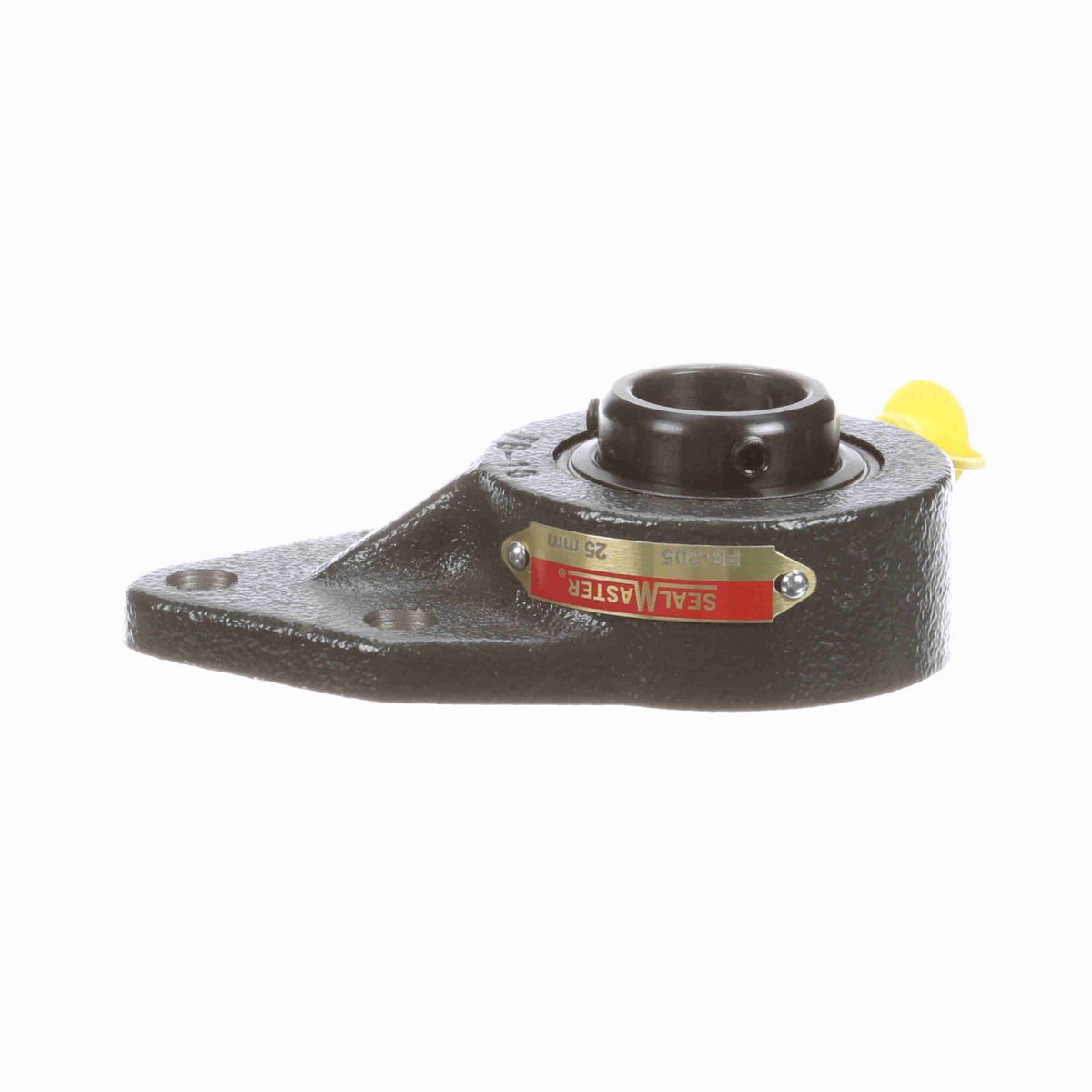

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Bolt Size (in)	3/8 in
Overall Width (in)	2.75 in
Overall Length (in)	4.75 in
Overall Height (in)	1.5 in
Bore Diameter (mm)	25 mm
Foot Height (in)	0.38 in
Base to Center Height (in)	3.38 in
Length Through Bore (in)	1.375 in
Bolt Spacing (in)	1.6250 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Outer Ring Land Profile	Standard
Housing Color	Black
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Felt Labyrinth Seal
Housing Type	Flange, Bracket, Three Bolt
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Housing Coating	Powder Coated
Cage Type	Land Riding Retainer
Insert	5205
Bolt Spacing Height Direction (in)	1.125 in
Shaft Locking Type	Set Screw
Vibration Frequency Inner Ring Defect	0.0985 cps
Bearing Insert Material	52100 Bearing Steel
Bearing Centerline to Bolt Hole Center (in)	1.8125 in
Dynamic Load Rating (lb)	2,801 lb
Housing Material	Cast Iron
Lubricant	Lithium Complex NLGI 2 Grease
Vibration Frequency Outer Ring Defect	0.0682 cps
Inner Ring Outside Diameter (in)	1.375 in
End Cap Available	No
Static Load Rating (lb)	1,651 lb
Bearing Type	Standard Duty
Maximum Speed (RPM)	6350 rpm
Radial Clearance	Standard
Grease Fitting Thread Size	1/4-28
Misalignment Capability	±2.0° Misalignment - Static Only
Vibration Frequency Fundamental Train	0.0068 cps
Max Operating Temperature (F)	220 °F
Vibration Frequency Roller Spin	0.0442 cps
Fixed vs. Expansion	Fixed
Bearing Insert Finish	Black Oxide
Size Code	2-015
Housing Width (in)	2.75 in

General Specifications

UPC	662461053195
Weight	1.85 LB
Packaged Length	1.69 IN
Packaged Width	3.19 IN
Packaged Height	5.25 IN
HTC	8483.20.4040
Country of Origin	United States of America
