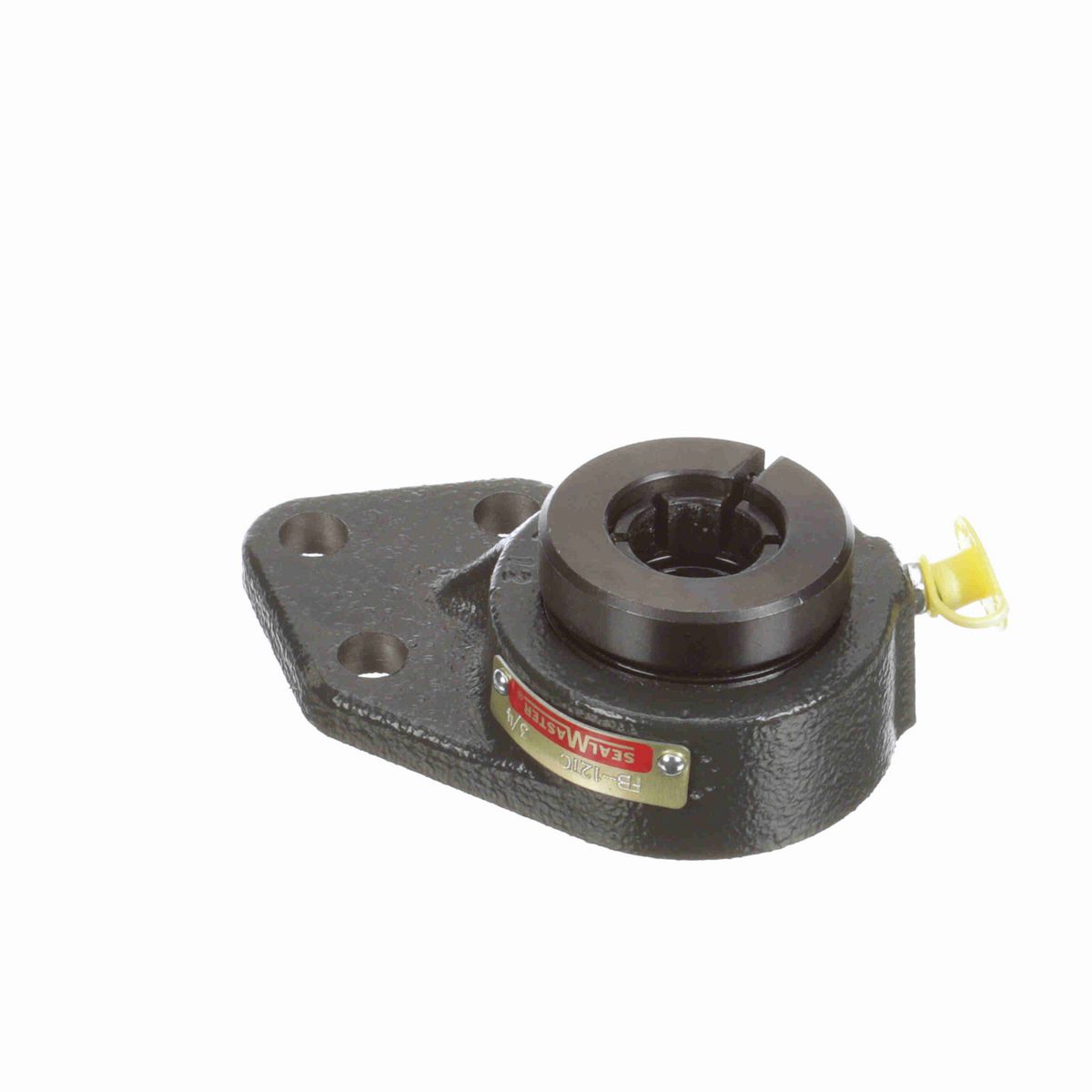

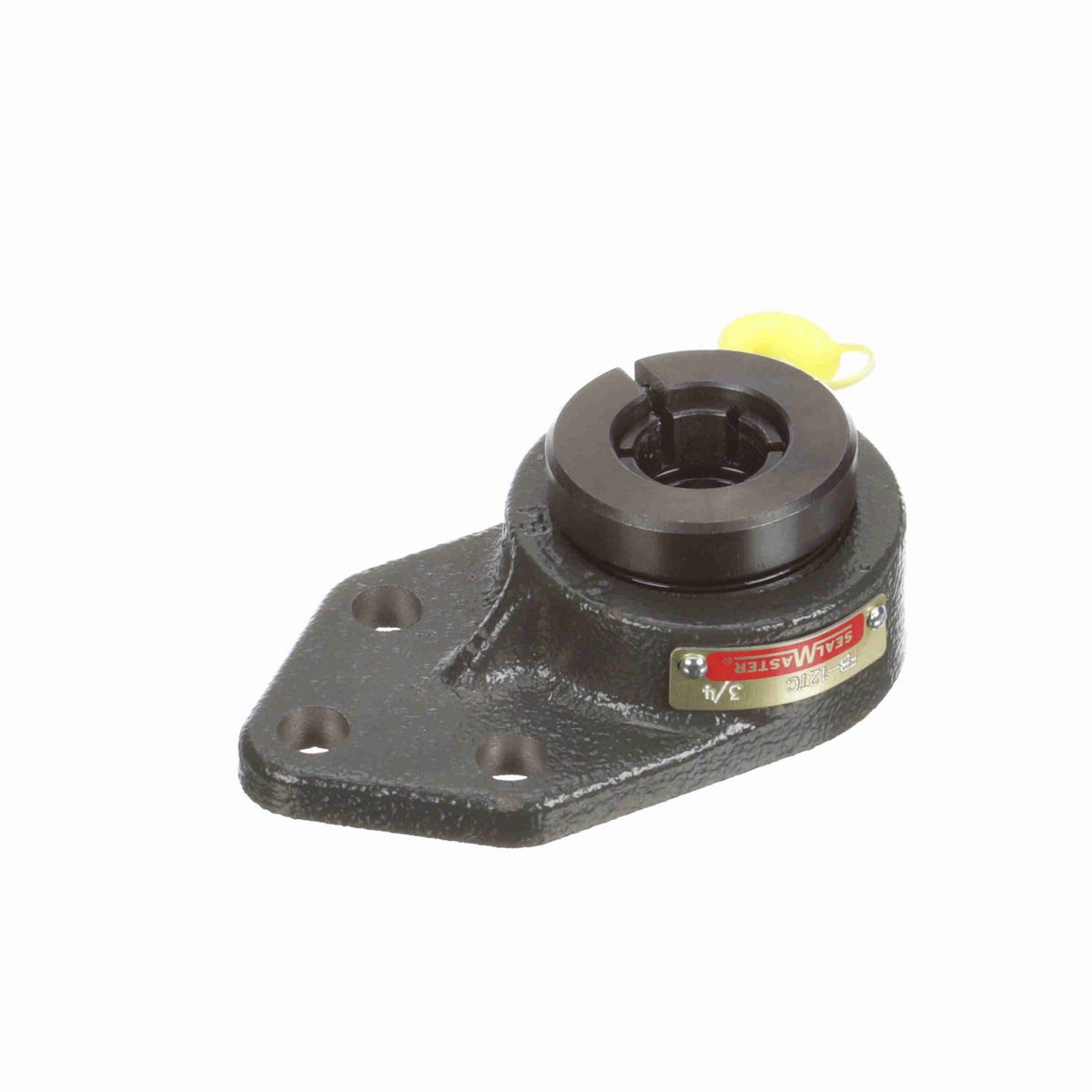

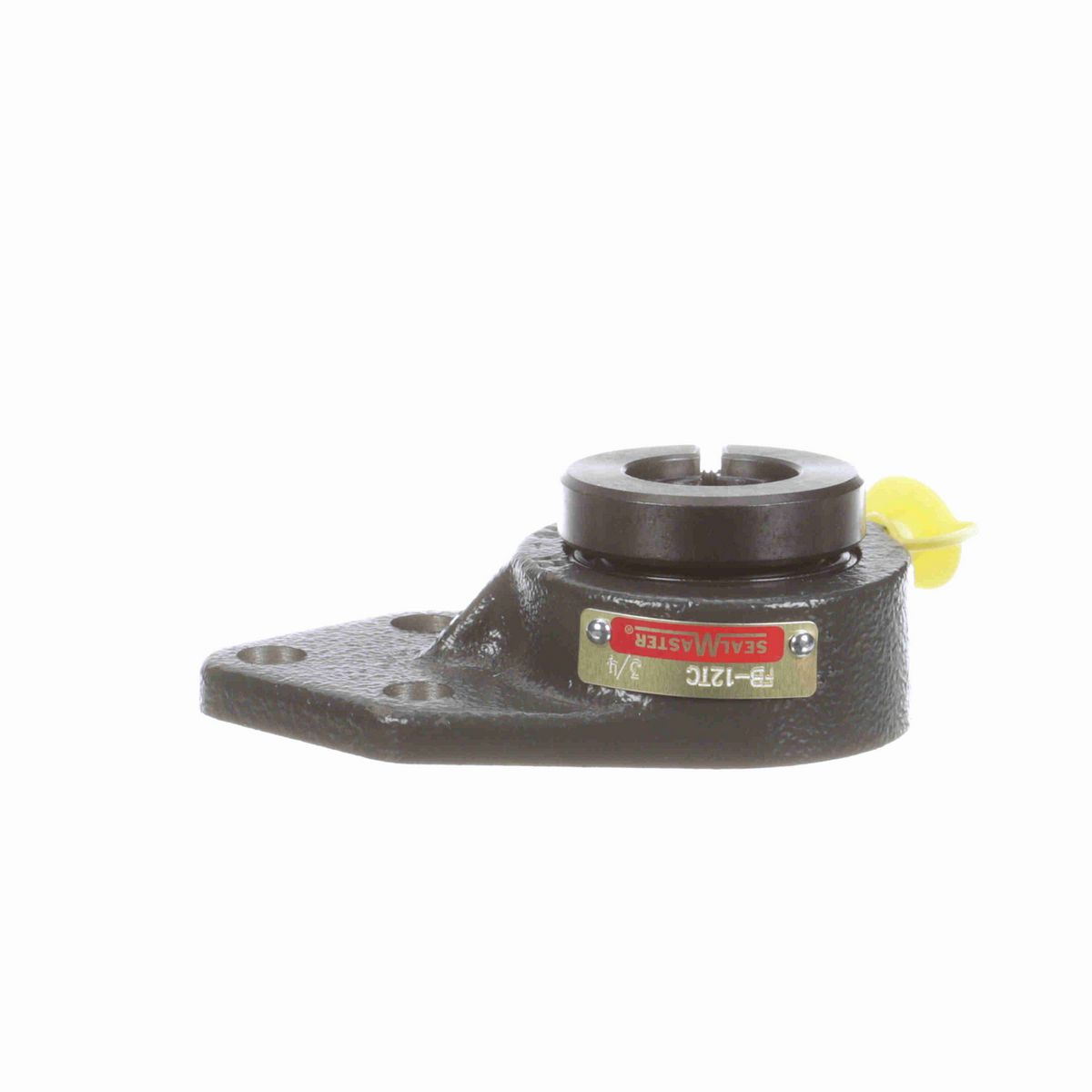

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Single lip contact seal
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	2.38 in
Bolt Size (in)	3/8 in
Overall Height (in)	1.45 in
Overall Length (in)	4.19 in
Bore Diameter (in)	0.75 in
Base to Center Height (in)	3 in
Foot Height (in)	0.31 in
Length Through Bore (in)	1.28 in
Bolt Spacing (in)	1.5 in

Technical Specifications

Bore Shape	Straight
Rolling Element	Ball Bearing
Pilot Configuration	No Pilot
Housing Construction	One Piece
Housing Color	Black
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Bracket, Three Bolt
Housing Style	Flange Block
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Locking Collar Outside Diameter (in)	1.75 in
Inner Ring Outside Diameter (in)	1.192 in
Max Operating Temperature (F)	220 °F
Dynamic Load Rating (lb)	2,611 lb
Size Code	2-012
Static Load Rating (lb)	1,444 lb
End Cap Available	No
Insert	2-012TC
Vibration Frequency Outer Ring Defect	0.0593 cps
Lubricant	Lithium Complex NLGI 2 Grease
Bearing Type	Standard Duty
Vibration Frequency Inner Ring Defect	0.0907 cps
Fixed vs. Expansion	Fixed
Bearing Insert Finish	Black Oxide
Vibration Frequency Fundamental Train	0.0066 cps
Grease Fitting Thread Size	1/4-28
Bearing Insert Material	52100 Bearing Steel
Radial Clearance	Standard
Housing Material	Cast Iron
Bolt Spacing Height Direction (in)	0.875 in
Maximum Speed (RPM)	6450 rpm
Shaft Locking Type	Concentric
Cage Type	Land Riding Retainer
Vibration Frequency Roller Spin	0.0381 cps
Housing Coating	Powder Coated
Bearing Centerline to Bolt Hole Center (in)	1.6875 in
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Width (in)	2.38 in

General Specifications

UPC	662461034545
Weight	1.50 LB
Packaged Length	4.00 IN
Packaged Width	1.50 IN
Packaged Height	3.94 IN
HTC	8483.20.4040
Country of Origin	United States of America
