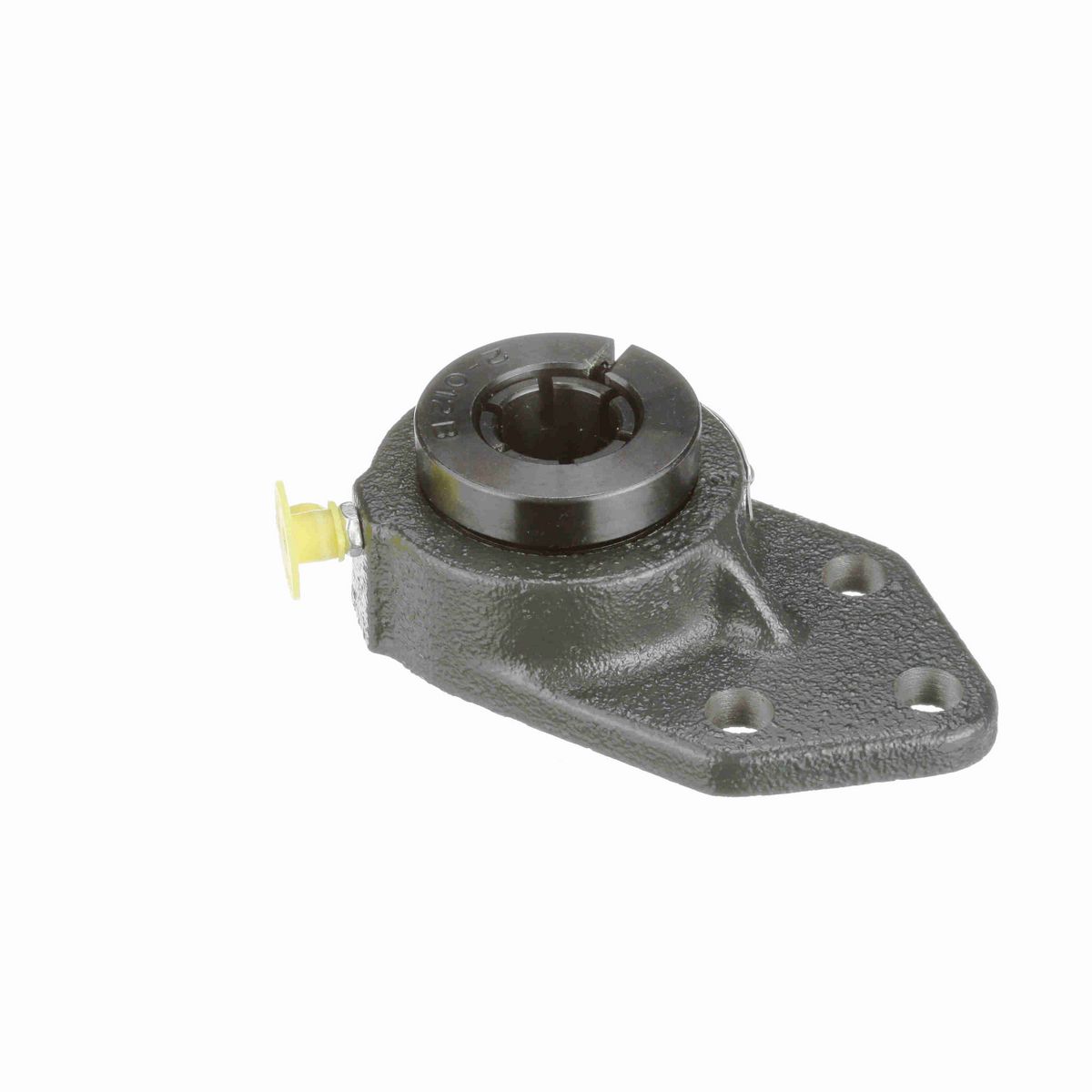

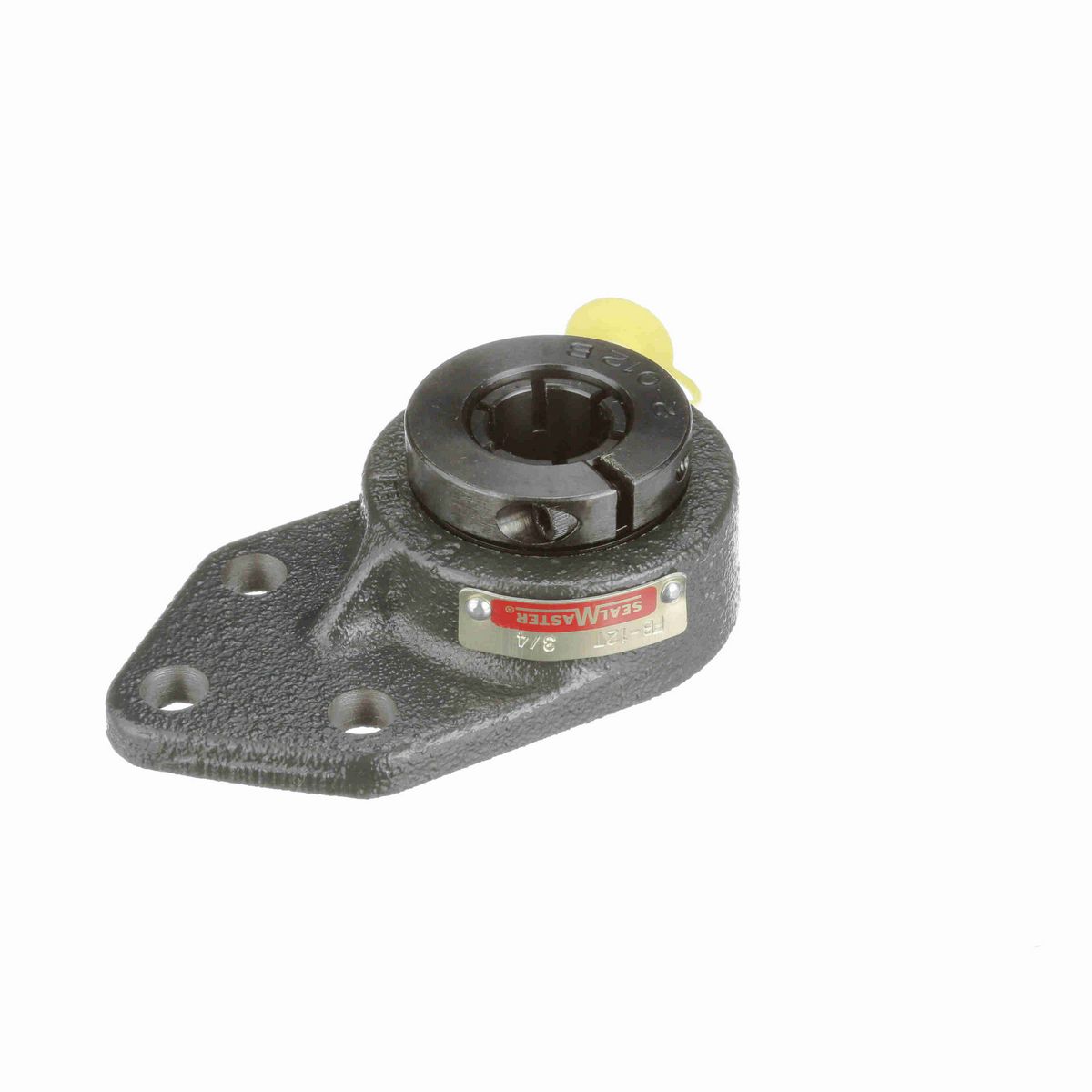

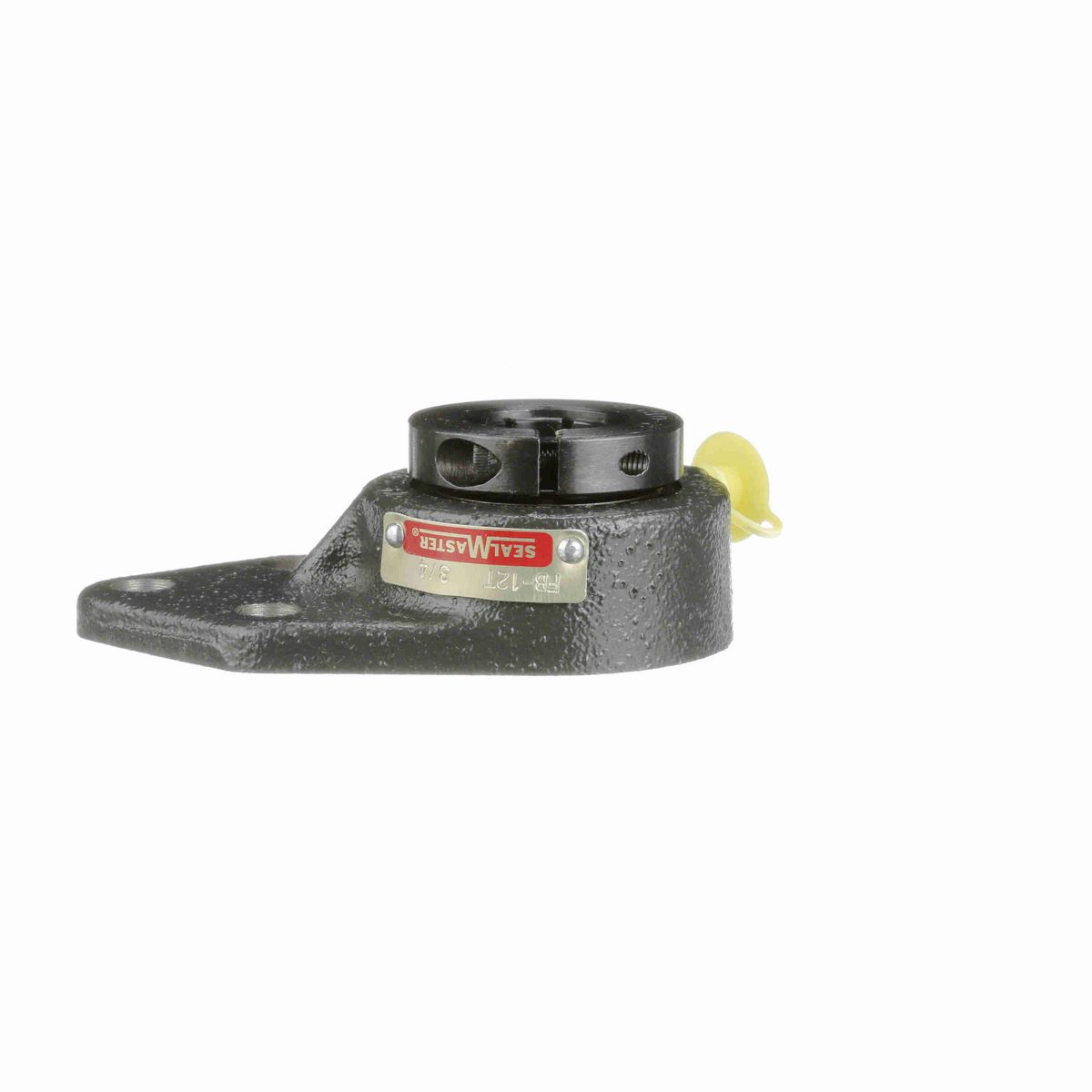

• Powder coated epoxy cast iron housing with extended inner ring bearings
• Skwezloc® concentric locking for near perfect concentricity
• Felt labyrinth seal and flinger for dry and dusty environment
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	2.38 in
Bolt Size (in)	3/8 in
Overall Height (in)	1.45 in
Overall Length (in)	4.19 in
Bore Diameter (in)	0.75 in
Base to Center Height (in)	3 in
Foot Height (in)	0.31 in
Length Through Bore (in)	1.28 in
Bolt Spacing (in)	1.5 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	No Pilot
Housing Construction	One Piece
Misalignment Type	Static Only
Housing Color	Black
Outer Ring Land Profile	Standard
Cage Material	PPS - Polyphenylene Sulfide
Housing Type	Flange, Bracket, Three Bolt
Seal Type	Felt Labyrinth Seal
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Locking Collar Outside Diameter (in)	1.75 in
Size Code	2-012
Vibration Frequency Inner Ring Defect	0.0907 cps
Insert	2-012T
Housing Material	Cast Iron
Static Load Rating (lb)	1,444 lb
Vibration Frequency Roller Spin	0.0381 cps
Max Operating Temperature (F)	220 °F
Maximum Speed (RPM)	10200 rpm
Radial Clearance	Standard
Bearing Centerline to Bolt Hole Center (in)	1.6875 in
End Cap Available	No
Fixed vs. Expansion	Fixed
Vibration Frequency Outer Ring Defect	0.0593 cps
Vibration Frequency Fundamental Train	0.0066 cps
Bearing Type	Standard Duty
Housing Coating	Powder Coated
Bolt Spacing Height Direction (in)	0.875 in
Misalignment Capability	±2.0° Misalignment - Static Only
Inner Ring Outside Diameter (in)	1.192 in
Cage Type	Land Riding Retainer
Bearing Insert Finish	Black Oxide
Bearing Insert Material	52100 Bearing Steel
Dynamic Load Rating (lb)	2,611 lb
Grease Fitting Thread Size	1/4-28
Lubricant	Lithium Complex NLGI 2 Grease
Shaft Locking Type	Concentric
Housing Width (in)	2.38 in

General Specifications

UPC	662461031575
Weight	1.28 LB
Packaged Length	1.50 IN
Packaged Width	4.00 IN
Packaged Height	3.94 IN
HTC	8483.20.4040
Country of Origin	United States of America
