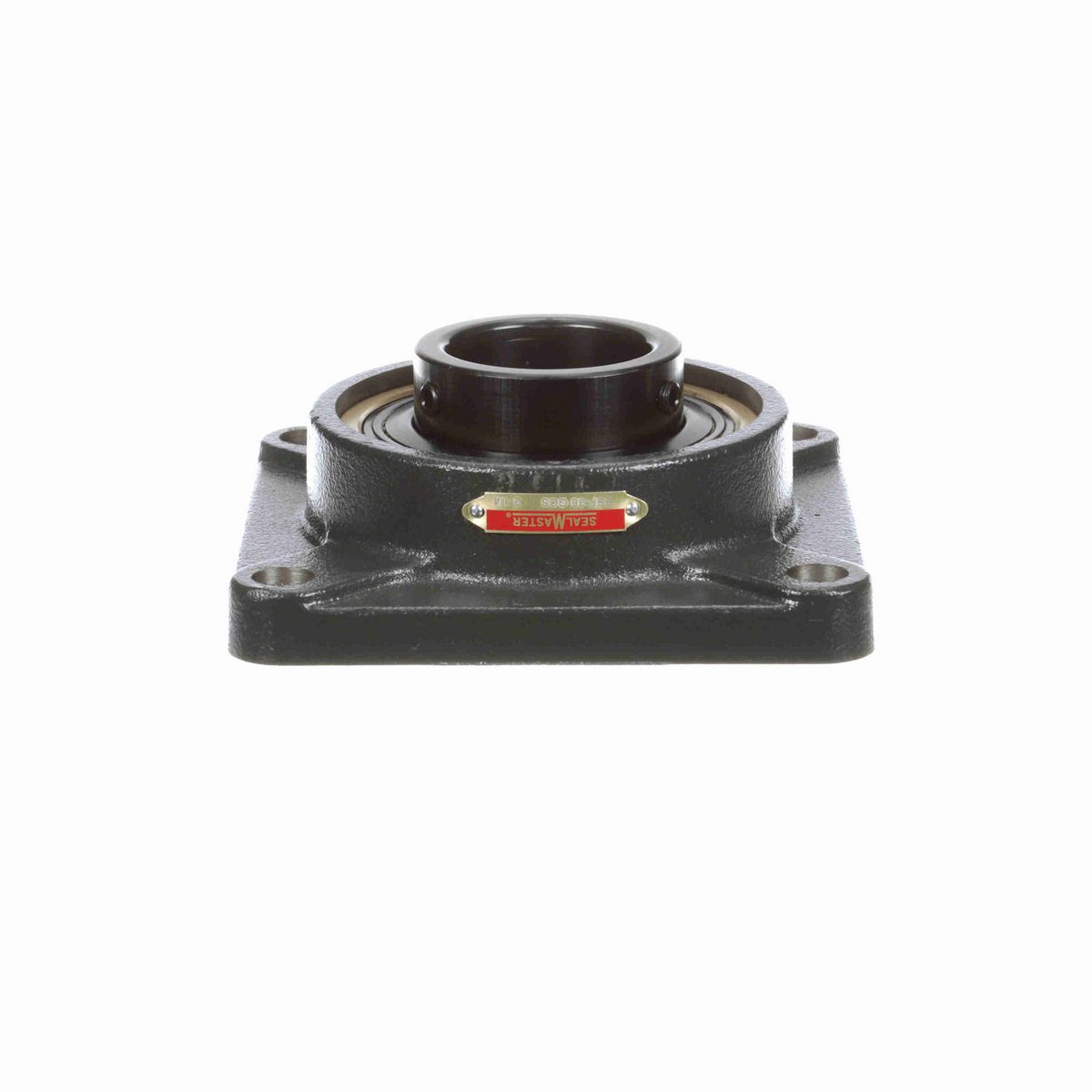

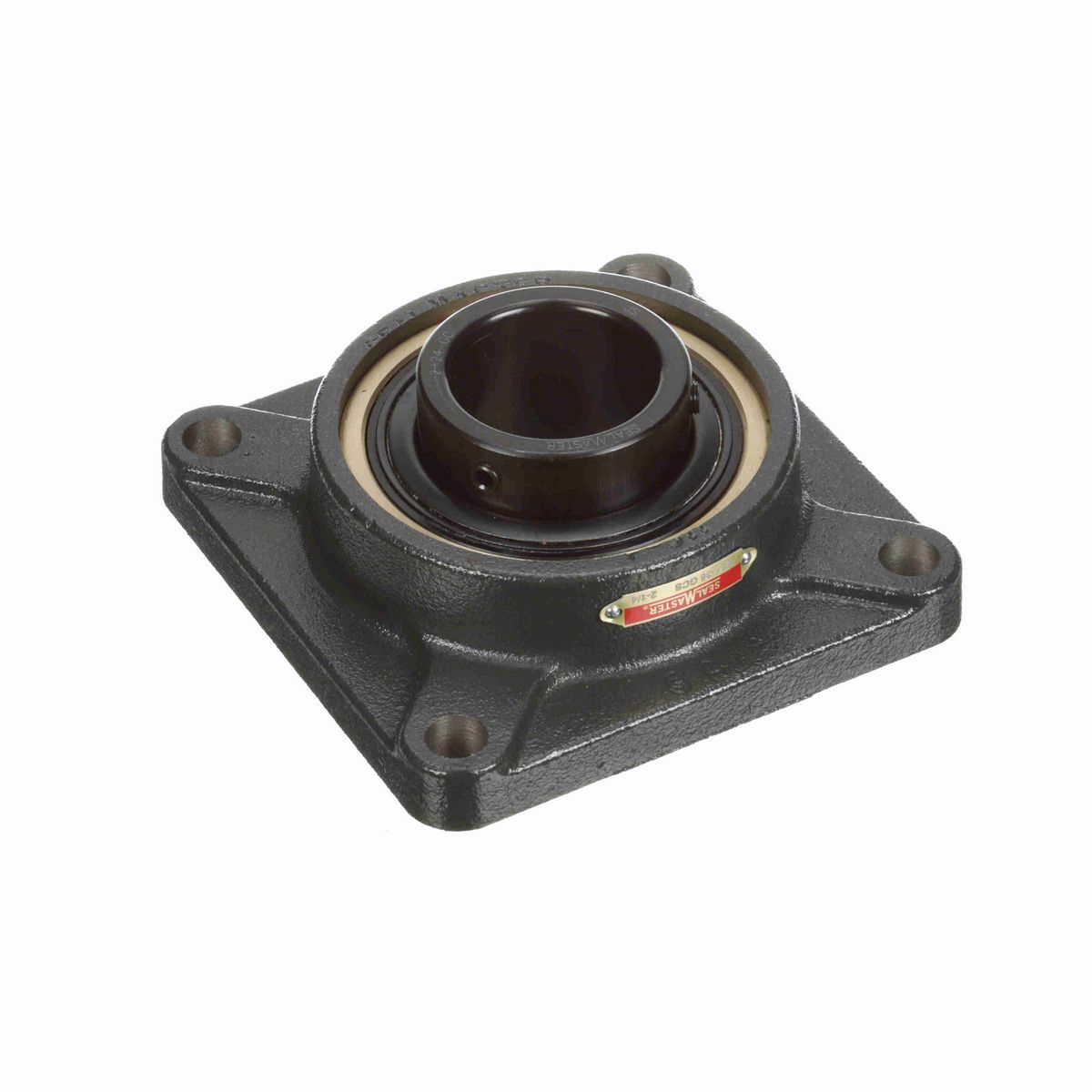

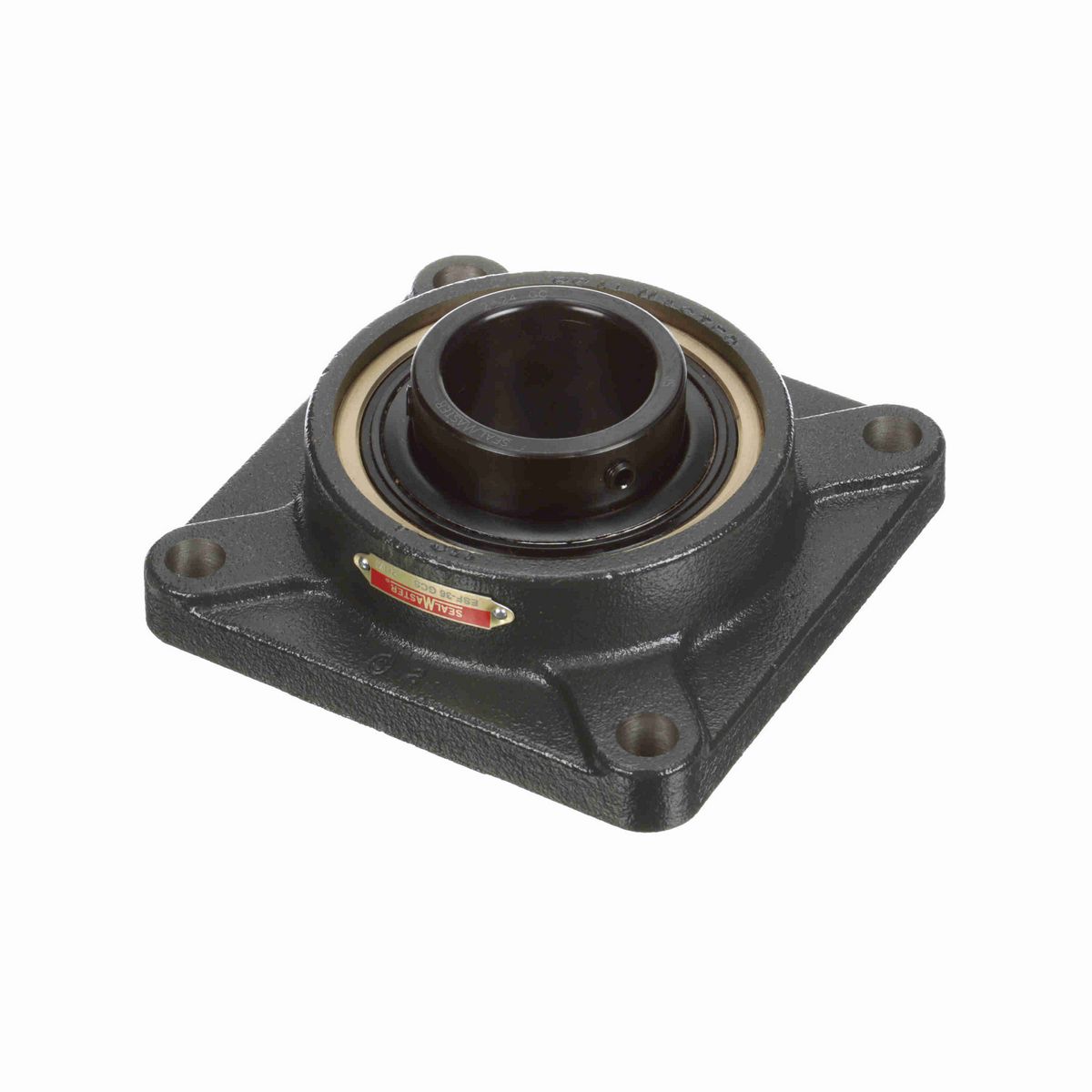

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - High Temperature - ESF-36 GCS

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - High Temperature - ESF-36 GCS
Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - High Temperature - ESF-36 GCS
Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - High Temperature - ESF-36 GCS
Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - High Temperature - ESF-36 GCS
(0)
Под заказ
SealMaster
0 руб.
До конца акции осталось:
00дн.
00час.
00мин.
Полное описание
Заказать товар
Товар доступен только под заказ.
Сроки поставки: 2–3 недели
Подарок при покупке
Дарим подарок при покупке данного товара
Выбрать подарок

Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - High Temperature - ESF-36 GCS
Sealmaster Mounted Cast Iron Four Bolt Flange Ball Bearing - 52100 Bearing Steel, Black Oxided - Setscrew Lock - High Temperature - ESF-36 GCS
(0)
Под заказ
0 руб.
В корзину
Описание Отзывы Доставка


  • Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
  • Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
  • Felt labyrinth seal and flinger for dry and dusty environment
  • Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
  • Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation
Dimensions
Overall Width (in)6.88 in
Bolt Size (in)5/8 in
Overall Length (in)6.88 in
Overall Height (in)2.688 in
Bore Diameter (in)2.25 in
Foot Height (in)0.81 in
Length Through Bore (in)2.559 in
Bolt Spacing (in)5.6250 in
Technical Specifications
Rolling ElementBall Bearing
Bore ShapeStraight
Pilot ConfigurationNo Pilot
Housing ConstructionOne Piece
Outer Ring Land ProfileStandard
Misalignment TypeStatic Only
Housing ColorBlack
OptionsHigh Temperature
Cage MaterialPPS - Polyphenylene Sulfide
Seal TypeHigh Temp Labyrinth
Housing TypeFlange, Four Bolt
Housing StyleFlange Block
Ability to RelubricateNo
Inner Race Heat Treat MethodZone-Hardened
Setscrew Torque (in-lbs)250-300 in/lbs
Shaft Locking TypeSet Screw
Bearing Insert Material52100 Bearing Steel
Misalignment Capability±2.0° Misalignment - Static Only
Fixed vs. ExpansionExpansion
Housing MaterialCast Iron
Grease Fitting Thread Size1/8 NPT
End Cap AvailableNo
Cage TypeLand Riding Retainer
Radial ClearanceStandard
Inner Ring Outside Diameter (in)2.981 in
Static Load Rating (lb)8,150 lb
Bearing Insert FinishBlack Oxide
LubricantSpecial High Temperature NSF H1 Grease
InsertAR-2-24 GC
Dynamic Load Rating (lb)11,789 lb
Housing Backside Inner Diameter5
Housing CoatingPowder Coated
Lube Fitting TypeHOUSING PLUGGED
Size Code2-27
Maximum Speed (RPM)3000 rpm
Bearing TypeStandard Duty
Max Operating Temperature (F)220 °F
General Specifications
UPC662461342503
Weight11.80 LB
Packaged Length7.19 IN
Packaged Width7.00 IN
Packaged Height3.31 IN
HTC8483.20.4040
Country of OriginUnited States of America
