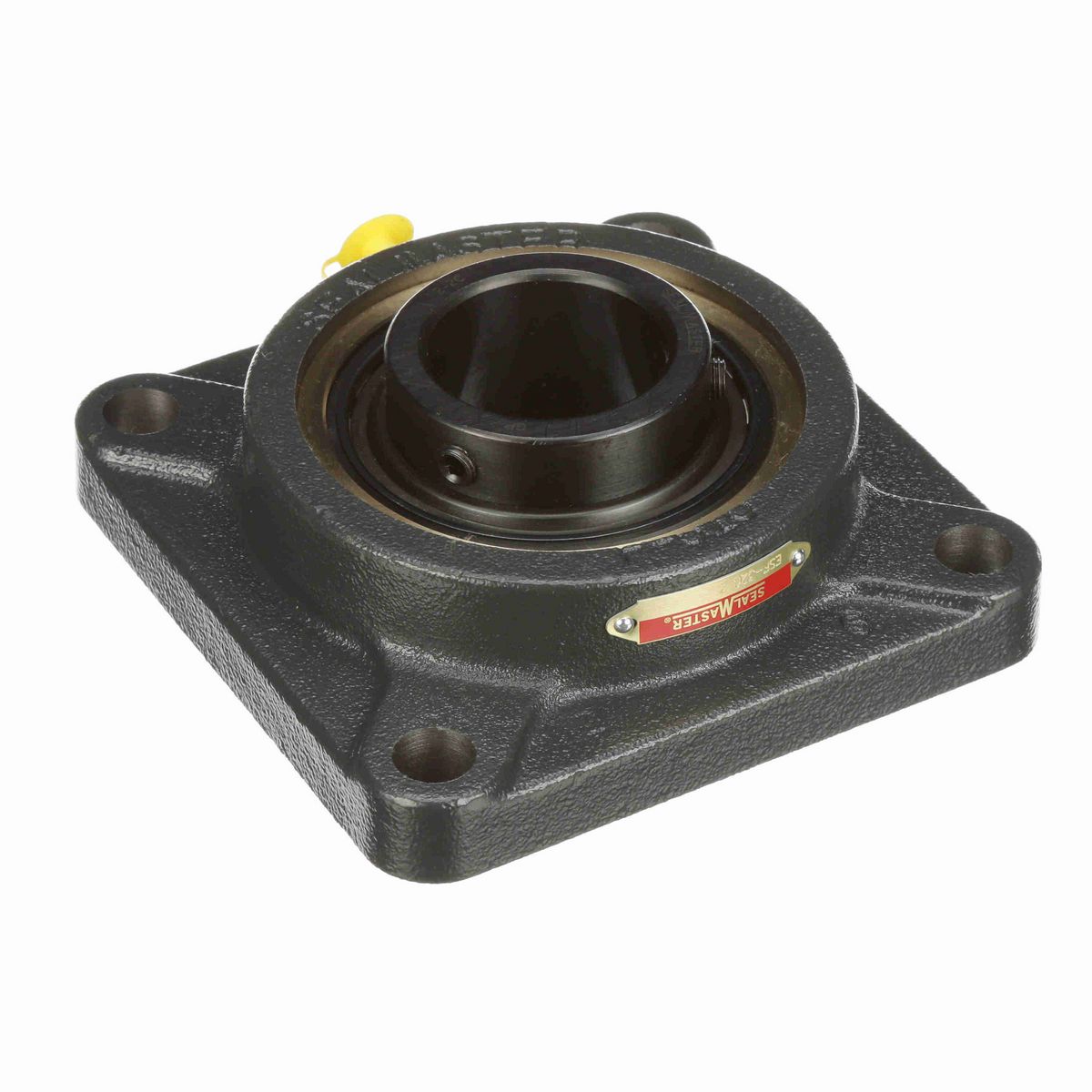

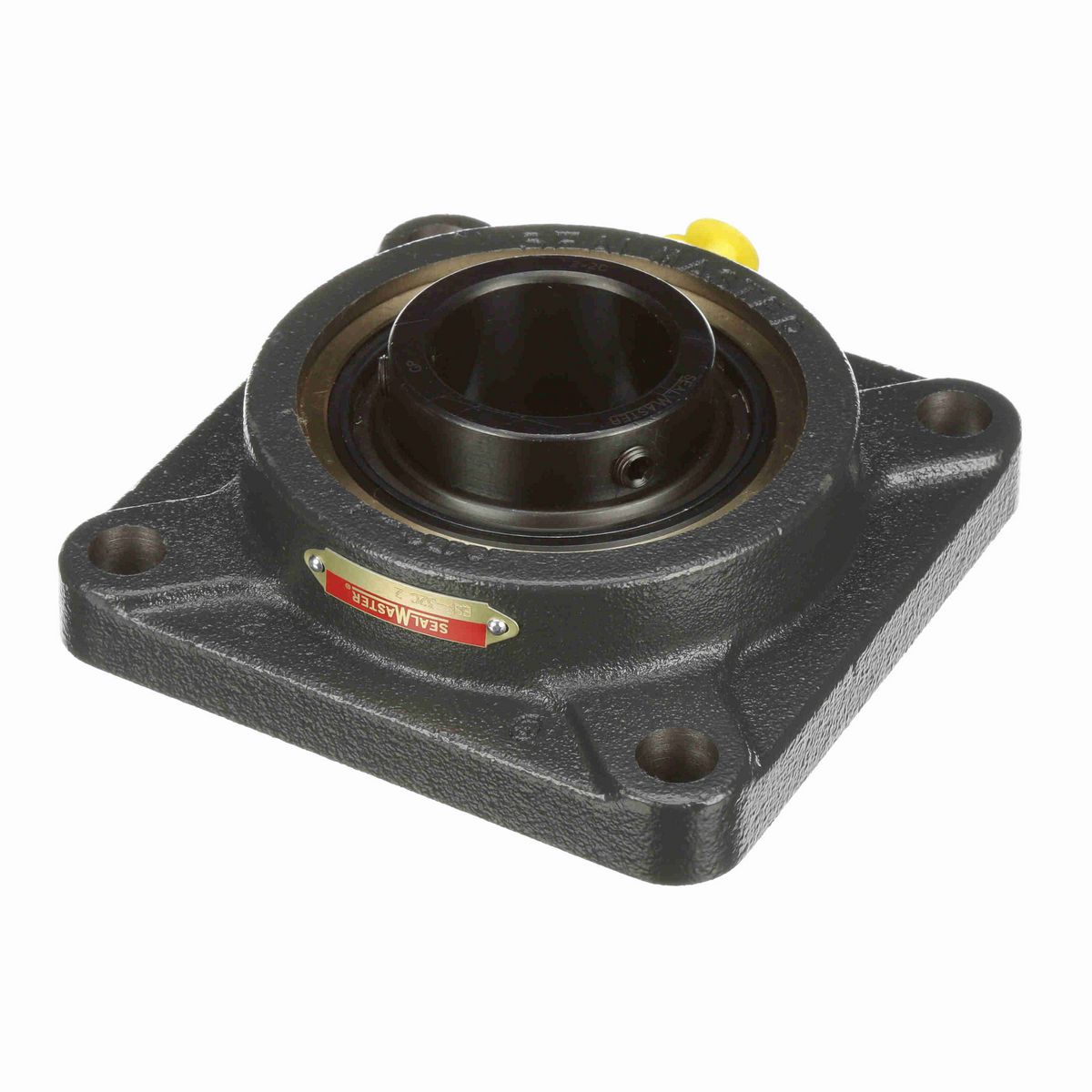

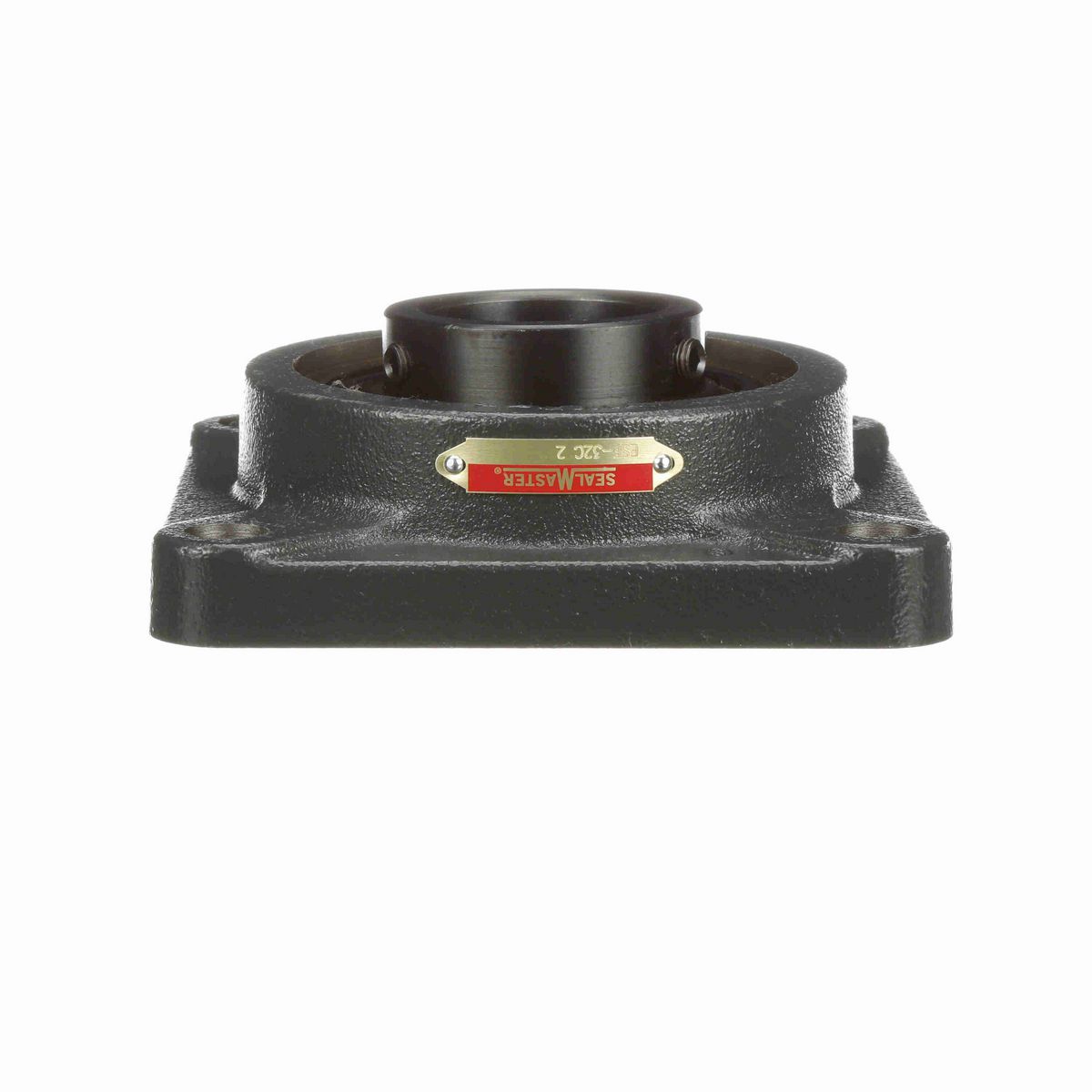

• Powder coated epoxy cast iron housed, extended inner ring bearings in expansion ring allowing for axial expansion
• Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
• Single lip contact seal with black oxide bearing races
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Sealmaster® exclusive lock pin and dimple for direct lubrication and anti-rotation

Dimensions

Overall Width (in)	6.38 in
Bolt Size (in)	5/8 in
Overall Length (in)	6.38 in
Overall Height (in)	2.313 in
Bore Diameter (in)	2 in
Foot Height (in)	0.81 in
Length Through Bore (in)	2.184 in
Bolt Spacing (in)	5.1250 in

Technical Specifications

Rolling Element	Ball Bearing
Bore Shape	Straight
Pilot Configuration	No Pilot
Housing Construction	One Piece
Housing Color	Black
Outer Ring Land Profile	Standard
Misalignment Type	Static Only
Cage Material	PPS - Polyphenylene Sulfide
Seal Type	Single Lip Contact Seal
Housing Type	Flange, Four Bolt
Housing Style	Flange Block
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Misalignment Capability	±2.0° Misalignment - Static Only
Housing Backside Inner Diameter	4.25
Bearing Insert Finish	Black Oxide
Radial Clearance	Standard
Dynamic Load Rating (lb)	9,752 lb
Insert	AR-2-2C
Housing Material	Cast Iron
Max Operating Temperature (F)	220 °F
Shaft Locking Type	Set Screw
Lubricant	Lithium Complex NLGI 2 Grease
Fixed vs. Expansion	Expansion
Size Code	2-23
Housing Coating	Powder Coated
Bearing Insert Material	52100 Bearing Steel
End Cap Available	No
Static Load Rating (lb)	6,601 lb
Cage Type	Land Riding Retainer
Bearing Type	Standard Duty
Grease Fitting Thread Size	1/8 NPT
Inner Ring Outside Diameter (in)	2.723 in
Maximum Speed (RPM)	3250 rpm

General Specifications

UPC	662461022214
Weight	10.50 LB
Packaged Length	6.75 IN
Packaged Width	6.50 IN
Packaged Height	2.44 IN
HTC	8483.20.4040
Country of Origin	United States of America
