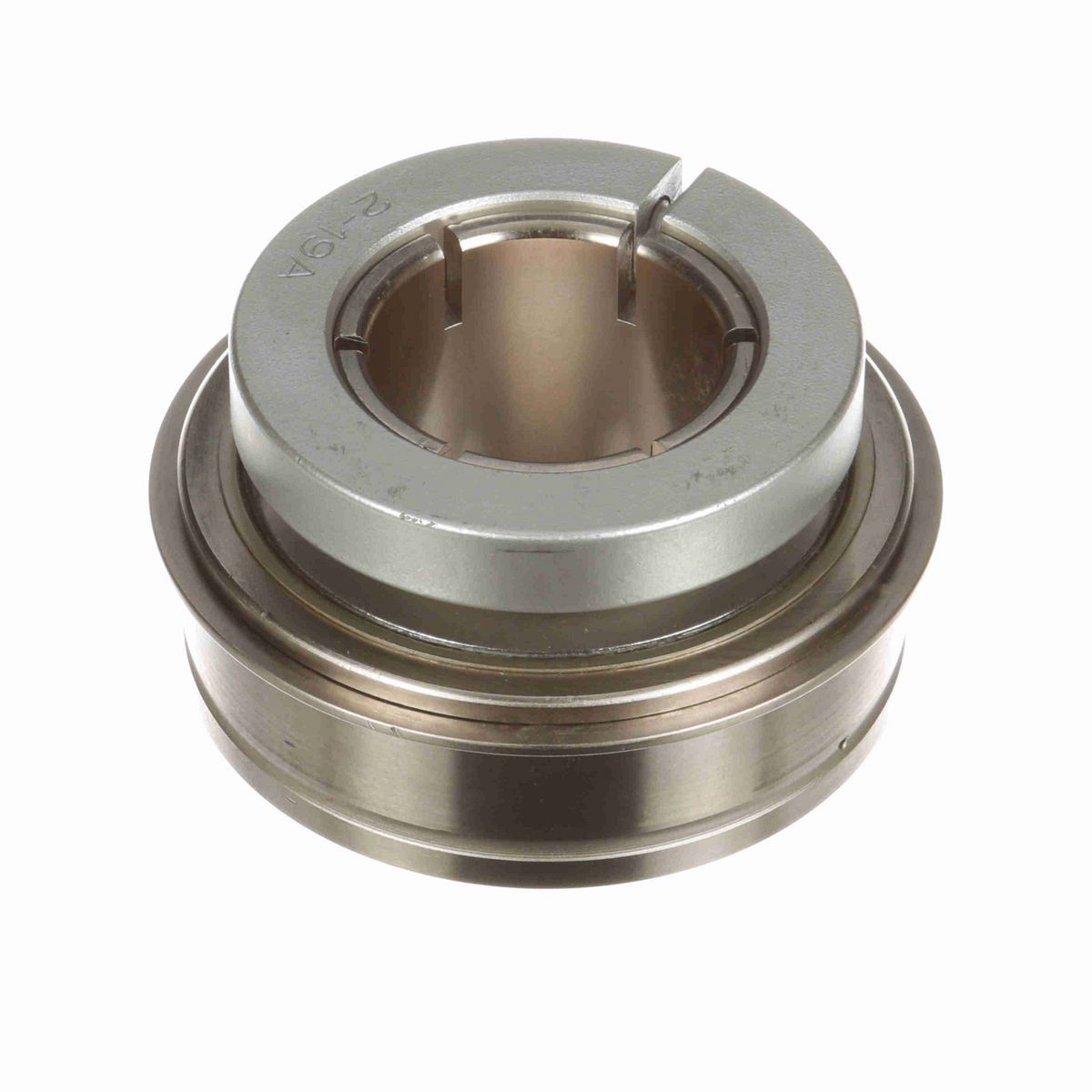

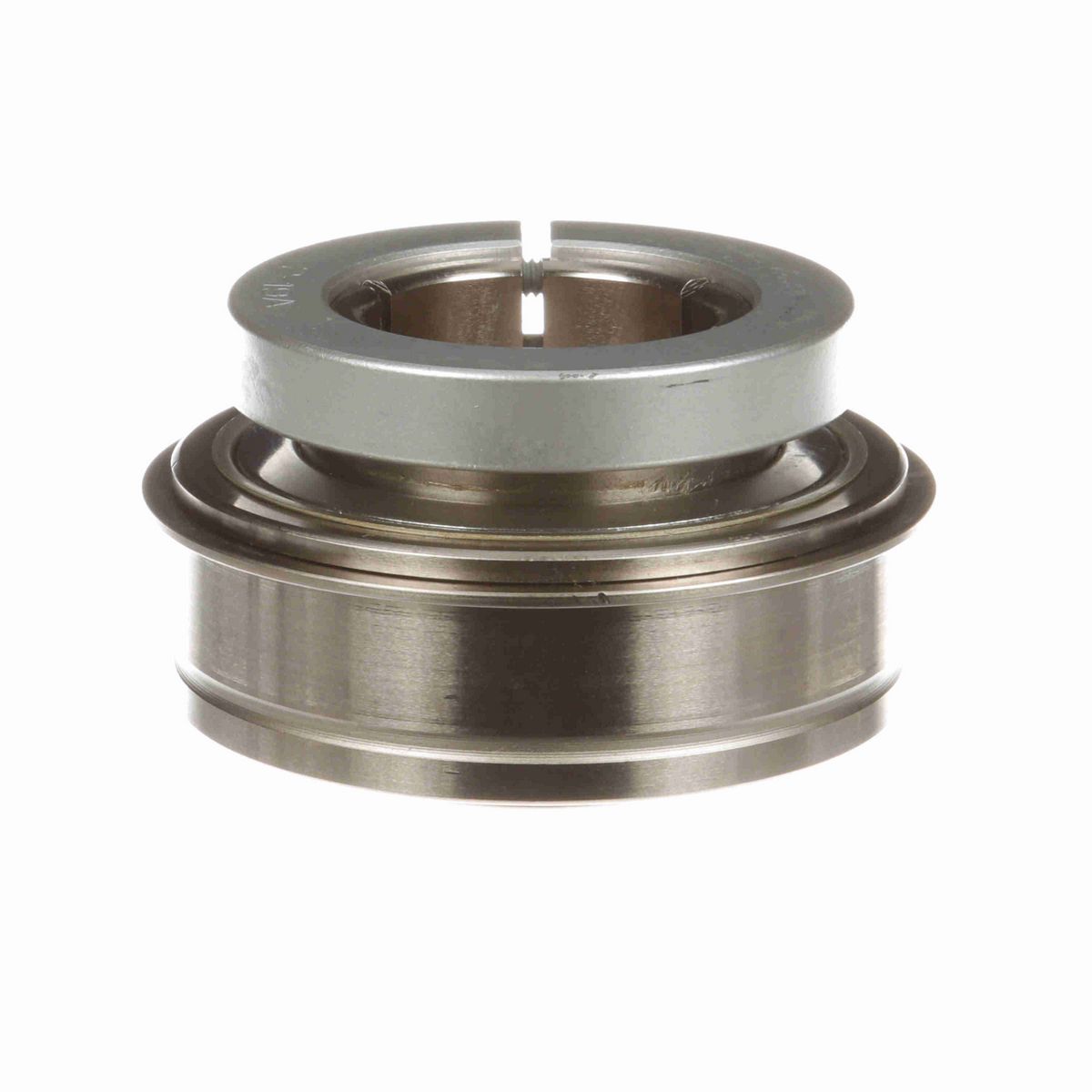

• ER style bearing with high phosphorous electroless nickel plated 52100 steel and corrosion resistant snap ring for exceptional corrosion resistance
• High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
• Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Tapered Lands ensures that lubricant will be easily redirected back to the raceway
• USDA H1 complaint food grade grease

Dimensions

Overall Width (in)	2.06 in
Bore Size (in)	1.5 in
Outer Race OD (in)	3.1496 in
Centerline to Front Face (in)	1.25 in
Outer Race Width (in)	1.093 in
Inner Ring OD (in)	2.688 in
Outer Race OD (mm)	80 mm
Collar OD (in)	2.75 in
Length Through Bore (in)	2.06 in
Outer Race Width (mm)	27.8 mm

Technical Specifications

Insert Material	52100 Bearing Steel
Torx Cap Screw	1/4-20 UNC
Measure Units	Inch
Rolling Element	Ball Bearing
Bore Shape	Straight
Housing Type	Insert (ER Style)
Seal Type	Triple Lip Contact Seal
Expansion	No
Misalignment	None
Internal Clearance	Standard
Options	Corrosion Resistant
End Cap	No
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
Platform	PN Gold
Bearing Insert Coating	Phosphorus Nickel Coated
Certifications	IP69K
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Maximum Operating Temperature (F)	220 °F
Inner Ring Fillet Radius (in)	0.06 in
Vibration Frequency Inner Ring Defect	0.0909 cps
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	240 in/lbs
Maximum Speed (rpm)	1750 rpm
Locking Type	Concentric
Series	Unmounted Replacement Bearings
Duty/Status	Standard
Ability to Relubricate	Yes
Vibration Frequency Fundamental Train	0.0066 cps
Vibration Frequency Outer Ring Defect	0.0591 cps
Vibration Frequency Roller Spin	0.0376 cps
Size Code	2-19
Lubrication Type	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Static Load Rating (lb)	4,467 lb
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	7,340 lb

General Specifications

UPC	662461340103
Weight	2.15 LB
Packaged Length	3.63 IN
Packaged Width	2.00 IN
Packaged Height	3.63 IN
HTC	8482.10.5052
Country of Origin	Mexico
