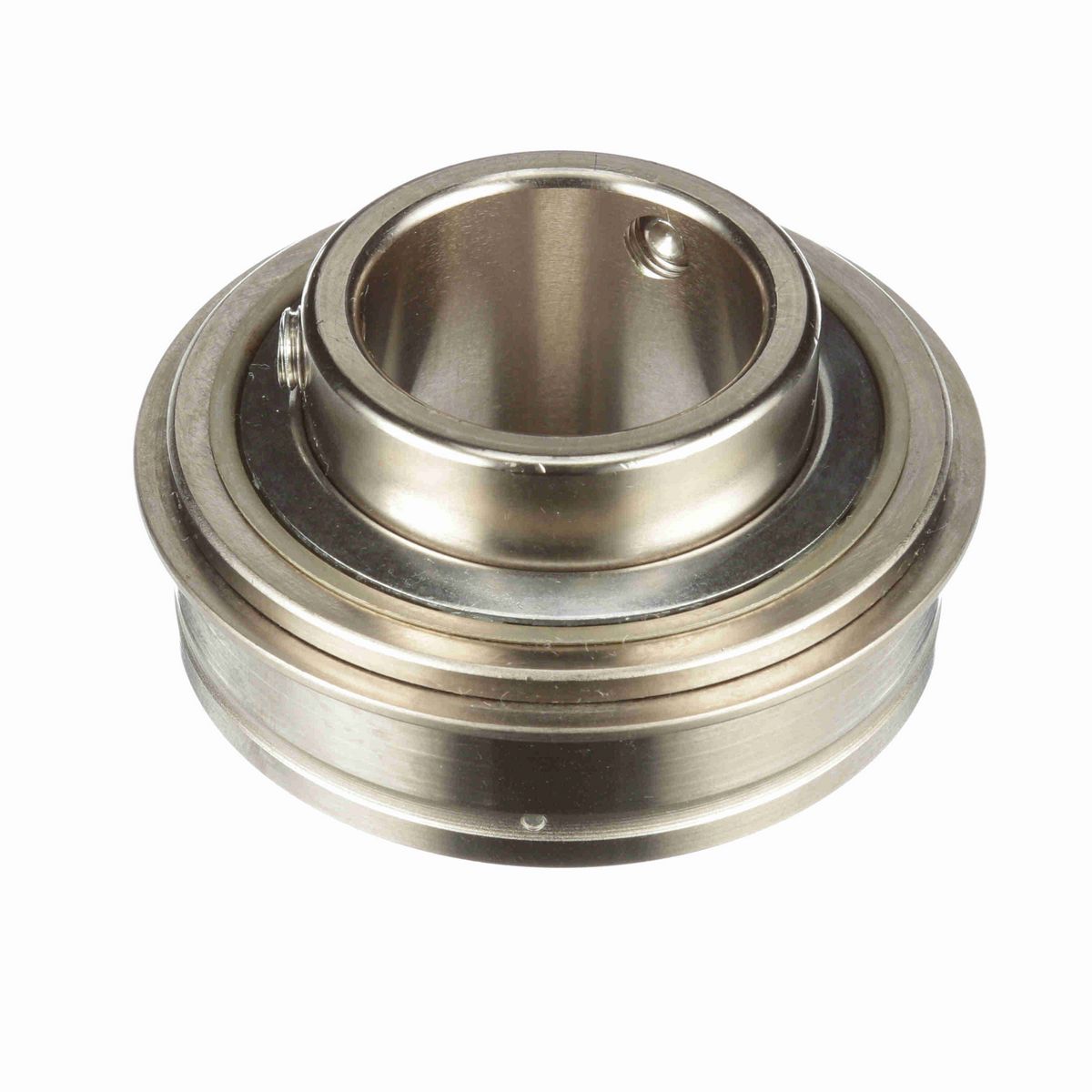

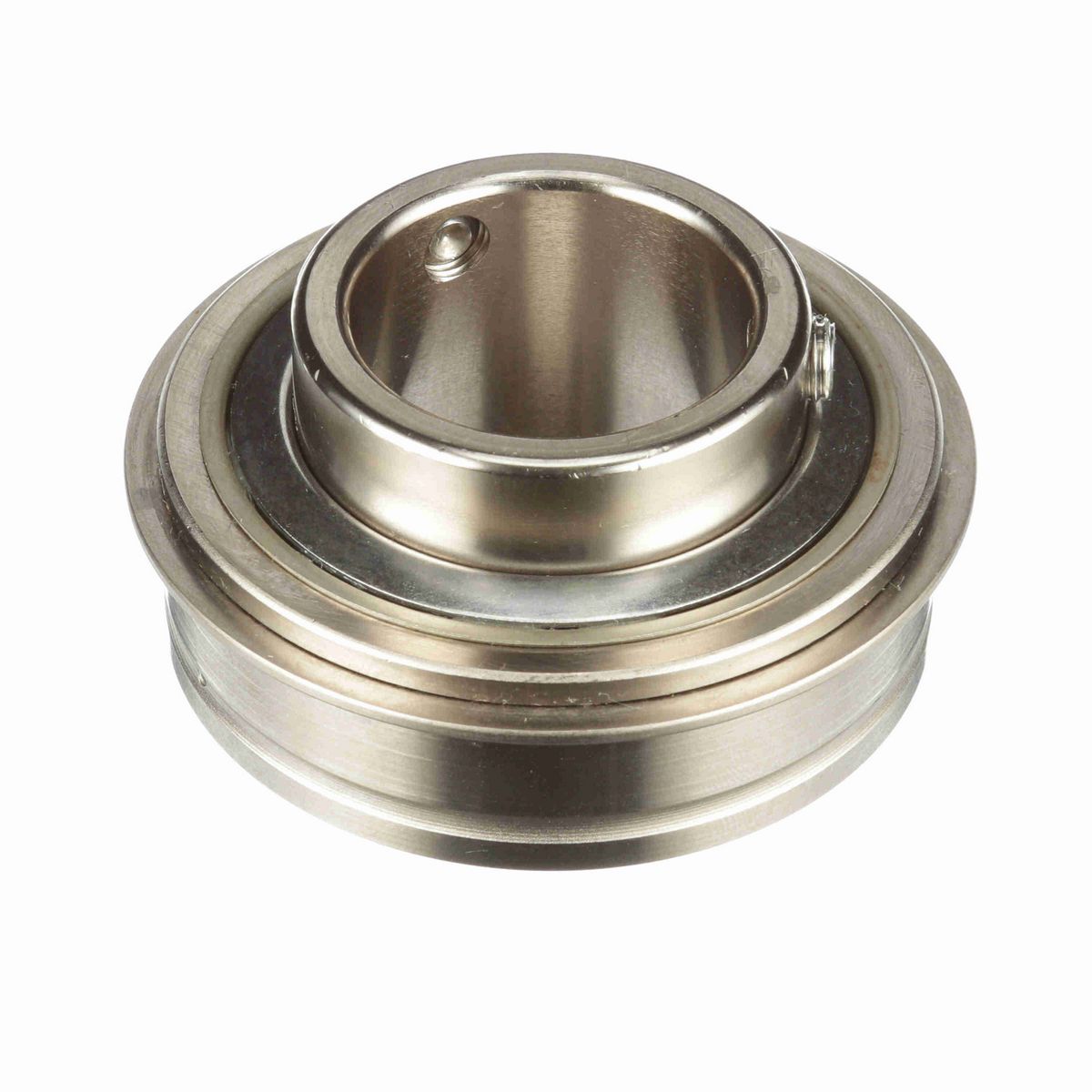

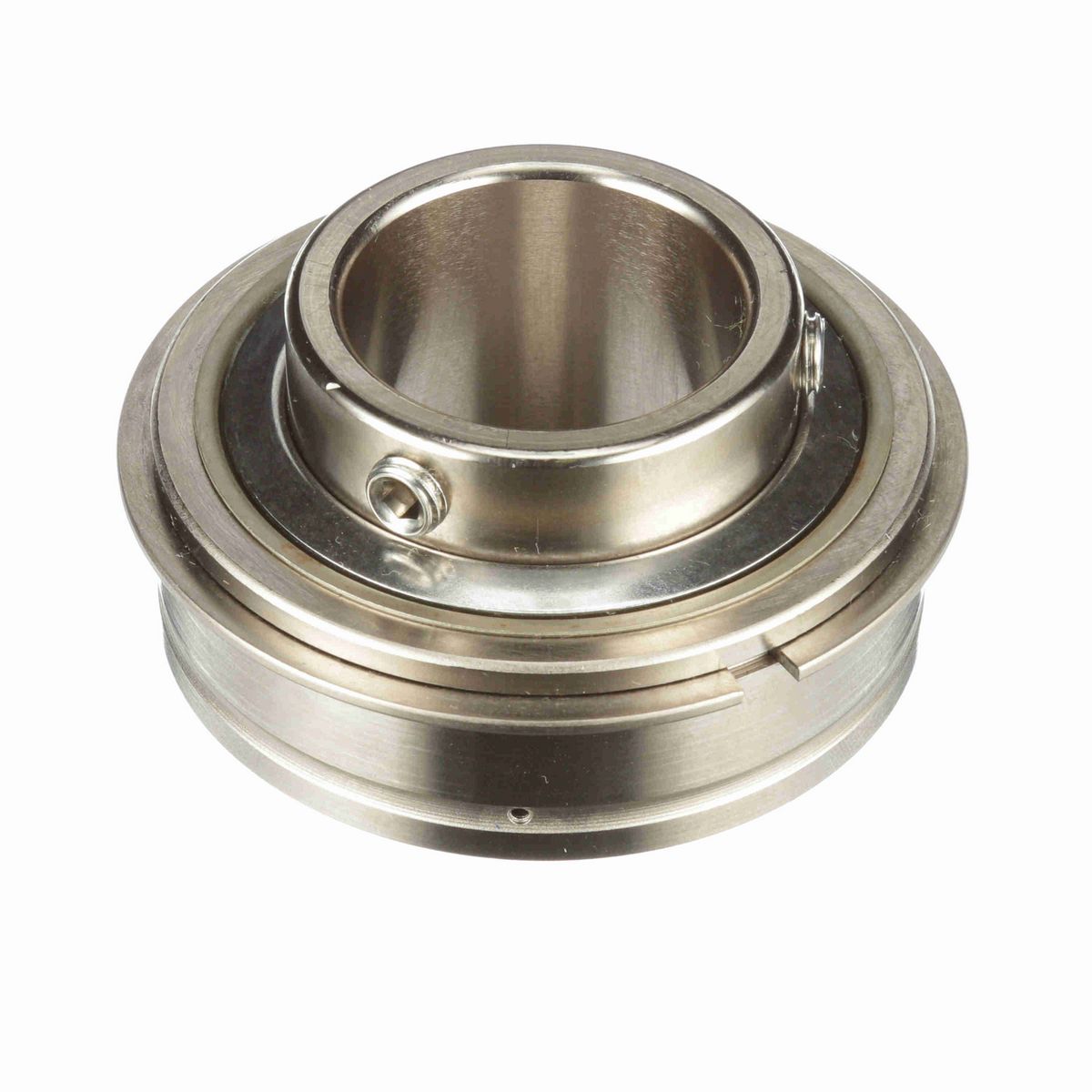

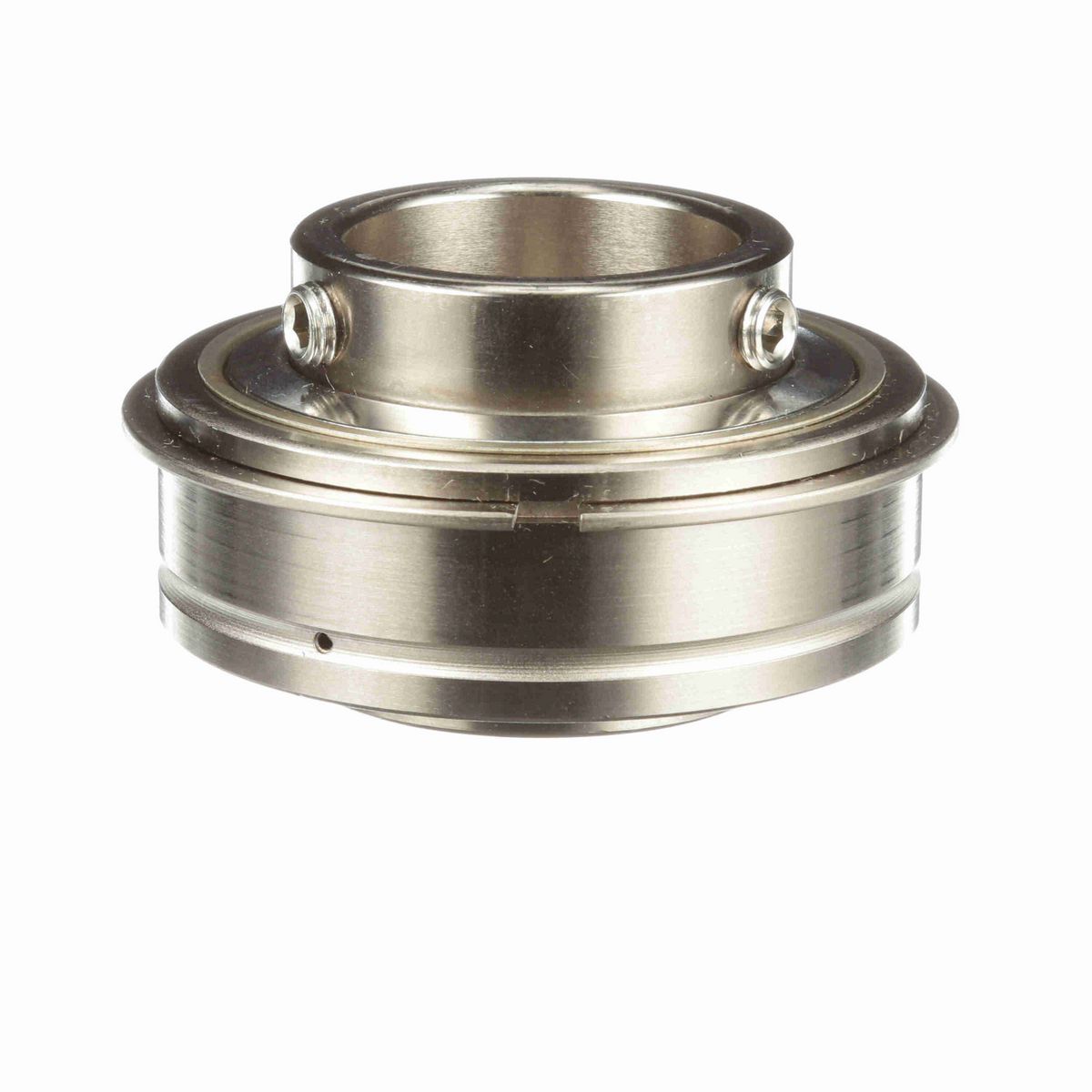

• ER style bearing with high phosphorous electroless nickel plated 52100 steel and corrosion resistant snap ring for exceptional corrosion resistance
• High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
• Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Tapered Lands ensures that lubricant will be easily redirected back to the raceway
• USDA H1 complaint food grade grease

Dimensions

Overall Width (in)	1.69 in
Bore Size (in)	1.4375 in
Outer Race OD (mm)	72 mm
Outer Race Width (in)	0.938 in
Outer Race OD (in)	2.8346 in
Centerline to Front Face (in)	1 in
Inner Ring OD (in)	1.859 in
Length Through Bore (in)	1.688 in
Outer Race Width (mm)	23.8 mm

Technical Specifications

Bore Shape	Straight
Set Screw Thread	5/16-24 UNF
Insert Material	52100 Bearing Steel
Measure Units	Inch
Housing Type	Insert (ER Style)
Rolling Element	Ball Bearing
Seal Type	Triple Lip Contact Seal
Expansion	No
Internal Clearance	Standard
Misalignment	None
Misalignment Type	Static Only
Outer Ring Land Profile	Tapered Lands
Options	Corrosion Resistant
Platform	PN Gold
Bearing Insert Coating	Phosphorus Nickel Coated
End Cap	No
Certifications	IP69K
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Vibration Frequency Outer Ring Defect	0.0595 cps
Locking Type	Set Screw
Size Code	2-17
Vibration Frequency Inner Ring Defect	0.0905 cps
Maximum Operating Temperature (F)	220 °F
Series	Unmounted Replacement Bearings
Inner Ring Fillet Radius (in)	0.04 in
Duty/Status	Standard
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Setscrew Torque (in-lbs)	125-165 in/lbs
Vibration Frequency Roller Spin	0.0383 cps
Maximum Speed (rpm)	2000 rpm
Lubrication Type	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Vibration Frequency Fundamental Train	0.0067 cps
Dynamic Load Rating (lb)	5,782 lb
Static Load Rating (lb)	3,493 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461339749
Weight	1.37 LB
Packaged Length	3.13 IN
Packaged Width	1.75 IN
Packaged Height	3.13 IN
HTC	8482.10.5052
Country of Origin	Mexico
