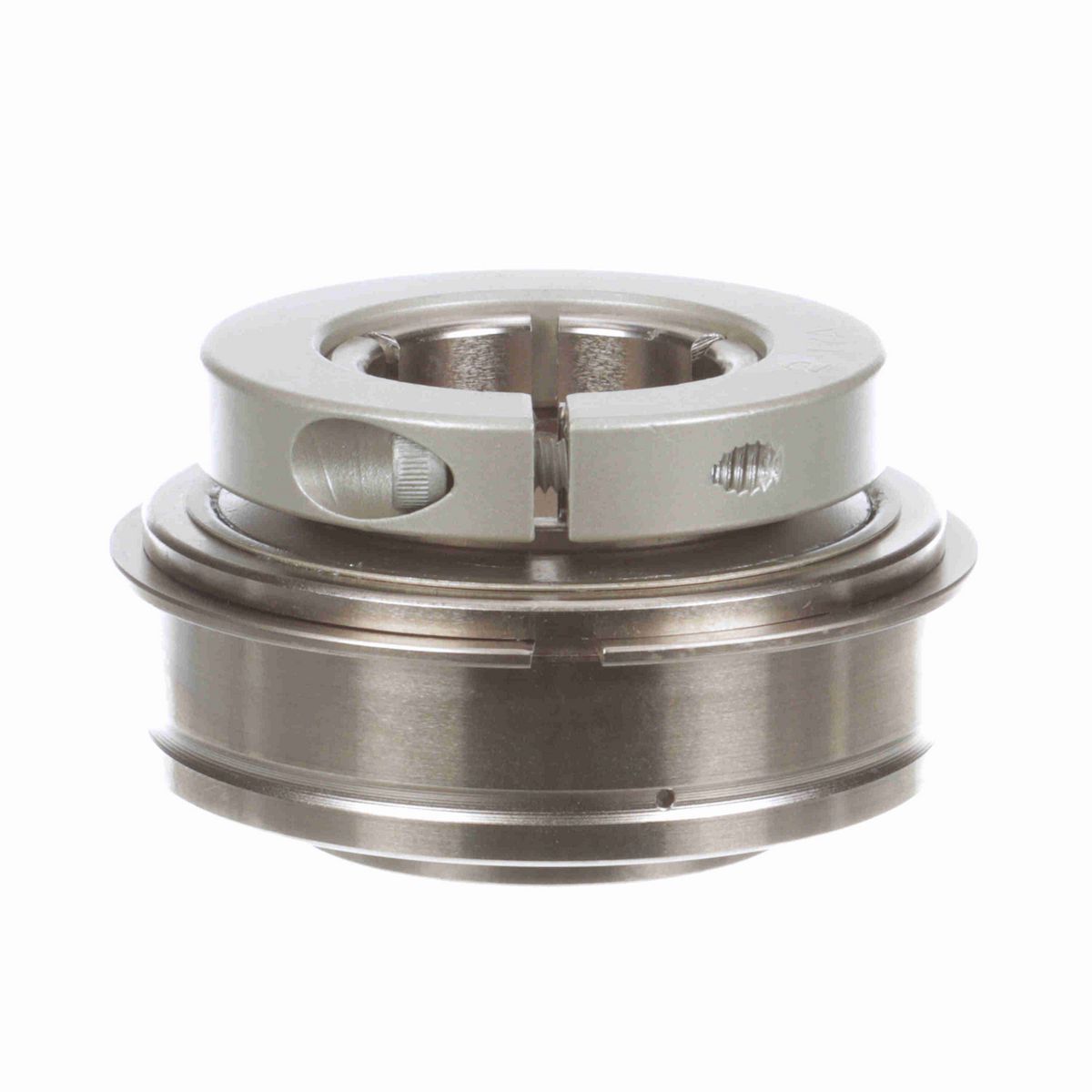

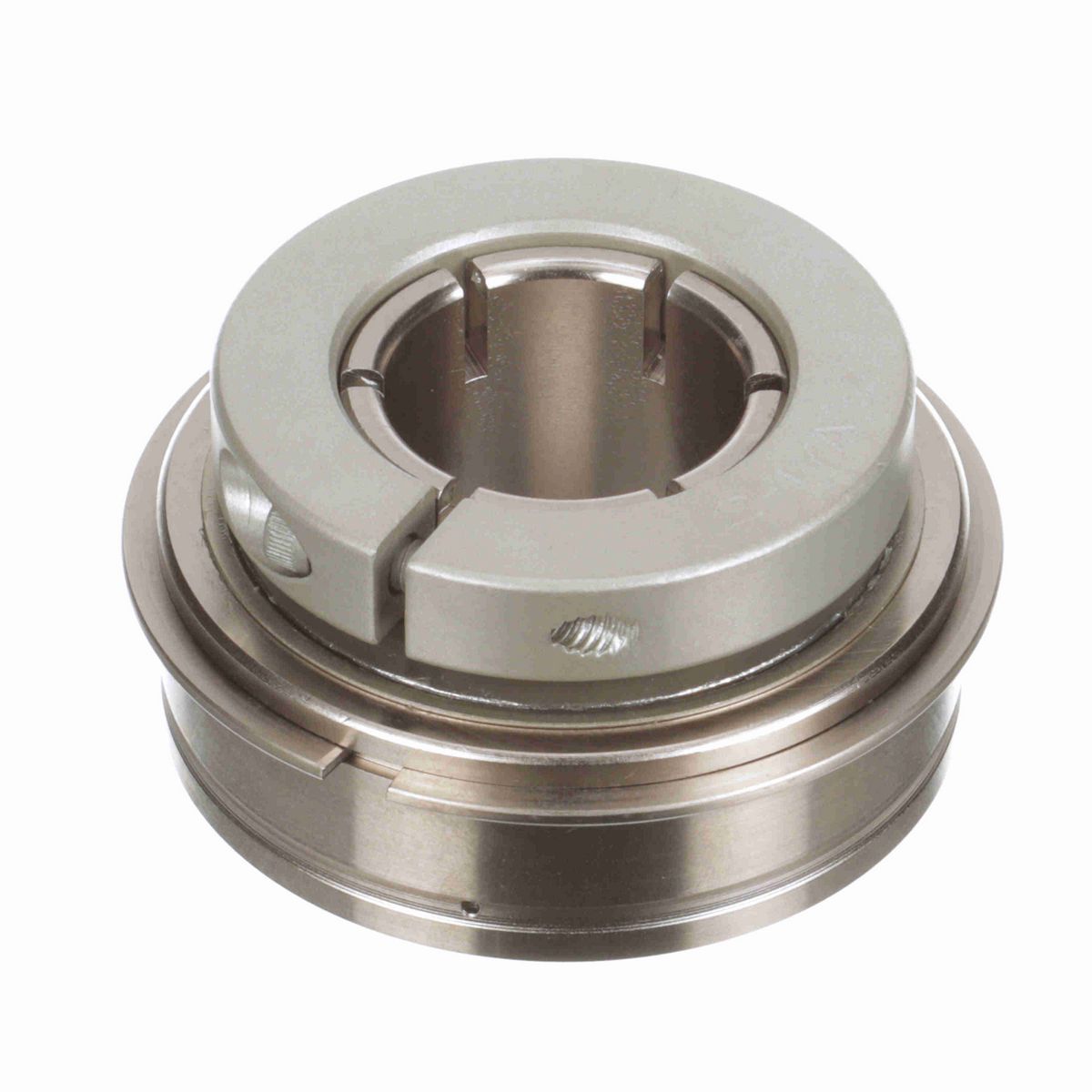

• ER style bearing with high phosphorous electroless nickel plated 52100 steel and corrosion resistant snap ring for exceptional corrosion resistance
• High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
• Skwezloc® Concentric locking for near perfect concentricity with fluoropolymer coated collar and corrosion resistant cap screw
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Tapered Lands ensures that lubricant will be easily redirected back to the raceway
• USDA H1 complaint food grade grease

Dimensions

Overall Width (in)	1.75 in
Bore Size (in)	1.25 in
Centerline to Front Face (in)	1.063 in
Outer Race OD (mm)	72 mm
Inner Ring OD (in)	1.859 in
Collar OD (in)	2.62 in
Outer Race Width (in)	0.938 in
Outer Race OD (in)	2.8346 in
Length Through Bore (in)	1.75 in
Outer Race Width (mm)	23.8 mm

Technical Specifications

Rolling Element	Ball Bearing
Torx Cap Screw	1/4-20 UNC
Measure Units	Inch
Bore Shape	Straight
Housing Type	Insert (ER Style)
Insert Material	52100 Bearing Steel
Seal Type	Triple Lip Contact Seal
Expansion	No
Misalignment	None
Internal Clearance	Standard
Platform	PN Gold
End Cap	No
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
Options	Corrosion Resistant
Bearing Insert Coating	Phosphorus Nickel Coated
Certifications	IP69K
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Inner Ring Fillet Radius (in)	0.04 in
Size Code	2-17
Series	Unmounted Replacement Bearings
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Fundamental Train	0.0067 cps
Locking Type	Concentric
Setscrew Torque (in-lbs)	240 in/lbs
Maximum Speed (rpm)	2000 rpm
Vibration Frequency Roller Spin	0.0383 cps
Vibration Frequency Outer Ring Defect	0.0595 cps
Lubrication Type	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Duty/Status	Standard
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Inner Ring Defect	0.0905 cps
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	5,782 lb
Static Load Rating (lb)	3,493 lb

General Specifications

UPC	662461339718
Weight	1.65 LB
Packaged Length	3.13 IN
Packaged Width	1.75 IN
Packaged Height	3.13 IN
HTC	8482.10.5052
Country of Origin	Mexico
