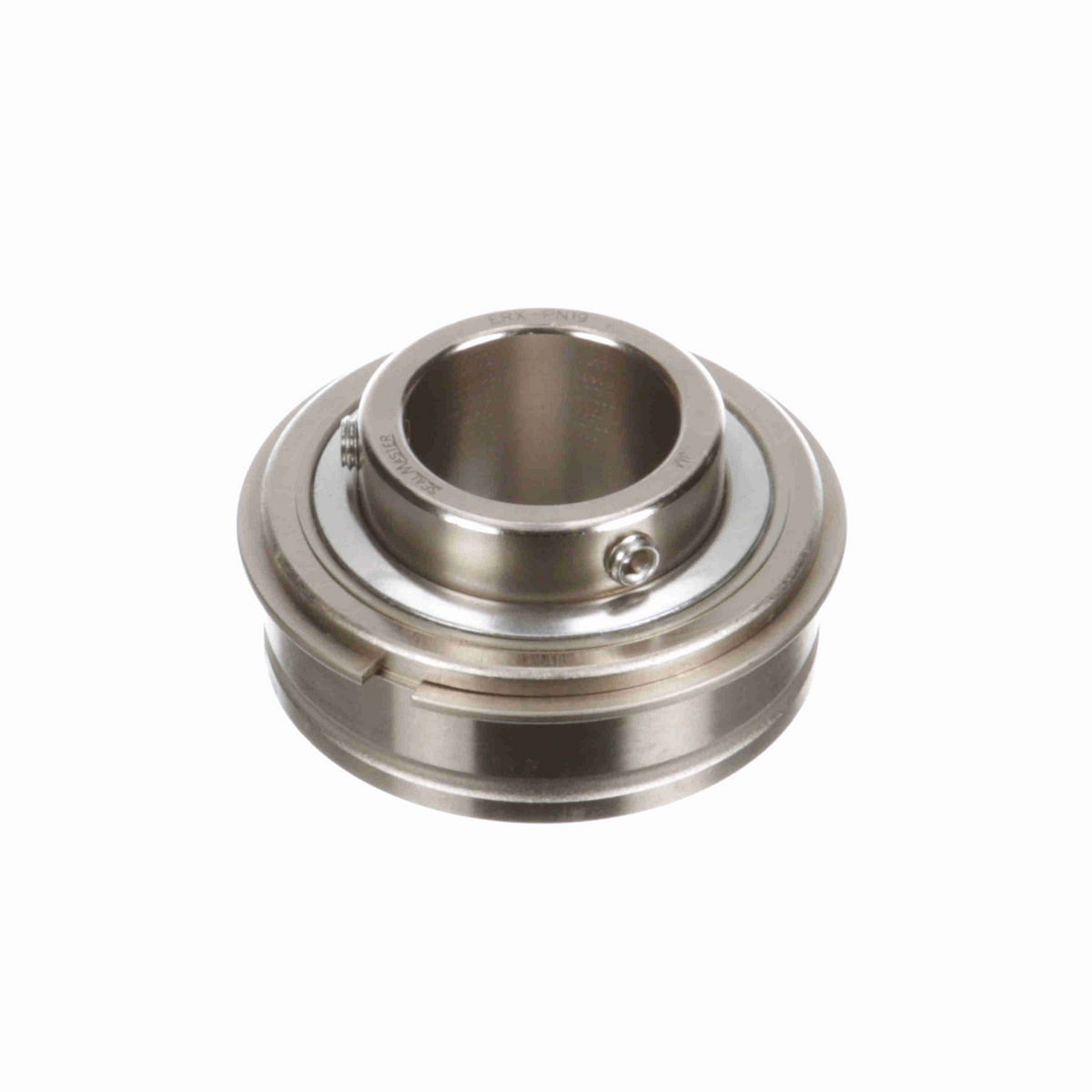

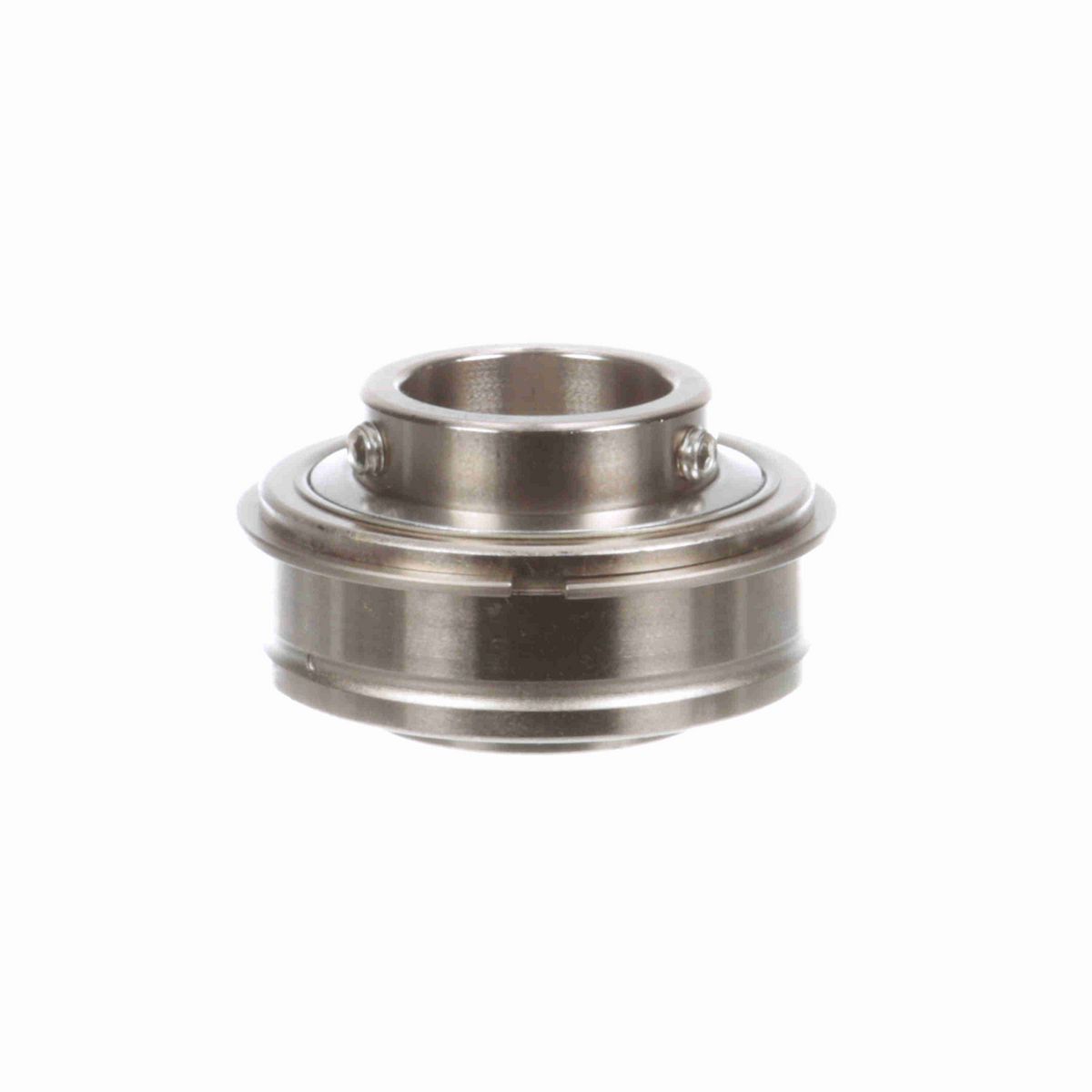

• ER style bearing with high phosphorous electroless nickel plated 52100 steel and corrosion resistant snap ring for exceptional corrosion resistance
• High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
• Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Tapered Lands ensures that lubricant will be easily redirected back to the raceway
• USDA H1 complaint food grade grease

Dimensions

Overall Width (in)	1.5 in
Bore Size (in)	1.1875 in
Inner Ring OD (in)	1.594 in
Outer Race Width (in)	0.875 in
Outer Race OD (mm)	62 mm
Outer Race OD (in)	2.4409 in
Centerline to Front Face (in)	0.875 in
Length Through Bore (in)	1.5 in
Outer Race Width (mm)	22.2 mm

Technical Specifications

Insert Material	52100 Bearing Steel
Bore Shape	Straight
Seal Type	Triple Lip Contact Seal
Rolling Element	Ball Bearing
Housing Type	Insert (ER Style)
Measure Units	Inch
Set Screw Thread	1/4-28 UNF
Internal Clearance	Standard
Expansion	No
Misalignment	None
Misalignment Type	Static Only
Bearing Insert Coating	Phosphorus Nickel Coated
End Cap	No
Platform	PN Gold
Options	Corrosion Resistant
Outer Ring Land Profile	Tapered Lands
Certifications	IP69K
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Vibration Frequency Roller Spin	0.0385 cps
Series	Unmounted Replacement Bearings
Vibration Frequency Fundamental Train	0.0066 cps
Maximum Operating Temperature (F)	220 °F
Setscrew Torque (in-lbs)	65-85 in/lbs
Vibration Frequency Outer Ring Defect	0.0595 cps
Locking Type	Set Screw
Duty/Status	Standard
Inner Ring Fillet Radius (in)	0.04 in
Ability to Relubricate	Yes
Maximum Speed (rpm)	2300 rpm
Lubrication Type	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Vibration Frequency Inner Ring Defect	0.0905 cps
Inner Race Heat Treat Method	Zone-Hardened
Size Code	2-13
Dynamic Load Rating (lb)	4,381 lb
Static Load Rating (lb)	2,567 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461339619
Weight	0.93 LB
Packaged Length	2.75 IN
Packaged Width	1.56 IN
Packaged Height	2.75 IN
HTC	8482.10.5052
Country of Origin	Mexico
