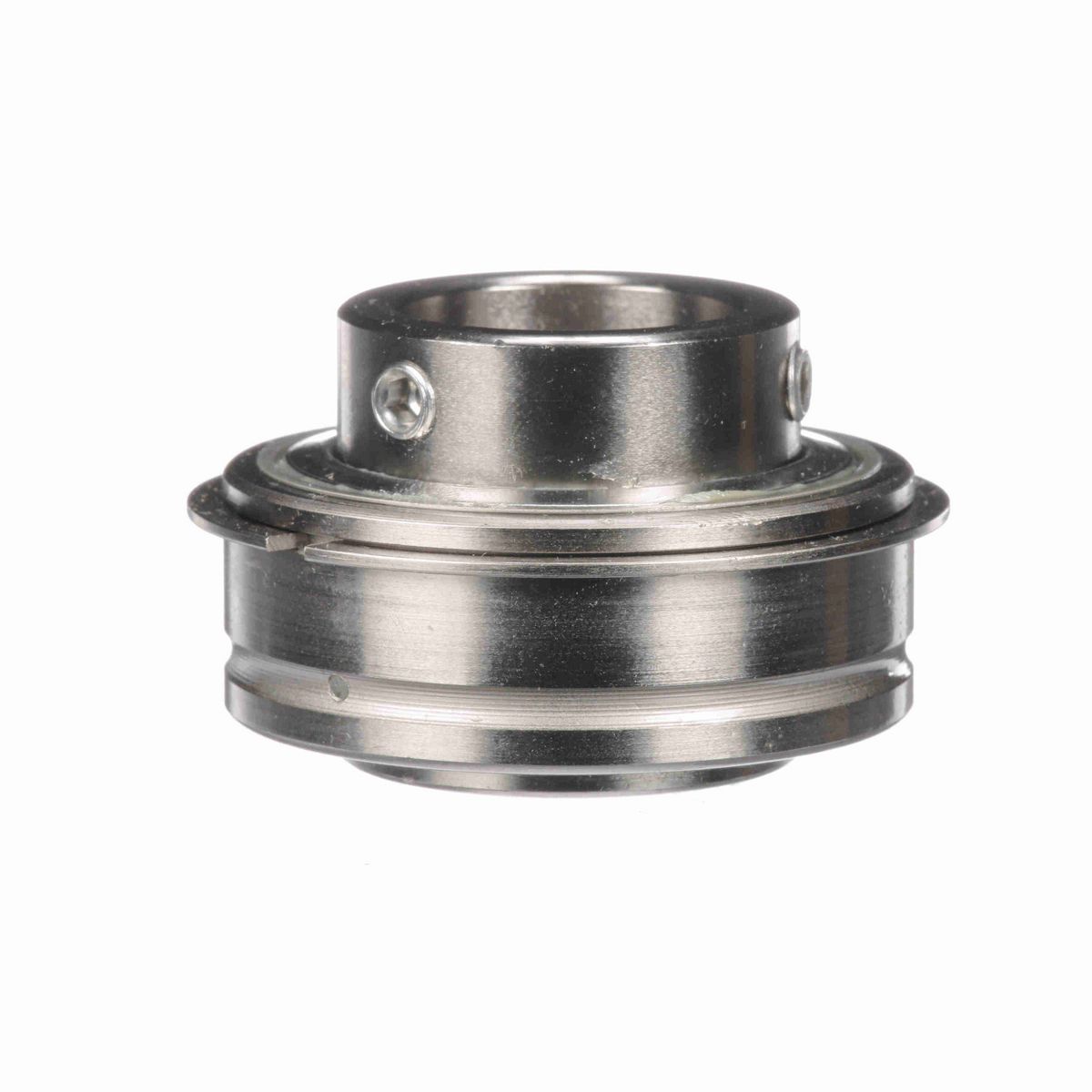

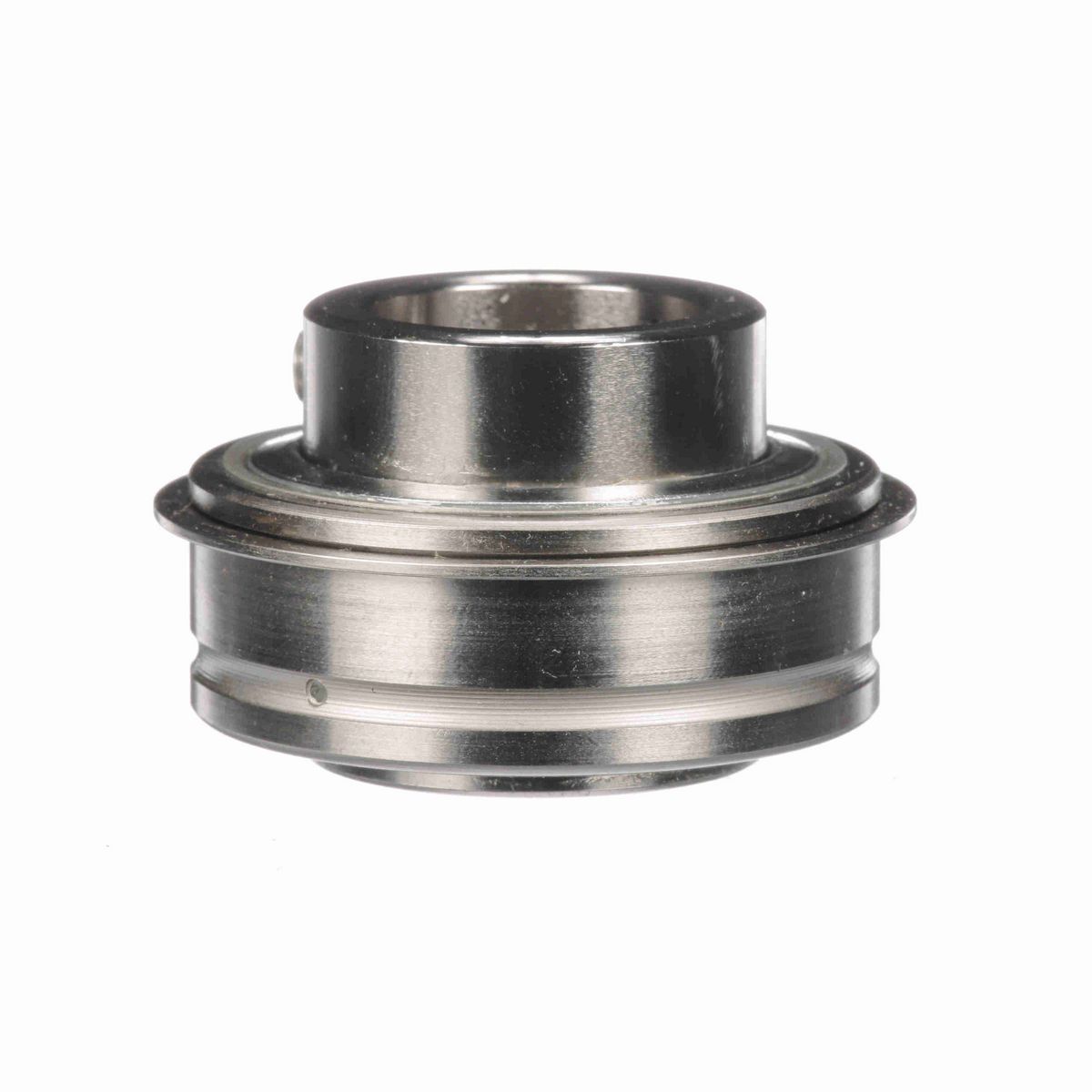

• ER style bearing with high phosphorous electroless nickel plated 52100 steel and corrosion resistant snap ring for exceptional corrosion resistance
• High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
• Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Tapered Lands ensures that lubricant will be easily redirected back to the raceway
• USDA H1 complaint food grade grease

Dimensions

Overall Width (in)	1.38 in
Bore Size (in)	1 in
Outer Race Width (in)	0.75 in
Outer Race OD (in)	2.0472 in
Centerline to Front Face (in)	0.859 in
Inner Ring OD (in)	1.375 in
Outer Race OD (mm)	52 mm
Length Through Bore (in)	1.375 in
Outer Race Width (mm)	19.1 mm

Technical Specifications

Rolling Element	Ball Bearing
Measure Units	Inch
Bore Shape	Straight
Insert Material	52100 Bearing Steel
Seal Type	Triple Lip Contact Seal
Housing Type	Insert (ER Style)
Set Screw Thread	1/4-28 UNF
Misalignment	None
Internal Clearance	Standard
Expansion	No
Platform	PN Gold
Outer Ring Land Profile	Tapered Lands
Options	Corrosion Resistant
Bearing Insert Coating	Phosphorus Nickel Coated
Misalignment Type	Static Only
End Cap	No
Certifications	IP69K
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Series	Unmounted Replacement Bearings
Vibration Frequency Outer Ring Defect	0.0682 cps
Vibration Frequency Fundamental Train	0.0068 cps
Size Code	2-015
Locking Type	Set Screw
Maximum Speed (rpm)	2700 rpm
Setscrew Torque (in-lbs)	65-85 in/lbs
Inner Race Heat Treat Method	Zone-Hardened
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Inner Ring Defect	0.0985 cps
Inner Ring Fillet Radius (in)	0.04 in
Lubrication Type	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Duty/Status	Standard
Vibration Frequency Roller Spin	0.0442 cps
Static Load Rating (lb)	1,651 lb
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	2,801 lb

General Specifications

UPC	662461339565
Weight	0.56 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
