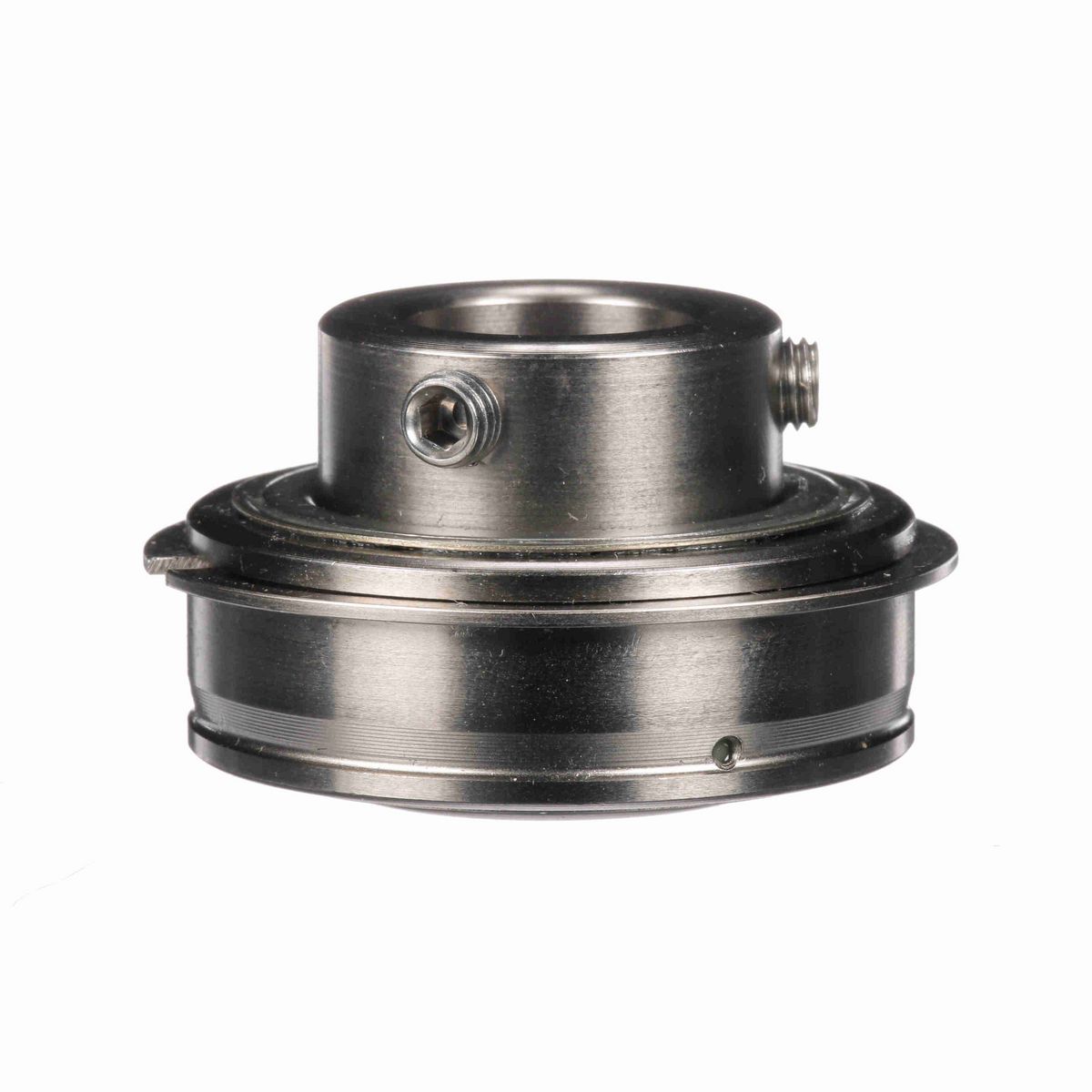

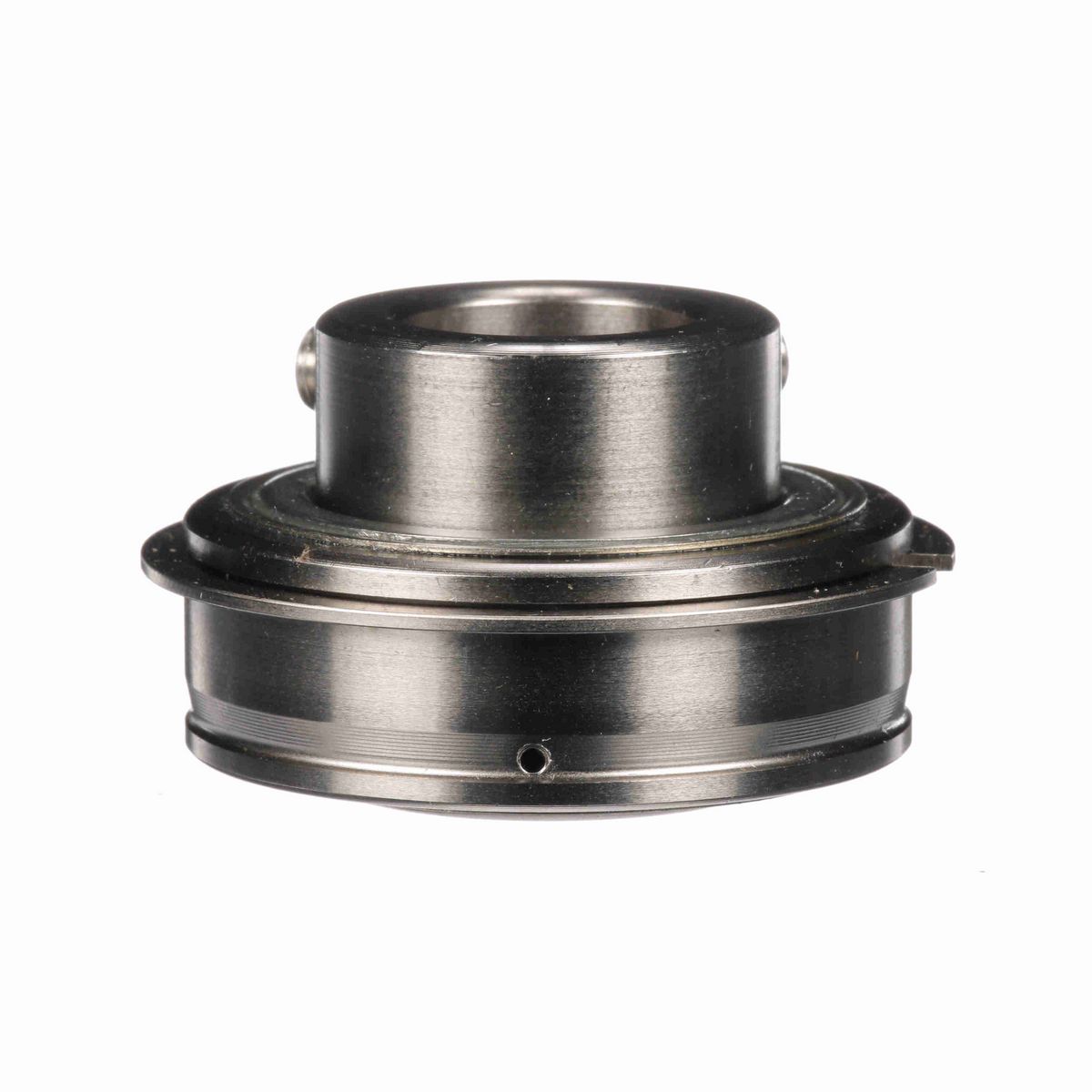

• ER style bearing with high phosphorous electroless nickel plated 52100 steel and corrosion resistant snap ring for exceptional corrosion resistance
• High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
• Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Tapered Lands ensures that lubricant will be easily redirected back to the raceway
• USDA H1 complaint food grade grease

Dimensions

Overall Width (in)	1.22 in
Bore Size (in)	0.75 in
Centerline to Front Face (in)	0.813 in
Outer Race OD (mm)	47 mm
Outer Race OD (in)	1.8504 in
Inner Ring OD (in)	1.188 in
Outer Race Width (in)	0.625 in
Length Through Bore (in)	1.219 in
Outer Race Width (mm)	15.9 mm

Technical Specifications

Insert Material	52100 Bearing Steel
Bore Shape	Straight
Housing Type	Insert (ER Style)
Measure Units	Inch
Rolling Element	Ball Bearing
Set Screw Thread	1/4-28 UNF
Seal Type	Triple Lip Contact Seal
Misalignment	None
Expansion	No
Internal Clearance	Standard
Platform	PN Gold
End Cap	No
Misalignment Type	Static Only
Outer Ring Land Profile	Tapered Lands
Bearing Insert Coating	Phosphorus Nickel Coated
Options	Corrosion Resistant
Certifications	IP69K
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Setscrew Torque (in-lbs)	65-85 in/lbs
Locking Type	Set Screw
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Outer Ring Defect	0.0593 cps
Vibration Frequency Inner Ring Defect	0.0907 cps
Vibration Frequency Fundamental Train	0.0066 cps
Inner Ring Fillet Radius (in)	0.04 in
Ability to Relubricate	Yes
Vibration Frequency Roller Spin	0.0381 cps
Lubrication Type	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Duty/Status	Standard
Size Code	2-012
Inner Race Heat Treat Method	Zone-Hardened
Series	Unmounted Replacement Bearings
Maximum Speed (rpm)	3100 rpm
Static Load Rating (lb)	1,444 lb
Dynamic Load Rating (lb)	2,611 lb
Cage Type	Land Riding Retainer

General Specifications

UPC	662461339527
Weight	0.56 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
