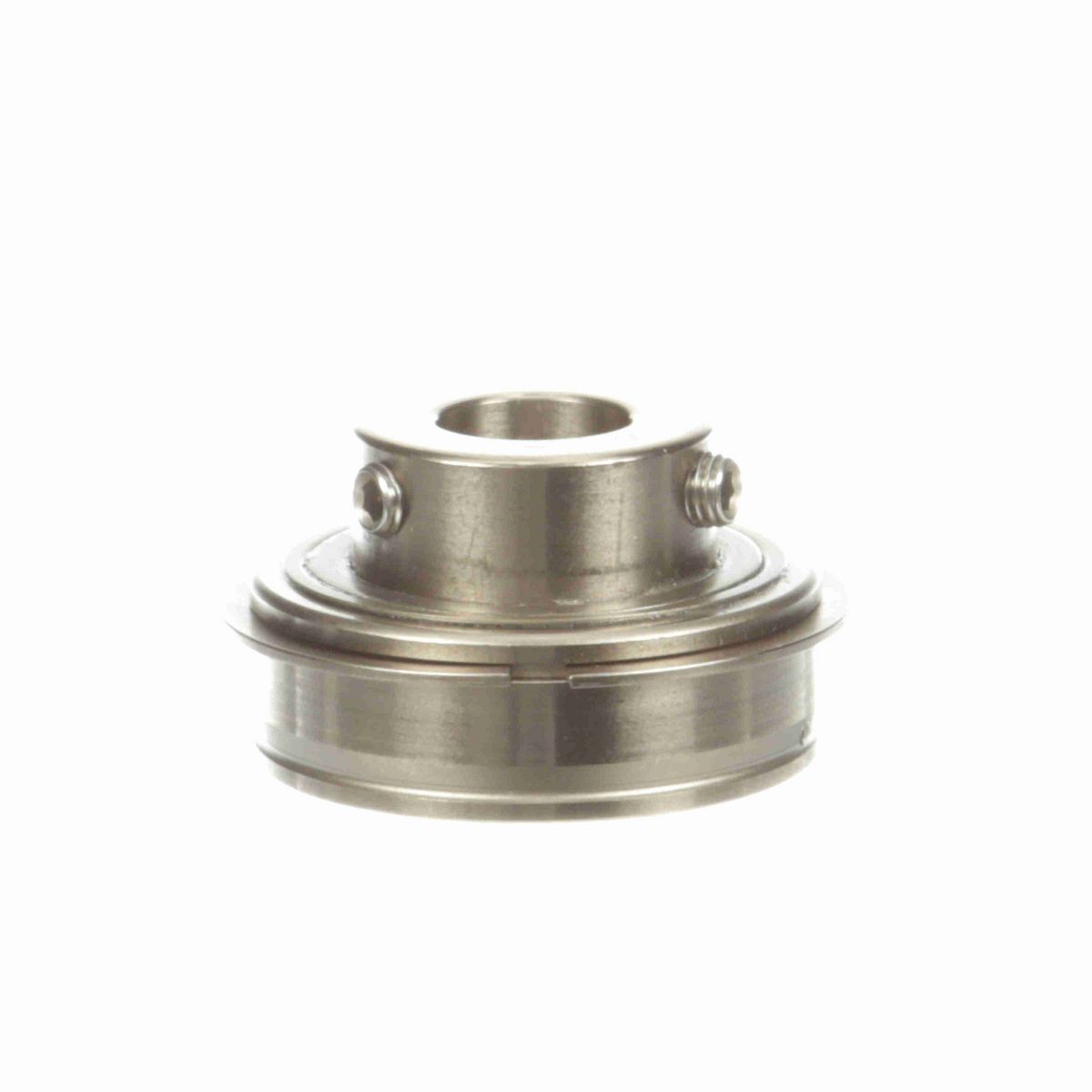

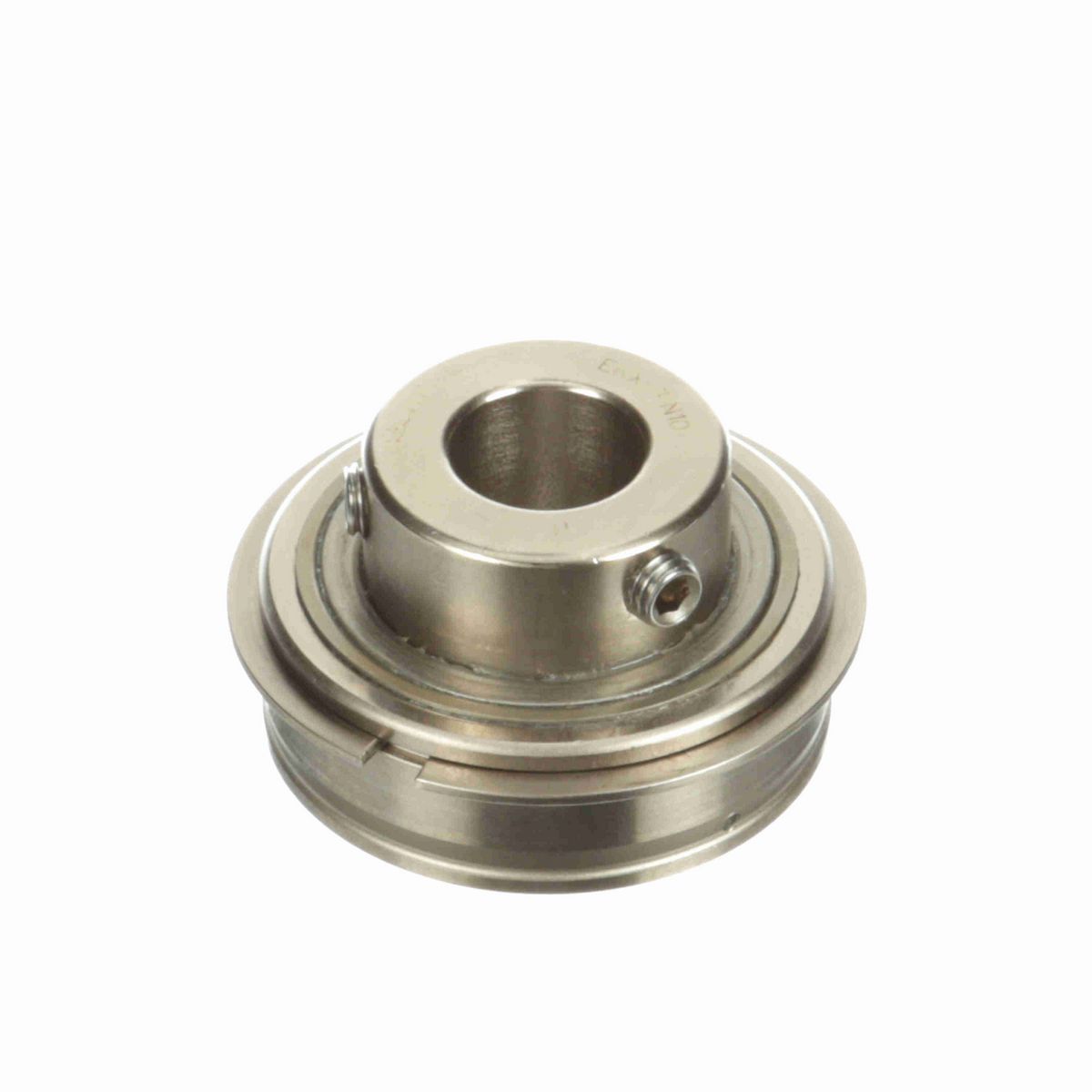

• ER style bearing with high phosphorous electroless nickel plated 52100 steel and corrosion resistant snap ring for exceptional corrosion resistance
• High performance triple lip contact seal design provides multi-directional sealing with 304 stainless steel body and flinger to minimize contamination ingress and retain lubrication
• Zone hardened inner ring with 120° spacing setscrew lock with corrosion resistant setscrews
• Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
• Tapered Lands ensures that lubricant will be easily redirected back to the raceway
• USDA H1 complaint food grade grease

Dimensions

Overall Width (in)	1.22 in
Bore Size (in)	0.625 in
Outer Race OD (mm)	47 mm
Centerline to Front Face (in)	0.813 in
Outer Race OD (in)	1.8504 in
Outer Race Width (in)	0.625 in
Inner Ring OD (in)	1.188 in
Length Through Bore (in)	1.219 in
Outer Race Width (mm)	15.9 mm

Technical Specifications

Set Screw Thread	1/4-28 UNF
Insert Material	52100 Bearing Steel
Rolling Element	Ball Bearing
Measure Units	Inch
Seal Type	Triple Lip Contact Seal
Housing Type	Insert (ER Style)
Bore Shape	Straight
Expansion	No
Internal Clearance	Standard
Misalignment	None
Outer Ring Land Profile	Tapered Lands
Bearing Insert Coating	Phosphorus Nickel Coated
Options	Corrosion Resistant
Misalignment Type	Static Only
Platform	PN Gold
End Cap	No
Certifications	IP69K
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Ability to Relubricate	Yes
Locking Type	Set Screw
Vibration Frequency Outer Ring Defect	0.0593 cps
Vibration Frequency Inner Ring Defect	0.0907 cps
Inner Race Heat Treat Method	Zone-Hardened
Vibration Frequency Fundamental Train	0.0066 cps
Size Code	2-012
Duty/Status	Standard
Vibration Frequency Roller Spin	0.0381 cps
Inner Ring Fillet Radius (in)	0.04 in
Maximum Operating Temperature (F)	220 °F
Maximum Speed (rpm)	3100 rpm
Series	Unmounted Replacement Bearings
Lubrication Type	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Setscrew Torque (in-lbs)	65-85 in/lbs
Cage Type	Land Riding Retainer
Static Load Rating (lb)	1,444 lb
Dynamic Load Rating (lb)	2,611 lb

General Specifications

UPC	662461339510
Weight	0.56 LB
Packaged Length	2.38 IN
Packaged Width	1.44 IN
Packaged Height	2.38 IN
HTC	8482.10.5048
Country of Origin	Mexico
