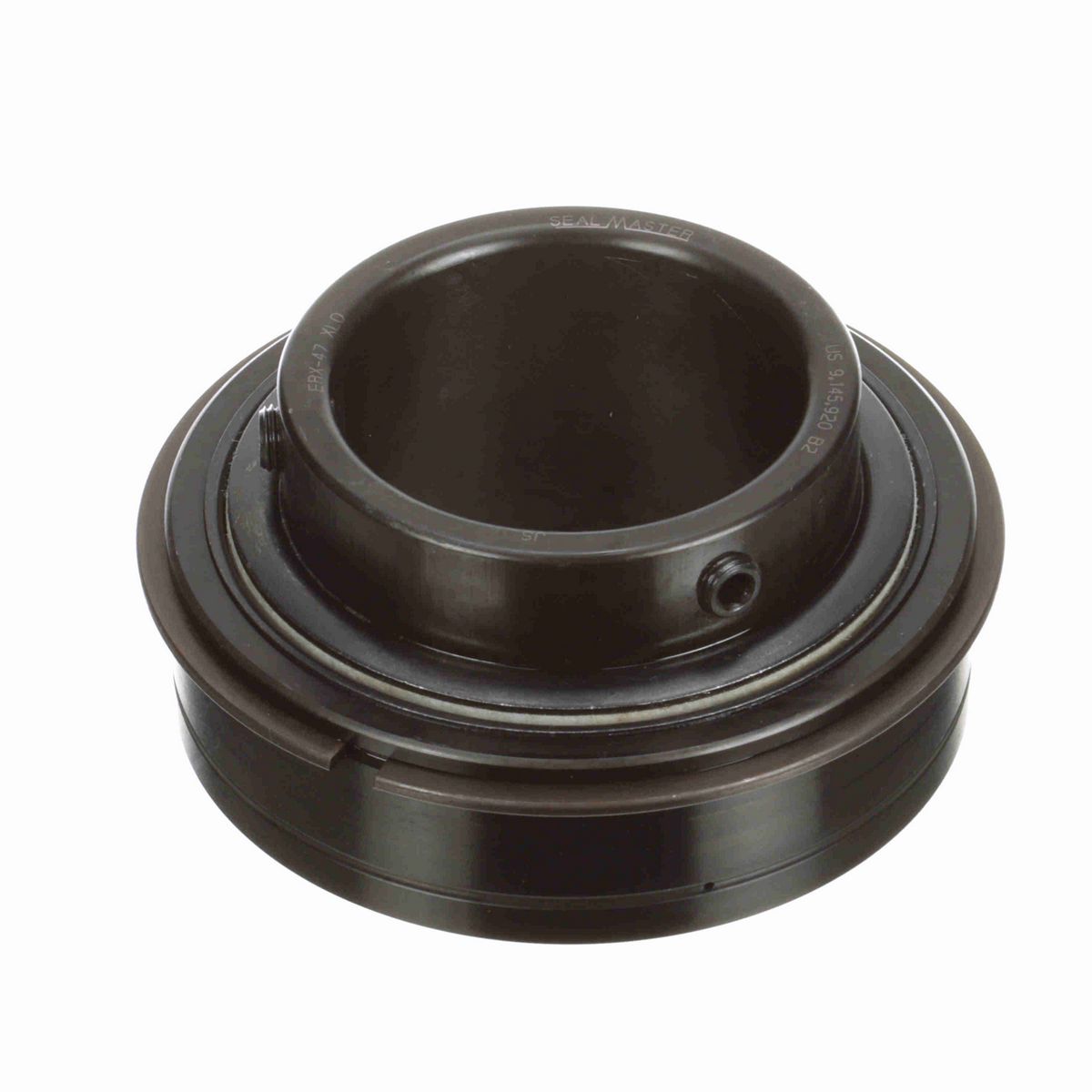

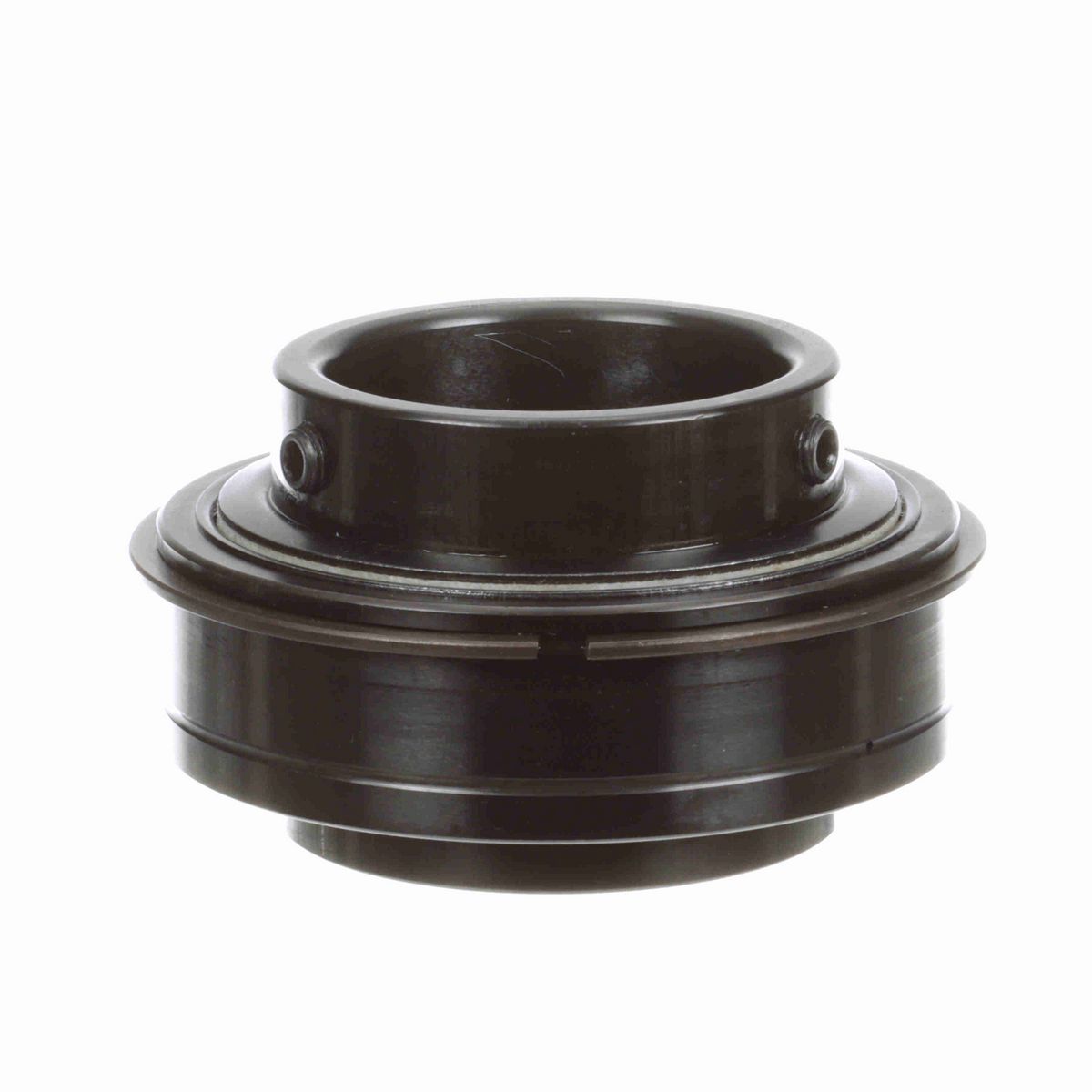

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Extra low drag seal cut down felt labyrinth seal and flinger
• Oil lubricated for reduced internal friction
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	3.06 in
Bore Size (in)	2.9375 in
Outer Race OD (in)	5.1181 in
Centerline to Front Face (in)	1.75 in
Outer Race OD (mm)	130 mm
Inner Ring OD (in)	3.641 in
Outer Race Width (in)	1.5 in
Length Through Bore (in)	3.063 in
Outer Race Width (mm)	38.1 mm

Technical Specifications

Insert Material	52100 Bearing Steel
Seal Type	Cut Down Felt Labyrinth
Housing Type	Insert (ER Style)
Set Screw Thread	7/16-20 UNF
Rolling Element	Ball Bearing
Measure Units	Inch
Bore Shape	Straight
Expansion	No
Misalignment	None
Internal Clearance	Standard
Options	Extra Low Drag
End Cap	No
Bearing Insert Coating	Black Oxide
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Platform	Gold Line Ball Bearing
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Vibration Frequency Outer Ring Defect	0.0761 cps
Lubrication Type	Oil Coated Only - No Factory Grease Fill
Setscrew Torque (in-lbs)	350-450 in/lbs
Maximum Operating Temperature (F)	220 °F
Inner Race Heat Treat Method	Zone-Hardened
Maximum Speed (rpm)	950 rpm
Vibration Frequency Roller Spin	0.0476 cps
Vibration Frequency Inner Ring Defect	0.1072 cps
Duty/Status	Standard
Inner Ring Fillet Radius (in)	0.08 in
Series	Unmounted Replacement Bearings
Size Code	2-215
Vibration Frequency Fundamental Train	0.0069 cps
Locking Type	Set Screw
Ability to Relubricate	Yes
Cage Type	Land Riding Retainer
Static Load Rating (lb)	11,224 lb
Dynamic Load Rating (lb)	14,839 lb

General Specifications

UPC	662461331996
Weight	6.37 LB
Packaged Length	5.50 IN
Packaged Width	3.13 IN
Packaged Height	5.56 IN
HTC	8482.10.5056
Country of Origin	United States of America
