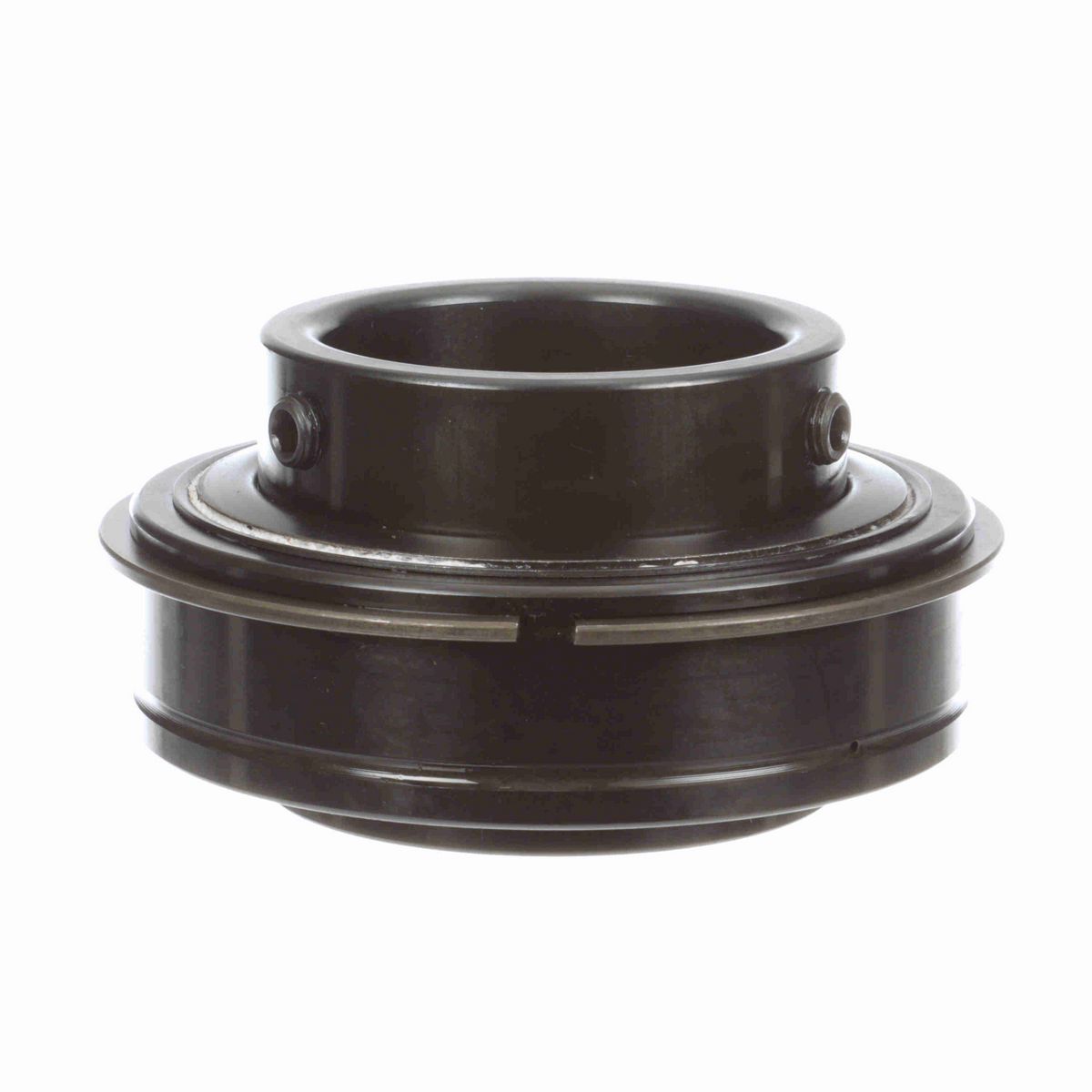

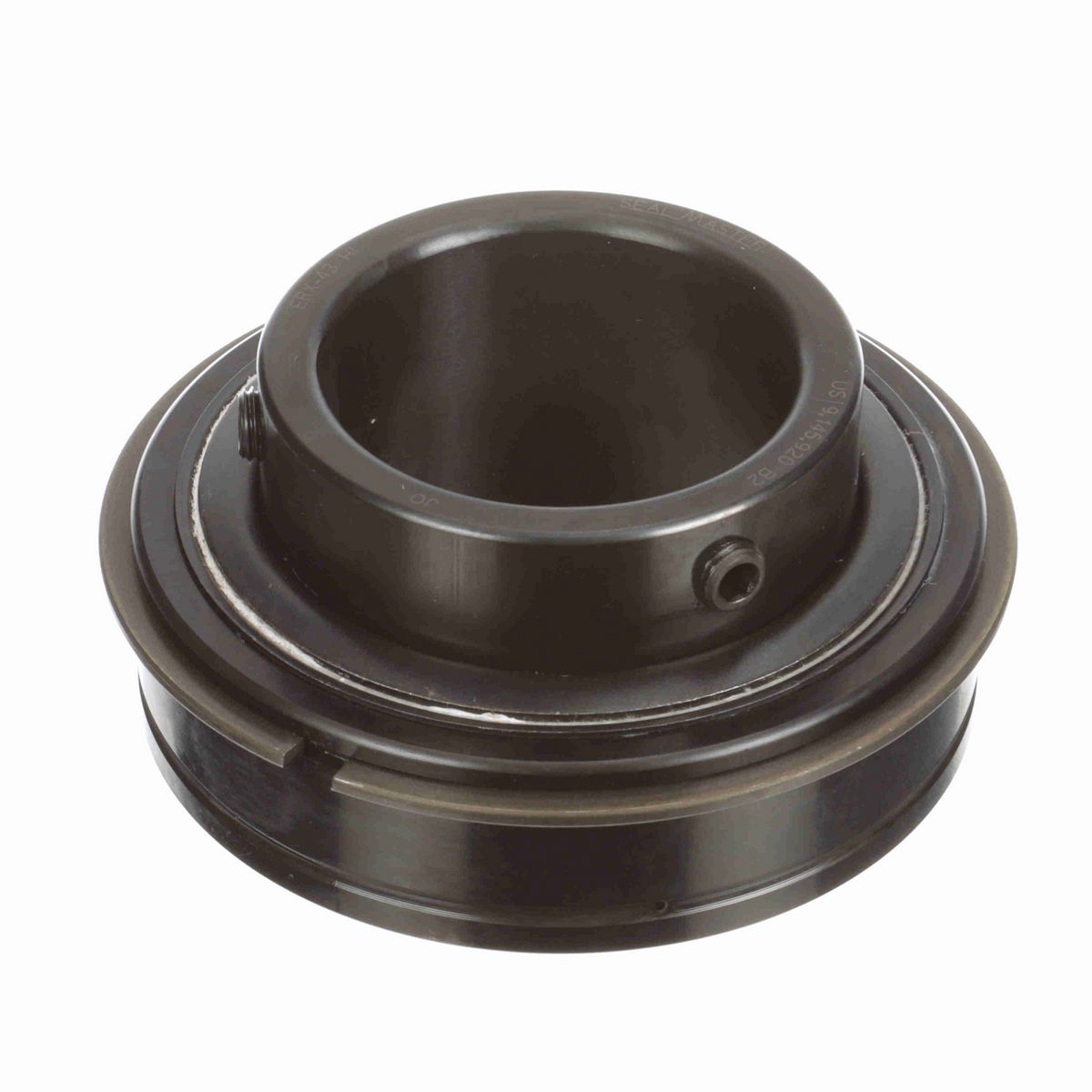

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• High temperature felt labyrinth seal and flinger
• Increased internal clearance
• Krytox® high temperature grease

Dimensions

Overall Width (in)	2.75 in
Bore Size (in)	2.6875 in
Outer Race OD (in)	4.9213 in
Centerline to Front Face (in)	1.688 in
Outer Race OD (mm)	125 mm
Inner Ring OD (in)	3.438 in
Outer Race Width (in)	1.375 in
Length Through Bore (in)	2.75 in
Outer Race Width (mm)	34.9 mm

Technical Specifications

Housing Type	Insert (ER Style)
Bore Shape	Straight
Insert Material	52100 Bearing Steel
Set Screw Thread	7/16-20 UNF
Rolling Element	Ball Bearing
Seal Type	High Temp Labyrinth
Measure Units	Inch
Expansion	No
Misalignment	None
Internal Clearance	Increased
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
Outer Ring Land Profile	Standard
Bearing Insert Coating	Black Oxide
End Cap	No
Options	High Temperature
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Maximum Operating Temperature (F)	400 °F
Maximum Speed (rpm)	1100 rpm
Vibration Frequency Fundamental Train	0.0068 cps
Size Code	2-211
Vibration Frequency Outer Ring Defect	0.0684 cps
Ability to Relubricate	Yes
Inner Race Heat Treat Method	Zone-Hardened
Lubrication Type	PTFE thickened Grease
Vibration Frequency Inner Ring Defect	0.0982 cps
Locking Type	Set Screw
Vibration Frequency Roller Spin	0.0451 cps
Duty/Status	Standard
Inner Ring Fillet Radius (in)	0.08 in
Series	Unmounted Replacement Bearings
Setscrew Torque (in-lbs)	350-450 in/lbs
Static Load Rating (lb)	10,063 lb
Dynamic Load Rating (lb)	13,971 lb
Cage Type	Land Riding Retainer
Maximum Operating Temperature (C)	204 °C

General Specifications

UPC	662461259474
Weight	5.75 LB
Packaged Length	5.50 IN
Packaged Width	3.13 IN
Packaged Height	5.56 IN
HTC	8482.10.5056
Country of Origin	United States of America
