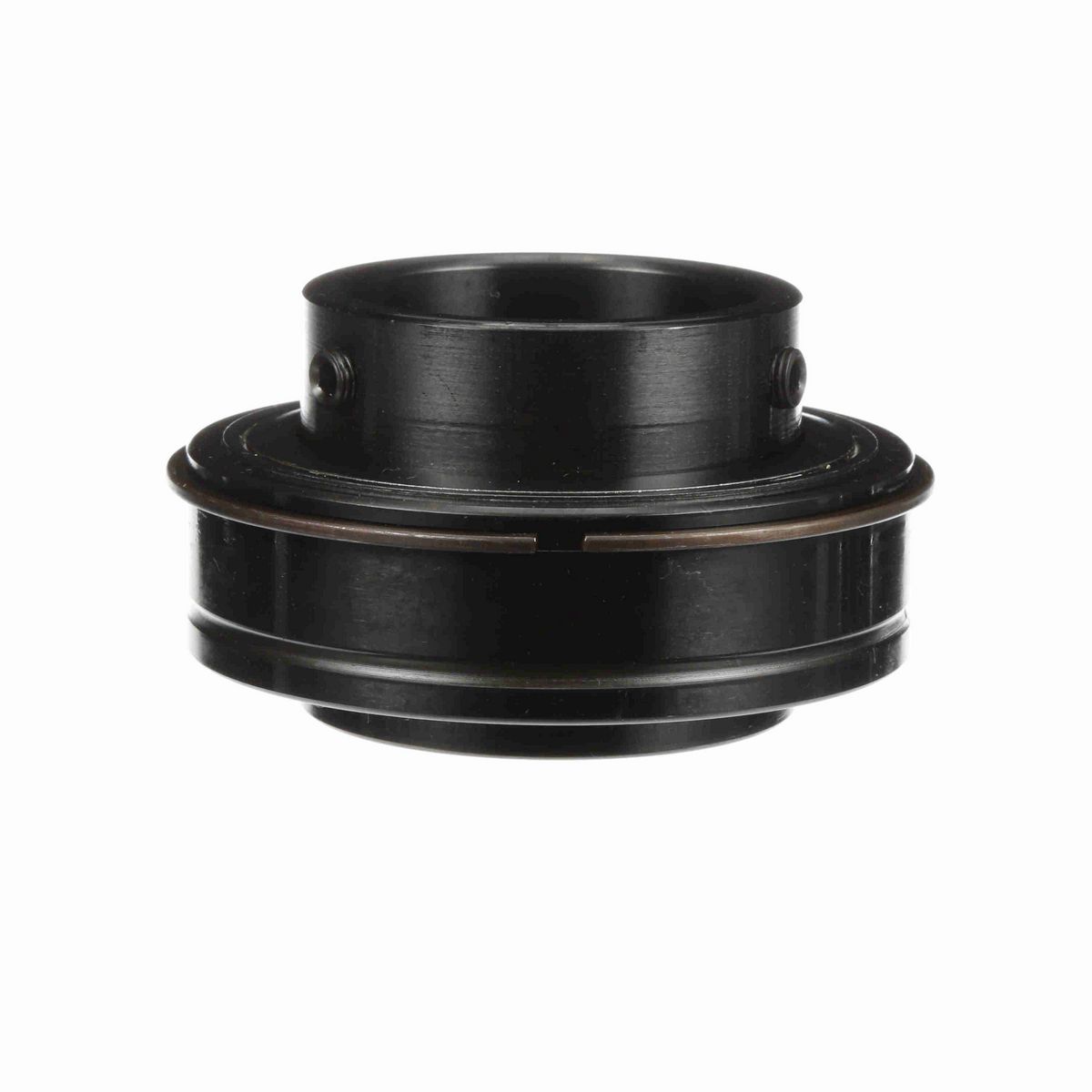

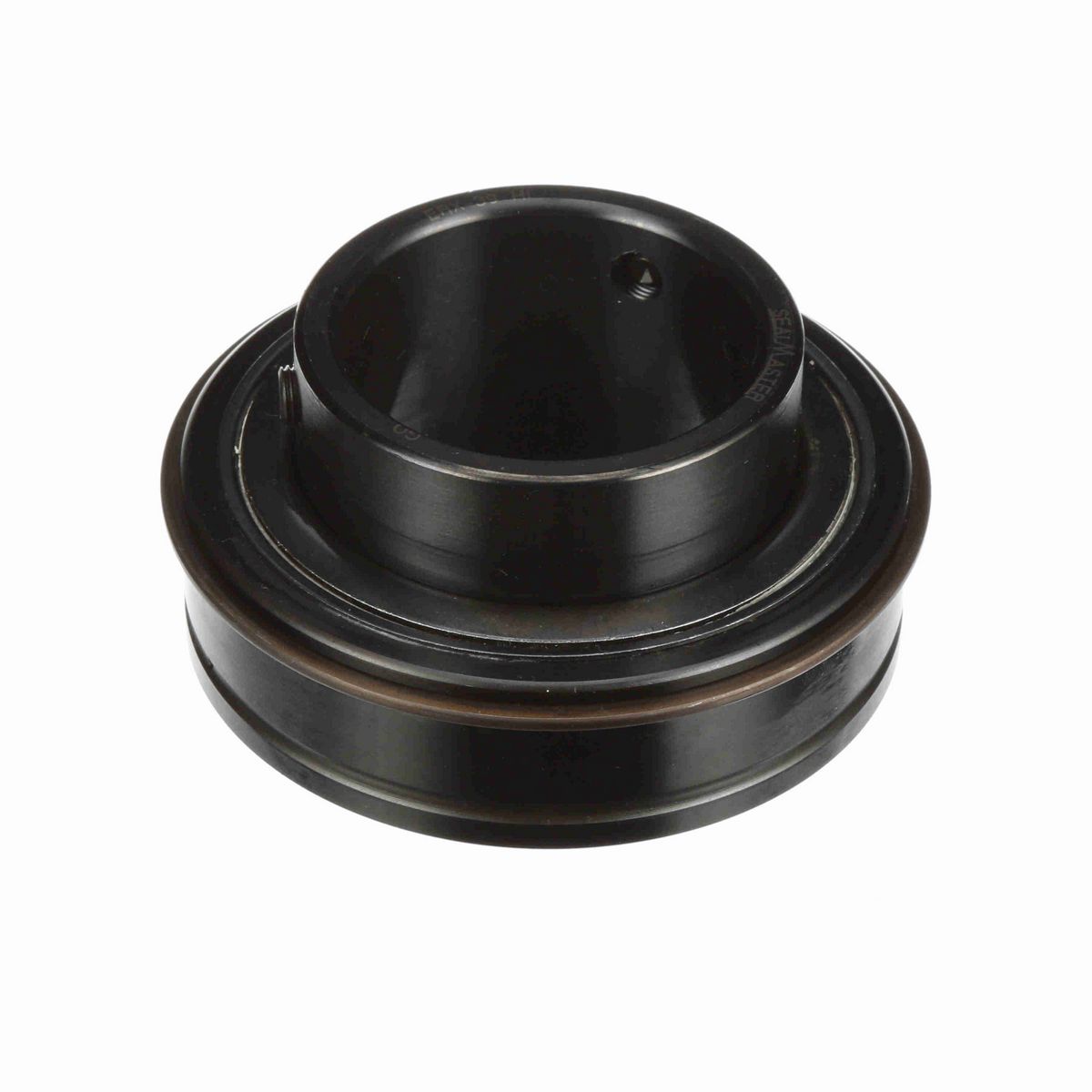

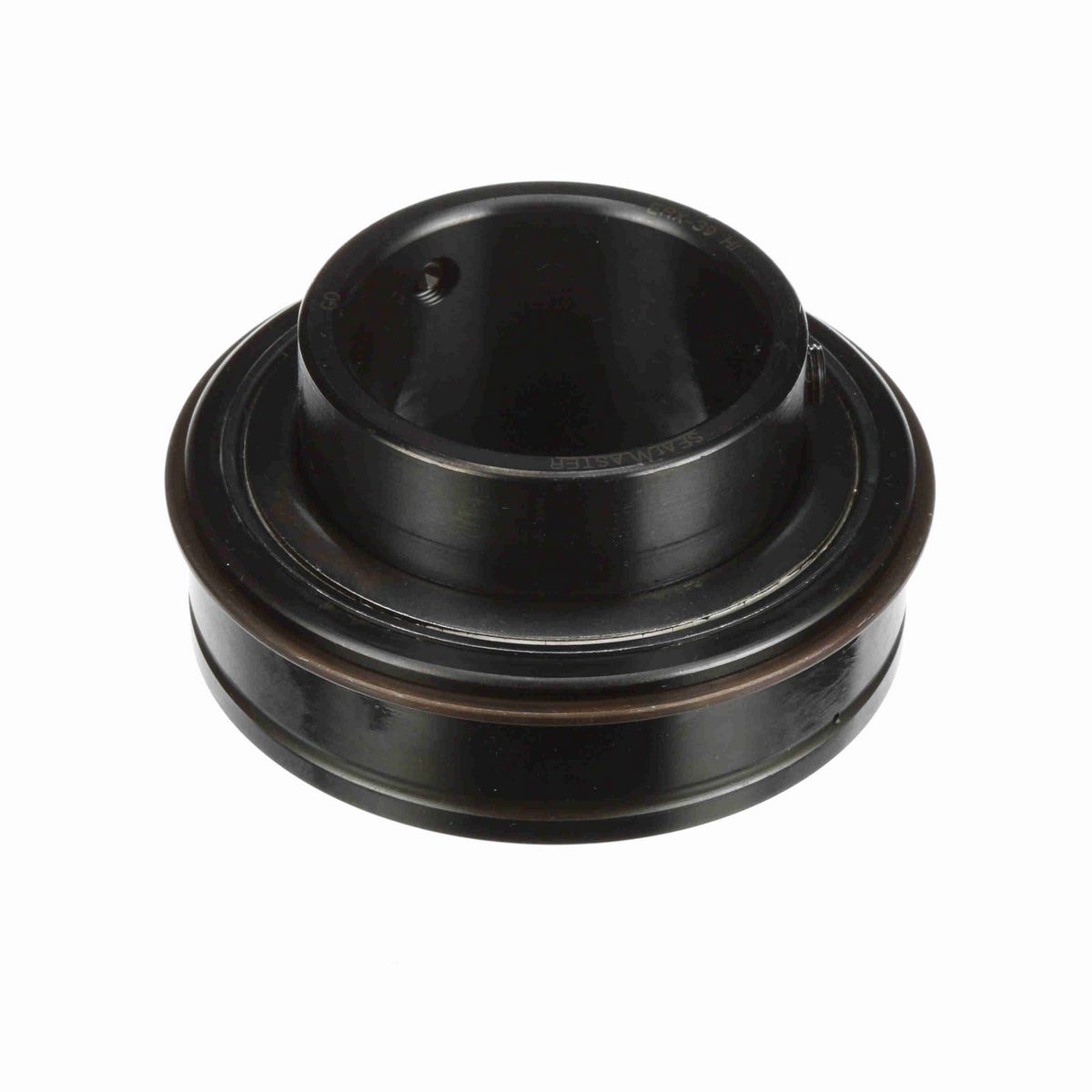

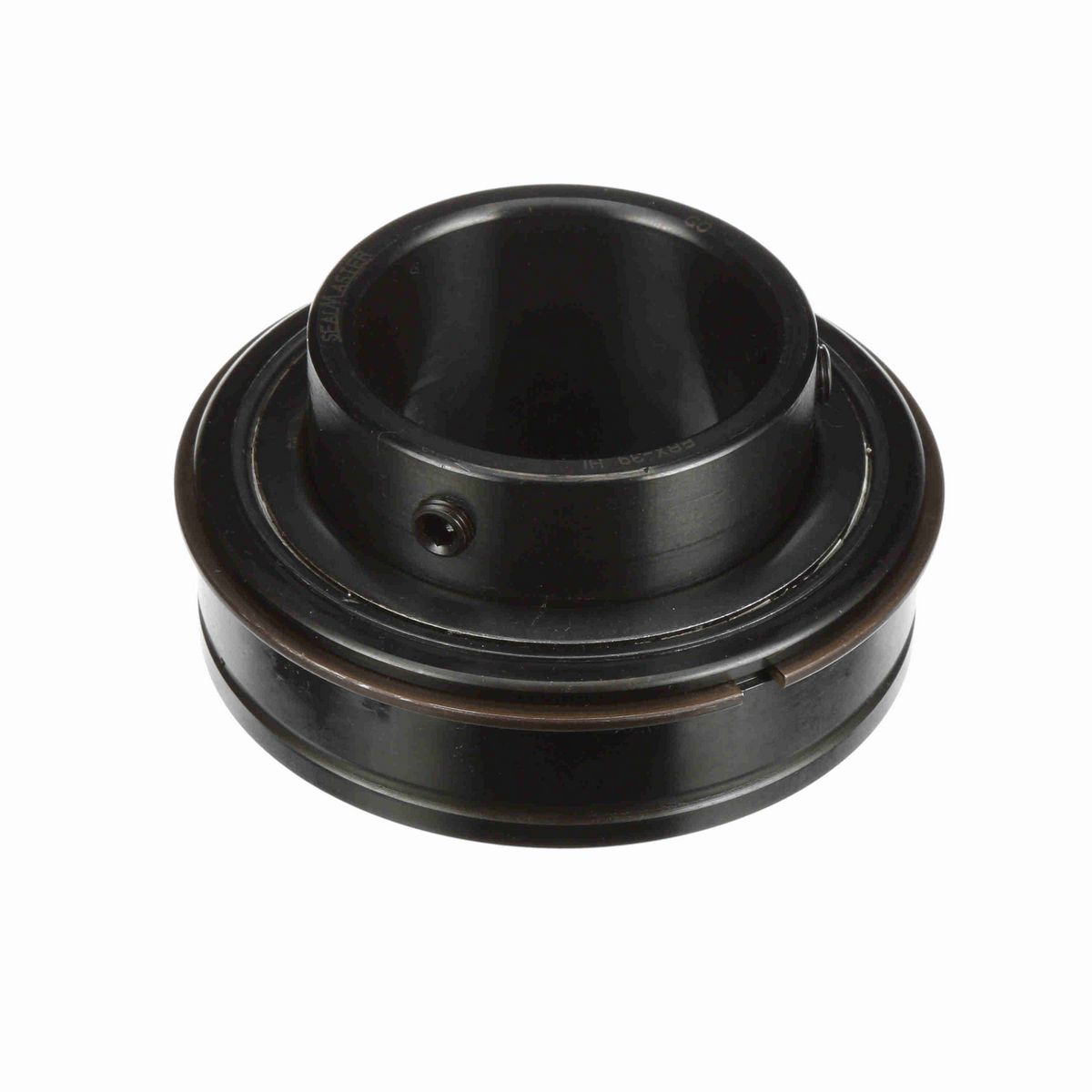

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• High temperature felt labyrinth seal and flinger
• Increased internal clearance
• Krytox® high temperature grease

Dimensions

Overall Width (in)	2.56 in
Bore Size (in)	2.4375 in
Outer Race OD (mm)	110 mm
Outer Race Width (in)	1.25 in
Inner Ring OD (in)	2.984 in
Outer Race OD (in)	4.3307 in
Centerline to Front Face (in)	1.563 in
Length Through Bore (in)	2.563 in
Outer Race Width (mm)	31.8 mm

Technical Specifications

Seal Type	High Temp Labyrinth
Bore Shape	Straight
Insert Material	52100 Bearing Steel
Set Screw Thread	3/8-24 UNF
Housing Type	Insert (ER Style)
Measure Units	Inch
Rolling Element	Ball Bearing
Expansion	No
Misalignment	None
Internal Clearance	Increased
Options	High Temperature
Misalignment Type	Static Only
Outer Ring Land Profile	Tapered Lands
End Cap	No
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Duty/Status	Standard
Vibration Frequency Fundamental Train	0.0068 cps
Size Code	2-27
Setscrew Torque (in-lbs)	230-300 in/lbs
Vibration Frequency Roller Spin	0.0432 cps
Maximum Speed (rpm)	1250 rpm
Vibration Frequency Outer Ring Defect	0.0678 cps
Ability to Relubricate	Yes
Locking Type	Set Screw
Vibration Frequency Inner Ring Defect	0.0989 cps
Series	Unmounted Replacement Bearings
Inner Ring Fillet Radius (in)	0.08 in
Lubrication Type	PTFE thickened Grease
Maximum Operating Temperature (F)	400 °F
Inner Race Heat Treat Method	Zone-Hardened
Dynamic Load Rating (lb)	11,789 lb
Static Load Rating (lb)	8,150 lb
Maximum Operating Temperature (C)	204 °C
Cage Type	Land Riding Retainer

General Specifications

UPC	662461259450
Weight	3.80 LB
Packaged Length	4.75 IN
Packaged Width	2.63 IN
Packaged Height	4.81 IN
HTC	8482.10.5056
Country of Origin	Mexico
