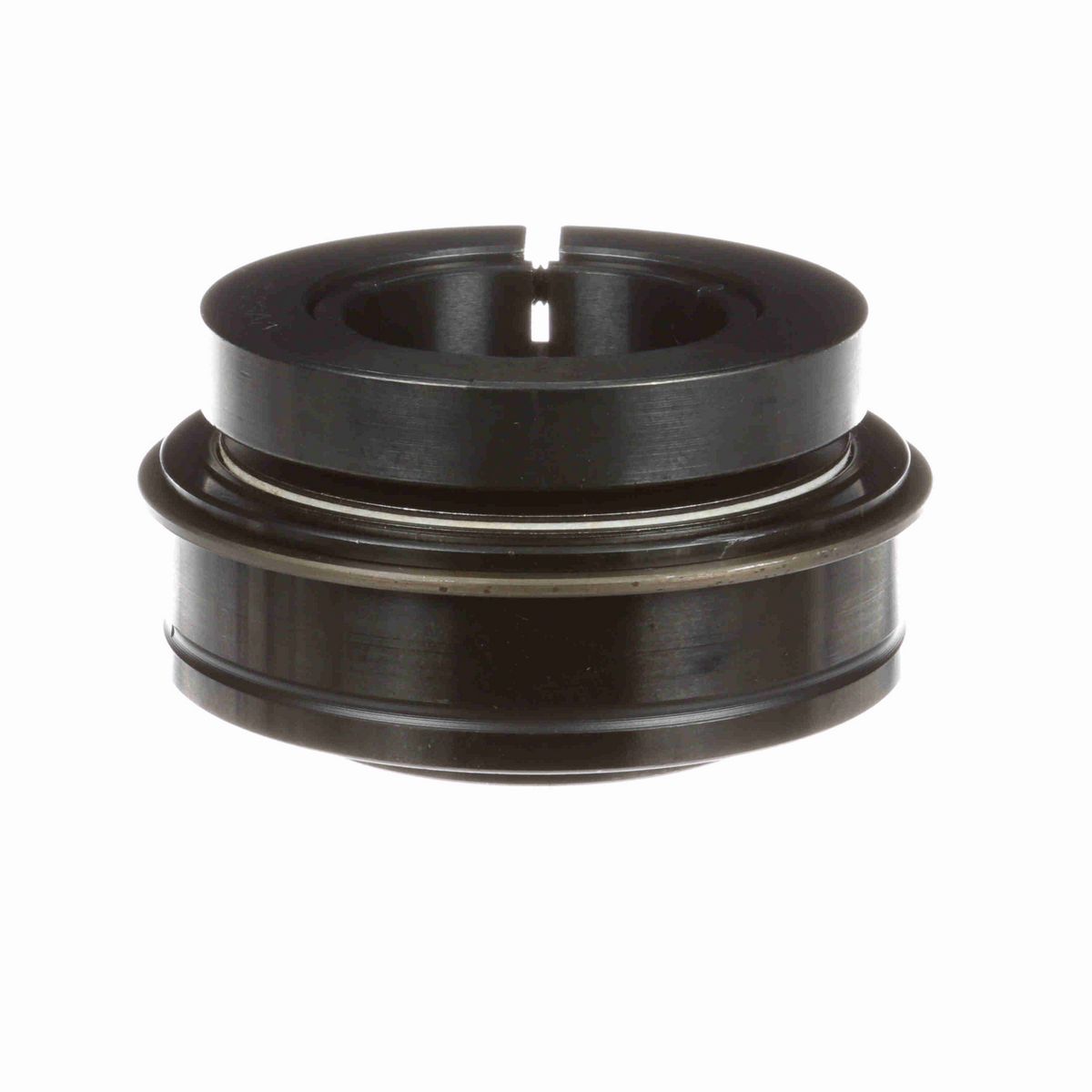

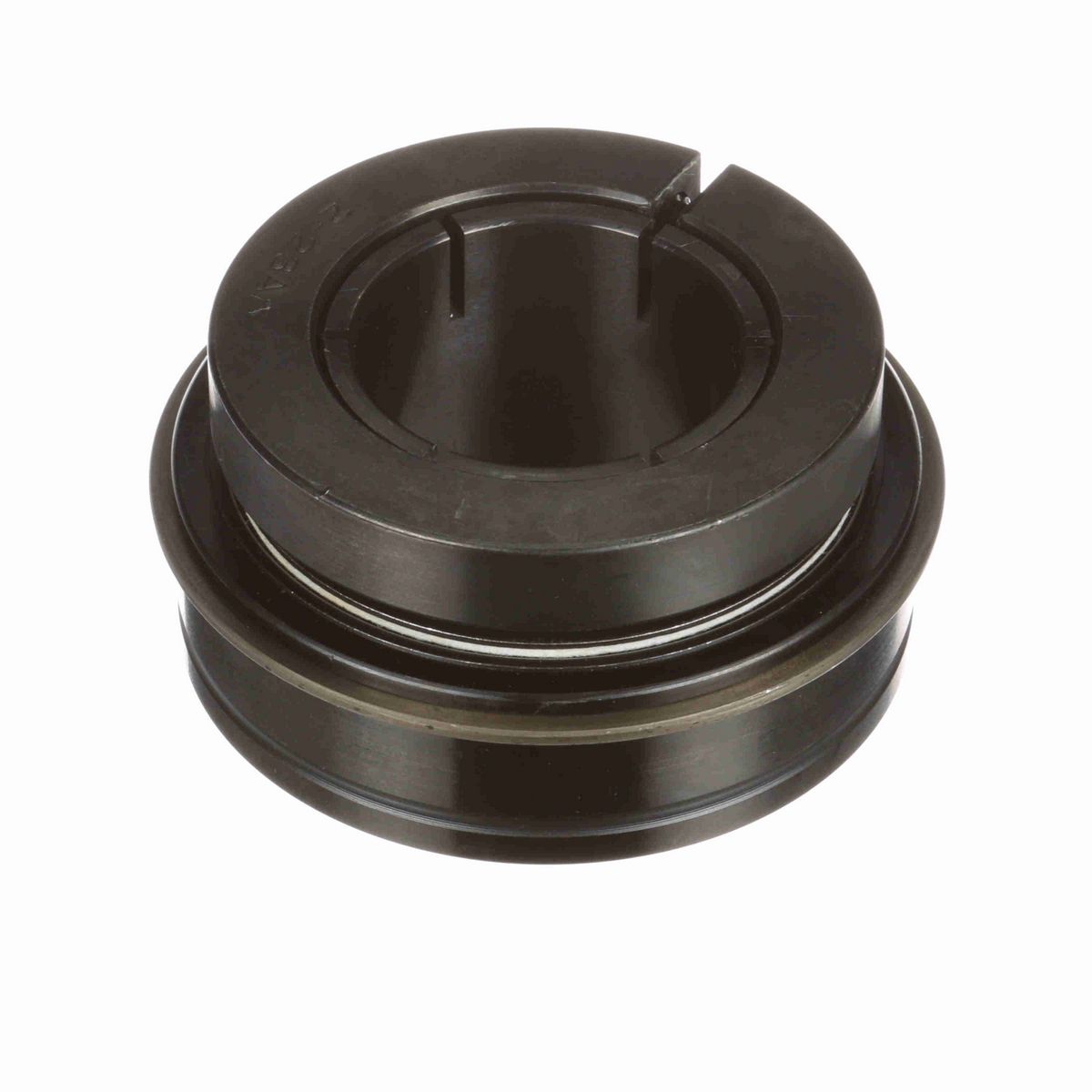

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Skwezloc® concentric locking for near perfect concentricity
• Extra low drag seal cut down felt labyrinth seal and flinger
• Features a channeling grease that reduces drag while lubricating the bearing
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	2.25 in
Bore Size (in)	2 in
Outer Race OD (in)	3.937 in
Outer Race Width (in)	1.188 in
Collar OD (in)	3.6 in
Centerline to Front Face (in)	1.375 in
Outer Race OD (mm)	100 mm
Inner Ring OD (in)	2.719 in
Length Through Bore (in)	2.25 in
Outer Race Width (mm)	30.2 mm

Technical Specifications

Housing Type	Insert (ER Style)
Torx Cap Screw	5/16-18 UNC
Bore Shape	Straight
Measure Units	Inch
Insert Material	52100 Bearing Steel
Rolling Element	Ball Bearing
Seal Type	Cut Down Felt Labyrinth
Expansion	No
Internal Clearance	Standard
Misalignment	None
Options	Low Drag
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide
End Cap	No
Outer Ring Land Profile	Tapered Lands
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Vibration Frequency Outer Ring Defect	0.068 cps
Vibration Frequency Inner Ring Defect	0.0987 cps
Series	Unmounted Replacement Bearings
Lubrication Type	Lithium NLGI 2 Low Torque Grease
Vibration Frequency Roller Spin	0.0437 cps
Inner Ring Fillet Radius (in)	0.08 in
Maximum Operating Temperature (F)	220 °F
Locking Type	Concentric
Duty/Status	Standard
Setscrew Torque (in-lbs)	495 in/lbs
Size Code	2-23
Vibration Frequency Fundamental Train	0.0068 cps
Ability to Relubricate	Yes
Maximum Speed (rpm)	2500 rpm
Inner Race Heat Treat Method	Zone-Hardened
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	9,752 lb
Static Load Rating (lb)	6,601 lb

General Specifications

UPC	662461258897
Weight	4.02 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
