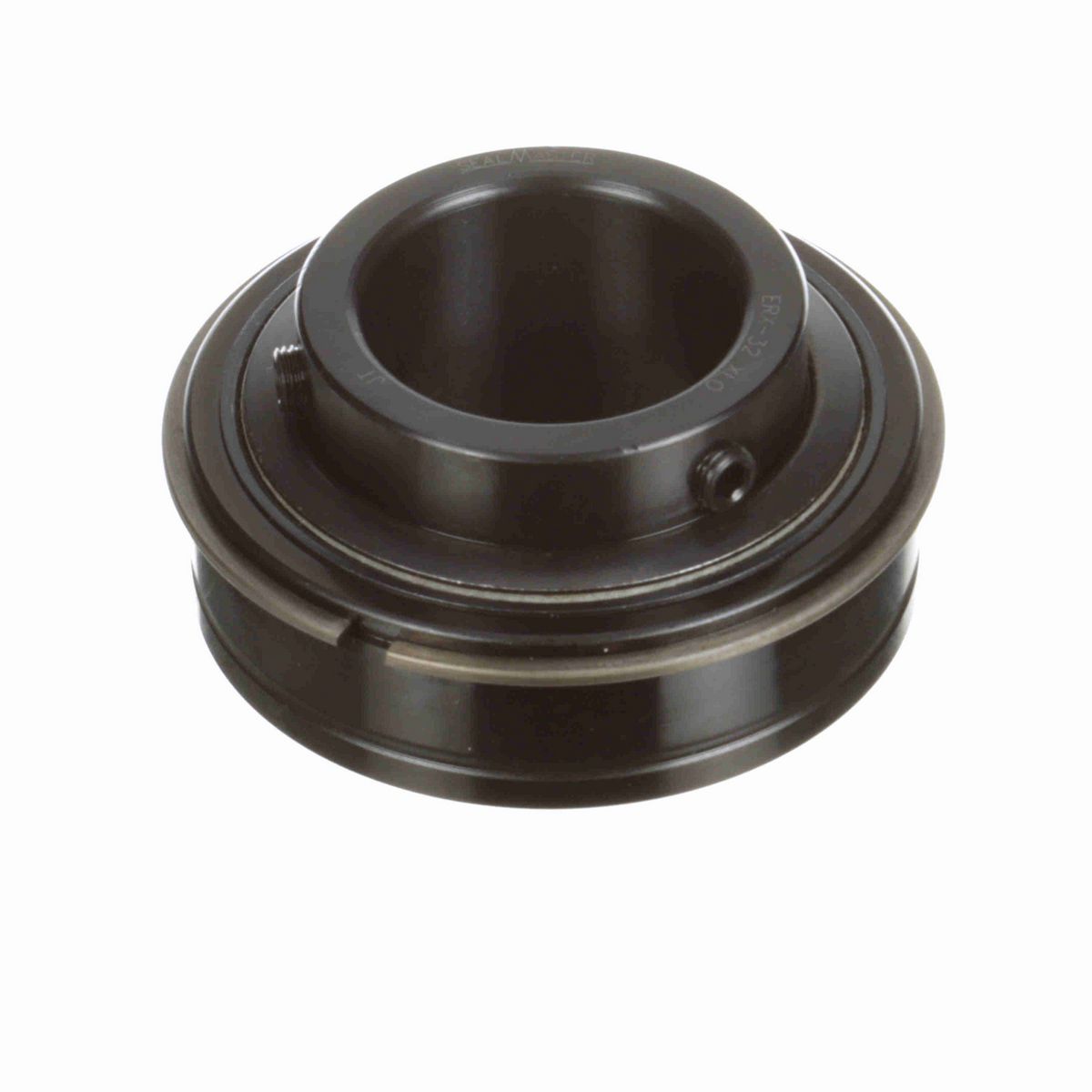

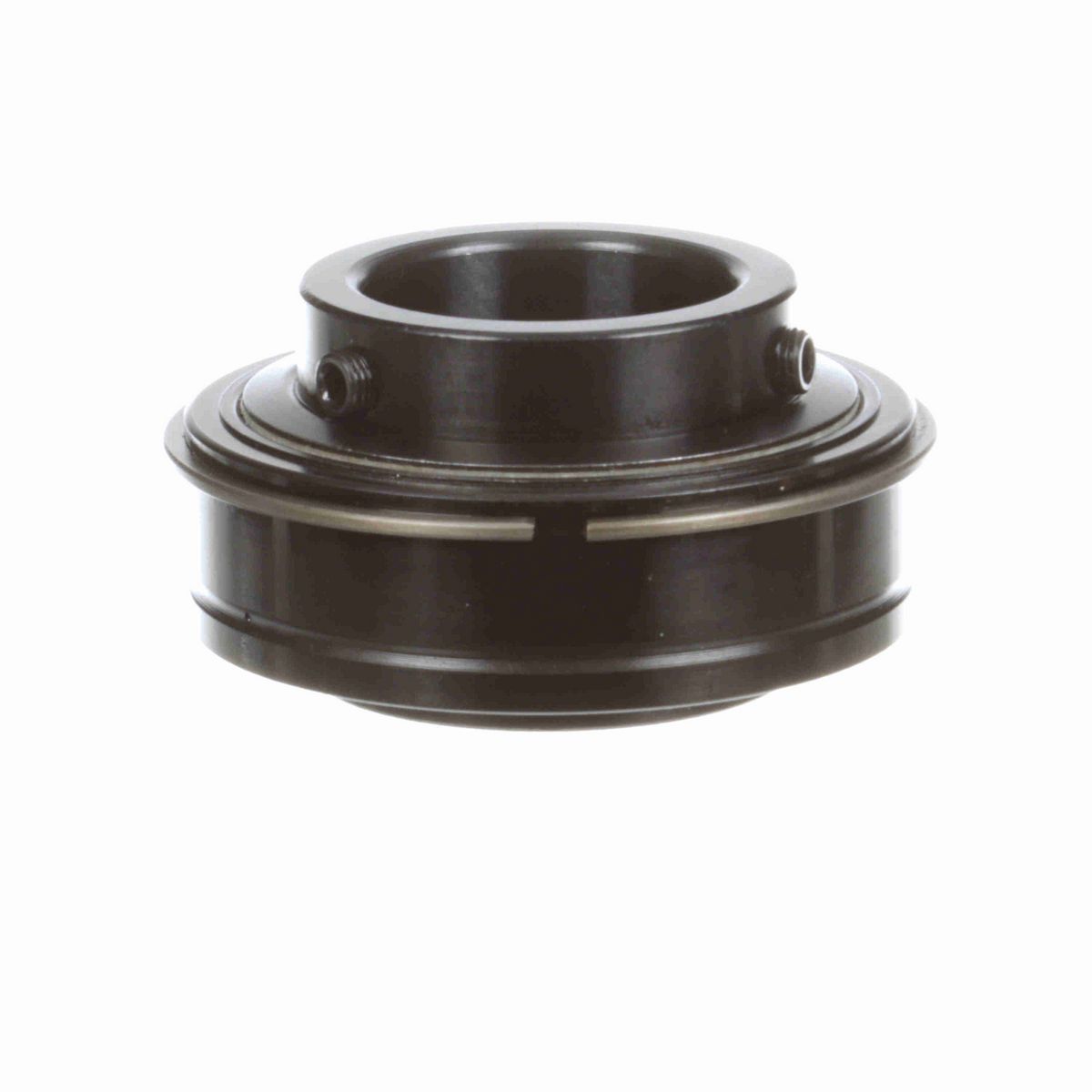

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• Extra low drag seal cut down felt labyrinth seal and flinger
• Oil lubricated for reduced internal friction
• Nylon retainer to reduce overall drag

Dimensions

Overall Width (in)	2.19 in
Bore Size (in)	2 in
Inner Ring OD (in)	2.719 in
Outer Race Width (in)	1.188 in
Outer Race OD (mm)	100 mm
Outer Race OD (in)	3.937 in
Centerline to Front Face (in)	1.313 in
Length Through Bore (in)	2.188 in
Outer Race Width (mm)	30.2 mm

Technical Specifications

Seal Type	Cut Down Felt Labyrinth
Set Screw Thread	3/8-24 UNF
Insert Material	52100 Bearing Steel
Bore Shape	Straight
Rolling Element	Ball Bearing
Housing Type	Insert (ER Style)
Measure Units	Inch
Internal Clearance	Standard
Expansion	No
Misalignment	None
Bearing Insert Coating	Black Oxide
Outer Ring Land Profile	Tapered Lands
Options	Extra Low Drag
Platform	Gold Line Ball Bearing
Misalignment Type	Static Only
End Cap	No
Cage Material	PPS - Polyphenylene Sulfide
Precision Rating	ABEC 1
Outer Race Profile	Cylindrical
Inner Race Profile	Wide Inner Ring
Vibration Frequency Inner Ring Defect	0.0987 cps
Vibration Frequency Fundamental Train	0.0068 cps
Lubrication Type	Oil Coated Only - No Factory Grease Fill
Duty/Status	Standard
Setscrew Torque (in-lbs)	230-300 in/lbs
Size Code	2-23
Ability to Relubricate	Yes
Maximum Operating Temperature (F)	220 °F
Vibration Frequency Roller Spin	0.0437 cps
Locking Type	Set Screw
Series	Unmounted Replacement Bearings
Maximum Speed (rpm)	1250 rpm
Inner Race Heat Treat Method	Zone-Hardened
Inner Ring Fillet Radius (in)	0.08 in
Vibration Frequency Outer Ring Defect	0.068 cps
Cage Type	Land Riding Retainer
Static Load Rating (lb)	6,601 lb
Dynamic Load Rating (lb)	9,752 lb

General Specifications

UPC	662461259214
Weight	3.05 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
