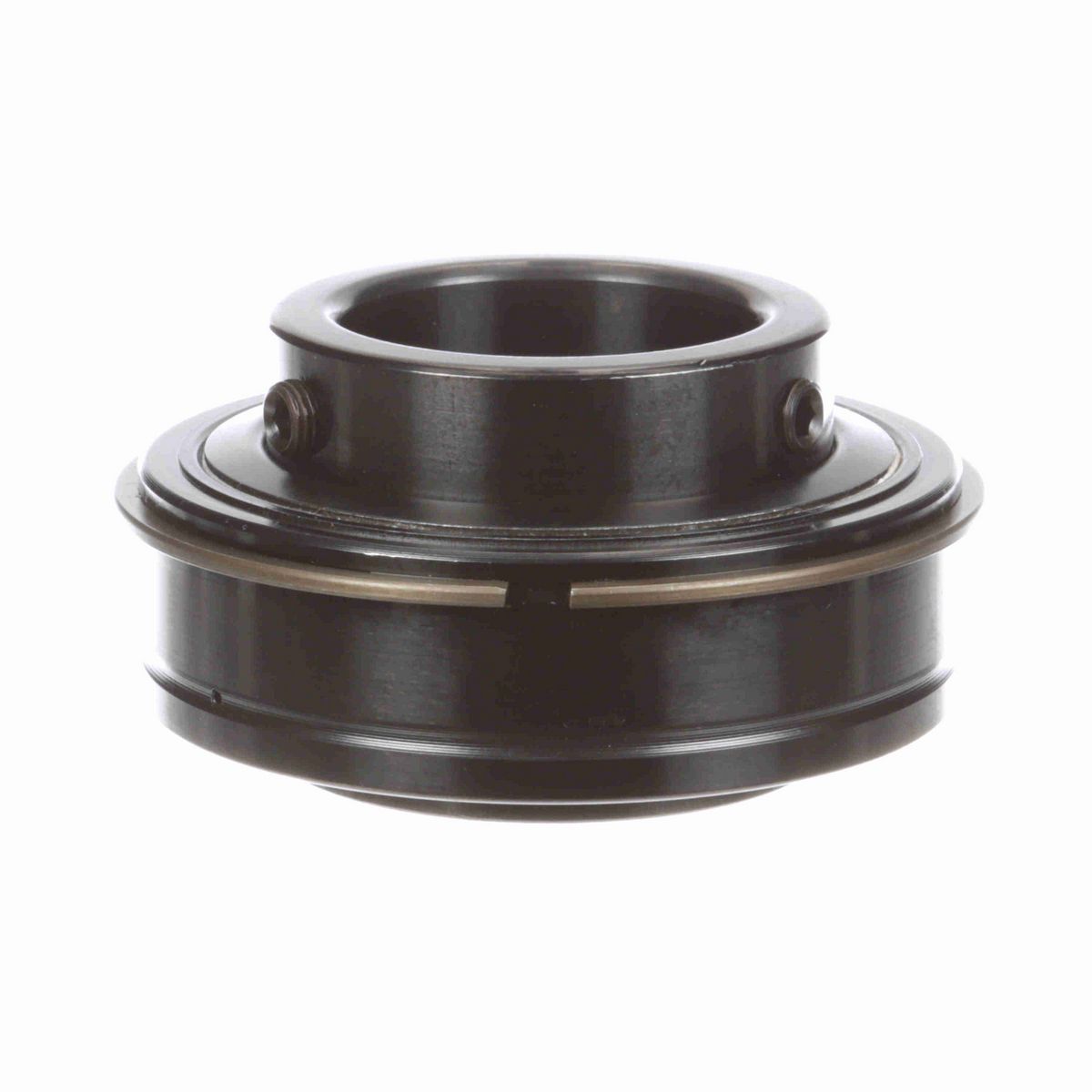

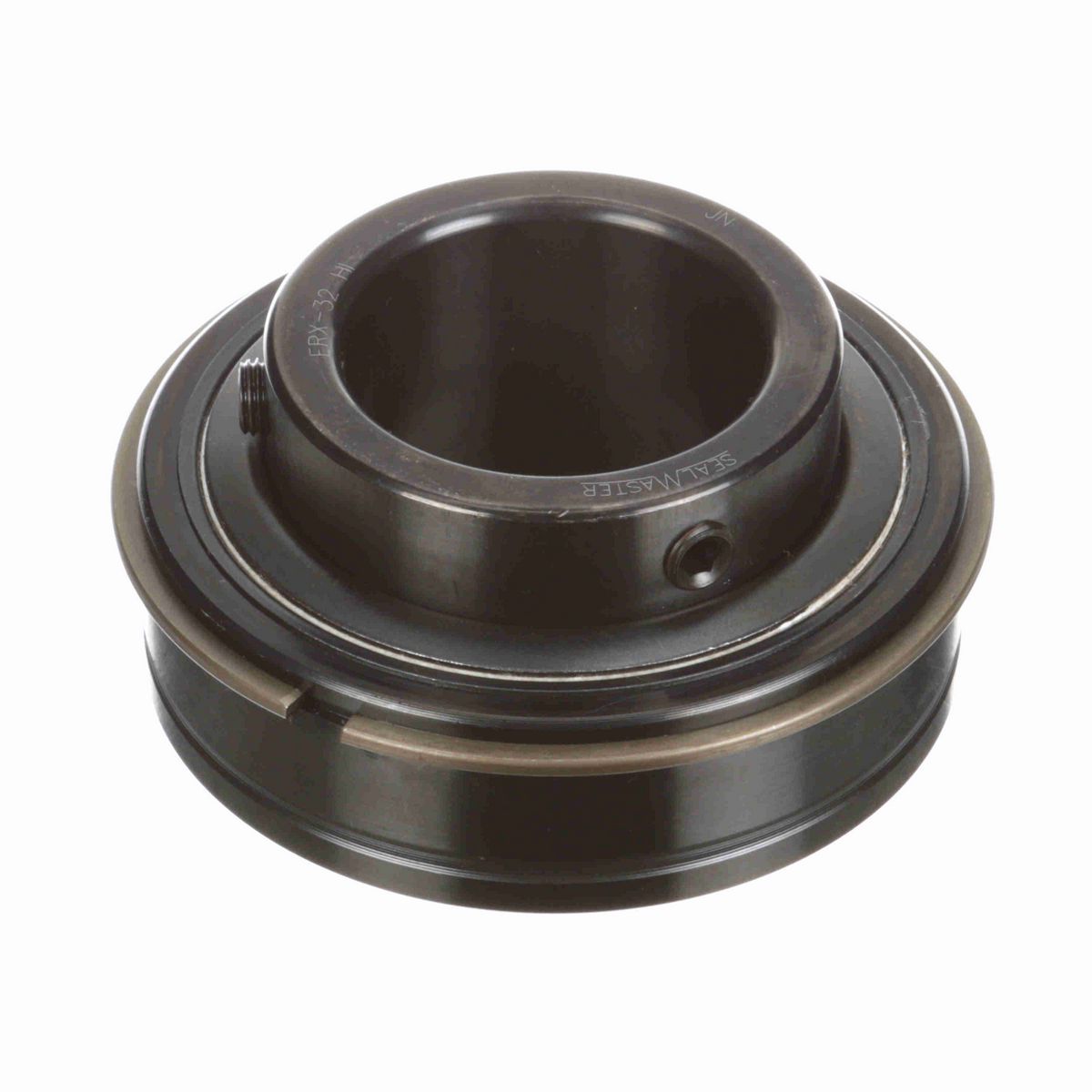

• ER style cylindrical OD bearing with snap and with black oxided bearing rings
• Zone hardened inner ring with 120° spacing setscrew lock with diamond faceted setscrews
• High temperature felt labyrinth seal and flinger
• Increased internal clearance
• Krytox® high temperature grease

Dimensions

Overall Width (in)	2.19 in
Bore Size (in)	2 in
Outer Race OD (mm)	100 mm
Outer Race Width (in)	1.188 in
Centerline to Front Face (in)	1.313 in
Inner Ring OD (in)	2.719 in
Outer Race OD (in)	3.937 in
Length Through Bore (in)	2.188 in
Outer Race Width (mm)	30.2 mm

Technical Specifications

Measure Units	Inch
Housing Type	Insert (ER Style)
Rolling Element	Ball Bearing
Bore Shape	Straight
Insert Material	52100 Bearing Steel
Seal Type	High Temp Labyrinth
Set Screw Thread	3/8-24 UNF
Expansion	No
Misalignment	None
Internal Clearance	Increased
Outer Ring Land Profile	Tapered Lands
Misalignment Type	Static Only
Platform	Gold Line Ball Bearing
Bearing Insert Coating	Black Oxide
End Cap	No
Options	High Temperature
Precision Rating	ABEC 1
Cage Material	PPS - Polyphenylene Sulfide
Inner Race Profile	Wide Inner Ring
Outer Race Profile	Cylindrical
Ability to Relubricate	Yes
Vibration Frequency Outer Ring Defect	0.068 cps
Maximum Speed (rpm)	1400 rpm
Setscrew Torque (in-lbs)	230-300 in/lbs
Locking Type	Set Screw
Size Code	2-23
Inner Race Heat Treat Method	Zone-Hardened
Duty/Status	Standard
Inner Ring Fillet Radius (in)	0.08 in
Vibration Frequency Fundamental Train	0.0068 cps
Lubrication Type	PTFE thickened Grease
Series	Unmounted Replacement Bearings
Vibration Frequency Inner Ring Defect	0.0987 cps
Vibration Frequency Roller Spin	0.0437 cps
Maximum Operating Temperature (F)	400 °F
Maximum Operating Temperature (C)	204 °C
Static Load Rating (lb)	6,601 lb
Cage Type	Land Riding Retainer
Dynamic Load Rating (lb)	9,752 lb

General Specifications

UPC	662461259412
Weight	3.00 LB
Packaged Length	4.25 IN
Packaged Width	2.25 IN
Packaged Height	4.25 IN
HTC	8482.10.5052
Country of Origin	Mexico
